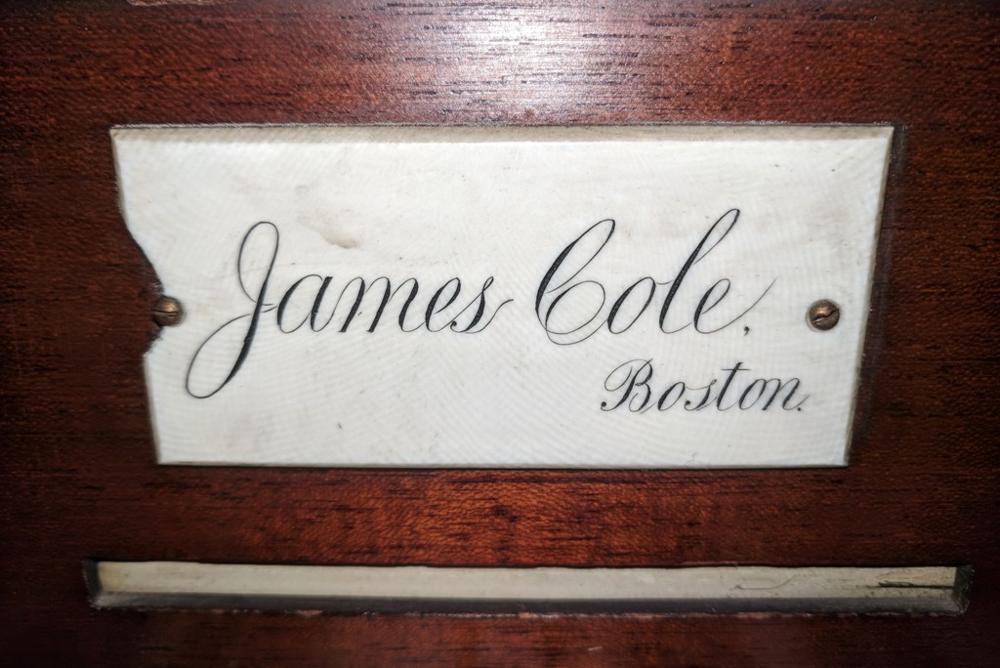

James Cole
Opus 361, 1900

Residence: Moses T. Stevens / Stevens Estate at Osgood Hill

723 Osgood Street
North Andover, MA, US

10 Ranks - 567 Pipes
Instrument ID: 1699 ● Builder ID: 1330 ● Location ID: 1651
⬆️ These are database IDs that may change. Don't use as academic reference.EXPLORE IMAGESVIEW STOPLIST

Something not quite correct?Suggest an Edit

Plenum Organ Company

🤝 Instrument entries in Massachusetts sponsored by:

We are grateful for the generous support of our sponsors, who make it possible for us to continue our mission of preserving and promoting the rich history of pipe organs across the globe.

IMAGES

Category:
Only show images in a specific category ☝️

Something missing or not quite correct?Add ImageorSuggest an Edit

STOPLISTS

Selected Item:
View additional stoplist entries if they exist ☝️

Something missing or not quite correct?Add StoplistorSuggest an Edit

CONSOLES

Selected Item:
View additional console entries if they exist ☝️

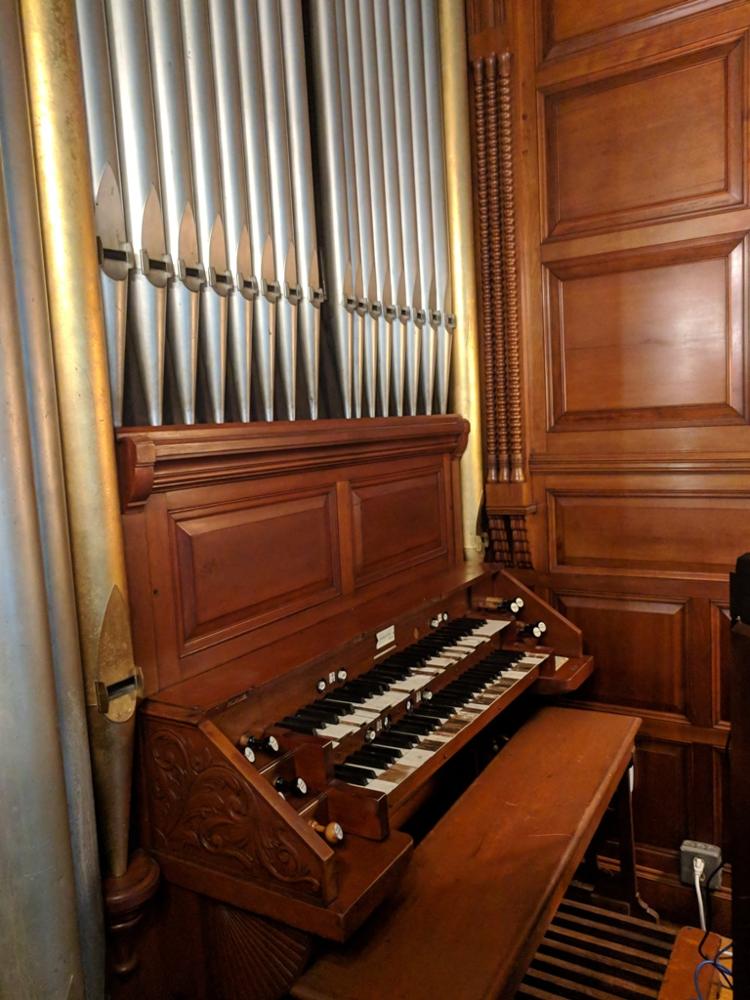

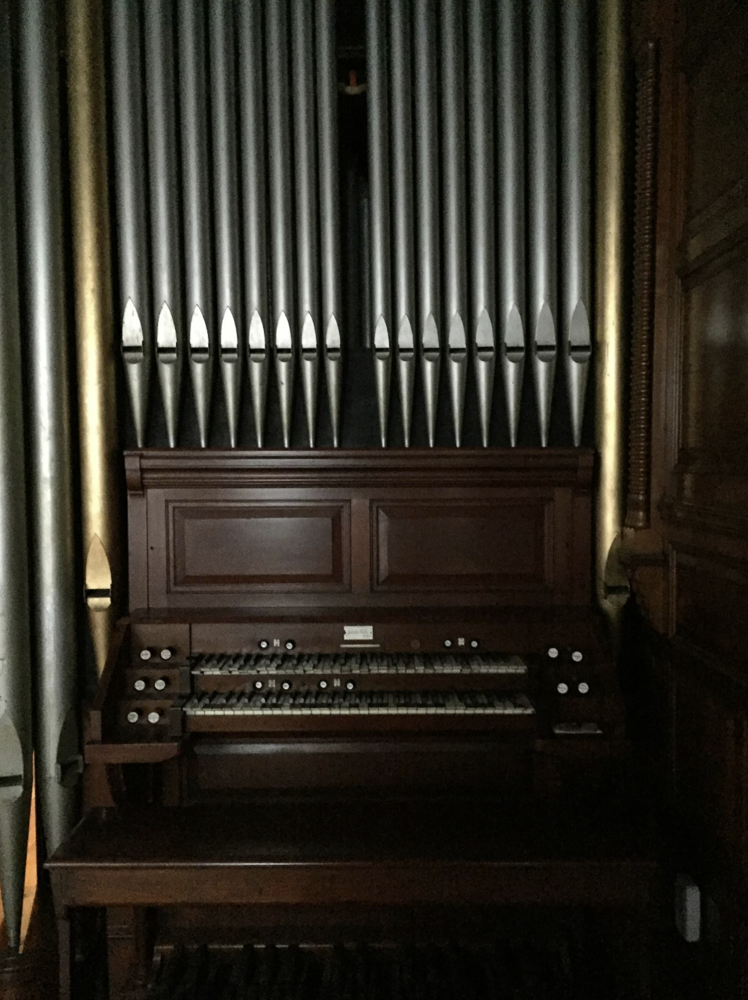

Builder: Unknown
Position: Keydesk Attached
Design: Unknown
Pedalboard Type: Flat Straight
Features:
2 Manuals (61 Notes)30 Note Pedal3 Divisions10 Stops10 RegistersMechanical (Unknown) Key ActionMechanical Stop Action✓ Coupler Thumb Piston(s)✓ Hitchdown Coupler(s)

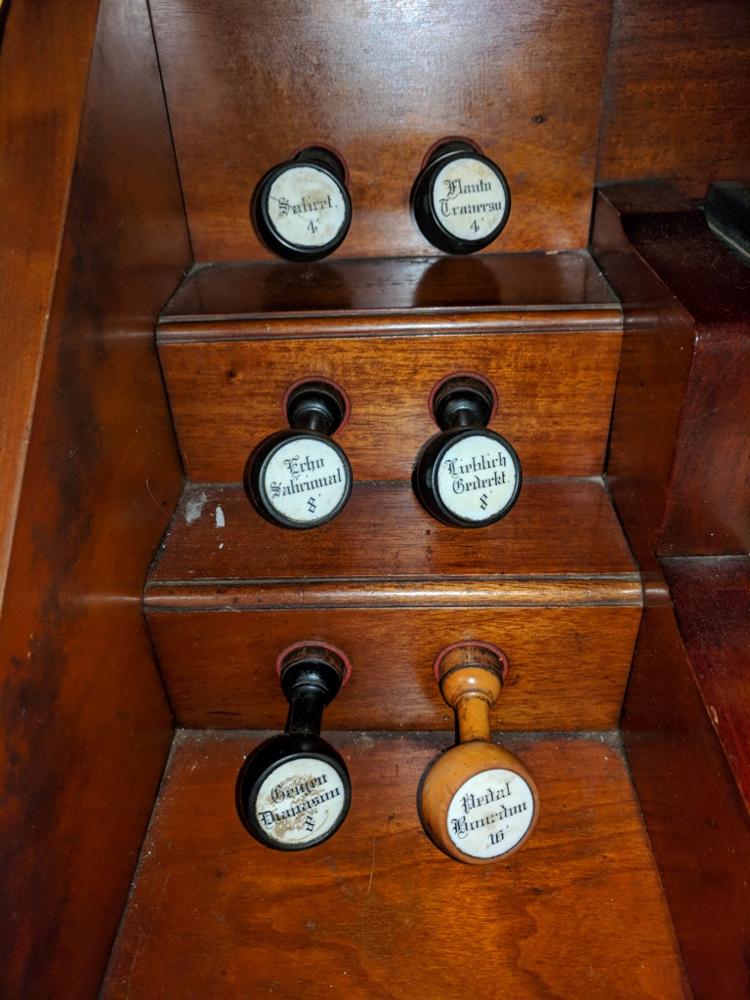

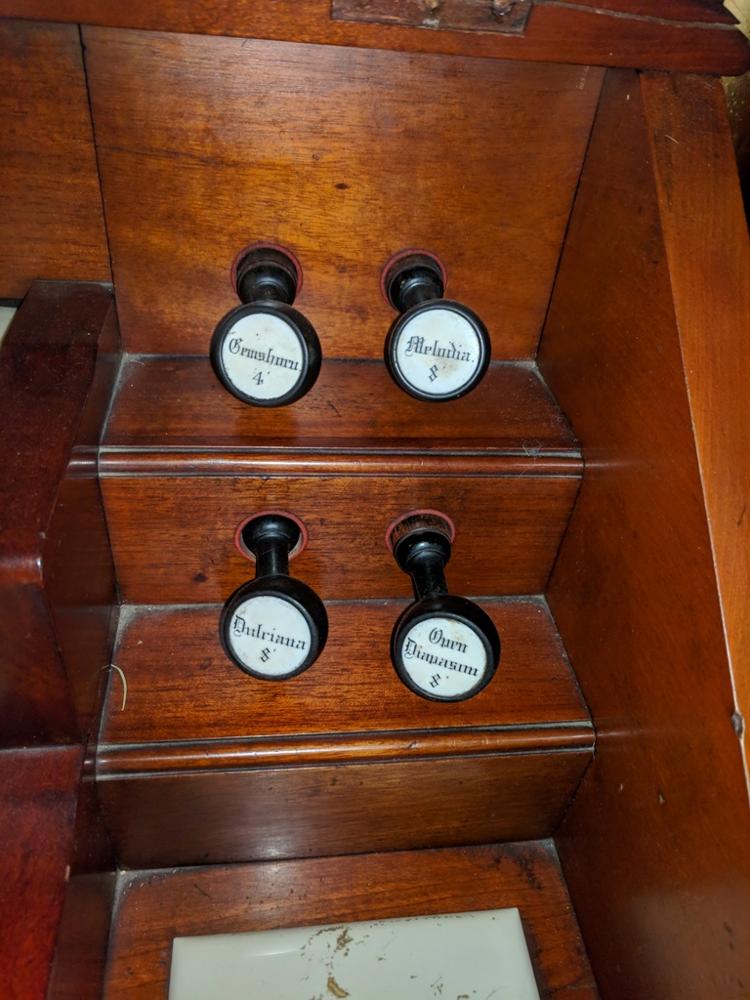

Stop Layout: Drawknobs in Horizontal Rows on Terraced/Stepped Jambs
Expression Type: Balanced Expression Shoes/Pedals (Not Meeting AGO Standards)
Combination Action: Unknown
Control System: Unknown or N/A

Something missing or not quite correct?Add ConsoleorSuggest an Edit

DETAILS

Switch between notes, documents, and blowers ☝️
This instrument is: Extant and Not Playable in this location

John Roper on November 7th, 2021:

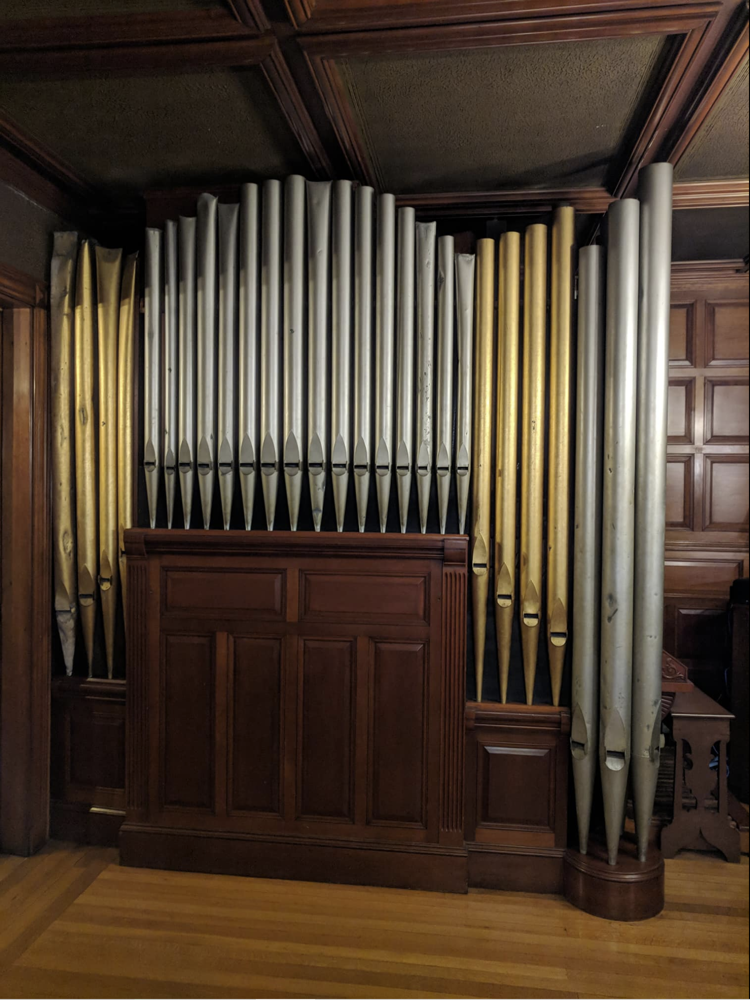

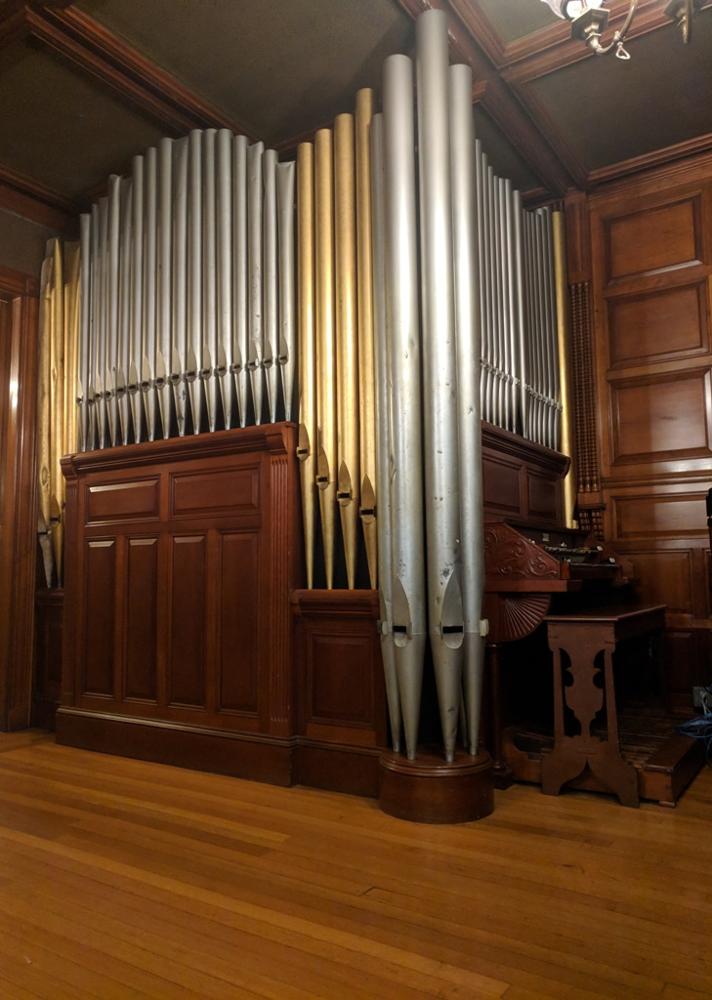

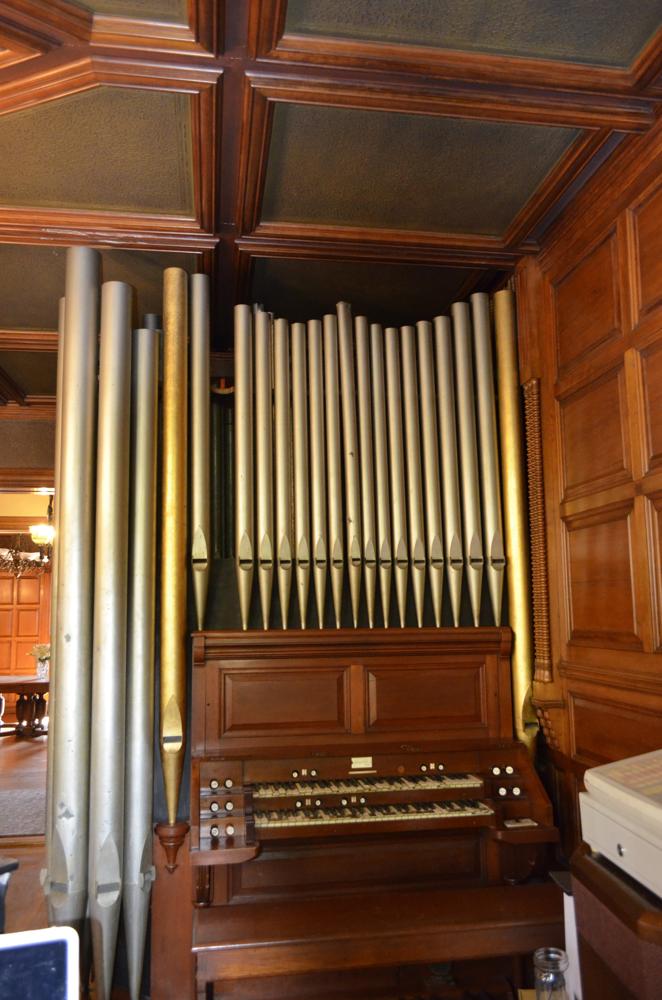

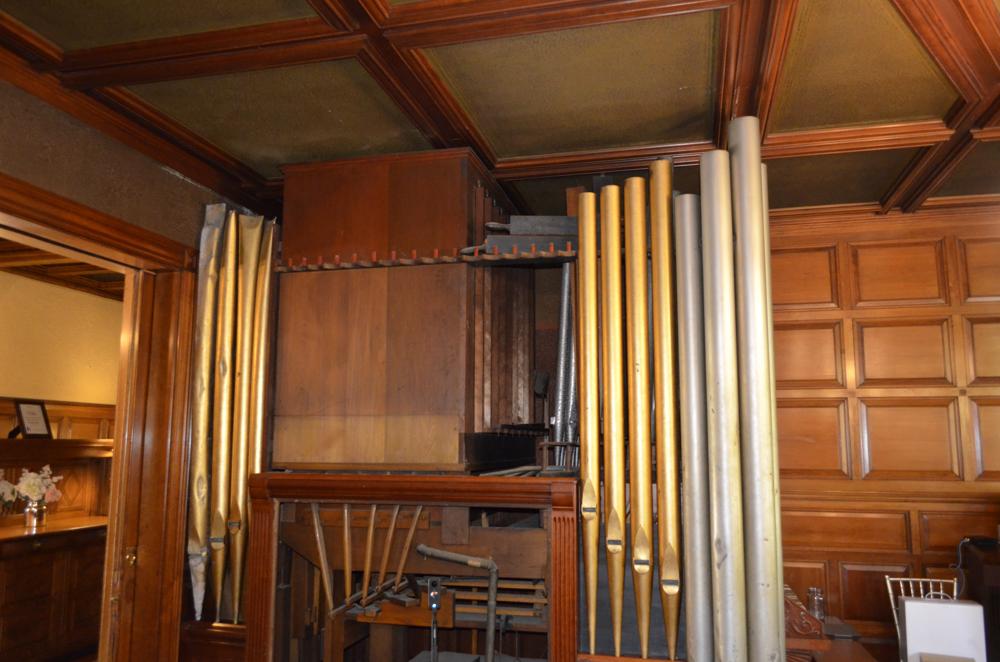

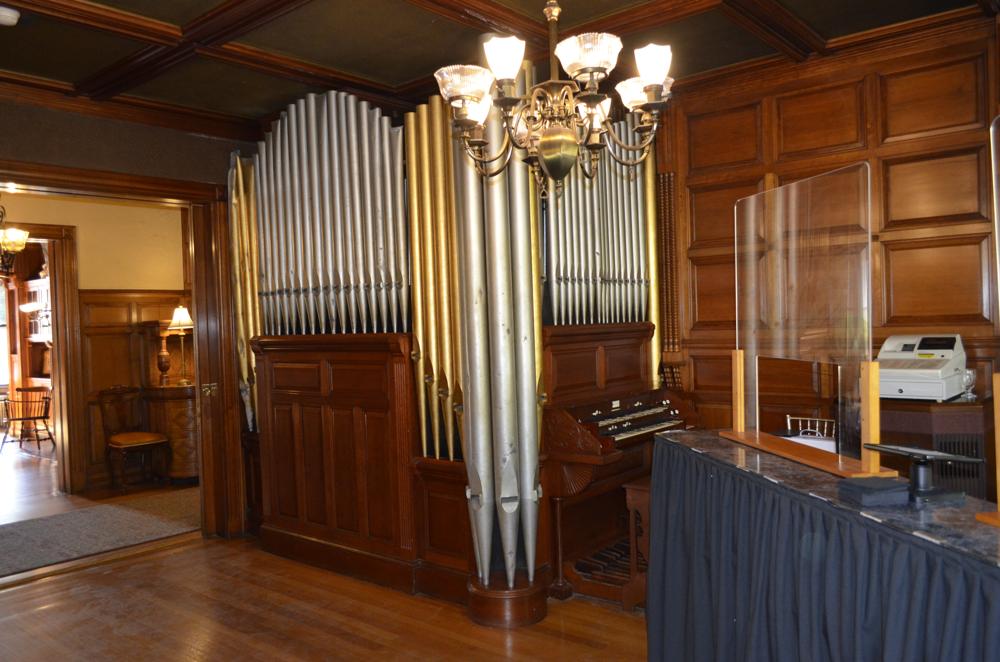

Inspected on 11/6/21: Instrument currently not playable. Facade is made up of dummy pipes and 1-24 of the Great 8' Diapason low C of which has a 5" diameter. Out of the facade, the 5th and 33rd pipes are missing. Playing facade pipes are numbers: 16-20, 22-39, and 49. The keyboards are currently missing a combined 32 ivories. The blower and tremulant are located in the basement. The blower is a 1/3hp Spencer with 4" output. The motor is a single phase Century repulsion-start motor.

Database Manager on November 28th, 2018:
Updated by Wayne Johnson, who gave this as the source of the information: I have seen the organ (it does not play). <br> <br>

Database Manager on January 9th, 2008:
Updated through online information from James R. Stettner. -- The organ was built for the Stevens family and installed in their Music Room. The estate was maintained by the family until the 1950s when it was donated to Boston University, who operated it as the Osgood Hill Conference Center. In 1995, it was purchased by the Town of North Andover to protect it, it having been added to the National Register of Historic Places. It is still operated as a conference center and as a place that may be rented for functions like weddings and other celebrations. The couplers are operated by mechanical finger pistons placed in the manual keyslips. The Swell Tremolo is also operated by one of these pistons, and the Sw. to Gr. Octave coupler is actuated by a reversible foot lever. At the time of my visit in 1990, the organ hadn't been used in some 15 years. Many of the facade pipes had missing ears, split seams, and numerous dents. 15 ivories were missing from the Great manual keys. The Pedal pipes were cracked. Reservoir leather was dry and flaky. Leather nuts were old and flaking, and the Swell keys had fallen. The Pedal 16' Bourdon was on a ventil chest.
