Casavant Frères Ltée.
Opus 2134, 1952
Originally Austin Organ Co. (Opus 955, 1920)
Cathedral Church of St. Paul, Episcopal
4800 Woodward Avenue
Detroit, MI, US
57 Ranks - 3,442 Pipes
Instrument ID: 27222 ● Builder ID: 1116 ● Location ID: 12335
⬆️ These are database IDs that may change. Don't use as academic reference.EXPLORE IMAGESVIEW STOPLISTSomething not quite correct?Suggest an Edit
IMAGES
Category:
Only show images in a specific category ☝️
Something missing or not quite correct?Add ImageorSuggest an Edit
STOPLISTS
Selected Item:
View additional stoplist entries if they exist ☝️
Something missing or not quite correct?Add StoplistorSuggest an Edit
CONSOLES
Selected Item:
View additional console entries if they exist ☝️

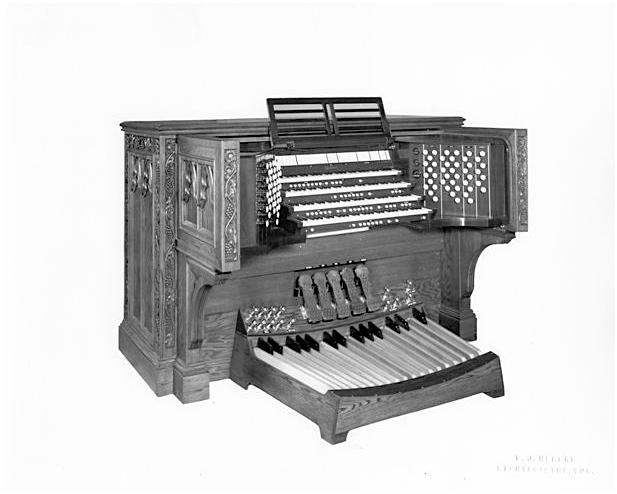

Builder: Unknown
Position: Console in Fixed Position, Left
Design: Traditional With Roll Top
Pedalboard Type: Concave Radiating (Meeting AGO Standards)
Features:
4 Manuals (61 Notes)32 Note Pedal5 Divisions47 Stops5542 RegistersElectrical Key ActionElectrical Stop Action✓ Crescendo✓ Combination Thumb Piston(s)✓ Combination Toe Piston(s)✓ Coupler Thumb Piston(s)✓ Coupler Toe Piston(s)✓ Sforzando Toe Piston(s)Stop Layout: Drawknobs in Vertical Rows on Angled Jambs
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination Action: Remote Pneumatic/Mechanical Capture
Control System: Unknown or N/A
Something missing or not quite correct?Add ConsoleorSuggest an Edit
DETAILS
Switch between notes, documents, and blowers ☝️
This instrument is: Extant and Playable in this location
Database Manager on June 16th, 2010:
Updated through online information from Jeff Scofield. -- 25 ranks and parts added by Casavant in 1954; rebuilt and enlarged by Pilzecker as a 4/96 in 1991, retaining the ornate Casavant console shell.
Updated through online information from Jeff Scofield. -- 25 ranks and parts added by Casavant in 1954; rebuilt and enlarged by Pilzecker as a 4/96 in 1991, retaining the ornate Casavant console shell.
Database Manager on February 27th, 2010:
Updated by Rae Bolton from information furnished by Casavant Frères, courtesy of Simon Couture. Console [for existing Austin organ ?]
Database Manager on August 17th, 2007:
Updated through online information from Douglas W. Craw.
Database Manager on July 27th, 2007:
Identified through online information from Douglas W. Craw. -- Organ replaced by Pilzecker in 1992.
Related Instrument Entries: Austin Organ Co. (Opus 955, 1920) , D.F. Pilzecker & Co. (Opus 123, 1992) , Casavant Frères Ltée. (Opus 2134-A, 1954)
