Schantz Organ Co.
Opus 1617, 1980
Christ Church United Methodist
Chapel
4614 Brownsboro Road
Louisville, KY, US
39 Ranks
Instrument ID: 27288 ● Builder ID: 7079 ● Location ID: 24036
⬆️ These are database IDs that may change. Don't use as academic reference.EXPLORE IMAGESVIEW STOPLISTSomething not quite correct?Suggest an Edit
IMAGES
Category:
Only show images in a specific category ☝️
Something missing or not quite correct?Add ImageorSuggest an Edit
STOPLISTS
Selected Item:
View additional stoplist entries if they exist ☝️
Something missing or not quite correct?Add StoplistorSuggest an Edit

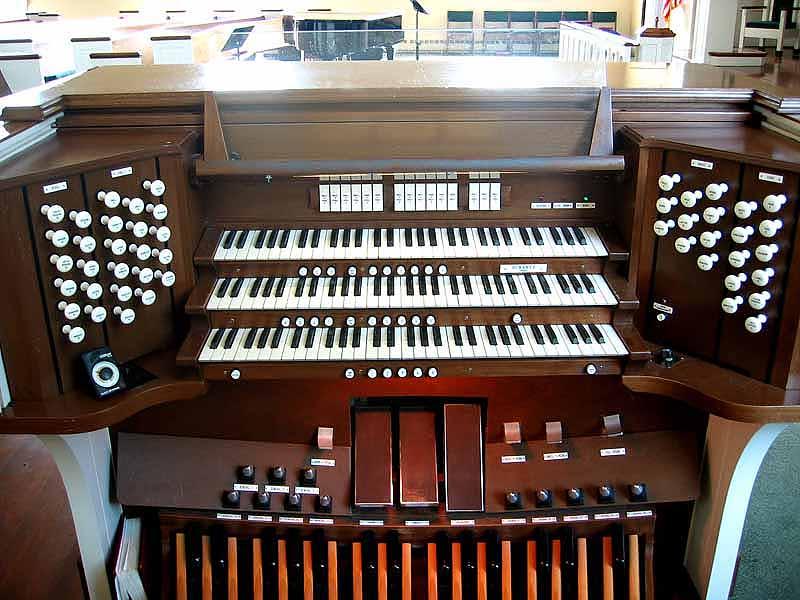

CONSOLES
Selected Item:
View additional console entries if they exist ☝️
Builder: Unknown
Position: Console in Fixed Position, Right
Design: Traditional With Roll Top
Pedalboard Type: Concave Radiating (Meeting AGO Standards)
Features:

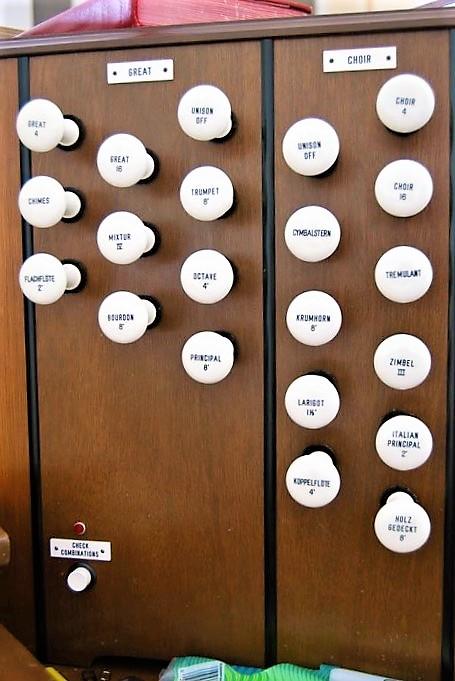

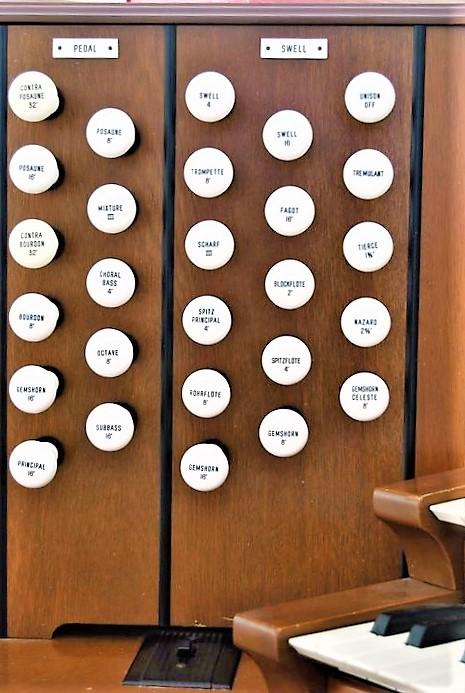

3 Manuals (61 Notes)32 Note Pedal4 Divisions35 Stops31 RegistersElectrical Key ActionElectrical Stop Action✓ Combination Thumb Piston(s)✓ Combination Toe Piston(s)✓ Coupler Toe Piston(s)✓ Sforzando Thumb Piston(s)✓ Sforzando Toe Piston(s)Stop Layout: Drawknobs in Vertical Rows on Angled Jambs
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination Action: Adjustable Combination Pistons
Control System: Unknown or N/A
Something missing or not quite correct?Add ConsoleorSuggest an Edit
DETAILS
Switch between notes, documents, audio, and blowers ☝️
This instrument is: Extant and Playable in this location
Database Manager on April 5th, 2012:
Updated through online information from Michael Olafson. -- Electro-pneumatic console
Database Manager on August 3rd, 2007:

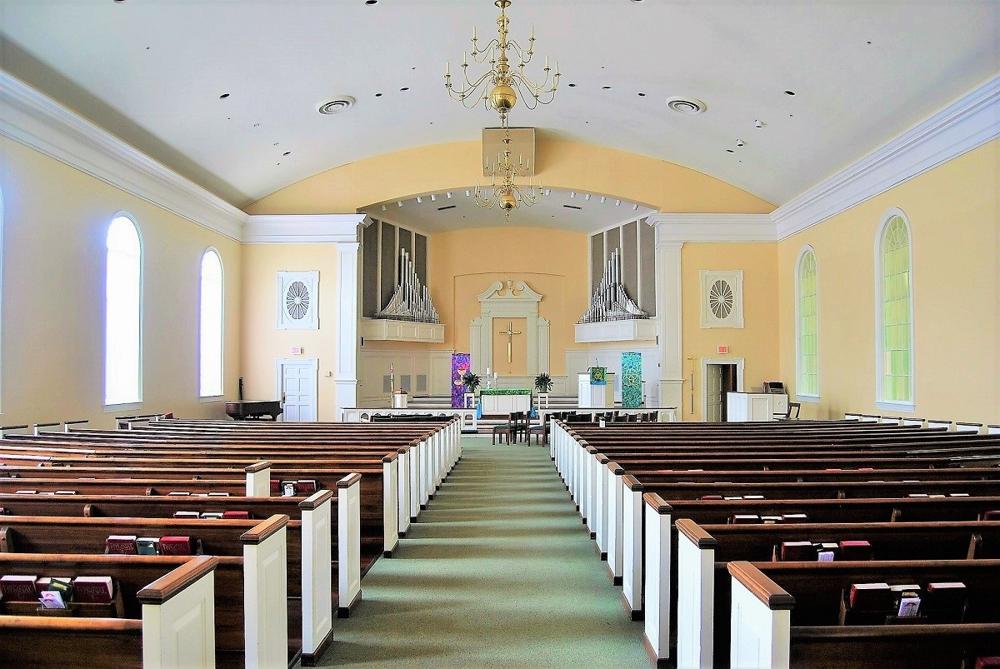

Identified through on-line information from Jeff Scofield. -- The organ is installed in side chambers with Great and Pedal pipework on cantilevered chests in front of the chambers on each side.
