Martin Ott Pipe Organ Co.
Opus 68, 2008
Originally Martin Ott Pipe Organ Co. (Opus 68, 1994)

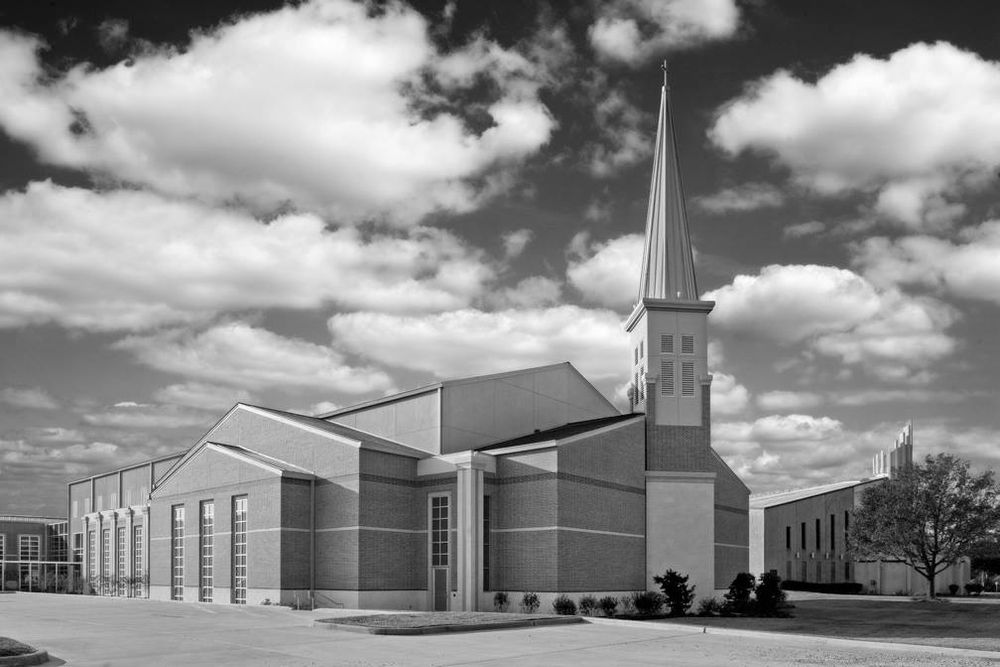

Trinity Evangelical Lutheran Church
5201 Spring Cypress Road
Spring, TX, US
50 Ranks - 2,439 Pipes - 4 Physical Divisions
Instrument ID: 38285 ● Builder ID: 4716 ● Location ID: 33751
⬆️ These are database IDs that may change. Don't use as academic reference.EXPLORE IMAGESVIEW STOPLISTSomething not quite correct?Suggest an Edit
IMAGES
Category:
Only show images in a specific category ☝️
Something missing or not quite correct?Add ImageorSuggest an Edit
STOPLISTS
Selected Item:
View additional stoplist entries if they exist ☝️
Click on a stop or division name for additional details if marked with 🛈.
| Hauptwerk (II)🛈 | ||
| 16' | Bordun | 56 |
| 8' | Prinzipal | 56 |
| 8' | Rohrflöte🛈 | 44 |
| 4' | Oktave | 56 |
| 4' | Nachthorn | 56 |
| 2 2⁄3' | Quinte | 56 |
| 2' | Oktave | 56 |
| IV-V | Mixtur | 255 |
| 8' | Horizontale Trompete | 56 |
| 8' | Trompete | 56 |
| 4' | Schalmey | 56 |
| Schwellwerk / Hauptwerk | ||
| Positiv / Hauptwerk |
| Schwellwerk (III - Expressive)🛈 | ||
| 8' | Viola | 56 |
| 8' | Viola Celeste [tc] | 44 |
| 8' | Holzgedackt | 56 |
| 4' | Prinzipal | 56 |
| 4' | Gemsflöte | 56 |
| 2' | Oktave | 56 |
| II | Sesquialter [mc] | 64 |
| III-IV | Scharf | 214 |
| 16' | Dulzian | 56 |
| 8' | Trompete | 56 |
| Tremulant |
| Positiv (I)🛈 | ||
| 8' | Holzprinzipal | 56 |
| 8' | Bleigedackt | 56 |
| 4' | Rohrflöte | 56 |
| 2 2⁄3' | Nasat | 56 |
| 2' | Nachthorn | 56 |
| 1 3⁄5' | Terz | 56 |
| 1 1⁄3' | Quinte | 56 |
| III-IV | Zimbel | 180 |
| 8' | Krummhorn | 56 |
| 8' | Tremulant | |
| 8' | Horizontale Trompete | HW |
| Pedal🛈 | ||
| 32' | Untersatz [2008] | 12 ext. 16' Subbass |
| 16' | Prinzipal | 30 |
| 16' | Subbass | 30 |
| 8' | Oktavbass🛈 | 18 |
| 8' | Pommer | 12 ext. 16' Subbass |
| 4' | Choralbass | 30 |
| IV | Mixtur | 120 |
| 32' | Bombarde [2008] | 12 ext. 16' Pos. |
| 16' | Posaune | 30 |
| 8' | Trompete | HW |
| 4' | Schalmey | HW |
| Schwellwerk / Pedal | ||
| Hauptwerk / Pedal | ||
| Positiv / Pedal |
Something missing or not quite correct?Add StoplistorSuggest an Edit
CONSOLES
Selected Item:
View additional console entries if they exist ☝️
Builder: Martin Ott Pipe Organ Co.
Position: Detached Keydesk (Mechanical Action)
Design: Unknown
Pedalboard Type: Unknown
Features:
3 Manuals (56 Notes)30 Note Pedal4 Divisions36 Stops42 RegistersMechanical (Unknown) Key ActionElectrical Stop ActionStop Layout: Drawknobs in Horizontal Rows on Curved Jambs
Expression Type: Balanced Expression Shoes/Pedals (Details Unknown)
Combination Action: Unknown
Control System: Unknown or N/A
Something missing or not quite correct?Add ConsoleorSuggest an Edit
DETAILS
Switch between notes, documents, and blowers ☝️
This instrument is: Extant and Playable in this location
Database Manager on June 22nd, 2017:

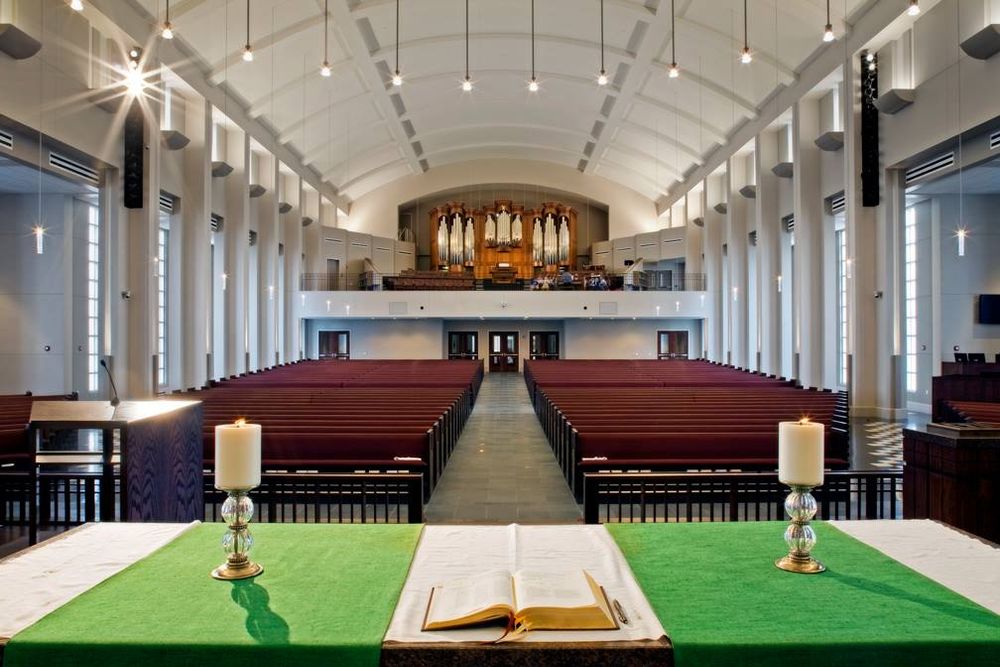

The new church seats 1350 in the nave and 100 musicians in the balcony. The acoustician was Scott Riedel of Scott R. Riedel & Associates, Ltd.
The new church seats 1350 in the nave and 100 musicians in the balcony. The acoustician was Scott Riedel of Scott R. Riedel & Associates, Ltd.
Database Manager on January 9th, 2009:
Relocation and enlargement of existing 1994 Ott organ. A large crown molding was added to the organ case in addition to the Untersatz 32' and the Bombarde 32'.
Related Instrument Entries: Martin Ott Pipe Organ Co. (Opus 68, 1994)
