Casavant Frères Ltée.
Opus 2716, 1962
Columbia University - Teachers College
Milbank Chapel
525 W. 120th St. at Amsterdam Ave.
New York City: Manhattan, NY, US
42 Ranks - 2,368 Pipes
Instrument ID: 44208 ● Builder ID: 1116 ● Location ID: 38989
⬆️ These are database IDs that may change. Don't use as academic reference.EXPLORE IMAGESVIEW STOPLISTSomething not quite correct?Suggest an Edit
Plenum Organ Company
🤝 Instrument entries in New York sponsored by:
We are grateful for the generous support of our sponsors, who make it possible for us to continue our mission of preserving and promoting the rich history of pipe organs across the globe.
IMAGES
Category:
Only show images in a specific category ☝️
Something missing or not quite correct?Add ImageorSuggest an Edit
STOPLISTS
Selected Item:
View additional stoplist entries if they exist ☝️
Something missing or not quite correct?Add StoplistorSuggest an Edit
CONSOLES
Selected Item:
View additional console entries if they exist ☝️

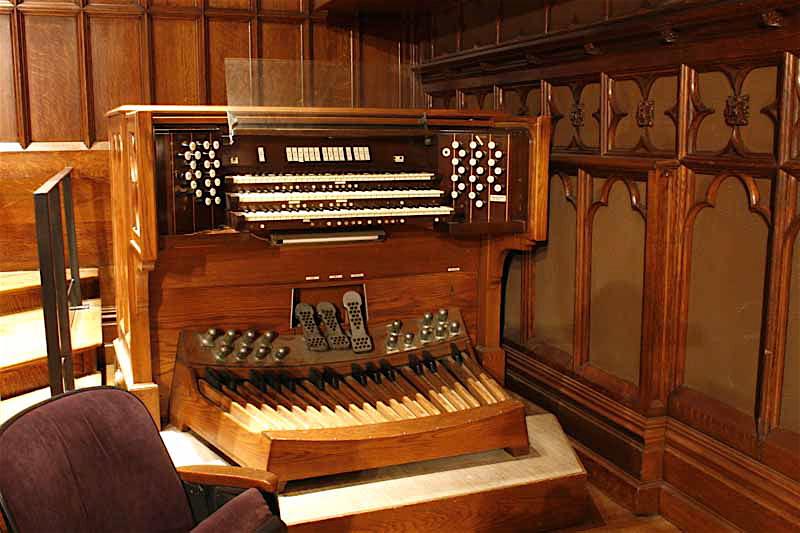

Builder: Unknown
Position: Movable Console
Design: Traditional With Roll Top
Pedalboard Type: Concave Radiating (Meeting AGO Standards)
Features:
3 Manuals (61 Notes)32 Note Pedal5 Divisions36 Stops33 RegistersElectrical Key ActionElectrical Stop Action✓ Crescendo✓ Combination Thumb Piston(s)✓ Combination Toe Piston(s)✓ Coupler Thumb Piston(s)✓ Coupler Toe Piston(s)✓ Sforzando Thumb Piston(s)✓ Sforzando Toe Piston(s)Stop Layout: Drawknobs in Vertical Rows on Angled Jambs
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination Action: Remote Pneumatic/Mechanical Capture
Control System: Unknown or N/A
Something missing or not quite correct?Add ConsoleorSuggest an Edit
DETAILS
Switch between notes, documents, and blowers ☝️
This instrument is: Extant and Playable in this location
Jeff Scofield on January 15th, 2021:

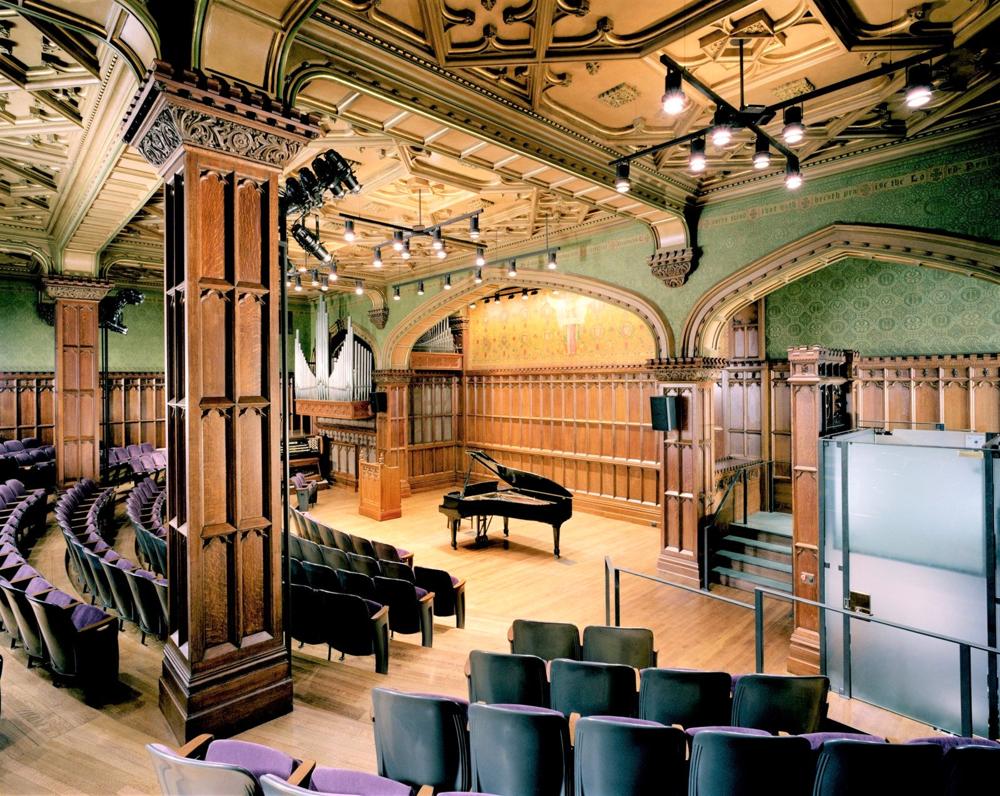

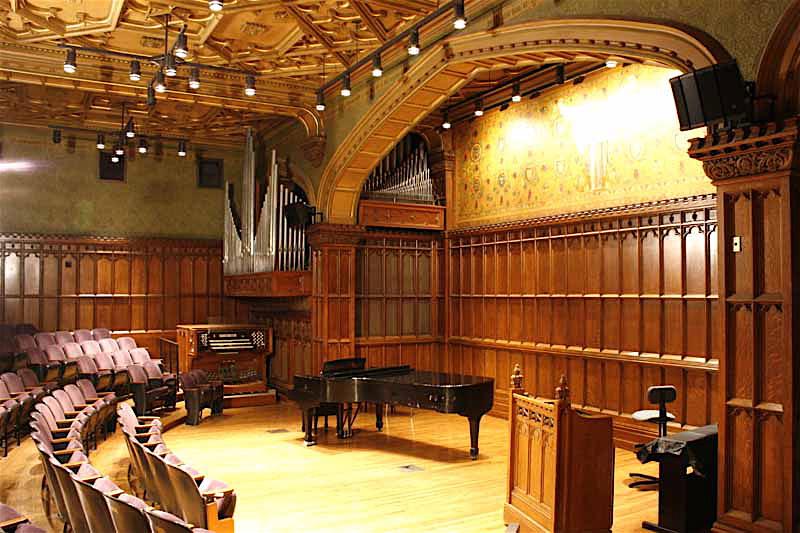

From the NYC AGO NYC Organ Project: Teachers College was founded in 1887 and in 1898 established its affiliation with Columbia University, under which it became the Education Faculty of the University. The western wing that completes the quadrangle of Teachers College is known as The Milbank Memorial, the gift of Joseph Milbank, founder of the memorial and a trustee of the college. Designed by William A. Potter, the Tudor Gothic building includes a chapel and library with ornamentation by the Tiffany Glass and Decorating Company. The Milbank Memorial was opened on Novemeber 11, 1897 with an organ recital by Gustave Viehl in the 250-seat Milbank Memorial Chapel on the 1897 2/14 Jardine. In 1962, an entirely new organ was installed by Casavant Frères of Canada. As with the previous two organs, all pipes are located in the chamber at the right side of the stage. This versatile Casavant organ has forty-two ranks of pipes in five divisions, all controlled by a movable, detached drawknob console of oak with interior fittings of mahogany stained with a walnut finish. Exposed pipes of the Great and Positiv divisions are cantilevered on chests in front of the arched opening. Both of the enclosed divisions (Swell and Choir) have two sets of expression shutters that normally open into the stage and also into the room; those into the room may be switched into the closed position by a rocking tablet. Unfortunately, this fine organ was rendered unplayable when the cable to the console was cut during the last renovation of the chapel.
From the NYC AGO NYC Organ Project: Teachers College was founded in 1887 and in 1898 established its affiliation with Columbia University, under which it became the Education Faculty of the University. The western wing that completes the quadrangle of Teachers College is known as The Milbank Memorial, the gift of Joseph Milbank, founder of the memorial and a trustee of the college. Designed by William A. Potter, the Tudor Gothic building includes a chapel and library with ornamentation by the Tiffany Glass and Decorating Company. The Milbank Memorial was opened on Novemeber 11, 1897 with an organ recital by Gustave Viehl in the 250-seat Milbank Memorial Chapel on the 1897 2/14 Jardine. In 1962, an entirely new organ was installed by Casavant Frères of Canada. As with the previous two organs, all pipes are located in the chamber at the right side of the stage. This versatile Casavant organ has forty-two ranks of pipes in five divisions, all controlled by a movable, detached drawknob console of oak with interior fittings of mahogany stained with a walnut finish. Exposed pipes of the Great and Positiv divisions are cantilevered on chests in front of the arched opening. Both of the enclosed divisions (Swell and Choir) have two sets of expression shutters that normally open into the stage and also into the room; those into the room may be switched into the closed position by a rocking tablet. Unfortunately, this fine organ was rendered unplayable when the cable to the console was cut during the last renovation of the chapel.
Database Manager on August 29th, 2010:
Updated through online information from Jeff Scofield. -- Currently unplayable due to the cable being cut during the last chapel renovation.
Database Manager on October 11th, 2009:
Identified by Rae Bolton from information furnished by Casavant Frères, courtesy of Simon Couture.
