Redman Pipe Organs
2009
Originally Kilgen (Opus 4158, 1928)

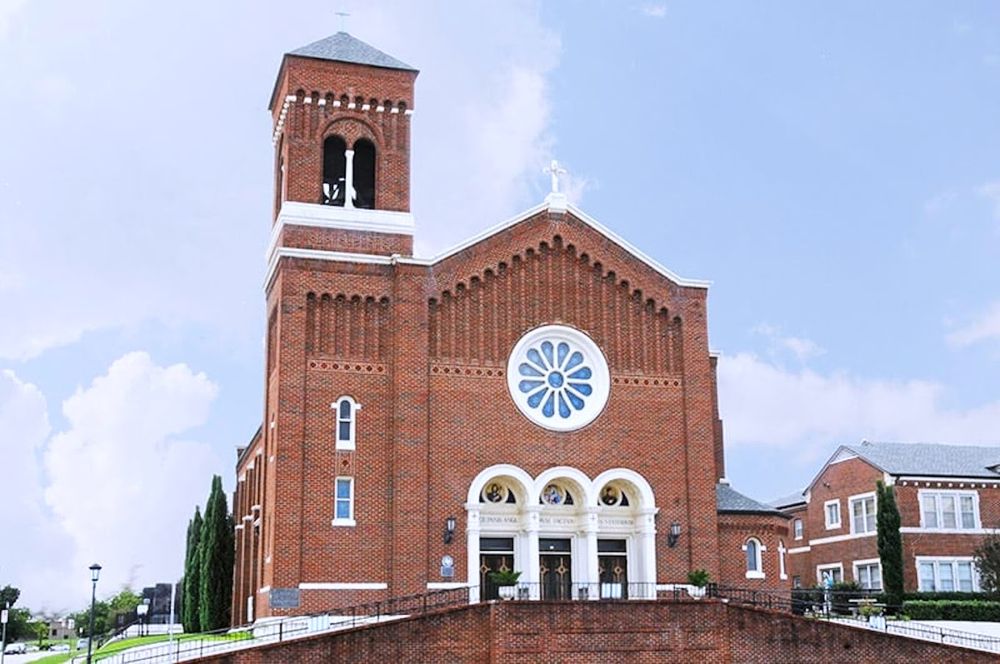

St. Mary of the Assumption Roman Catholic Church
509 West Magnolia Avenue, Fort Worth, TX
Fort Worth, TX, US
12 Ranks - 3 Physical Divisions
Instrument ID: 47632 ● Builder ID: 7722 ● Location ID: 41961
⬆️ These are database IDs that may change. Don't use as academic reference.EXPLORE IMAGESVIEW STOPLISTSomething not quite correct?Suggest an Edit
IMAGES
Category:
Only show images in a specific category ☝️
Something missing or not quite correct?Add ImageorSuggest an Edit
STOPLISTS
Selected Item:
View additional stoplist entries if they exist ☝️
Click on a stop or division name for additional details if marked with 🛈.
| Great (I - Expressive)🛈 | ||
| 16' | Contra Gamba | |
| 8' | Open Diapason | |
| 8' | Viol d'Gamba | |
| 8' | Melodia | |
| 8' | Dulciana | |
| 4' | Principal | OD |
| 4' | Flute Harmonic | |
| 2' | Piccolo | FH |
| 8' | Trumpet🛈 | |
| 16' | Great to Great | |
| Great Unison Off | ||
| 4' | Great to Great | |
| 16' | Swell to Great | |
| 8' | Swell to Great | |
| 4' | Swell to Great |
| Swell (II - Expressive)🛈 | ||
| 16' | Bourdon | SD |
| 8' | Stopped Diapason | |
| 8' | Salicional | |
| 8' | Vox Celeste | |
| 4' | Principal🛈 | |
| 4' | Flute d'Amour | SD |
| 4' | Violina | Sal |
| 2 2⁄3' | Nazard | SD |
| 2' | Flautino | SD |
| 8' | Oboe🛈 | |
| Tremolo | ||
| 16' | Swell to Swell | |
| Swell Unison Off | ||
| 4' | Swell to Swell |
| Pedal (Expressive)🛈 | ||
| 16' | Open Diapason | 12 GT OD |
| 16' | Bourdon | 32 |
| 16' | Lieblich Gedackt | SW |
| 8' | Violon Cello | GT Vd'G |
| 8' | Dolce Flute | SW |
| 8' | Swell to Pedal | |
| 4' | Swell to Pedal | |
| 8' | Great to Pedal | |
| 4' | Great to Pedal |
Something missing or not quite correct?Add StoplistorSuggest an Edit
CONSOLES
Selected Item:
View additional console entries if they exist ☝️
Builder: Kilgen
Position: Console in Fixed Position, Center
Design: Traditional With Roll Top
Pedalboard Type: Concave Radiating (Meeting AGO Standards)
Features:
2 Manuals (61 Notes)32 Note Pedal3 Divisions12 Stops24 RegistersElectrical Key ActionElectrical Stop Action✓ CrescendoStop Layout: Tilting/Rocking Tablets Above Top Manual
Expression Type: Balanced Expression Shoes/Pedals (Details Unknown)
Combination Action: Unknown
Control System: Unknown or N/A
Something missing or not quite correct?Add ConsoleorSuggest an Edit
DETAILS
Switch between notes, documents, and blowers ☝️
This instrument is: Extant and Playable in this location
Database Manager on February 1st, 2011:
Identified through online information from Dr. Gregory Hamilton. -- The organ was originally built by Kilgen in 1928. In 2009 the wind chests were re-leathered by the Redman company. Swell trumpet had deteriorated and has been replaced with a new oboe. The Aeoline on the Sw has been replaced with a Principal 4. A vintage trumpet 8' was added to the Gt. Both manual divisions are under expression.
Identified through online information from Dr. Gregory Hamilton. -- The organ was originally built by Kilgen in 1928. In 2009 the wind chests were re-leathered by the Redman company. Swell trumpet had deteriorated and has been replaced with a new oboe. The Aeoline on the Sw has been replaced with a Principal 4. A vintage trumpet 8' was added to the Gt. Both manual divisions are under expression.
Related Instrument Entries: Kilgen (Opus 4158, 1928)
Something missing or not quite correct?Add NoteorAdd WebpageorAdd Cross ReferenceorSuggest an Edit
