Casavant Frères Ltée.
Opus 993, 1923
Our Lady of Pity Roman Catholic Church / Reservoir Church
15 Notre Dame Ave
Cambridge, MA, US
34 Ranks - 2,196 Pipes
Instrument ID: 47667 ● Builder ID: 1116 ● Location ID: 41988
⬆️ These are database IDs that may change. Don't use as academic reference.EXPLORE IMAGESVIEW STOPLISTSomething not quite correct?Suggest an Edit
Plenum Organ Company
🤝 Instrument entries in Massachusetts sponsored by:
We are grateful for the generous support of our sponsors, who make it possible for us to continue our mission of preserving and promoting the rich history of pipe organs across the globe.
IMAGES
Category:
Only show images in a specific category ☝️
Something missing or not quite correct?Add ImageorSuggest an Edit
STOPLISTS
Selected Item:
View additional stoplist entries if they exist ☝️
Click on a stop or division name for additional details if marked with 🛈.
| Great (II)🛈 | ||
| 16' | Open Diapason | 68 |
| 8' | Open Diapason | 56 |
| 8' | Hohl Flote | 68 |
| 8' | Salicional | 68 |
| 4' | Harmonic Flute | 68 |
| 4' | Octave | 68 |
| IV | Mixture | 272 |
| 8' | Trumpet | 68 |
| Swell (III - Expressive)🛈 | ||
| 16' | Bourdon | 68 |
| 8' | Open Diapason | 68 |
| 8' | Stopped Diapason | 68 |
| 8' | Viola da Gamba | 68 |
| 8' | Voix Celeste | 56 |
| 4' | Flauto Traverso | 68 |
| 2' | Octavin | 61 |
| III | Dolce Cornet | 204 |
| 8' | Trumpet | 68 |
| 8' | Oboe | 68 |
| 8' | Vox Humana | 68 |
| Tremulant |
| Choir (I - Expressive)🛈 | ||
| 8' | Open Diapason | 68 |
| 8' | Melodia | 68 |
| 8' | Muted Viol | 68 |
| 4' | Wald Flute | 68 |
| 2' | Flageolet | 61 |
| 8' | Clarinet | 68 |
| Tremulant |
| Pedal🛈 | ||
| 16' | Open Diapason | 30 |
| 16' | Bourdon | 30 |
| 8' | Octave | 12 |
| 8' | Stopped Flute | 12 |
| 16' | Trombone | 30 |
Something missing or not quite correct?Add StoplistorSuggest an Edit

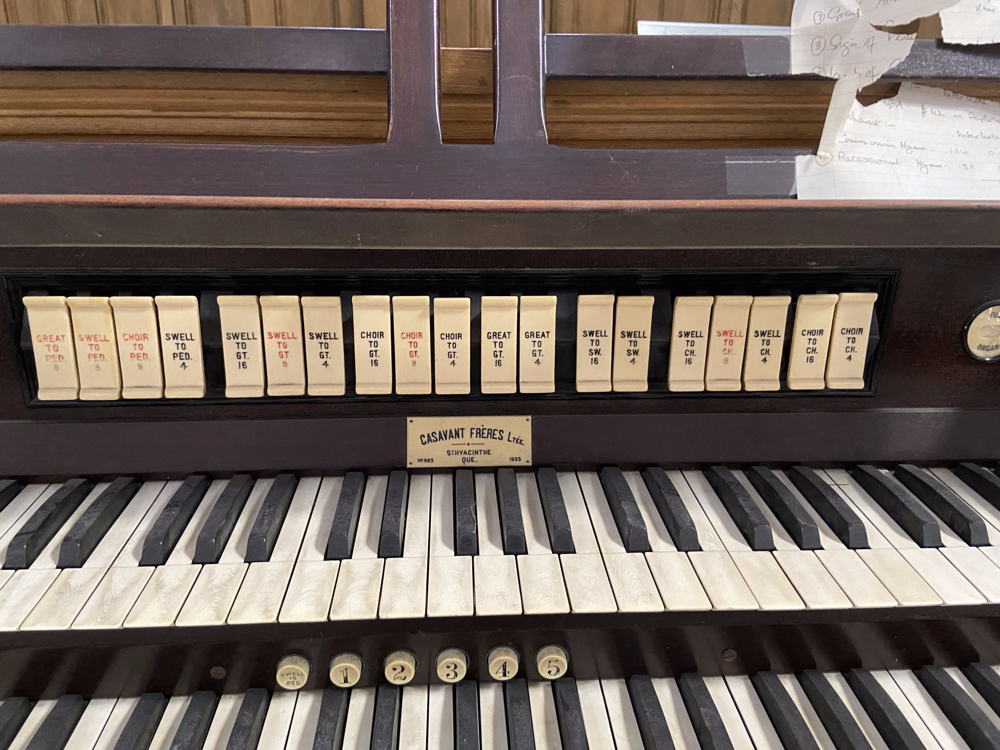

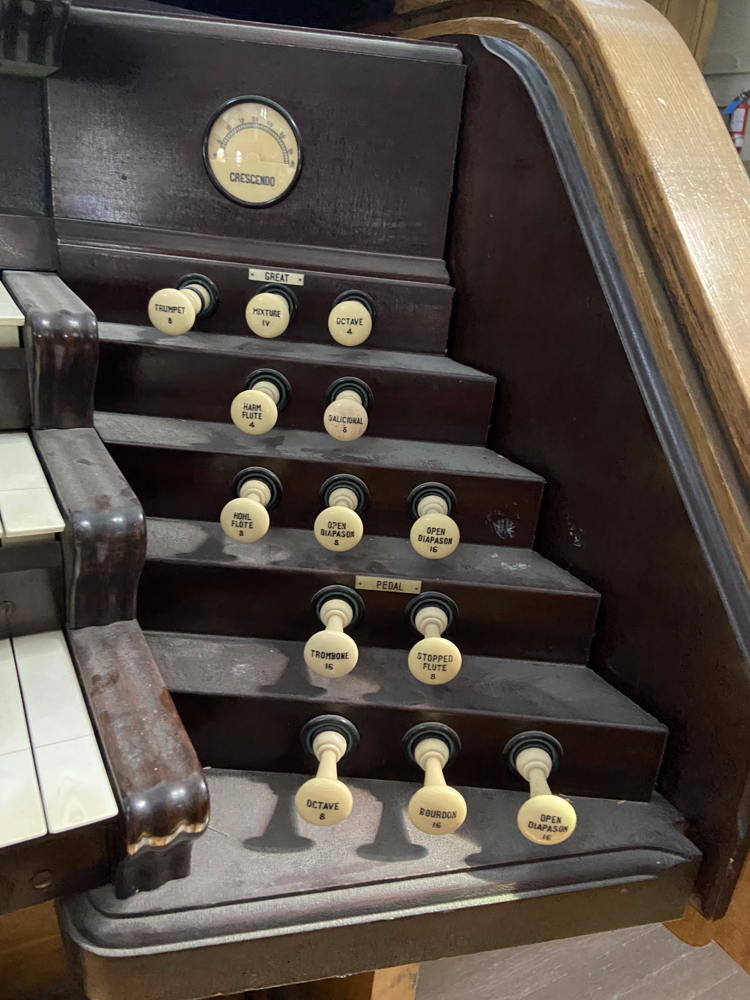

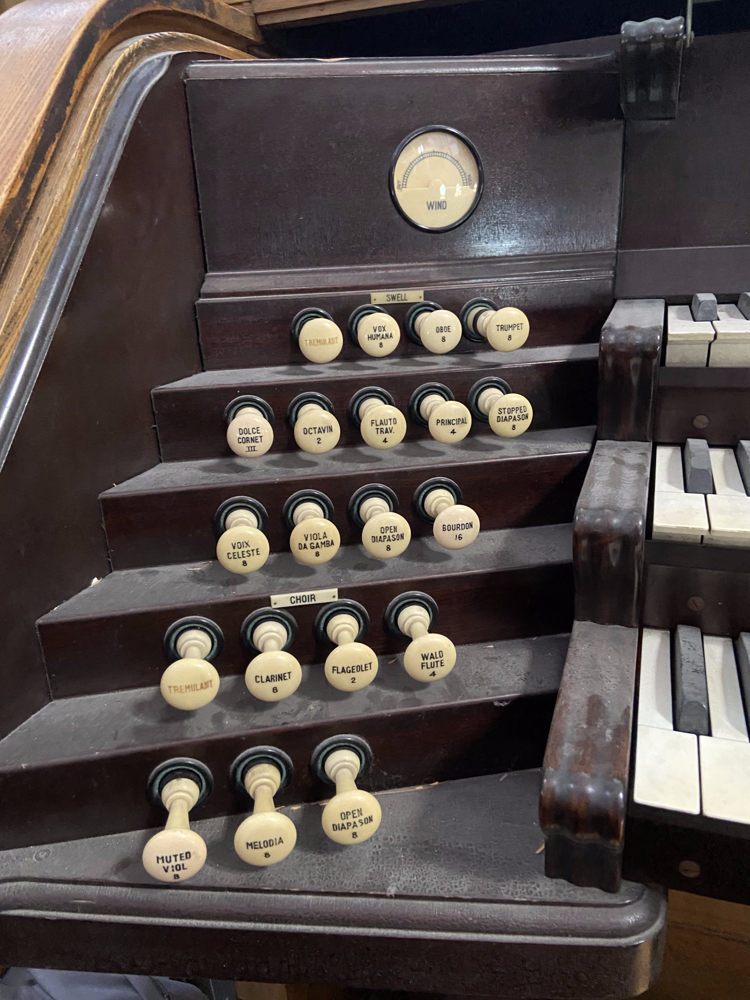

CONSOLES
Selected Item:
View additional console entries if they exist ☝️
Builder: Casavant Frères Ltée.
Position: Console in Fixed Position, Center
Design: Traditional With Roll Top
Pedalboard Type: Concave Radiating (Meeting AGO Standards)
Features:
3 Manuals (61 Notes)30 Note Pedal4 Divisions29 Stops31 RegistersElectrical Key ActionElectrical Stop Action✓ Crescendo✓ Combination Thumb Piston(s)✓ Combination Toe Piston(s)✓ Sforzando Toe Piston(s)Stop Layout: Drawknobs in Horizontal Rows on Terraced/Stepped Jambs
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination Action: Adjustable Combination Pistons
Control System: Unknown or N/A
Something missing or not quite correct?Add ConsoleorSuggest an Edit
DETAILS
Switch between notes, documents, and blowers ☝️
This instrument is: Extant and Playable in this location
John Roper on September 30th, 2022:
Blower built by Casavant. Blower motor is a 3 HP 1725 RPM Wagner Eletric MFG Co. motor. It was disconnected when the building was sold because it uses 550v which was not accounted for when the building was rewired at sale. Instrument originally used a belt-driven generator connected to the shaft of the blower. The generator is still extant but was disconnected (perhaps in the 70s?). the generator put on 8-9 volts and 12 amps. The generator was replaced (again possibly in the 70s) with a LaMarche Orgelectra putting out 10-15 volts and 8-15 amps.
Blower built by Casavant. Blower motor is a 3 HP 1725 RPM Wagner Eletric MFG Co. motor. It was disconnected when the building was sold because it uses 550v which was not accounted for when the building was rewired at sale. Instrument originally used a belt-driven generator connected to the shaft of the blower. The generator is still extant but was disconnected (perhaps in the 70s?). the generator put on 8-9 volts and 12 amps. The generator was replaced (again possibly in the 70s) with a LaMarche Orgelectra putting out 10-15 volts and 8-15 amps.
John Roper on September 30th, 2022:
GT 8' Diapason has 56 notes on the main chest. GT 16' Diapason has 44 notes on the main chest. There are a total of 24 speaking facade pipes. GT 8' Salicional replaced by 15th marked 251 (probably Woodberry) by Arthur Birchall in 1972. 38 pipes are extant (though damaged) in the chamber. GT 8' Diapason removed and replaced by the Choir 8' Diapason by Arthur Birchall in 1972. 35 pipes are extant (though damaged) in the chamber. GT Mixture recomposed by Arthur Birchall in 1972. CH 8' Diapason moved to Great and replaced with 4' Violina (49 pipes) marked 251 (probably Woodberry) by Arthur Birchall in 1972. SW Mixture recomposed by Arthur Birchall in 1972. Swell plays on 4.25in of wind. Great and Choir play on 3.75in of wind. CH Melodia marked GT Melodia CH Wald Flute marked No. 4 Flute Douce SW Bourdon marked No. 2 Bourdon 16', marked 238 on bass pipe face (for Ordre?) SW Fluto Traverso marked No. 3 Flute Oct. 4' Ordre 220 SW Trumpet marked 312 on block SW Vox Humana marked 265 on block SW Oboe marked 282 or 292 on block GT Hohl Flote marked No. 1 Hohl Flute 8' Ordre N. 200
John Roper on June 11th, 2021:
CH 8' Clarinet 24-68 are missing CH 8' Melodia 23-68 are missing CH 8' Diapason has been replaced by a 49-note celeste SW III Mixture reconstitued and now missing 62-68 (21 pipes) GT IV Mixture reconstituted and now missing 62-68 (28 pipes) GT 8' Salicional replaced by 2' Fifteenth Console rolltop missing Instrument maintained by Arthur Birchall in the 70s. Dedicated by Marcel Depre. Music directors included Paul Hotin and Marvin Eatough.
Database Manager on February 18th, 2017:
Building sold to Greater Boston Vineyard Christian Fellowship in 2004; sold again to Reservoir Church in 2015.
Database Manager on February 14th, 2011:
Identified through online information from Jeff Scofield. -- Parish closed 1998.
Related Instrument Entries: Geo. H. Ryder (1880ca.)
Something missing or not quite correct?Add NoteorAdd WebpageorAdd Cross ReferenceorSuggest an Edit
