Manuel Rosales & Associates
Opus 11, 1987

Trinity Episcopal Cathedral

147 N.W. 19th Ave.
Portland, OR, US

92 Ranks - 4,194 Pipes

Instrument ID: 4975 ● Builder ID: 5400 ● Location ID: 4722

⬆️ These are database IDs that may change. Don't use as academic reference.EXPLORE IMAGES VIEW STOPLIST

ADDITIONAL INFORMATION

Something not quite correct?Suggest an Edit

IMAGES

Category:

Only show images in a specific category ☝️

Something missing or not quite correct?Add ImageorSuggest an Edit

STOPLISTS

Selected Item:

View additional stoplist entries if they exist ☝️

Open In New Tab

Something missing or not quite correct?Add StoplistorSuggest an Edit

CONSOLES

Selected Item:

View additional console entries if they exist ☝️

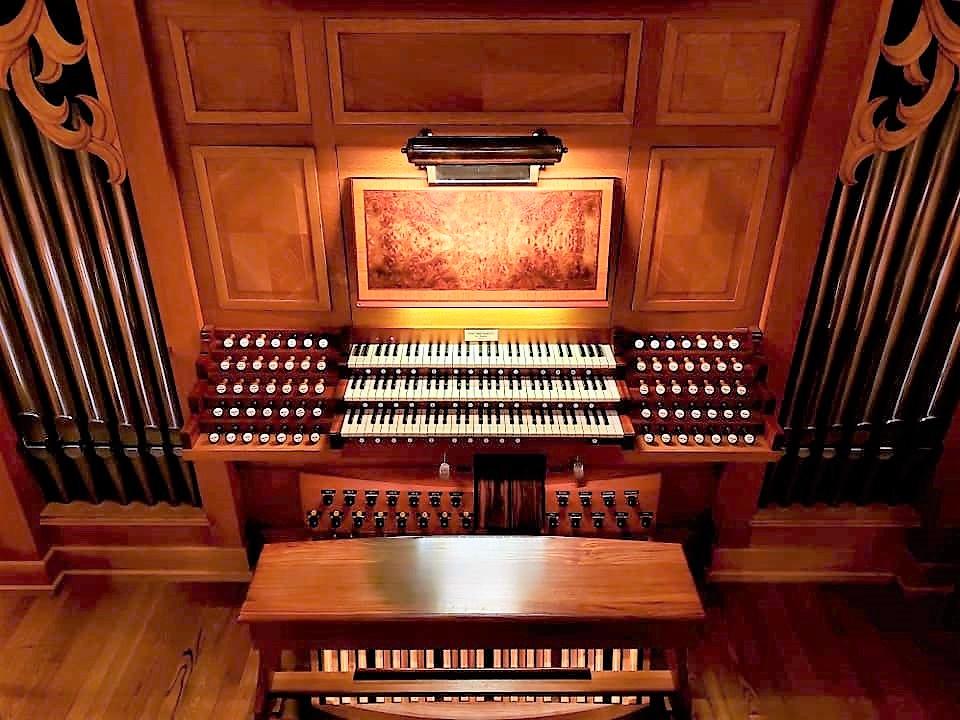

Builder: Unknown

Position: Keydesk Attached

Design: Traditional Without Cover

Pedalboard Type: Concave Radiating (Meeting AGO Standards)

Features:

3 Manuals (61 Notes)32 Note Pedal4 Divisions58 Stops58 RegistersMechanical (Suspended Tracker) Key ActionElectrical Stop Action✓ Crescendo✓ Combination Thumb Piston(s)✓ Coupler Toe Piston(s)✓ Sforzando Thumb Piston(s)✓ Sforzando Toe Piston(s)

Stop Layout: Drawknobs in Horizontal Rows on Terraced/Stepped Jambs

Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)

Combination Action: Computerized/Digital

Control System: Unknown or N/A

Something missing or not quite correct?Add ConsoleorSuggest an Edit

DETAILS

Switch between notes, documents, audio, and blowers ☝️

This instrument is: Extant and Playable in this location

Database Manager on June 8th, 2009:

Updated through online information from Jude Fritts.

Database Manager on January 29th, 2009:

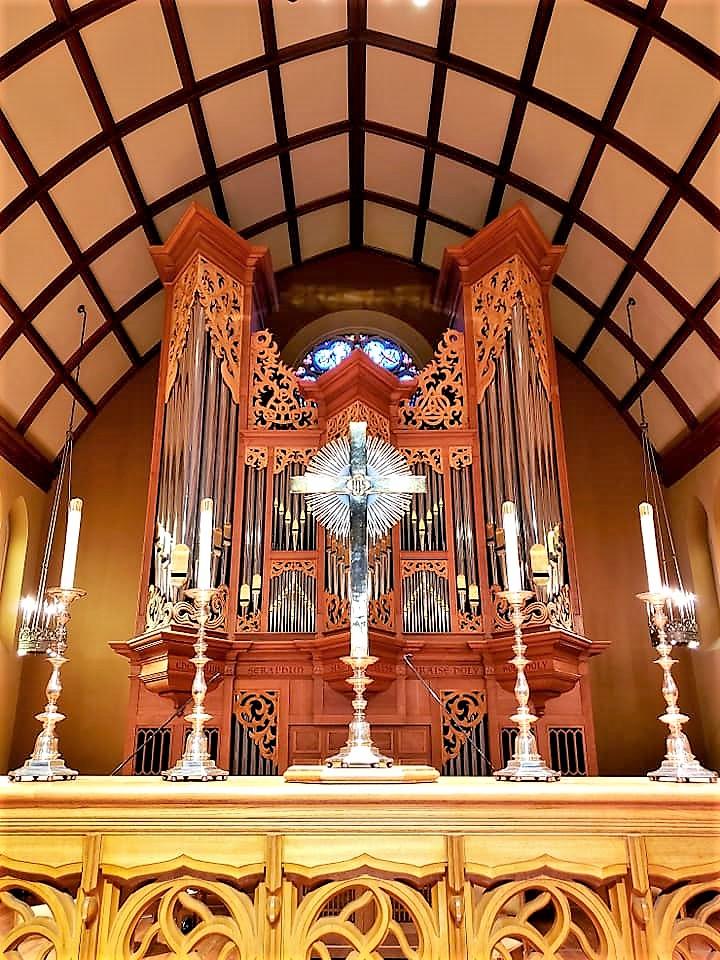

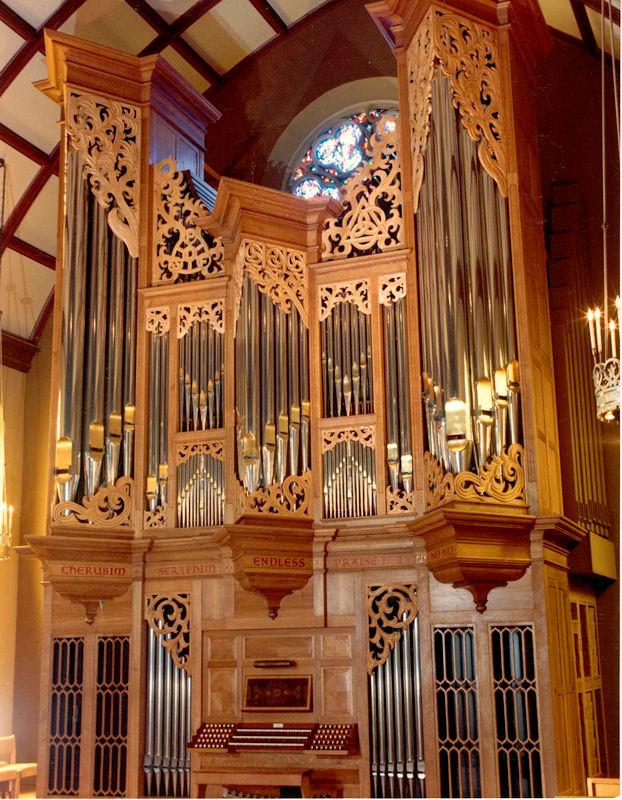

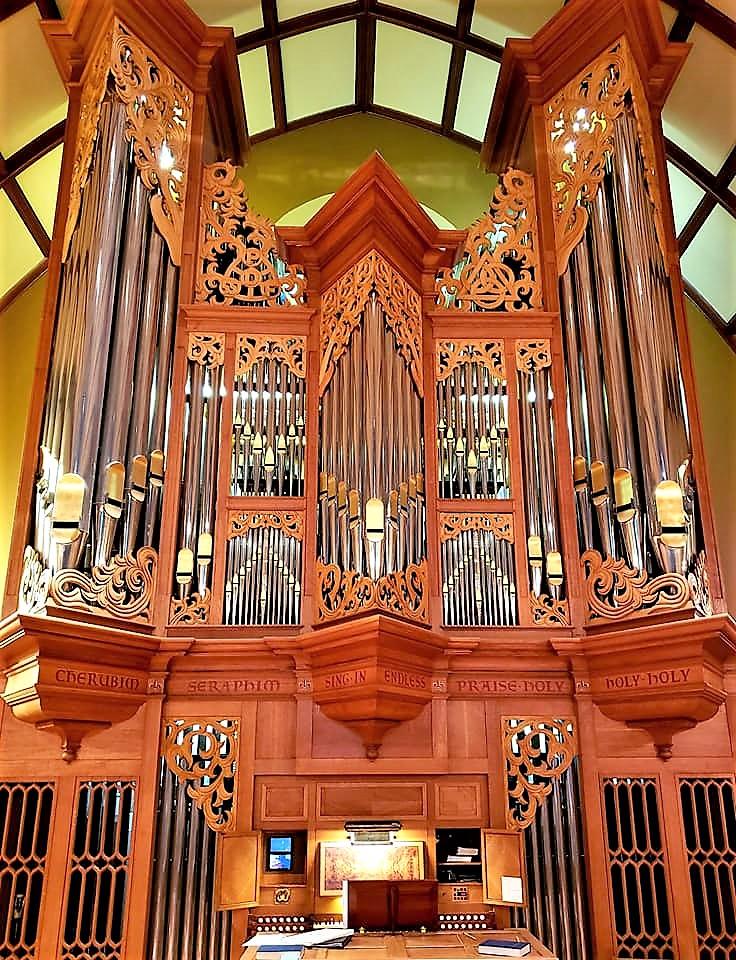

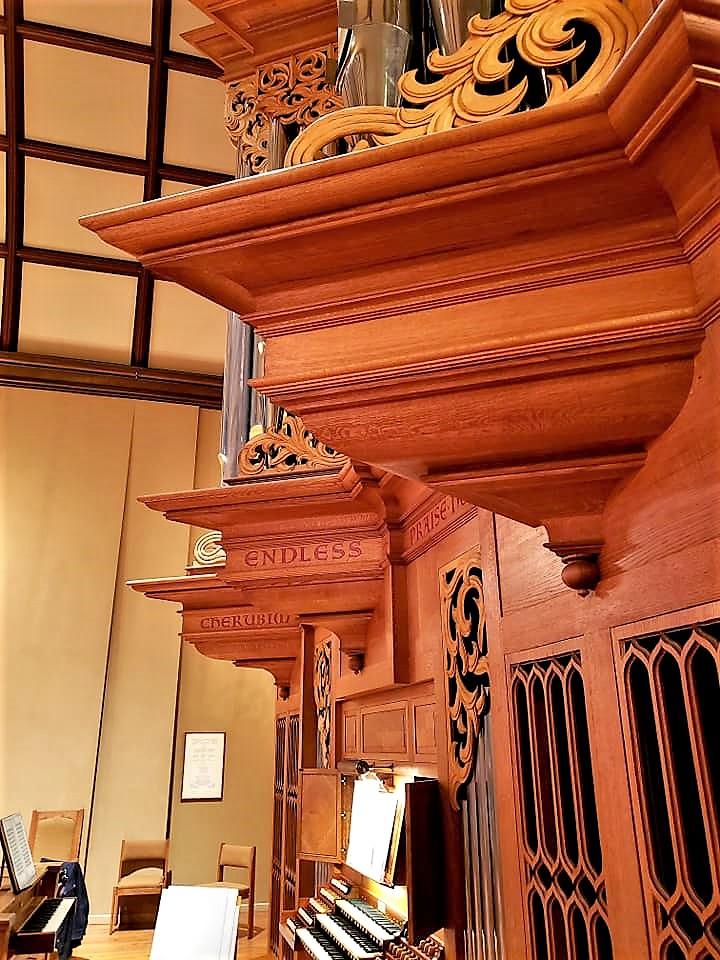

The front pipes are of 75% tin with 23 carat gold leaf applied to the mouths. The casework is of white oak with walnut burl, bocote, and rift sawn white oak. Stopknobs are of ebony, rosewood, and boxwood. Manual keys are of basswood covered with cow bone and ebony. Pedal keys are of beech covered with maple and rosewood. The oak panels on either side of the music rack conceal video monitors, telephone, combination systems controls and music storage.

Database Manager on March 8th, 2007:

Updated through online information from James R. Stettner.

Database Manager on October 30th, 2004:

Status Note: There 1997

Database Manager on October 30th, 2004:

SS Combination, 8 levels of memory. Compass 61/32. Suspended key action. 7 stops from the 1948 Möller were used.

Webpage Links: Jude Fritts - Wood Carving & Wood Carved Sculpture
