Casavant Frères Ltée.
Opus 397, 1990
Originally Casavant Frères Ltée. (Opus 397, 1910)
Abbey of St. Joseph of Westminster
Church
34224 Dewdney Trunk Road
Mission, BC, CA
39 Ranks
EXPLORE IMAGESVIEW STOPLISTSomething not quite correct?Suggest an Edit
IMAGES
Category:
Only show images in a specific category ☝️
Something missing or not quite correct?Add ImageorSuggest an Edit
STOPLISTS
Selected Item:
View additional stoplist entries if they exist ☝️
Click on a stop or division name for additional details if marked with .
| Swell (III - Expressive) | ||
| 16' | Bourdon | |
| 8' | Principal | |
| 8' | Stopped Flute | |
| 8' | Viola | |
| 8' | Aeoline | |
| 8' | Viox Celeste | |
| 4' | Principal | |
| 4' | Octave Horn | |
| 4' | Chimney Flute | |
| 2' | Principal | |
| III | Mixture | |
| 16' | Fagotto | 12 Oboe 8 |
| 8' | Cornopean | |
| 8' | Oboe |
| Great (II) | ||
| 8' | Diapason | |
| 8' | Violin Diapason | |
| 8' | Doppel Floete | |
| 4' | Octave | |
| 4' | Harmonic Flute | |
| 2' | Fifteenth | |
| III-IV | Mixture | |
| II | Cornet | |
| 8' | Trumpet |
| Choir ( - Expressive) | ||
| 16' | Gemshorn | 12 Gemshorn 8 |
| 8' | Melodia | |
| 8' | Flauto d'Amore | |
| 8' | Dulciana | |
| 8' | Gemshorn | |
| 4' | Wald Floete | |
| 2' | Piccolo | |
| 8' | Trumpet (Gt) | Gt Trumpet |
| 8' | Clarinet |
| Pedal | ||
| 16' | Open Flute | |
| 16' | Subbass | |
| 16' | Bourdon (Sw) | SW |
| 16' | Gemshorn (Ch) | CH |
| 8' | Violin Prinipal | |
| 8' | Bass Flute | |
| 8' | Gemshorn | CH |
| 16' | Trombone | 12 GT Trumpet |
| 16' | Fagotto (Sw) | SW |
Something missing or not quite correct?Add StoplistorSuggest an Edit

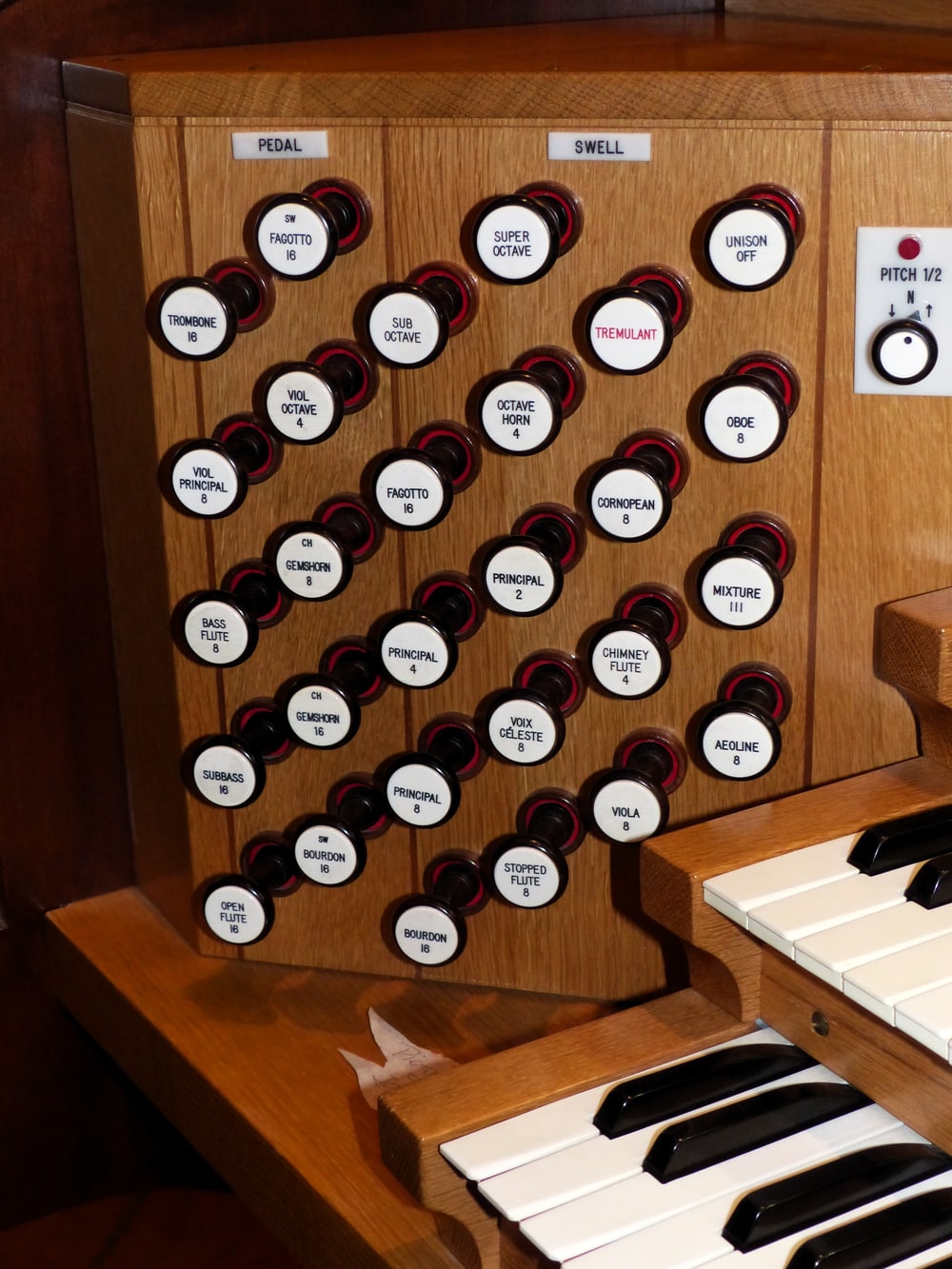

CONSOLES
Selected Item:
View additional console entries if they exist ☝️
Features:

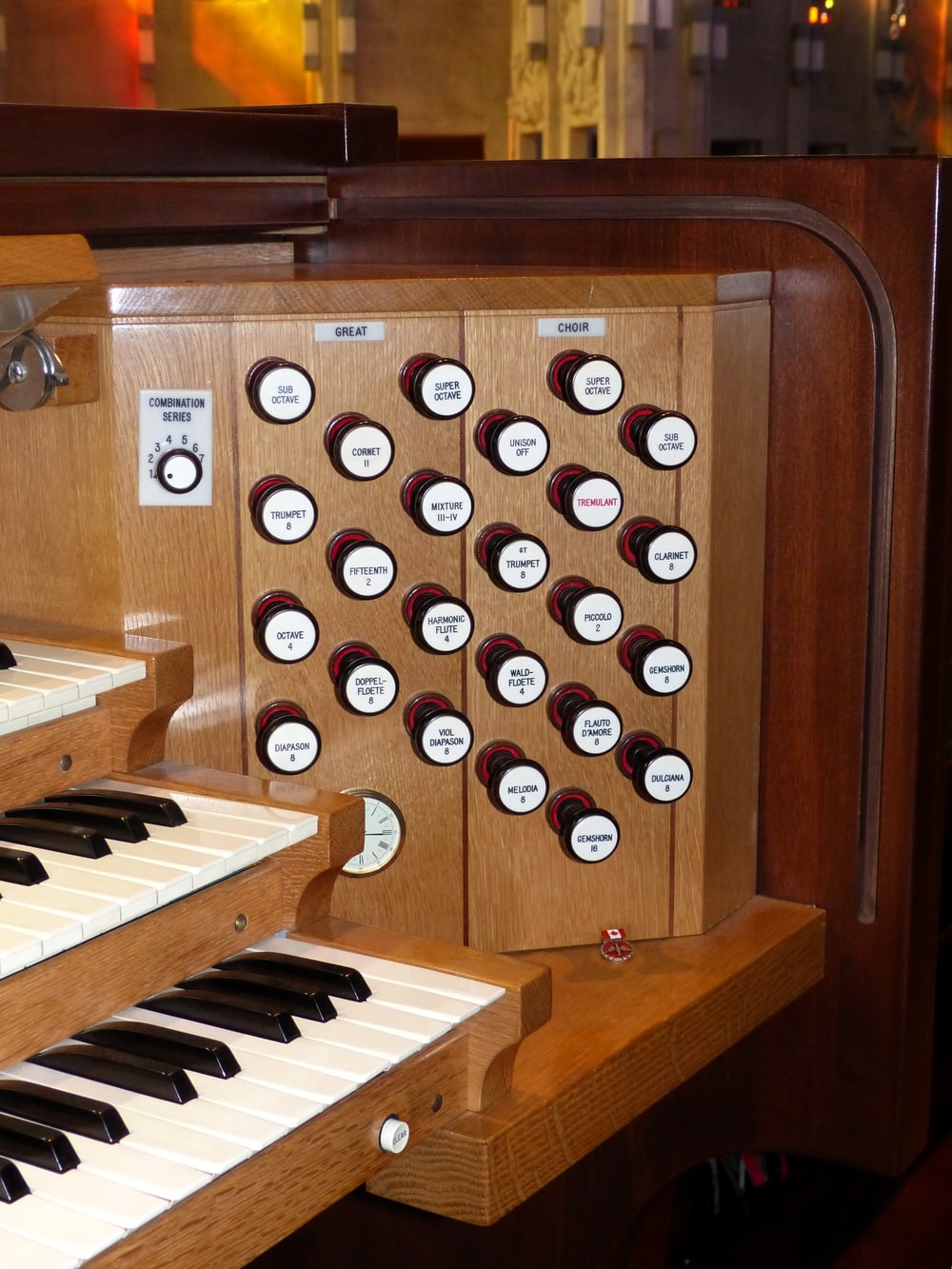

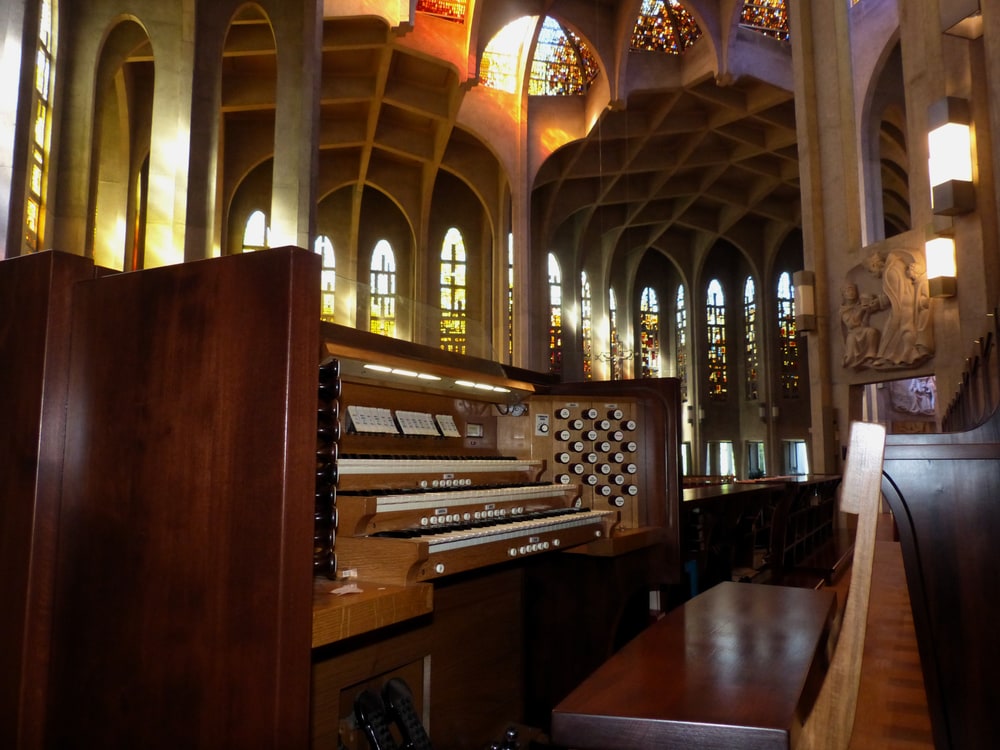

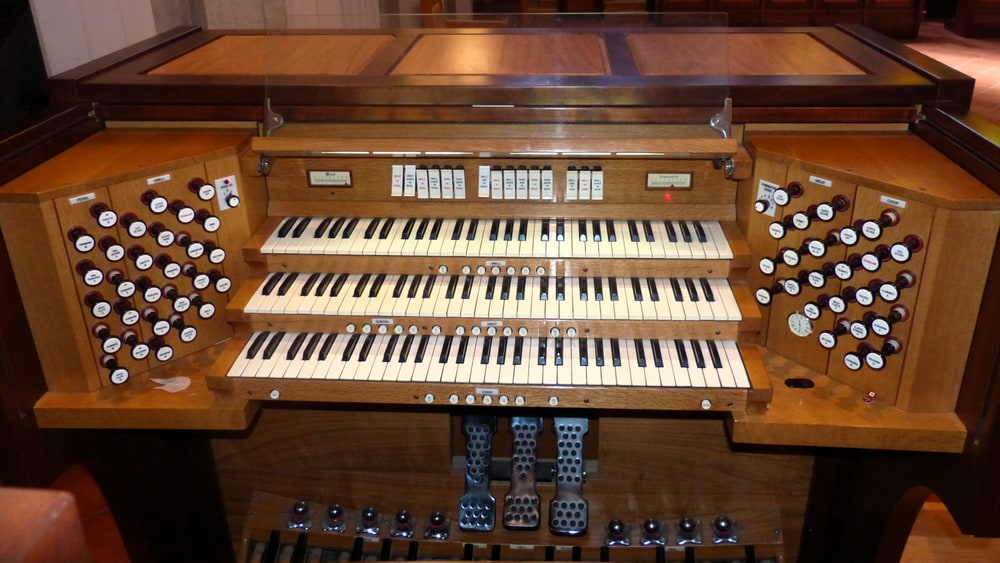

3 Manuals (61 Notes)32 Note Pedal31 StopsElectrical Key ActionStop Layout: Unknown
Expression Type: Unknown
Combination Action: Unknown
Control System: Unknown or N/A
Something missing or not quite correct?Add ConsoleorSuggest an Edit
DETAILS
Switch between notes, documents, audio, and blowers ☝️
This instrument is: ExtantandPlayable in this location
Database Manager on September 9th, 2017:
Originally installed in 1910 at Mount Pleasant Presbyterian Church, Vancouver; moved to Westminster Abbey in the early 1990's; a new Casavant console was added at that time or later.
Database Manager on September 4th, 2014:
Identified through information in Casavant documents, courtesy of Simon Couture and Denis Blaine.
Related Instrument Entries: Casavant Frères Ltée. (Opus 397, 1910)
