Casavant Frères Ltée.
Opus 893, 1921

St. Mary's Catholic Church

345 Lyle Street
London, ON, CA

13 Ranks - 794 Pipes - 3 Physical Divisions

EXPLORE IMAGES VIEW STOPLIST

ADDITIONAL INFORMATION

Something not quite correct?Suggest an Edit

IMAGES

Category:

Only show images in a specific category ☝️

Something missing or not quite correct?Add ImageorSuggest an Edit

STOPLISTS

Selected Item:

View additional stoplist entries if they exist ☝️

Click on a stop or division name for additional details if marked with .

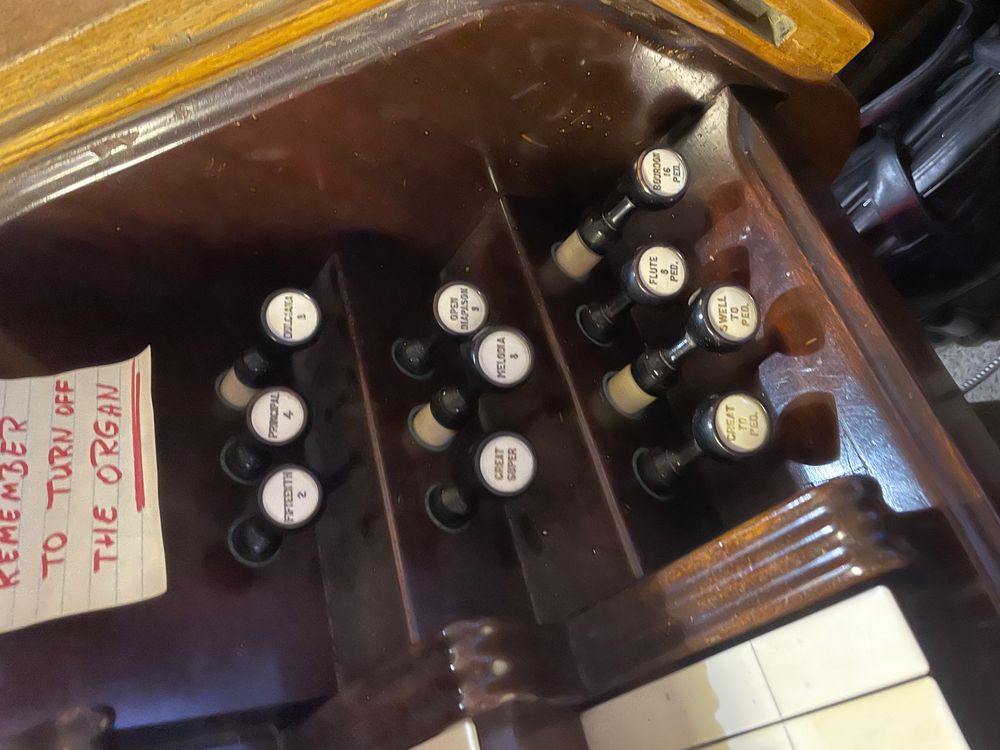

	Great (I) Position: In a Gallery-Level Case at the Rear of the Room Chest Action: Pneumatic Stop Action: Pneumatic (Tubular Pneumatic)
8'	Open Diapason	65
8'	Melodia	65
8'	Dulciana Notes: 1-12 from Melodia	53
4'	Principal	65
2'	Fifteenth	61

	Great Super 4' Great to Great
	Swell Sub Gt. 16' Swell to Great
	Swell to Gt. 8' Swell to Great
	Swell Super Gt. 4' Swell to Great

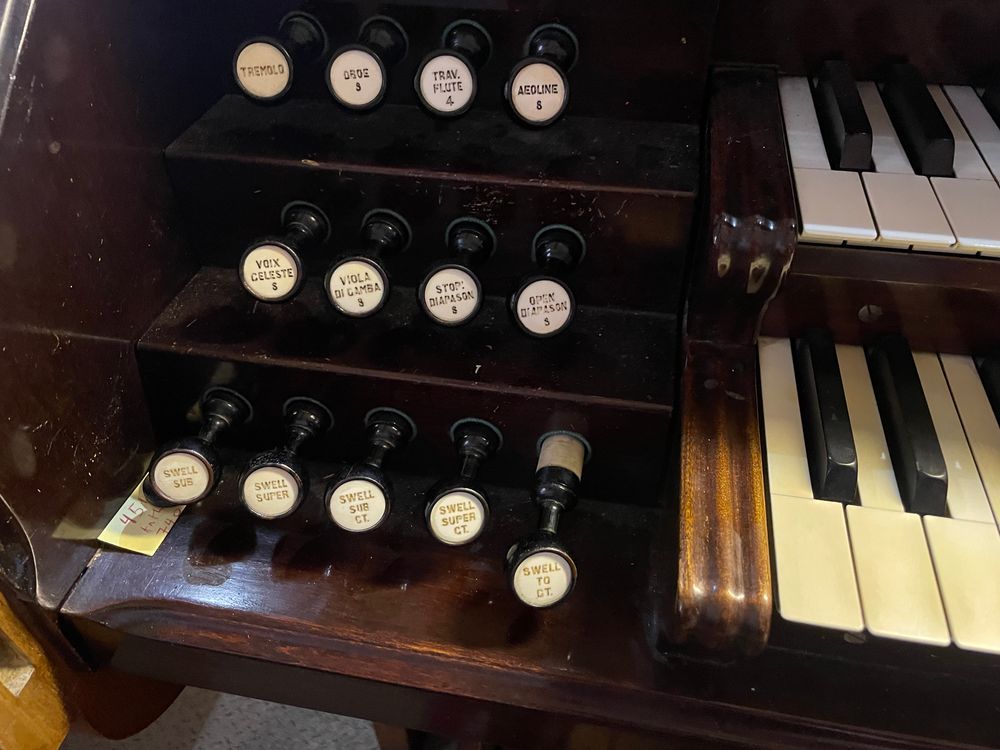

	Swell (II - Expressive) Position: In a Gallery-Level Case at the Rear of the Room Chest Action: Pneumatic Stop Action: Pneumatic (Tubular Pneumatic)
8'	Open Diapason	65
8'	Stop. Diapason	65
8'	Viola Di Gamba	65
8'	Voix Celeste [tc]	53
8'	Aeoline	65
4'	Trav. Flute	65
8'	Oboe	65
	Tremolo

	Swell Sub 16' Swell to Swell
	Swell Super 4' Swell to Swell

	Pedal Position: In a Gallery-Level Case at the Rear of the Room Chest Action: Pneumatic Stop Action: Pneumatic (Tubular Pneumatic)
16'	Ped. Bourdon	30
8'	Ped. Flute	12 ext. 16'

	Swell to Ped. 8' Swell to Pedal
	Great to Ped. 8' Great to Pedal

TOE SPOONS (unlabeled): Swell 1-3, Great 1-3, Gr. to Ped (rev); PEDAL MOVEMENTS: Swell Expression (bal.), Crescendo (bal.)
Originally Written/Published: 1921

Open In New Tab

Something missing or not quite correct?Add StoplistorSuggest an Edit

CONSOLES

Selected Item:

View additional console entries if they exist ☝️

Builder: Casavant Frères Ltée.

Position: Unknown

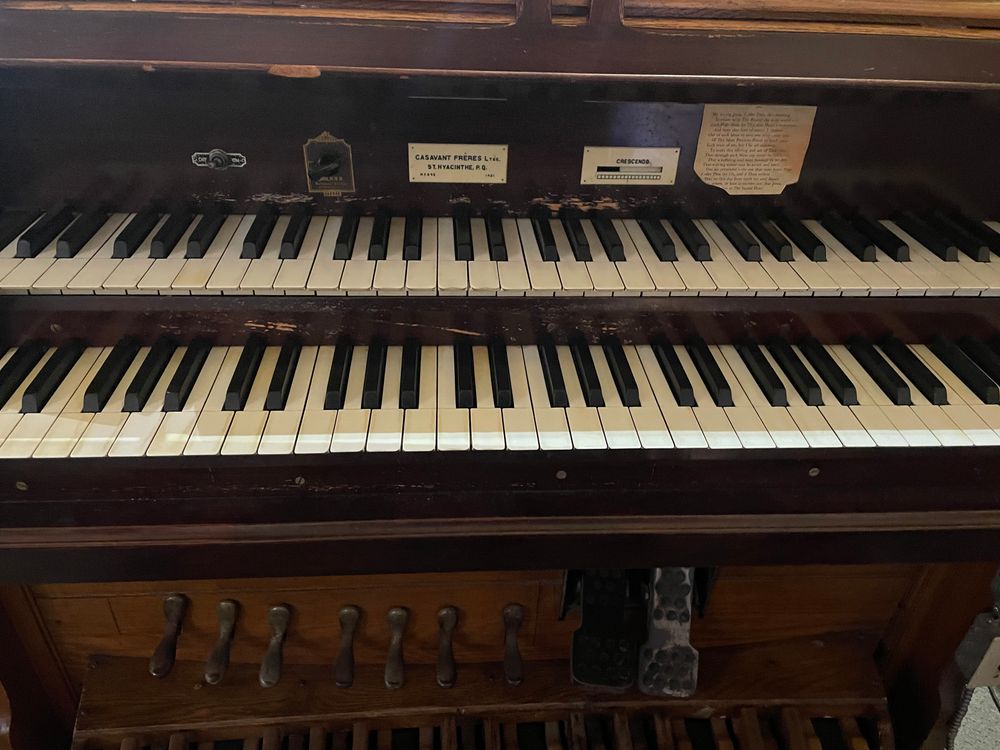

Design: Traditional With a Keyboard Cover That Can Be Lifted To Form a Music Rack

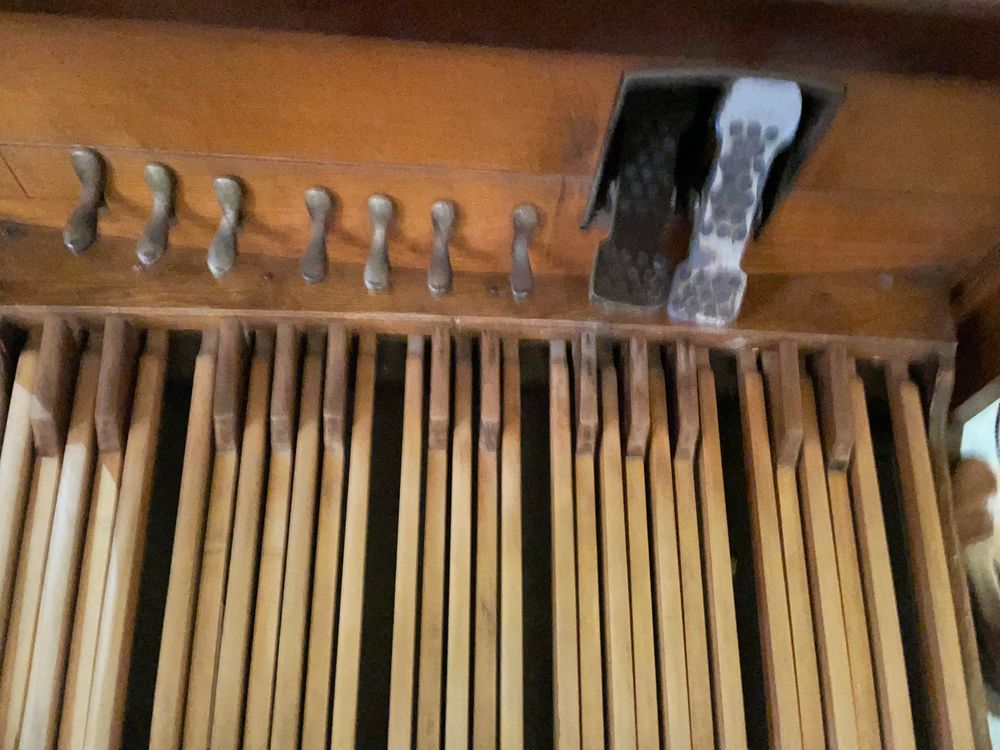

Pedalboard Type: Flat Straight

Features:

2 Manuals (61 Notes)30 Note Pedal3 Divisions13 Stops14 RegistersTubular Pneumatic (Unknown) Key ActionTubular Pneumatic (Unknown) Stop ActionCrescendoCoupler Toe Piston(s)Combination Trundle(s)

Stop Layout: Drawknobs in Horizontal Rows on Terraced/Stepped Jambs

Expression Type: Balanced Expression Shoes/Pedals (Details Unknown)

Combination Action: Fixed Mechanical

Control System: Unknown or N/A

Something missing or not quite correct?Add ConsoleorSuggest an Edit

DETAILS

Switch between notes, documents, audio, and blowers ☝️

This instrument is: Extant and Playable in this location

Philip Fillion on April 26th, 2024:

I visited this organ in Apr. 2024. Instrument continues to be playable and seems to retain its original voicing. The stop list has not been modified. At some point the console was moved to the front of the church.

Database Manager on September 8th, 2014:

Identified through information in Casavant documents, courtesy of Simon Couture and Denis Blaine.

Something missing or not quite correct?Add NoteorAdd WebpageorAdd Cross ReferenceorSuggest an Edit

Map location: 42.9872015,-81.2283468
