Votteler-Holtkamp-Sparling
Opus 1576, 1932
Originally A. B. Felgemaker Co. (Opus 1172, 1914)
Zion Lutheran Church
4305 Military Avenue
Detroit, MI, US
32 Ranks - 2,128 Pipes
Something not quite correct?Suggest an Edit
IMAGES
Something missing or not quite correct?Add ImageorSuggest an Edit

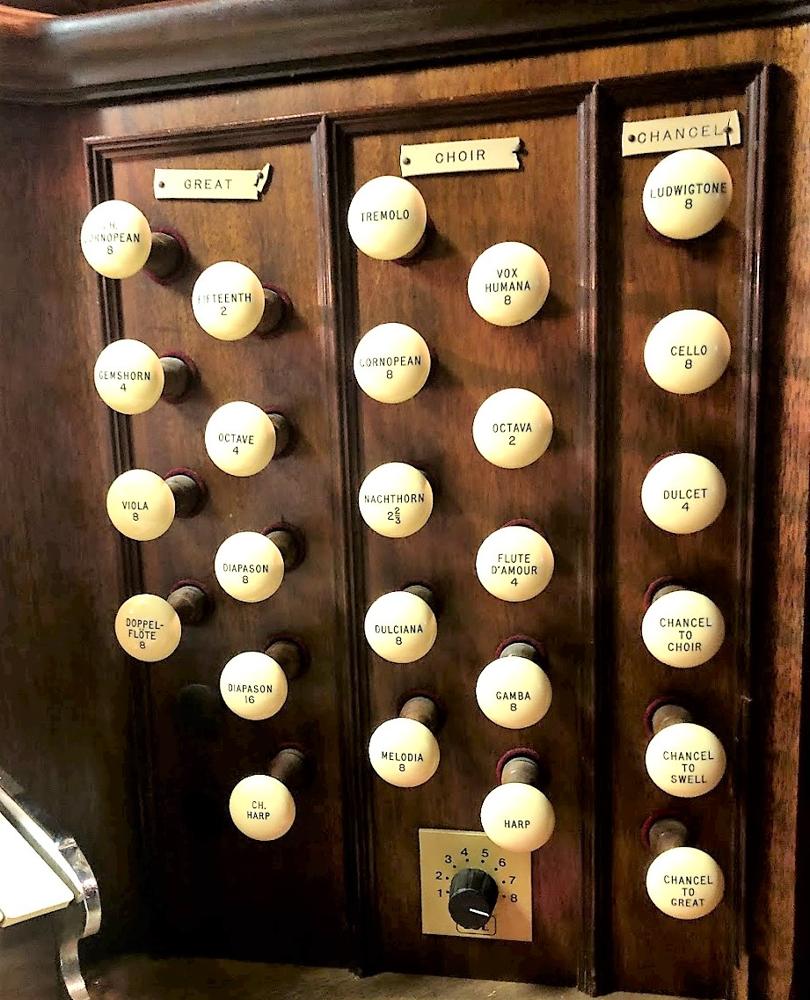

STOPLISTS

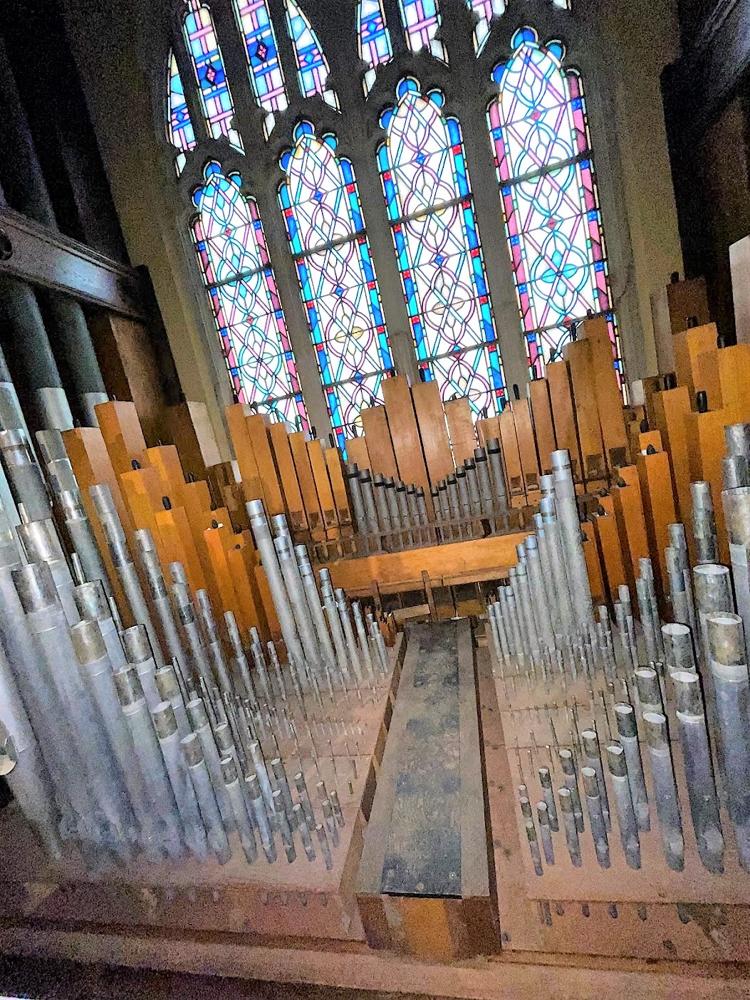

| Great | ||
| Double Open Diapason* | ||
| 8' | Open Diapason* | |
| 8' | Dapple Flute* | |
| 8' | Viola Dolce* | |
| 4' | Octave* | |
| 4' | Gemshorn* | |
| 2' | Fifteenth | |
| Cornopean | ||
| 8' | Harp |

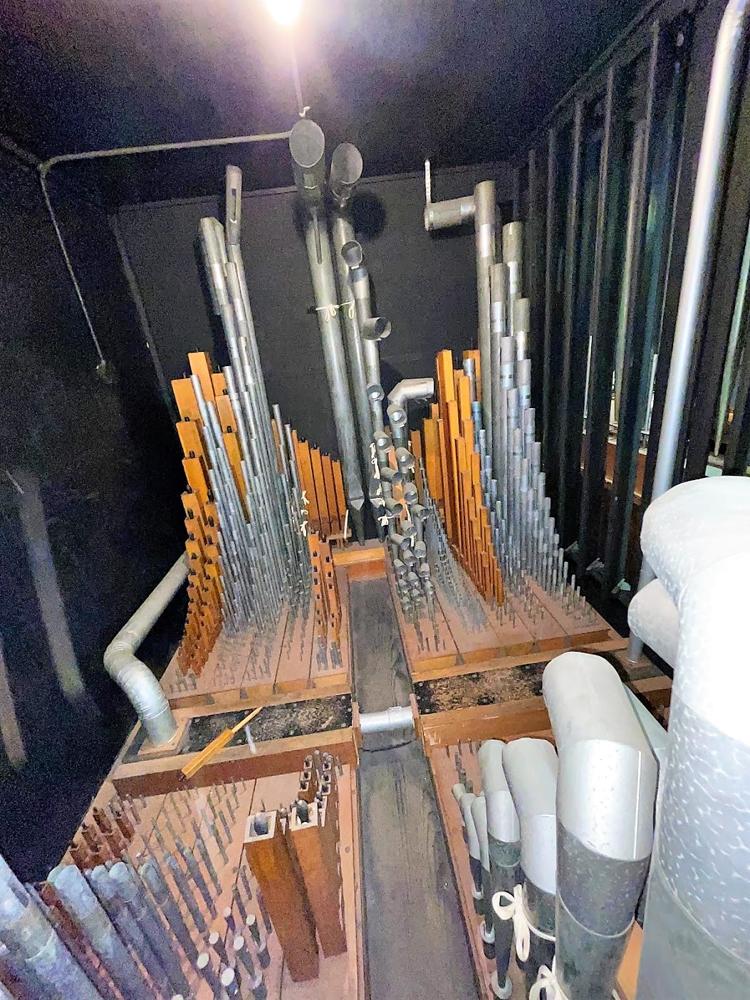

| Swell | ||
| 16' | Quintaton* | |
| 8' | Geigen Principal* | |
| 8' | Rohr Flute* | |
| 8' | Salicional* | |
| 8' | Vox Celeste [TC]* | |
| 4' | Fugara | |
| 4' | Harmonic Flute* | |
| II-IV | Mixture | |
| 8' | Trumpet* | |
| 4' | Oboe Clarion | |
| Tremolo | ||
| 8' | Harp |

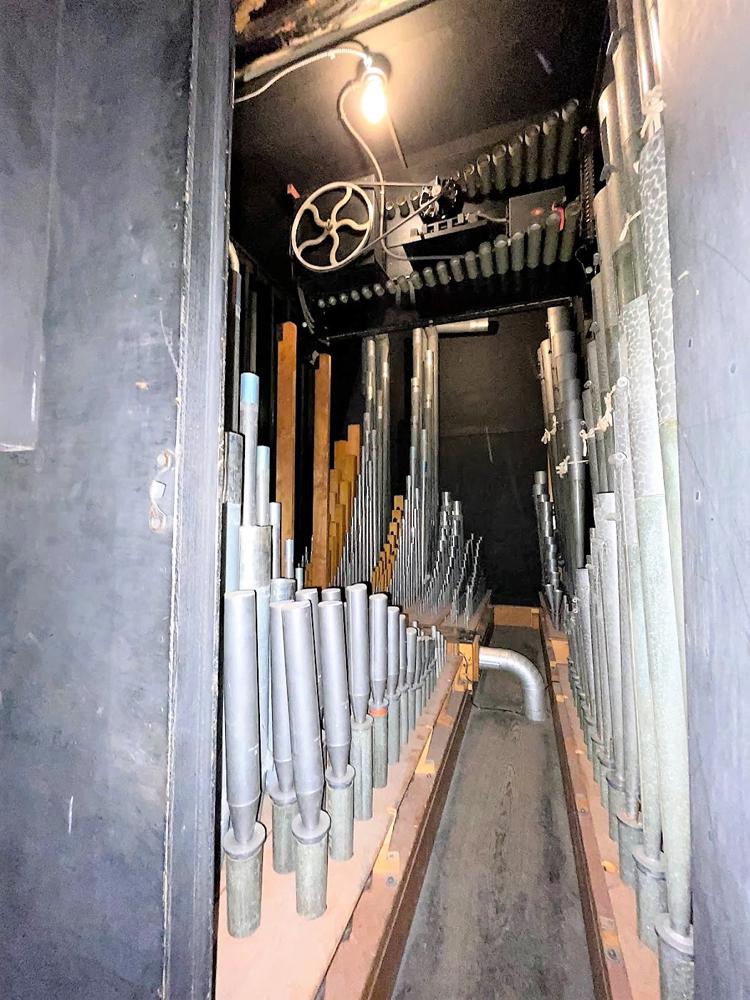

| Choir | ||
| 8' | Violon Cello* | |
| 8' | Melodia* | |
| 8' | Dulciana* | |
| 4' | Flute D'Amour* | |
| 2⅔' | Nacht Horn | |
| 2' | Octava | |
| 8' | Cornopean* | |
| 8' | Vox Humana | |
| Tremolo | ||
| 8' | Harp |

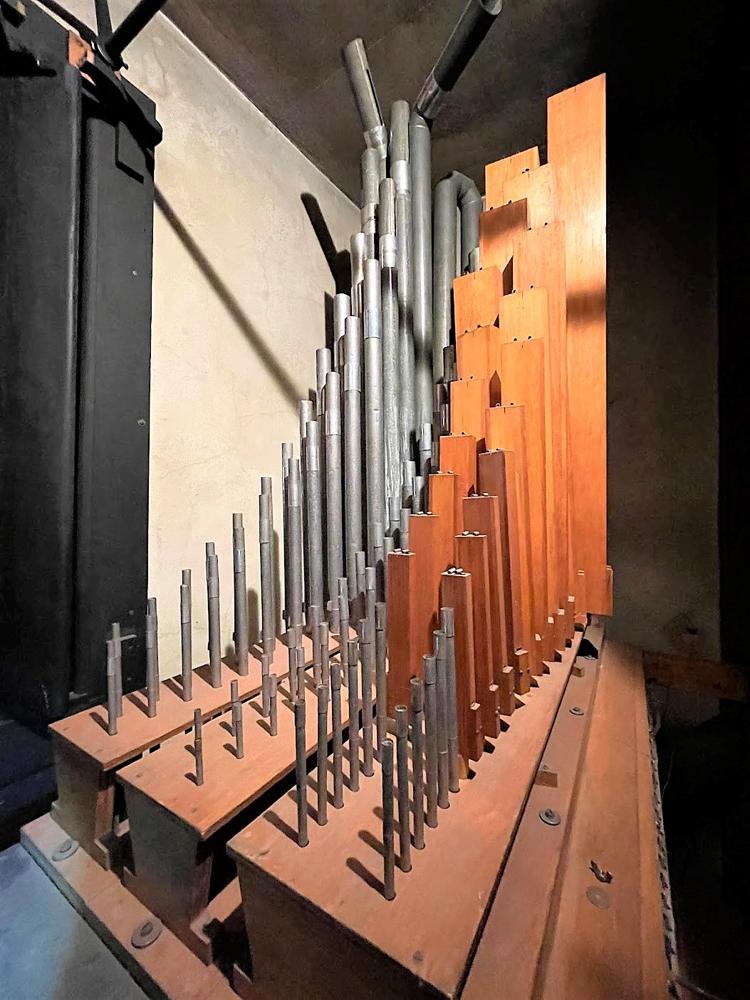

| Chancel | ||
| 8' | Ludwig Tone | |
| 8' | Viola | |
| 4' | Dulcet* | |
| Cathedral Chimes |
| Pedal | ||
| 16' | Contra Bass* | |
| 16' | Bourdon* | |
| 16' | Violone Dolce* | |
| 16' | Open Diapason | |
| 16' | Quintaton | |
| 10⅔' | Quint | |
| 8' | Octave | |
| 8' | Flauto Dolce | |
| 8' | Cello | |
| 5⅓' | Twelfth | |
| 4' | Fifteenth | |
| 8' | Cornopean |
| Couplers | ||
| Swell to Great 16', 8', 4' | ||
| Choir to Great 16', 8', 4' | ||
| Chancel to Great 8' | ||
| Swell to Swell 16', 4', Unison Cancel | ||
| Swell to Choir 16', 8', 4' | ||
| Choir to Choir 16', 4', Unison Cancel | ||
| Chancel to Swell; to Great; to Choir | ||
| Swell to Pedal 8', 4' | ||
| Great to Pedal 8' | ||
| Choir to Pedal 8', 4' |
| Pedal Movements | ||
| balanced Swell pedal | ||
| balanced Choir pedal | ||
| balanced Chancel pedal | ||
| balanced Crescendo pedal, with indicator |
| Combination Pistons | ||
| Gt. 1-2-3-4-5-0 | ||
| Sw. 1-2-3-4-5-0 | ||
| Ch. 1-2-3-4-5-0 | ||
| Echo 1-2-3-0 | ||
| Pedal 1-2-3-4-5-0 | ||
| General 1-2-3-4-5-0 |
| Reversibles | ||
| Great to Pedal 8' | ||
| Swell to Great 8' | ||
| Choir to Great 8' | ||
| Swell to Pedal 8' | ||
| Choir to Pedal 8' | ||
| Sforzando | ||
| Chancel Expression to Swell Expression | ||
| Chancel Expression to Choir Expression |
Something missing or not quite correct?Add StoplistorSuggest an Edit

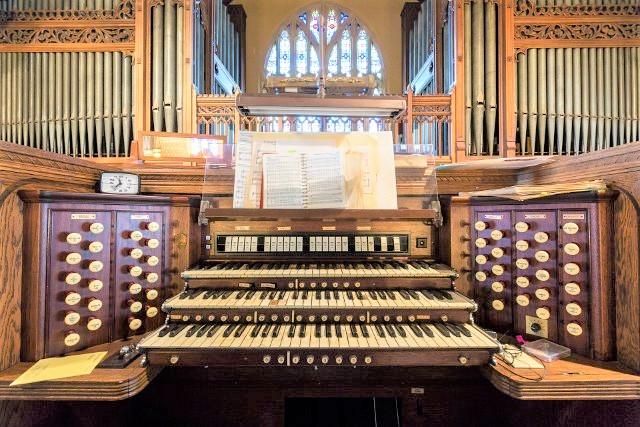

CONSOLES
Builder: Unknown
Position: Unknown
Design: Unknown
Pedalboard Type: Unknown
Features:
3 Manuals 41 StopsElectrical Key ActionStop Layout: Unknown
Expression Type: Unknown
Combination Action: Unknown
Control System: Unknown or N/A
Something missing or not quite correct?Add ConsoleorSuggest an Edit
DETAILS
Exhibited in the 1995 OHS convention(s)
This instrument is: Extant and Playable in this location
The 1933 building called for a larger instrument, which the Votteler-HoltkampSparling Organ Co. built, incorporating the Felgemaker pipes in the new scheme, but "on the basis of a new organ rather than a rebuilding of the old organ." The builders proposed that "The pipes of the old Felgemaker organ would be taken to our shop and worked into the new organ strictly according to the requirements of the new organ. Scales and forms of certain pipes will be altered or changed to fit them to their new functions." Walter Holtkamp signed the contract on behalf of the builders. -- 1995 OHS Handbook
Database Manager on October 30th, 2004:
Status Note: There 1995
Database Manager on October 30th, 2004:
Incorporated pipework of 1914 A. B. Felgemaker Op. 1172.
Related Instrument Entries: A. B. Felgemaker Co. (Opus 1172, 1913)
