C. B. Fisk, Inc.
Opus 147, 2018

Holy Name of Jesus Roman Catholic Cathedral

715 Nazareth Street
Raleigh, NC, US

73 Ranks
Instrument ID: 55927 ● Builder ID: 1010 ● Location ID: 48858
⬆️ These are database IDs that may change. Don't use as academic reference.EXPLORE IMAGESVIEW STOPLIST

Something not quite correct?Suggest an Edit

IMAGES

Category:
Only show images in a specific category ☝️

Something missing or not quite correct?Add ImageorSuggest an Edit

STOPLISTS

Selected Item:
View additional stoplist entries if they exist ☝️

Something missing or not quite correct?Add StoplistorSuggest an Edit

CONSOLES

Selected Item:
View additional console entries if they exist ☝️

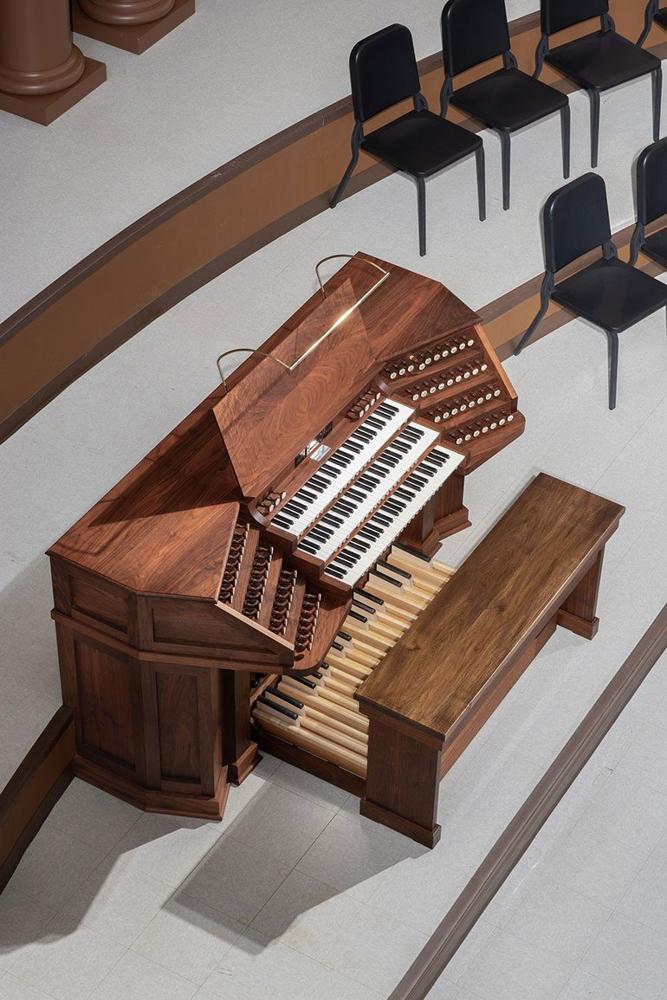

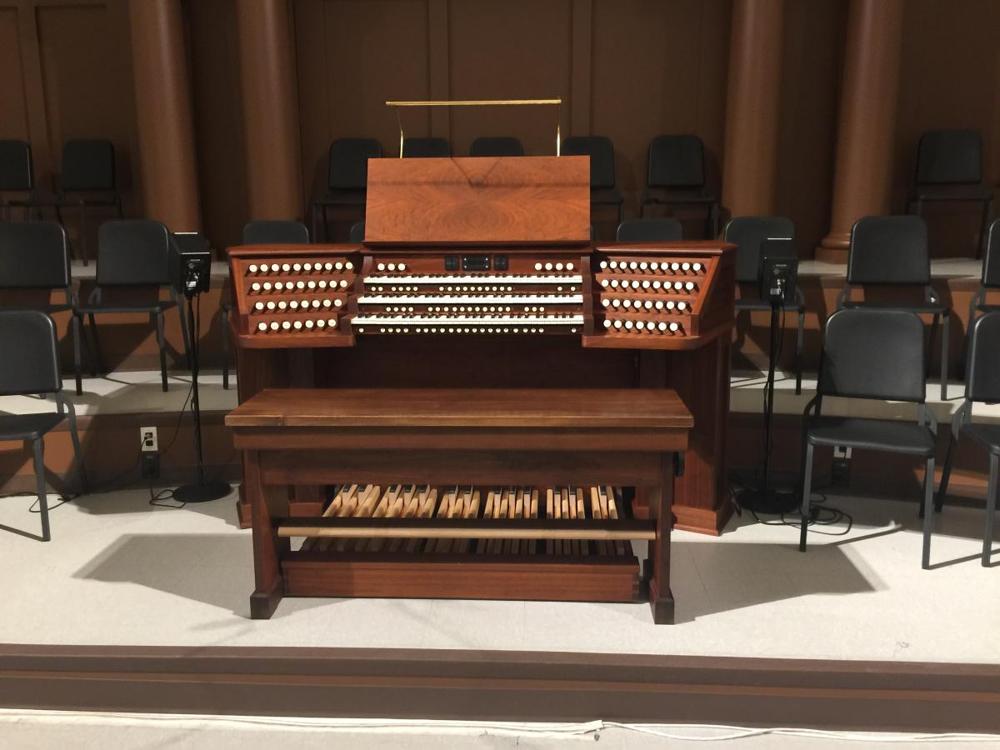

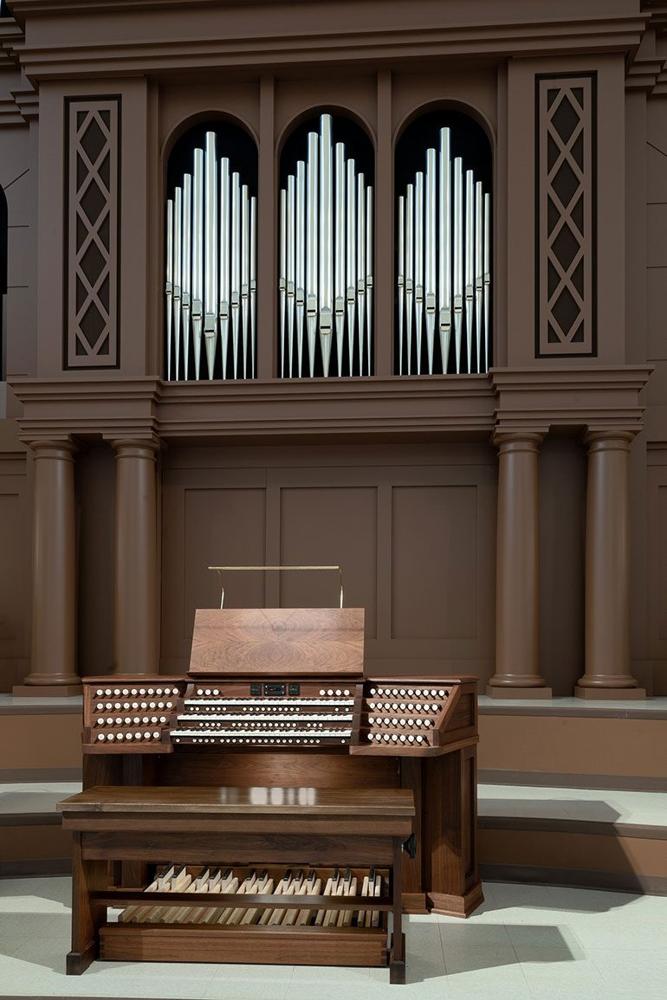

Builder: C. B. Fisk, Inc.
Position: Detached Keydesk (Mechanical Action)
Design: Traditional Without Cover
Pedalboard Type: Concave Straight
Features:
3 Manuals (61 Notes)32 Note Pedal4 Divisions49 StopsMechanical With Pneumatic Assists Key ActionElectrical Stop Action✓ Crescendo✓ Combination Thumb Piston(s)✓ Combination Toe Piston(s)✓ Coupler Thumb Piston(s)✓ Coupler Toe Piston(s)

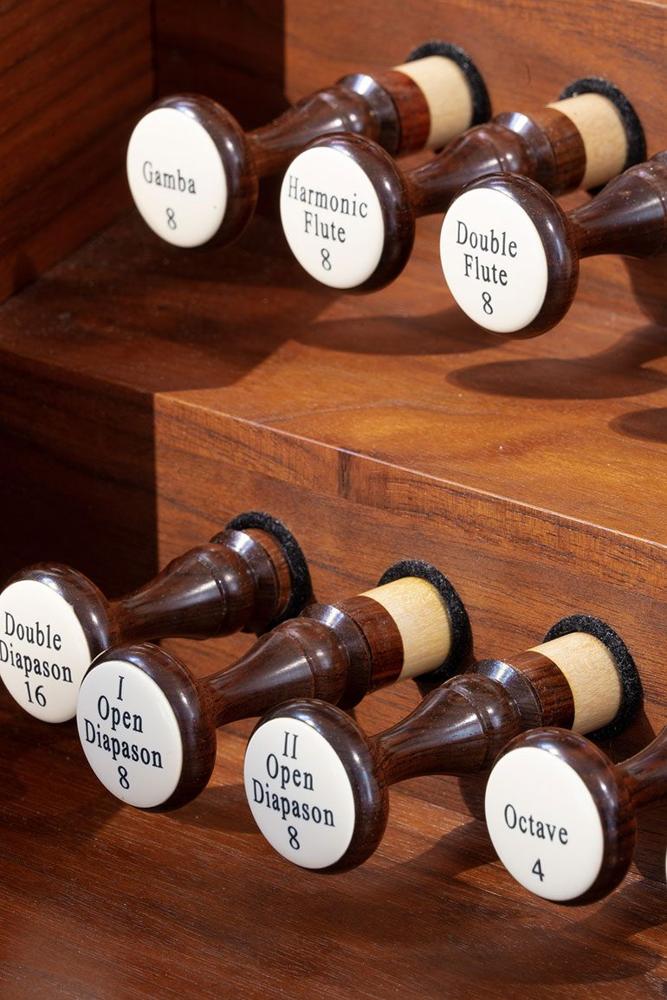

Stop Layout: Drawknobs in Horizontal Rows on Terraced/Stepped Jambs
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)

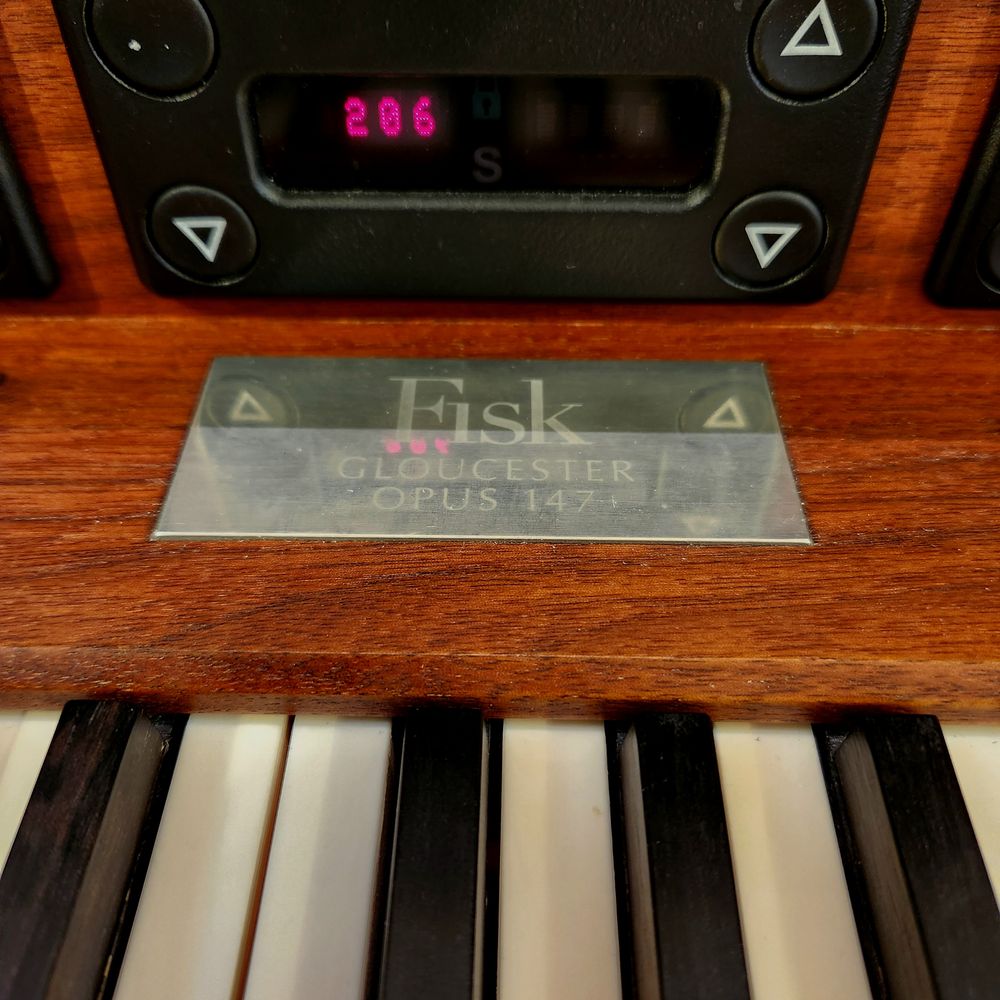

Combination Action: Computerized/Digital
Control System: Unknown or N/A

Something missing or not quite correct?Add ConsoleorSuggest an Edit

DETAILS

Switch between notes, documents, and blowers ☝️
This instrument is: Extant and Playable in this location

Paul R. Marchesano on June 22nd, 2022:

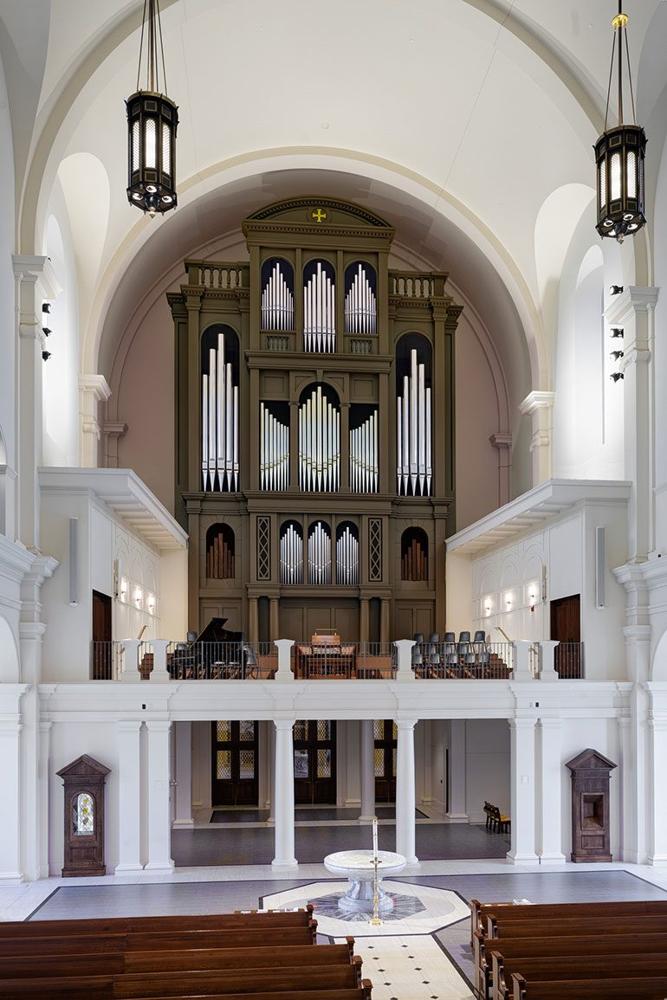

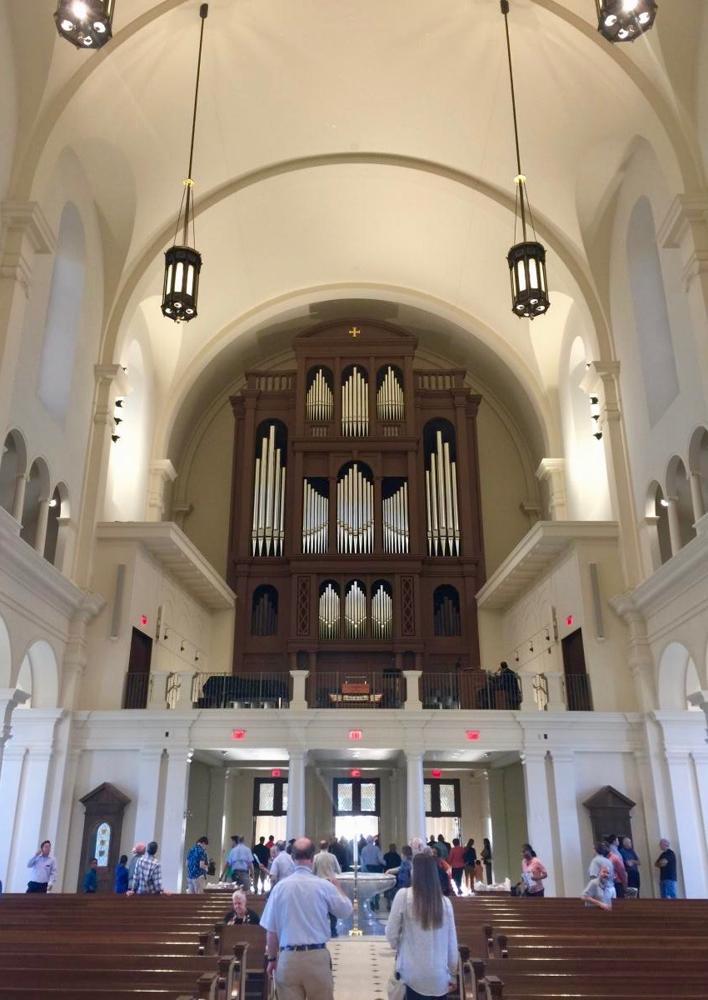

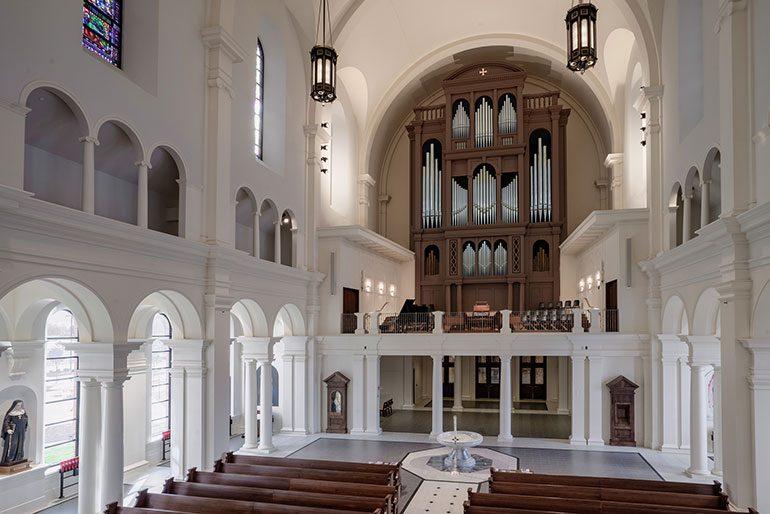

In early 2014 we received a request for a proposal for a new mechanical action pipe organ in the yet-to-be-built Cathedral of the Diocese of Raleigh, North Carolina. The Cathedral was to be on a vast scale; it would be cruciform in plan, with a barrel vault ceiling nearly 80′ high and a seating capacity of 2,000. The architect was James O’Brien of O’Brien & Keane Architecture of Arlington, Virginia, and the acoustician Dana Kirkegaard of Kirkegaard Acoustic Design LLC, of Downers Grove, Illinois. By late spring a Letter of Intent was signed, allowing us to exchange ideas with the Cathedral musicians and the Organ Committee to further refine the stop list and to work with Jim O’Brien and Dana Kirkegaard to influence the building design related to the organ, the choir, and to all music-making in the new space. By March 2015, a full contract for a three-manual 62-stop instrument was signed. The organ and choir are in a large multi-level West End gallery, where they speak without obstruction down the main axis of the lengthy nave. The organ’s tonal design, developed with the requirements of the Roman Catholic liturgies in mind, is largely eclectic, with an abundance of stops at 8′ pitch and below. Both the Choir and Swell divisions are under expression. The console is detached. The 58 foot tall, 22 ½ ton organ was delivered to Raleigh in February 2018. Installation and finish voicing crews spent more than ten months ensuring that the organ perfectly complements the visual and aural beauty of the Cathedral. The organ was inaugurated on January 3, 2019 with a Solemn Vespers service and recital by Nathan Laube. -- information from CB Fisk Inc website

Webpage Links: Fisk Organ opus 147
