Casavant Frères
Opus 689, 1917

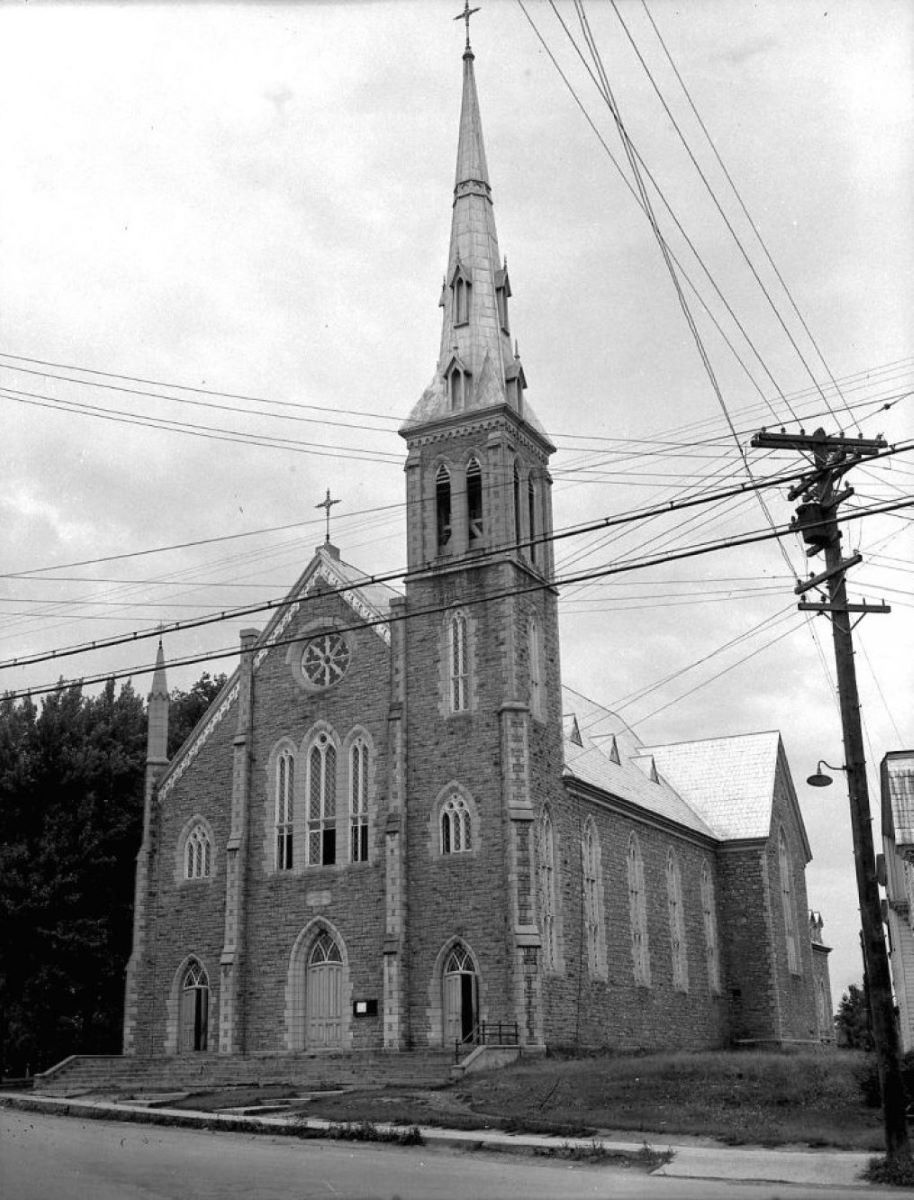

St-François-de-Sales

799, rue Jacques-Cartier
Gatineau, QC, CA

14 Ranks

EXPLORE IMAGES VIEW STOPLIST

ADDITIONAL INFORMATION

Something not quite correct?Suggest an Edit

IMAGES

Category:

Only show images in a specific category ☝️

Something missing or not quite correct?Add ImageorSuggest an Edit

STOPLISTS

Selected Item:

View additional stoplist entries if they exist ☝️

Click on a stop or division name for additional details if marked with .

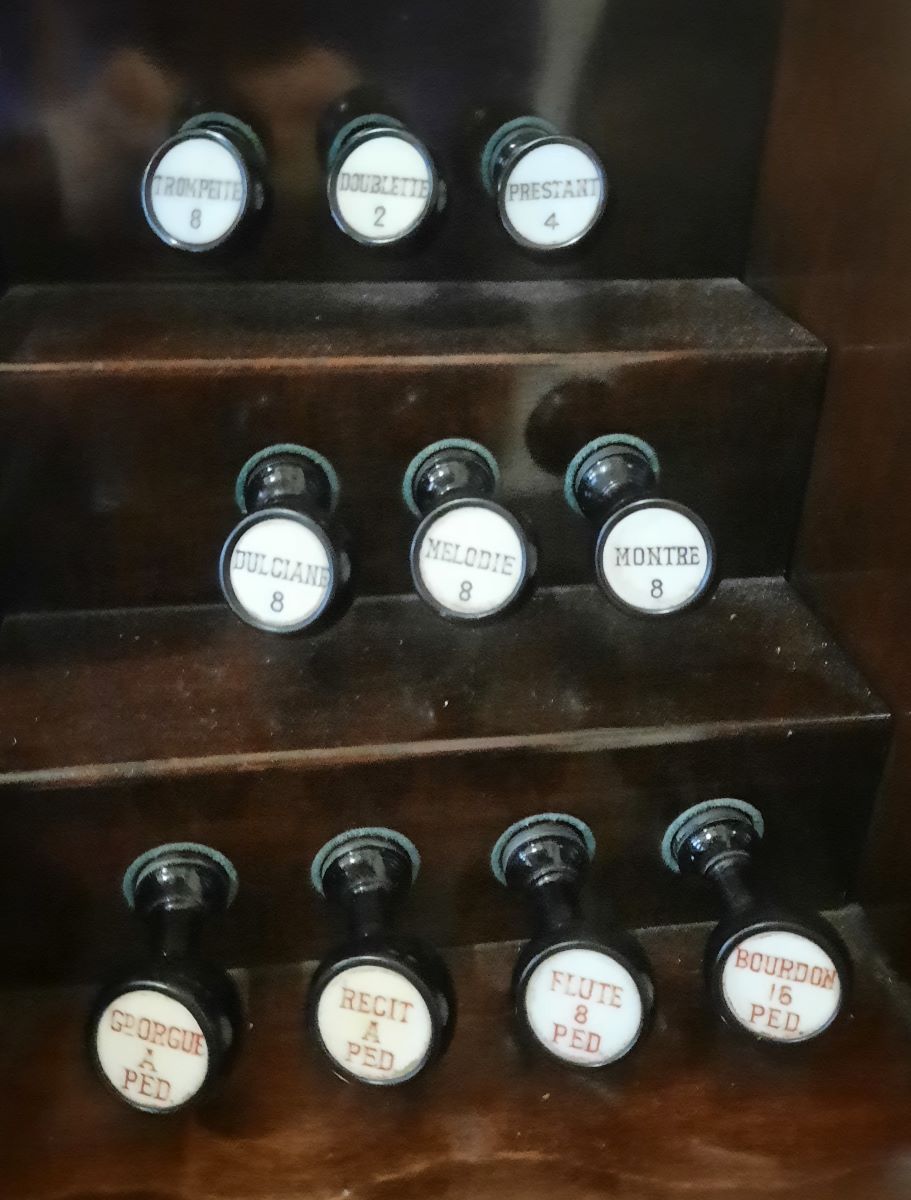

	Grand Orgue (I) Position: In a Chamber in a Side Transept. Facade Pipes or Case Front Visible Chest Action: Ventil (Tubular Pneumatic) Stop Action: Ventil (Tubular Pneumatic)
8'	Montre
8'	Melodie
4'	Prestant
8'	Dulciane
2'	Doublette
8'	Trompette

	Gᴰ Aigu 4' Grand Orgue to Grand Orgue
	Recit Grave Gᴰ Or 16' Recit to Grand Orgue
	Recit au Gᴰ Or 8' Recit to Grand Orgue
	Recit Aigu Gᴰ Or 4' Recit to Grand Orgue

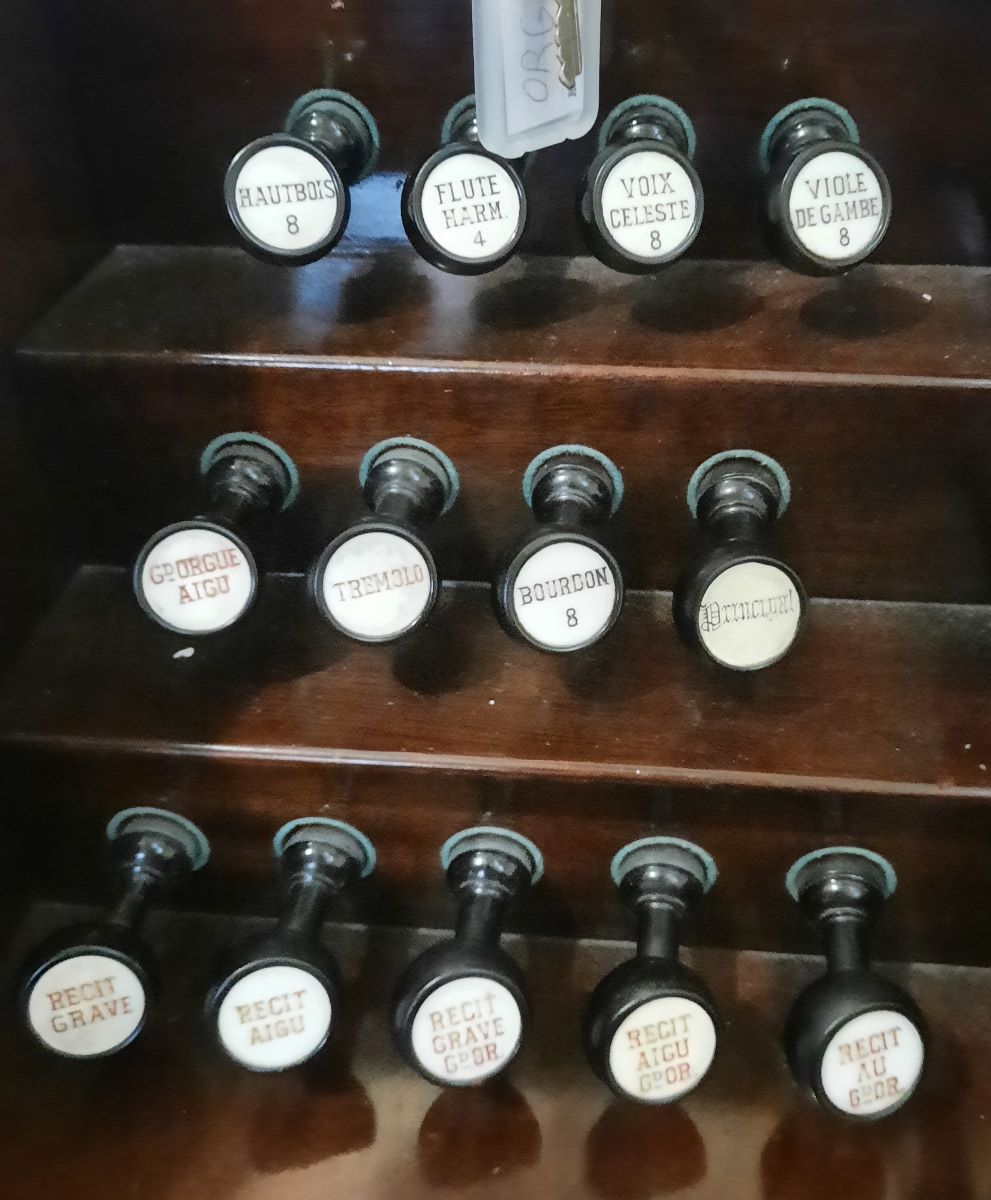

	Recit (II - Expressive) Position: In a Chamber in a Side Transept. No Visible Pipes Chest Action: Ventil (Tubular Pneumatic) Stop Action: Ventil (Tubular Pneumatic)
[8]'	Principal
8'	Bourdon
8'	Viole de Gambe
8'	Voix Celeste
4'	Flute Harm.
8'	Hautbois
	Tremolo

	Recit Grave 16' Recit to Recit
	Recit Aigu 4' Recit to Recit

	Pedale Position: In a Chamber in a Side Transept. No Visible Pipes Chest Action: Ventil (Tubular Pneumatic) Stop Action: Ventil (Tubular Pneumatic)
16'	Ped. Bourdon
8'	Ped. Flute

	Gᴰ Orgue a Ped. 8' Grand Orgue to Pedale
	Recit a Ped. 8' Recit to Pedale

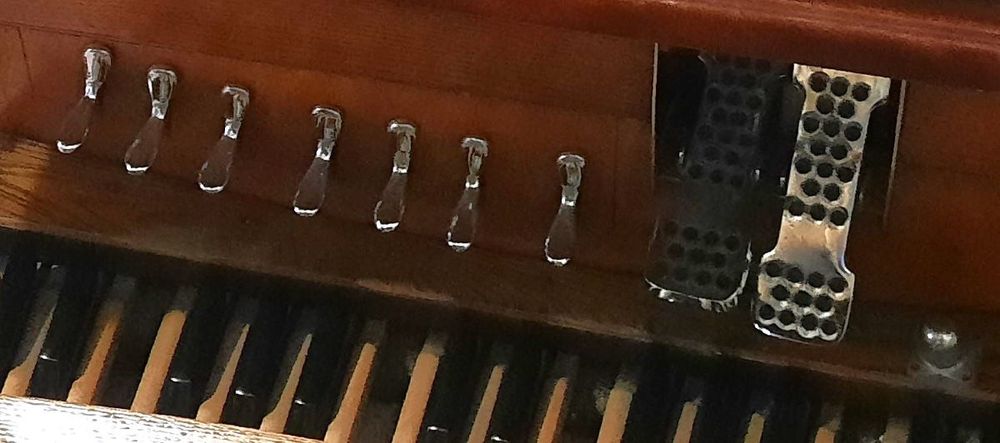

TOE STUDS [Unlabeled] 1; TOE LEVERS [Unlabeled] 7; PEDAL MOVEMENTS: Recit Expression (balanced), Crescendo (balanced)

Open In New Tab

Something missing or not quite correct?Add StoplistorSuggest an Edit

CONSOLES

Selected Item:

View additional console entries if they exist ☝️

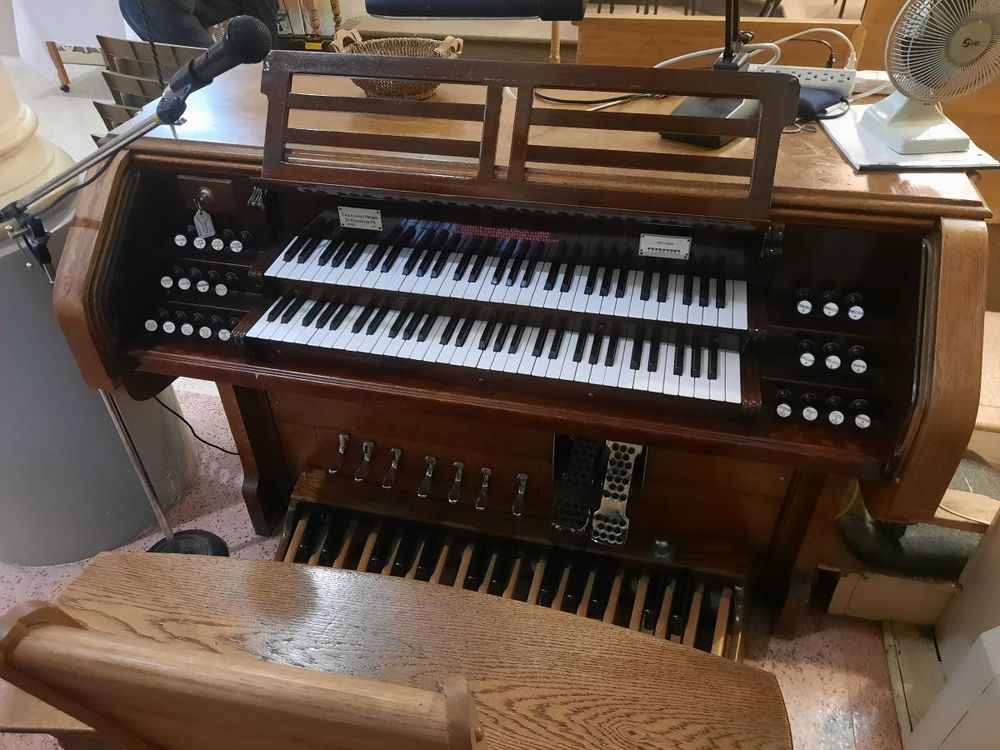

Builder: Casavant Frères

Position: Console in Fixed Position, Right

Design: Traditional With Roll Top

Pedalboard Type: Flat Radiating

Features:

2 Manuals (61 Notes)30 Note Pedal3 Divisions14 Stops14 RegistersTubular Pneumatic (Unknown) Key ActionTubular Pneumatic (Unknown) Stop ActionCrescendoCombination Trundle(s)

Stop Layout: Drawknobs in Horizontal Rows on Terraced/Stepped Jambs

Expression Type: Balanced Expression Shoes/Pedals (Details Unknown)

Combination Action: Fixed Mechanical

Control System: Unknown or N/A

Something missing or not quite correct?Add ConsoleorSuggest an Edit

DETAILS

Switch between notes, documents, audio, and blowers ☝️

This instrument is: ExtantandPlayable in this location

Tate Pumfrey on November 17th, 2024:

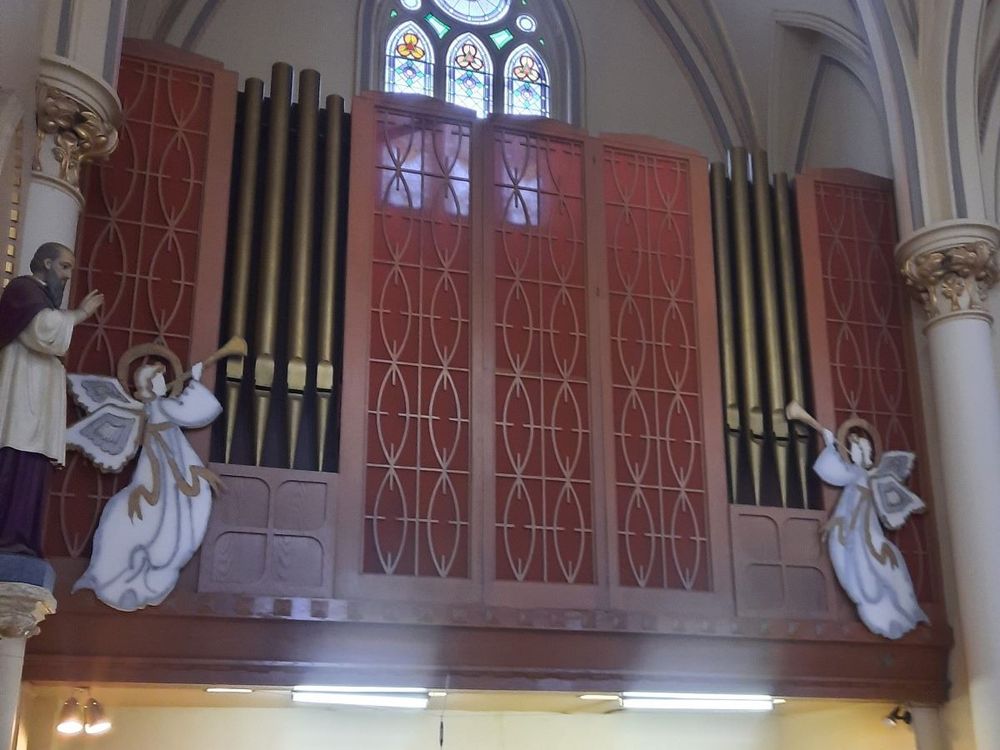

The organ was moved after Vatican II, having originally been situated in the loft at the back of the nave. It is now located in the right transept; the current facade is not original as a result. Originally, the action was tubular-pneumatic but was changed to electro-pneumatic by François Caron in the 1980s. The keys were given contacts and recapped, so they no longer look like original 1917 keyboards. This latter information comes from Sylvain Brisson, who worked on the project at the time.

Database Manager on October 5th, 2015:

Identified through information in Casavant documents, courtesy of Simon Couture and Denis Blaine.
