Schoenstein & Co.
Opus 180, 2022
St. Alban's Episcopal Church
Sanctuary; front
305 North Thirtieth Street
Waco, TX, US
32 Ranks - 1,986 Pipes
Instrument ID: 67576 ● Builder ID: 6983 ● Location ID: 18902
⬆️ These are database IDs that may change. Don't use as academic reference.EXPLORE IMAGESVIEW STOPLISTSomething not quite correct?Suggest an Edit
IMAGES
Category:
Only show images in a specific category ☝️
Something missing or not quite correct?Add ImageorSuggest an Edit
STOPLISTS
Selected Item:
View additional stoplist entries if they exist ☝️
Click on a stop or division name for additional details if marked with 🛈.
| GREAT (II)🛈 | ||
| 16' | Double Diapason | 61 |
| 8' | Grand Open Diapason | 17 Pedal Principal |
| 8' | Gallery Open Diapason | SO |
| 8' | First Open Diapason | 61 |
| 8' | Second Open Diapason | 12 Double Diapason |
| 8' | Harmonic Flute🛈 | 42 |
| 8' | Bourdon | 61 |
| 4' | Principal | 61 |
| 4' | Octave | 12 Double Diapason |
| 4' | Spire Flute | 61 |
| 2 2⁄3' | Twelfth | 61 |
| 2' | Fifteenth | 61 |
| 1 3⁄5' | Seventeenth | 54 |
| III-IV | Mixture 2' | 187 |
| 8' | Solo Trumpet | SO |
| 16' | SWELL to GREAT | |
| 8' | SWELL to GREAT | |
| 4' | SWELL to GREAT | |
| 16' | SOLO to GREAT | |
| 8' | SOLO to GREAT | |
| 4' | SOLO to GREAT |
| SWELL (III - Expressive)🛈 | ||
| 16' | Lieblich Bourdon | 12 |
| 8' | Horn Diapason | 61 |
| 8' | Gamba | 61 |
| 8' | Gamba Celeste | 61 |
| 8' | Chimney Flute | 61 |
| 4' | Gemshorn | 61 |
| 4' | Chimney Flute | 12 Chimney Flute |
| 2 2⁄3' | Nazard | Chimney Flute |
| 2' | Fifteenth | 12 Gemshorn |
| III | Mixture | 166 |
| 16' | Contra Posaune | 61 |
| 8' | Cornopean | 61 |
| 8' | Posaune | 12 Contra Posaune |
| 8' | Oboe Horn | 61 |
| 8' | Vox Humana🛈 | 61 |
| Tremulant | ||
| 16' | SWELL to SWELL | |
| SWELL Unison Off | ||
| 4' | SWELL to SWELL |
| SOLO (I)🛈 | ||
| 8' | Solo Trumpet | 61 |
| 8' | Dulciana🛈 | 61 |
| 4' | Dulcet🛈 | 12 Dulciana |
| 2' | Fifteenth🛈 | 12 Dulciana |
| 8' | Clarinet🛈 | 61 |
| 8' | Gallery Open Diapason🛈 | 61 |
| 8' | Salicional🛈 | 49 Flauto Continuo Bass |
| 8' | Flauto Continuo🛈 | 61 |
| 4' | Salicet🛈 | 7 |
| 4' | Flute🛈 | 7 |
| 8' | Grand Open Diapason | GT |
| 8' | First Open Diapason | GT |
| 8' | Harmonic Flute | GT |
| 8' | Horn Diapason | SW |
| 8' | Gamba Celeste | SW |
| 8' | Tuben🛈 | SW |
| 8' | Oboe Horn | SW |
| 8' | Vox Humana | SW |
| 16' | SOLO to SOLO | |
| SOLO Unison Off | ||
| 4' | SOLO to SOLO | |
| 8' | GREAT to SOLO | |
| 16' | SWELL to SOLO | |
| 8' | SWELL to SOLO | |
| 4' | SWELL to SOLO |
| PEDAL🛈 | ||
| 8' | Gamba | SW |
| 32' | Resultant🛈 | 12 |
| 16' | Open Bass🛈 | 12 |
| 16' | Double Diapason | GT |
| 16' | Bourdon | SW |
| 8' | Principal🛈 | 32 Open Bass |
| 8' | Open Diapason | GT Second Open |
| 8' | Stopped Diapason | SW |
| 4' | Fifteenth🛈 | 12 Principal |
| 4' | Flute | GT Harmonic Flute |
| 32' | Cornet🛈 | Derived |
| 16' | Trombone | 12 Solo Trumpet |
| 16' | Contra Posaune | SW |
| 8' | Cornopean | SW |
| 4' | Clarinet | CH |
| Pedal Divide | ||
| 8' | GREAT to PEDAL | |
| 4' | GREAT to PEDAL | |
| 8' | SWELL to PEDAL | |
| 4' | SWELL to PEDAL | |
| 8' | SOLO to PEDAL | |
| 4' | SOLO to PEDAL |
Something missing or not quite correct?Add StoplistorSuggest an Edit
CONSOLES
Selected Item:
View additional console entries if they exist ☝️

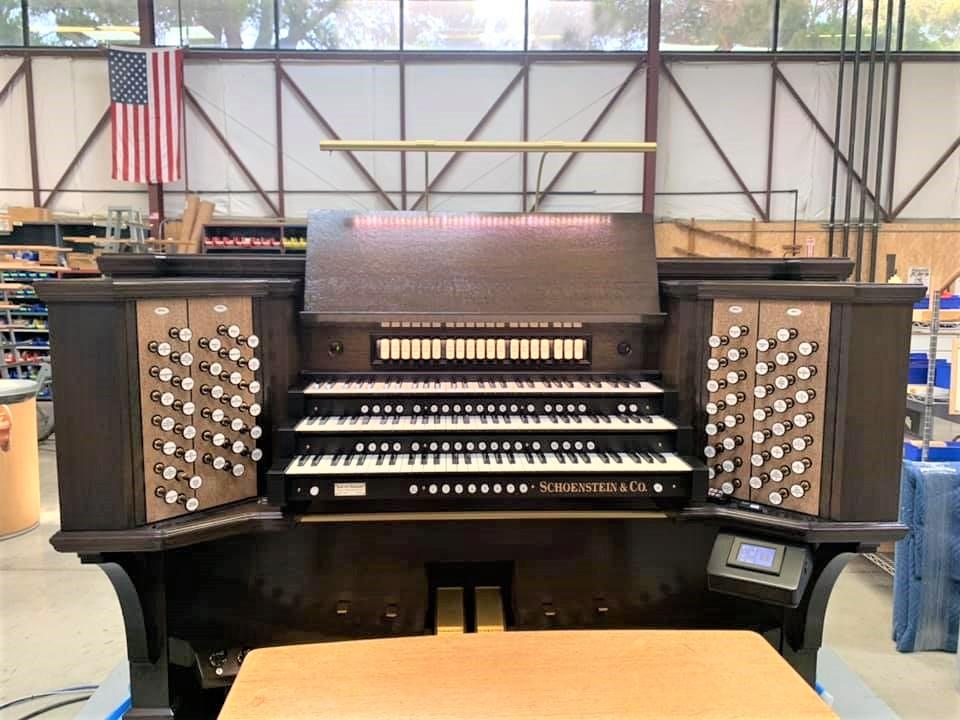

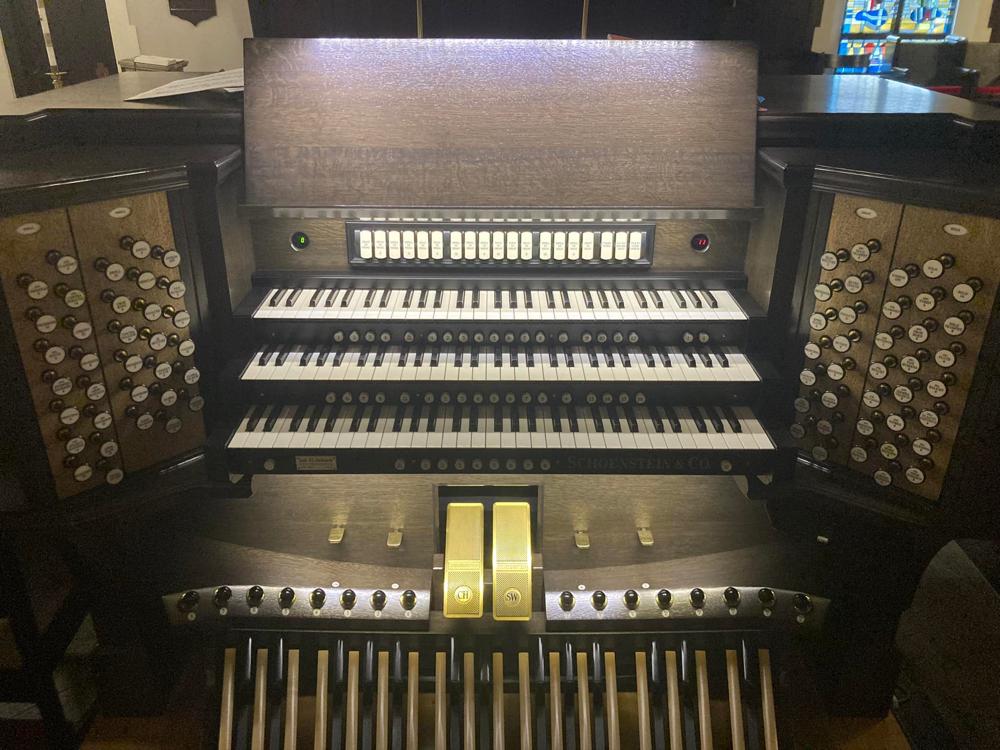

Builder: Schoenstein & Co.
Position: Unknown
Design: Unknown
Pedalboard Type: Concave Radiating (Meeting AGO Standards)
Features:
3 Manuals (61 Notes)32 Note Pedal27 StopsElectrical Key ActionElectrical Stop Action✓ Crescendo✓ Pedal Divide✓ Combination Thumb Piston(s)✓ Combination Toe Piston(s)Stop Layout: Unknown
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination Action: Computerized/Digital
Control System: Unknown or N/A
Something missing or not quite correct?Add ConsoleorSuggest an Edit
DETAILS
Switch between notes, documents, and blowers ☝️
This instrument is: Extant and Playable in this location
Jim Stettner on November 7th, 2021:
The organ was to have been installed and completed in-time for Christmas, 2021. But according to the 'Epistle' parish newsletter for Fall 2021, page 5: *"It is with gratitude for the support from the parish for the Renew & Restore Campaign, that we want to share with you the revised calendar for the completion of the beautiful renovations of our historic church. Between delays in permits, extensive lead time for the manufacturing of certain critical items such as light fixtures, and the general tenuous availability of materials and workers, the Building Committee, Architects, Contractors, and Vestry representatives have agreed that an extension is both prudent and necessary for us to be able to complete the work in the Nave prior to the delivery of the organ. In light of these unanticipated and extenuating circumstances, and knowing that there is no way we would be able to occupy the space before Christmas, the Schoenstein Organ Company’s CEO graciously suggested moving their installation to January 2022. We are delighted and very appreciative of their flexibility which will enable us to complete the entire scope of interior renovations before turning the build-ing over to the organ builders as they complete the work of renewing our worship space."*
The organ was to have been installed and completed in-time for Christmas, 2021. But according to the 'Epistle' parish newsletter for Fall 2021, page 5: *"It is with gratitude for the support from the parish for the Renew & Restore Campaign, that we want to share with you the revised calendar for the completion of the beautiful renovations of our historic church. Between delays in permits, extensive lead time for the manufacturing of certain critical items such as light fixtures, and the general tenuous availability of materials and workers, the Building Committee, Architects, Contractors, and Vestry representatives have agreed that an extension is both prudent and necessary for us to be able to complete the work in the Nave prior to the delivery of the organ. In light of these unanticipated and extenuating circumstances, and knowing that there is no way we would be able to occupy the space before Christmas, the Schoenstein Organ Company’s CEO graciously suggested moving their installation to January 2022. We are delighted and very appreciative of their flexibility which will enable us to complete the entire scope of interior renovations before turning the build-ing over to the organ builders as they complete the work of renewing our worship space."*
Jim Stettner on November 7th, 2021:

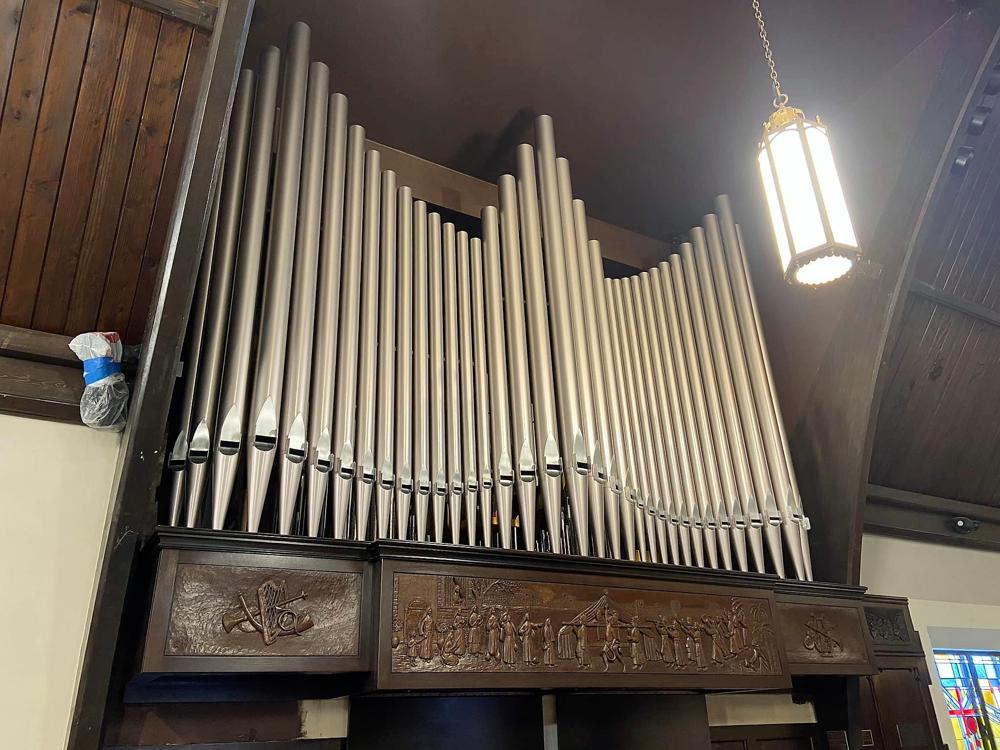

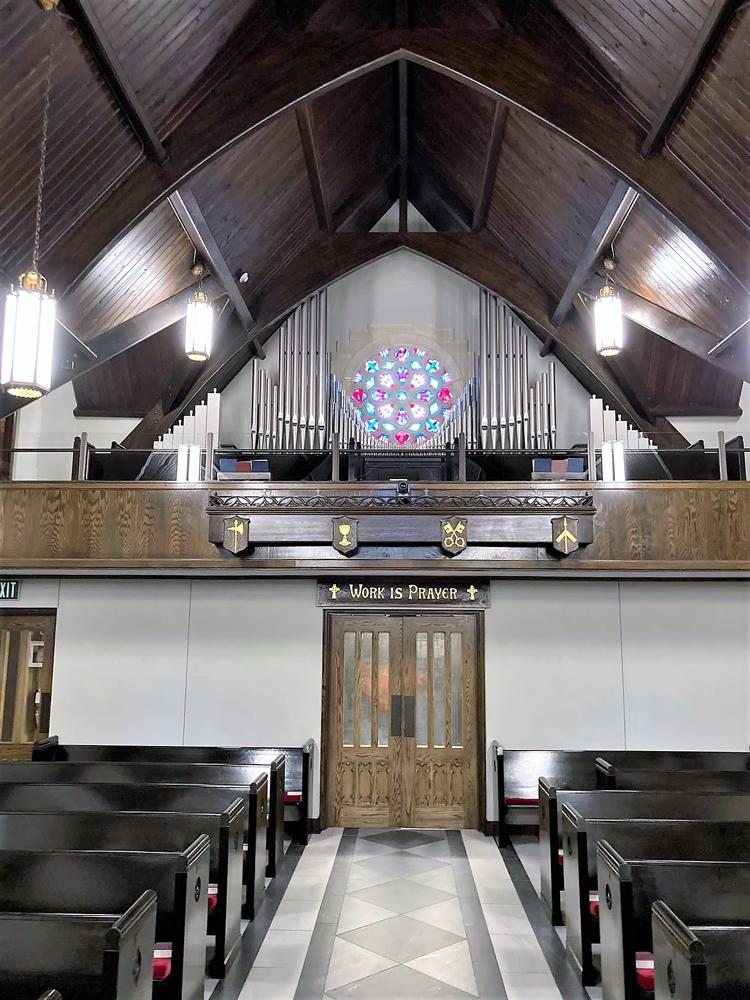

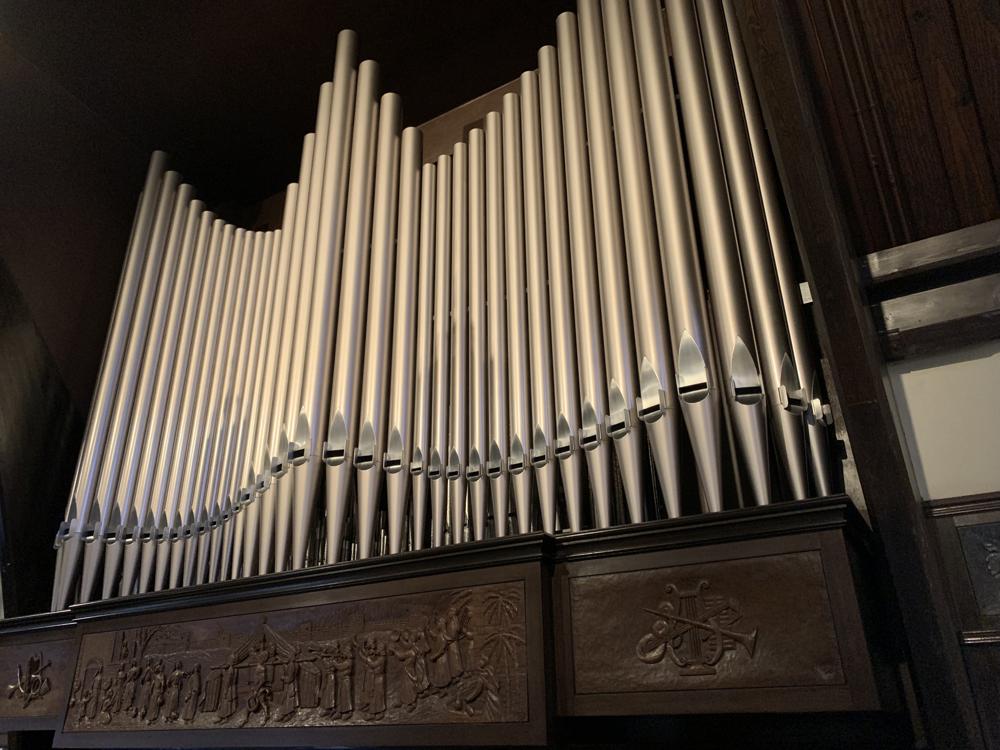

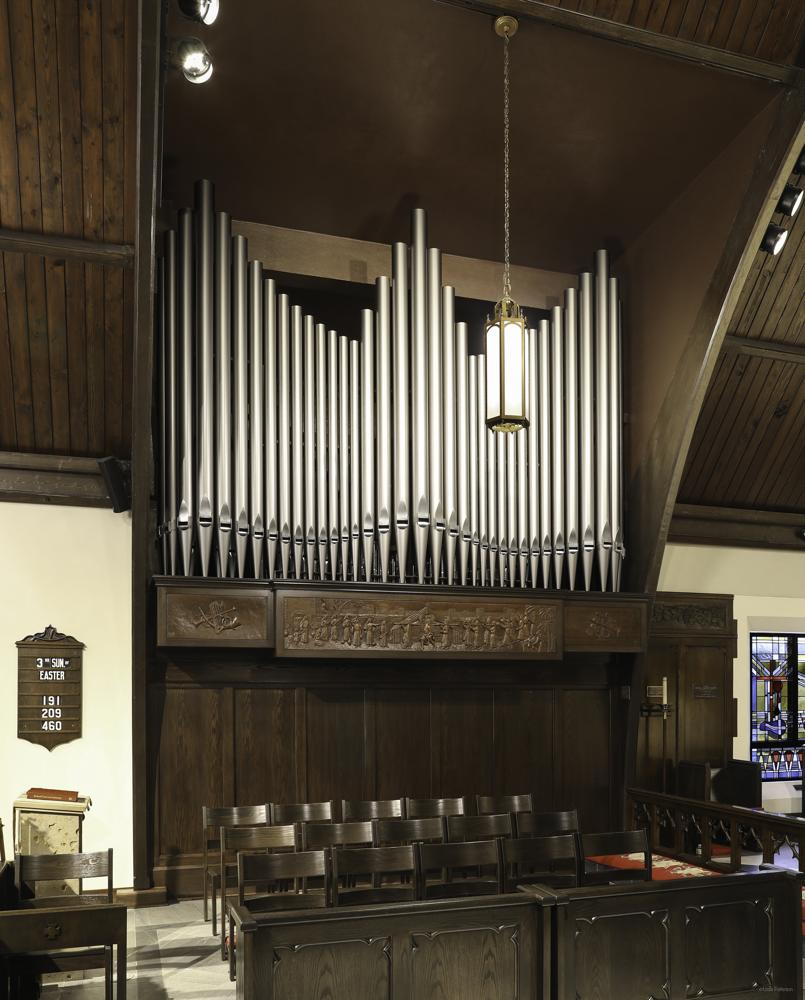

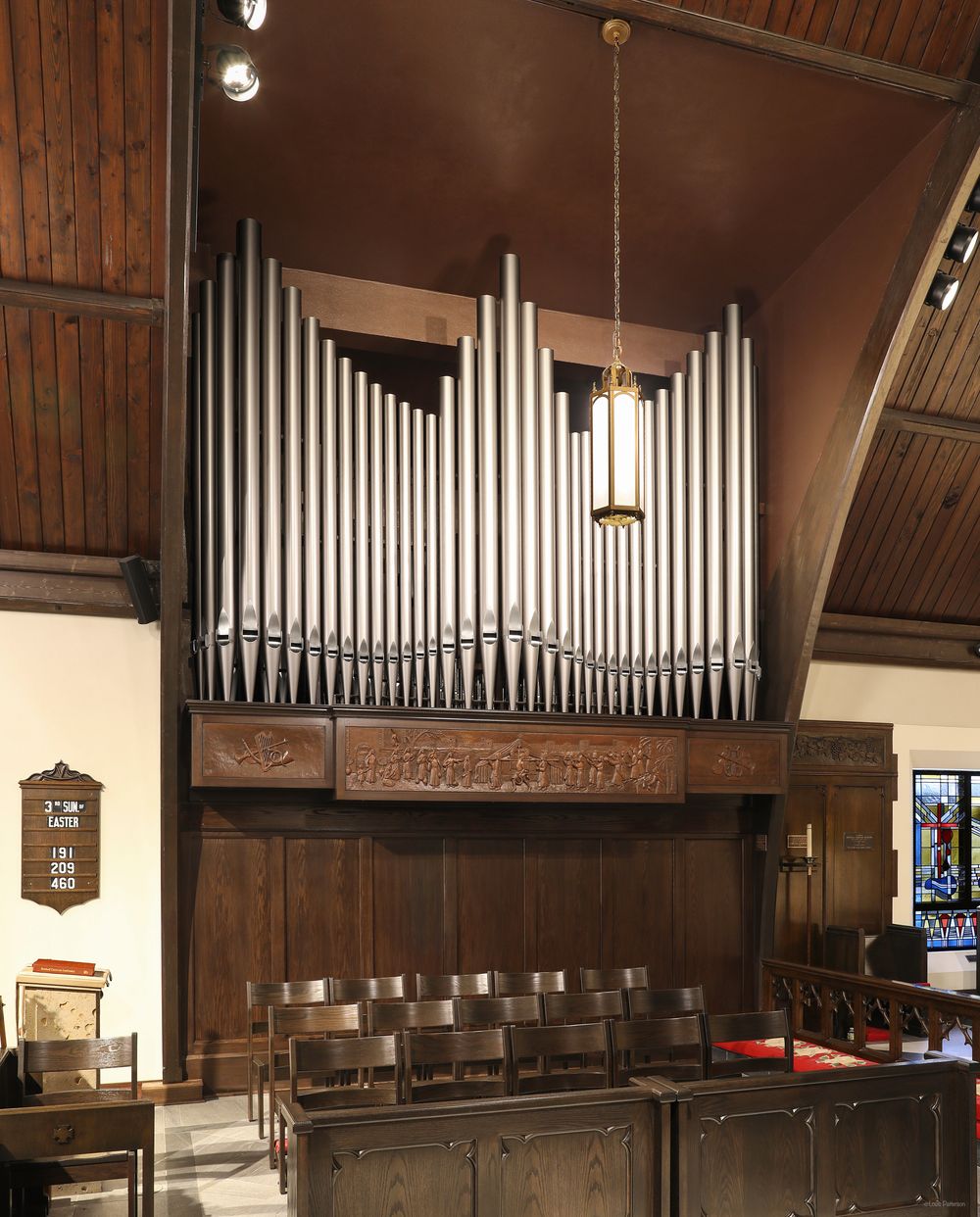

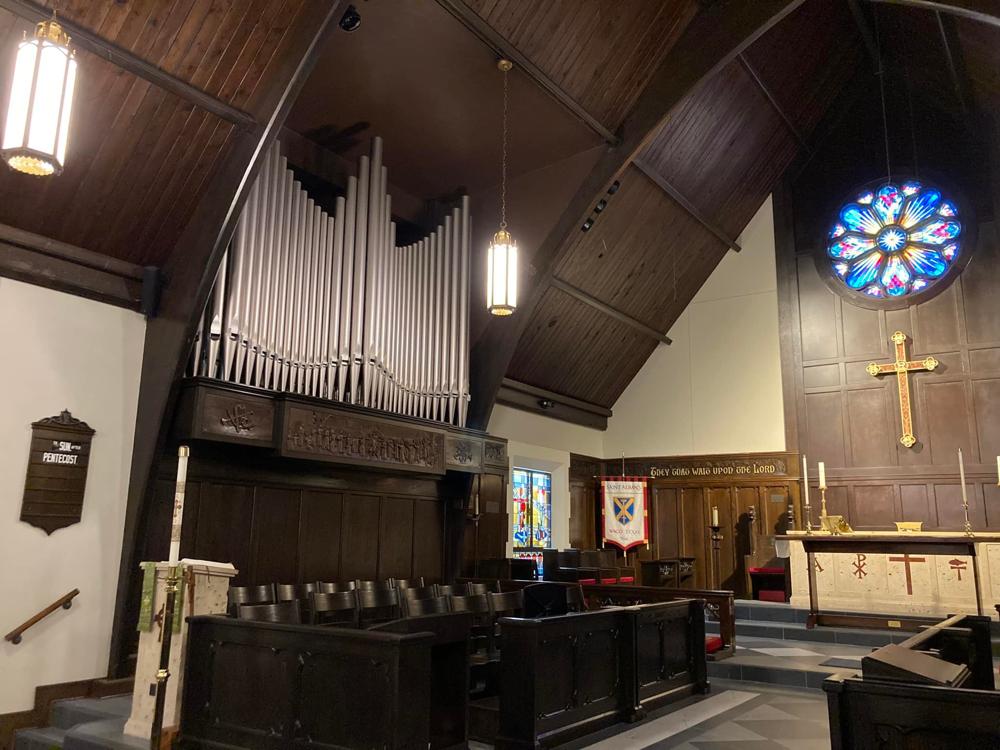

This entry represents the installation of a new organ, based upon the builder's website. In the 'News' section, it states,* "A new three-manual, 27-voice, 32-rank organ under construction at the Schoenstein & Co. factory is to be installed at St. Alban’s Episcopal Church in Waco, Texas as part of a major campus-wide expansion and renovation of this rapidly growing parish. The main organ is in a north chancel chamber. Unenclosed stops for congregational support and children’s choir accompaniment along with the Pedal Open Wood are in the west gallery. Acoustical consultation is by Paul Scarbrough of Akustiks LLC, Norwalk, CT. The tonal design is focused on support of the Anglican service. The organist and director of music is Eugene Lavery."* May 21, 2021.
Jeff Scofield on August 12th, 2021:
Gallery Keyboard: Portable single manual keyboard with stop controls for the five Gallery stops. The keyboard can be located anywhere in the Gallery.
