Noack
Opus 166, 2022
Residence: Ray Cornils
West Bath, ME, US
5 Ranks
Instrument ID: 69577 ● Builder ID: 7042 ● Location ID: 60166
⬆️ These are database IDs that may change. Don't use as academic reference.EXPLORE IMAGESVIEW STOPLISTSomething not quite correct?Suggest an Edit
IMAGES
Category:
Only show images in a specific category ☝️
Something missing or not quite correct?Add ImageorSuggest an Edit
STOPLISTS
Selected Item:
View additional stoplist entries if they exist ☝️
Something missing or not quite correct?Add StoplistorSuggest an Edit
CONSOLES
Selected Item:
View additional console entries if they exist ☝️

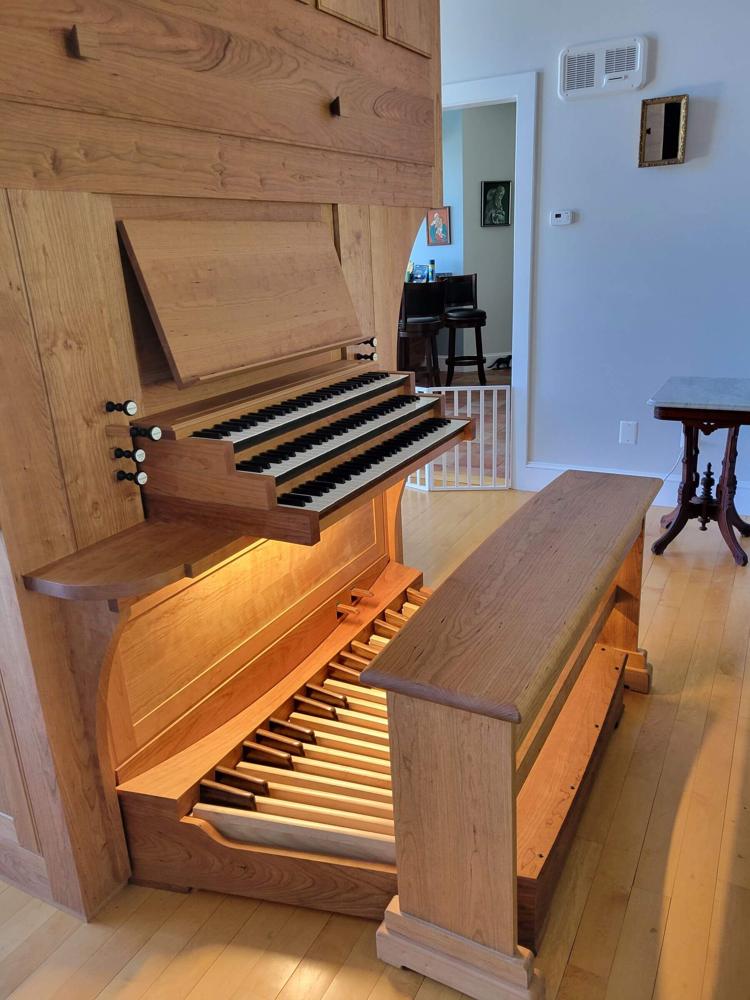

Builder: Noack Organ Co.
Position: Keydesk Attached
Design: Traditional Without Cover
Pedalboard Type: Concave Radiating (Meeting AGO Standards)
Features:
3 Manuals (61 Notes)32 Note Pedal2 Divisions5 Stops7 RegistersMechanical (Suspended Tracker) Key ActionMechanical Stop Action✓ Hitchdown Coupler(s)Stop Layout: Drawknobs in Vertical Rows on Flat Jambs
Expression Type: No Enclosed Divisions
Combination Action: None
Control System: Unknown or N/A
Something missing or not quite correct?Add ConsoleorSuggest an Edit
DETAILS
Switch between notes, documents, and blowers ☝️
This instrument is: Extant and Playable in this location
Didier Grassin on November 17th, 2023:
Key action is balanced (not suspended)
Key action is balanced (not suspended)
Jim Stettner on March 17th, 2023:

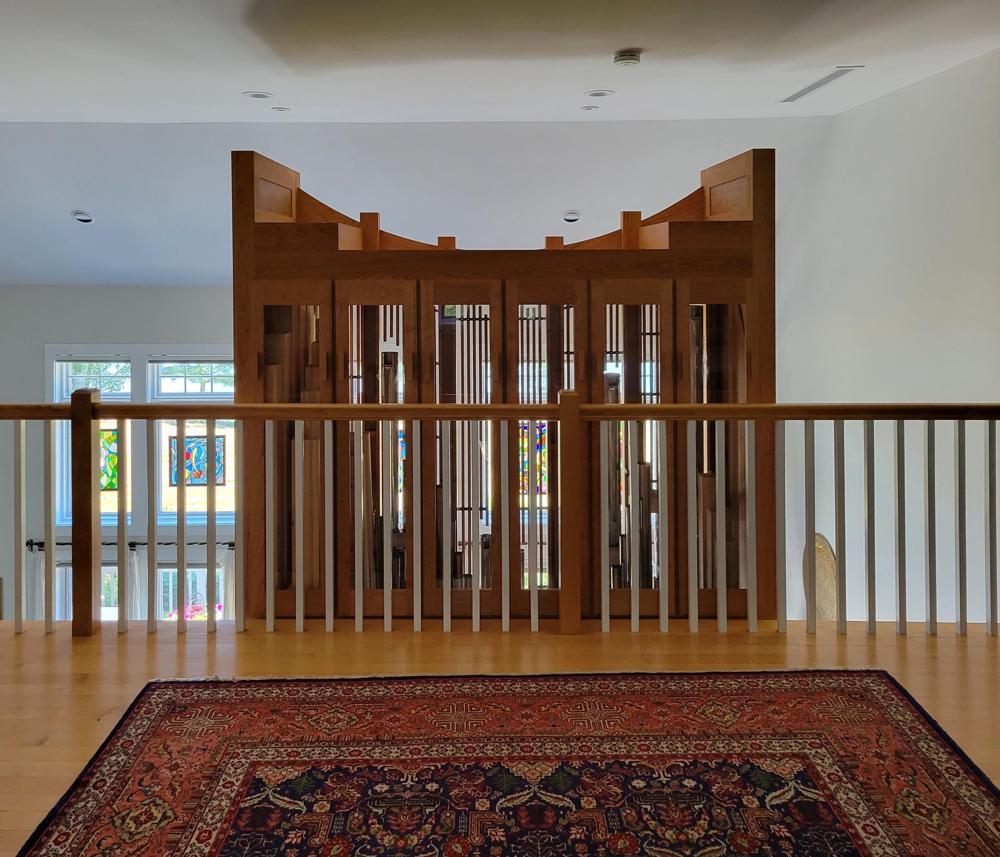

This entry represents the installation of a new organ. Identified by the owner. Supplemental information from the builder's website. Manual I is a coupling manual. The two, manual-to-pedal couplers are hitch-down. The keydesk is attached on the back side of the free-standing case. Above the keydesk are 6 hinged doors which the performer may open to control the volume of sound at the keydesk.
Webpage Links: Opus 166
Something missing or not quite correct?Add NoteorAdd WebpageorAdd Cross ReferenceorSuggest an Edit
