R. A. Colby, Inc.
2023
St. Luke's Episcopal Cathedral
130 N. Magnolia Avenue
Orlando, FL, US
74 Ranks - 4,190 Pipes
Instrument ID: 70035 ● Builder ID: 1324 ● Location ID: 14809
⬆️ These are database IDs that may change. Don't use as academic reference.EXPLORE IMAGESVIEW STOPLISTSomething not quite correct?Suggest an Edit
IMAGES
Category:
Only show images in a specific category ☝️
Something missing or not quite correct?Add ImageorSuggest an Edit
STOPLISTS
Selected Item:
View additional stoplist entries if they exist ☝️
Click on a stop or division name for additional details if marked with 🛈.
| GREAT🛈 | ||
| 16' | Montre | 61 |
| 8' | Principal | 61 |
| 8' | Spielflöte | 61 |
| 8' | Flute Harmonique | DIG |
| 8' | Gamba | DIG |
| 4' | Octave | 61 |
| 4' | Cor de Nuit | 61 |
| 2 2⁄3' | Quint | 61 |
| 2' | Super Octave | 61 |
| V | Grand Cornet🛈 | 245 |
| IV | Fourniture 1 1/3' | 244 |
| IV | Scharf 1' | 244 |
| 16' | Trompete | 61 |
| 8' | Trompete | 61 |
| Flute Harmonique Trem | ||
| 16' | Bombarde-en-Chamade🛈 | Trompette-en-Chamade |
| 8' | Trompette-en-Chamade | 61 |
| 8' | Resurrection Trumpet | CH |
| 16' | GREAT to GREAT | |
| GREAT Unison Off | ||
| 4' | GREAT to GREAT |
| SWELL (Expressive)🛈 | ||
| 16' | Rohrflöte | 12 Rohrflöte |
| 16' | Contra Gamba | DIG |
| 8' | Montre | 61 |
| 8' | Rohrflöte | 61 |
| 8' | Viole de Gambe | 61 |
| 8' | Voix Celeste | 61 |
| 8' | Flauto Dolce | DIG |
| 8' | Flute Celeste | DIG |
| 4' | Prestant | 61 |
| 4' | Flute Harmonique | DIG |
| 2 2⁄3' | Nazard | DIG |
| 2' | Nachthorn | DIG |
| 1 3⁄5' | Tierce | DIG |
| III | Klein Mixture 2 2/3' | DIG |
| V | Plein Jeu 2' | 305 |
| 16' | Contre Trompette | DIG |
| 16' | Contra Fagotto | DIG |
| 8' | Trompette | 61 |
| 8' | Hautbois | 61 |
| 8' | Basson | DIG |
| 8' | Voix Humaine | DIG |
| 4' | Clairon | 61 |
| Tremulant | ||
| 8' | Resurrection Trumpet | CH |
| 16' | SWELL to SWELL | |
| SWELL Unison Off | ||
| 4' | SWELL to SWELL |
| CHOIR (Expressive)🛈 | ||
| 16' | Erzähler | DIG |
| 8' | Gemshorn | 61 |
| 8' | Gemshorn Celeste | 61 |
| 8' | Koppelgedeckt | 61 |
| 8' | Erzähler | DIG |
| 8' | Erzähler Celeste | DIG |
| 4' | Geigen Principal | 61 |
| 4' | Zauberflöte | 61 |
| 2' | Spitzflöte | 61 |
| IV | Mixture 1' | 244 |
| 16' | Clarinet Bass | DIG |
| 8' | Cromorne | 61 |
| 8' | Cor Anglais | DIG |
| 8' | Clarinette | DIG |
| 4' | Rohrschalmei | 61 |
| 16' | Resurrection Trumpet🛈 | Resurrection Trumpet |
| 8' | Resurrection Trumpet | 61 |
| 16' | CHOIR to CHOIR | |
| CHOIR Unison Off | ||
| 4' | CHOIR to CHOIR |
| POSITIV🛈 | ||
| 16' | Bourdon doux | DIG |
| 8' | Prinzipal | DIG |
| 8' | Nasonflöte | 61 |
| 8' | Salicional | DIG |
| 4' | Prestant | 61 |
| 4' | Koppelflöte | 61 |
| 3 1⁄5' | Grand Tierce | DIG |
| 2 2⁄3' | Nasat | 61 |
| 2' | Octave | 61 |
| 1 3⁄5' | Terz | 61 |
| 1 1⁄3' | Quint | 61 |
| 1 1⁄7' | Septième | 61 |
| 1' | Sifflöte | 61 |
| III | Zimbel 2/3' | 183 |
| 16' | Basson | DIG |
| 8' | Krummhorn | 61 |
| Tremulant | ||
| 16' | Trompette-en-Chamade🛈 | GT |
| 8' | Trompette-en-Chamade | GT |
| 4' | Trompette-en-Chamade | GT |
| 8' | Resurrection Trumpet | CH |
| 16' | POSITIV to POSITIV | |
| POSITIV Unison Off |
| PEDAL🛈 | ||
| 32' | Contre Viole | DIG |
| 32' | Contra Bourdon | DIG |
| 32' | Sanftbass | 32 |
| 16' | Principal | 32 |
| 16' | Violone | DIG |
| 16' | Montre | GT |
| 16' | Bourdon | 12 |
| 16' | Rohrflöte | SW |
| 16' | Contra Gamba | DIG |
| 16' | Erzähler | DIG |
| 10 2⁄3' | Grande Quinte | DIG |
| 8' | Octave | 12 Principal |
| 8' | Violone | DIG |
| 8' | Gedeckt | 12 |
| 8' | Rohrflöte | SW |
| 8' | Erzähler | DIG |
| 6 2⁄5' | Grand Tierce | DIG |
| 4 4⁄7' | Grand Septième | DIG |
| 4' | Super Octave | 12 Principal |
| 4' | Blockflöte | |
| 4' | Flûte Harmonique | SW |
| 2' | Rohrpfeife | 32 |
| III | Rauschpfeife 2 2/3' | 96 |
| IV | Mixture 2' | 128 |
| 32' | Contra Bombarde | DIG |
| 32' | Contra Posaune | 12 Posaune |
| 16' | Bombarde | DIG |
| 16' | Posaune | 32 |
| 16' | Trompete | GT |
| 16' | Hautbois | SW |
| 16' | Contra Fagotto | DIG |
| 8' | Tromba | DIG |
| 8' | Trompete | 32 |
| 8' | Hautbois | SW |
| 8' | Cromorne | CH |
| 4' | Trompete | 12 Trompete |
| 4' | Petite Clairon | DIG |
| 4' | Rohrschalmei | CH |
| 8' | Trompette-en-Chamade | GT |
| 4' | Trompette-en-Chamade | GT |
| 8' | Resurrection Trumpet | CH |
| GRAND CHOEUR🛈 | ||
| 16' | Violone Bass | DIG |
| 8' | Principal | DIG |
| 8' | Violone | DIG |
| 8' | Doppelflöte | DIG |
| 8' | Anges Séraphiques II | DIG |
| 4' | Prestant | DIG |
| 4' | Flûte Octav | DIG |
| 2 2⁄3' | Quint | DIG |
| V | Grande Fourniture | DIG |
| 16' | Contre Trompette | DIG |
| 8' | Tuba Mirabilis | DIG |
| 8' | Trompette | DIG |
| 8' | French Horn | DIG |
| 4' | Clarion | DIG |
| Carillon | ||
| 16' | GRAND CHOEUR to GRAND CHOEUR | |
| GRAND CHOEUR Unison Off | ||
| 4' | GRAND CHOEUR to GRAND CHOEUR |
| GRAND CHOEUR PEDALE🛈 | ||
| 16' | Violone Bass | DIG |
| 16' | Bourdon | DIG |
| 8' | Viole | DIG |
| 8' | Flûte | DIG |
| 4' | Flûte Octav | DIG |
| 16' | Contre Trompette | DIG |
| 8' | Trompette | DIG |
[Received from Jeff Scofield June 19, 2023]
Open In New TabSomething missing or not quite correct?Add StoplistorSuggest an Edit
CONSOLES
Selected Item:
View additional console entries if they exist ☝️
Builder: R. A. Colby, Inc.
Position: Unknown
Design: Unknown
Pedalboard Type: Concave Radiating (Meeting AGO Standards)
Features:

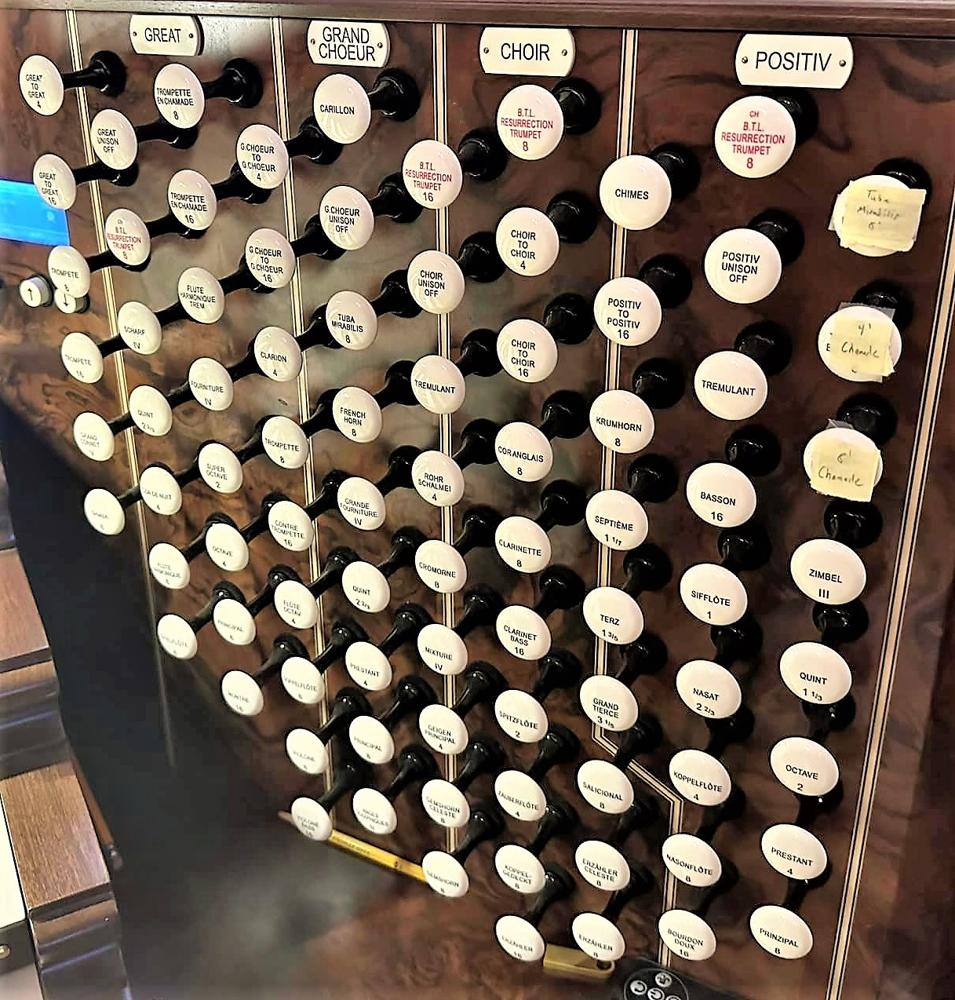

4 Manuals (61 Notes)32 Note Pedal7 Divisions54 Stops79 RegistersElectrical Key ActionElectrical Stop Action✓ Crescendo✓ Sequencer✓ Combination Thumb Piston(s)✓ Combination Toe Piston(s)✓ Coupler Thumb Piston(s)✓ Coupler Toe Piston(s)✓ Sforzando Thumb Piston(s)✓ Sforzando Toe Piston(s)Stop Layout: Drawknobs in Vertical Rows on Angled Jambs
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination Action: Computerized/Digital
Control System: Unknown or N/A
Something missing or not quite correct?Add ConsoleorSuggest an Edit
DETAILS
Switch between notes, documents, and blowers ☝️
This instrument is: Extant and Playable in this location
