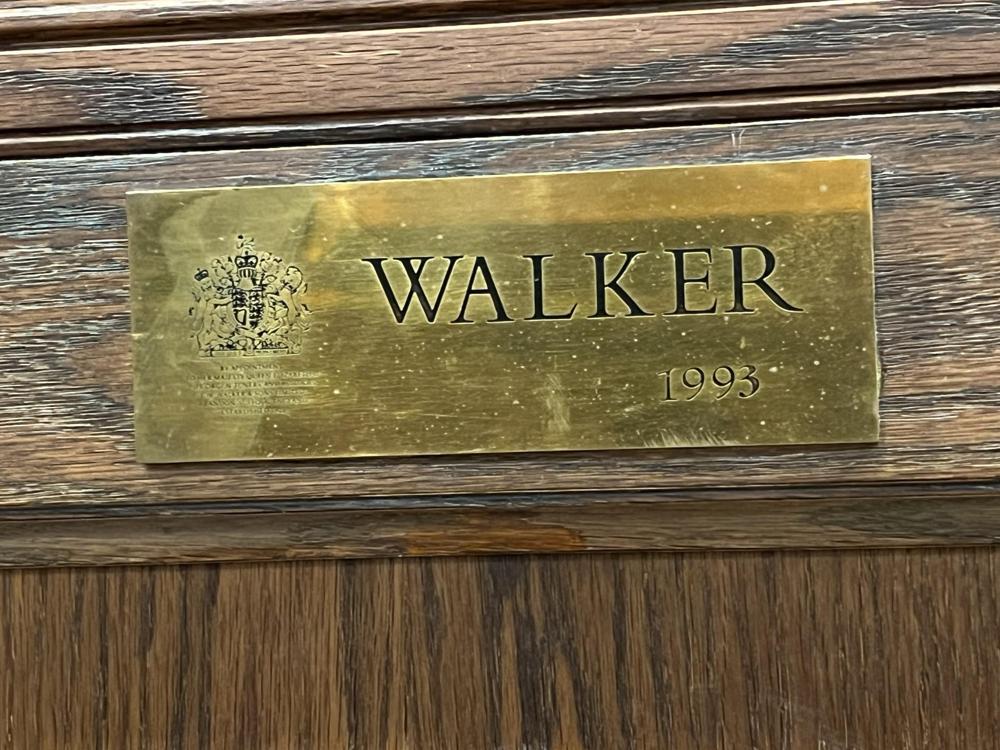

J.W. Walker & Sons Ltd.
1993
Trinity Episcopal Church
3401 Bellaire Drive S
Fort Worth, TX, US
29 Ranks
Instrument ID: 70093 ● Builder ID: 7788 ● Location ID: 60570
⬆️ These are database IDs that may change. Don't use as academic reference.EXPLORE IMAGESVIEW STOPLISTSomething not quite correct?Suggest an Edit
IMAGES
Category:
Only show images in a specific category ☝️
Something missing or not quite correct?Add ImageorSuggest an Edit
STOPLISTS
Selected Item:
View additional stoplist entries if they exist ☝️
Click on a stop or division name for additional details if marked with 🛈.
| Swell🛈 | ||
| 8' | Open Diapason | |
| 8' | Salicional | |
| 8' | Voix Celeste | |
| 8' | Chimney Flute | |
| 4' | Principal | |
| 4' | Open Flute | |
| 2' | Harmonic Flageolet | |
| 1-⅓' | Larigot | |
| 16' | Bassoon | |
| 8' | Hautbois | |
| Tremulant | ||
| Cymbelstern | ||
| SW Combinations on General Toe Pistons |
| Great | ||
| 16' | Bourdon | |
| 8' | Open Diapason | |
| 8' | Stopped Diapason | |
| 4' | Principal | |
| 4' | Harmonic Flute | |
| 2' | Fifteenth | |
| Cornet III | ||
| Furniture IV | ||
| 8' | Trumpet | |
| Tremulant | ||
| Great and Pedal Combinations Coupled |
| Pedal | ||
| 16' | Subbass | |
| 8' | Principal | |
| 8' | Bass Flute | |
| 4' | Choral Bass | |
| 16' | Trombone |
Originally Written/Published: 7/12/2023
Open In New TabSomething missing or not quite correct?Add StoplistorSuggest an Edit
CONSOLES
Selected Item:
View additional console entries if they exist ☝️
Builder: The J. W. Walker & Sons, Ltd. Organ
Position: Detached, Reversed Keydesk (Mechanical Action)
Design: Traditional With Roll Top
Pedalboard Type: Concave Radiating (Meeting AGO Standards)
Features:

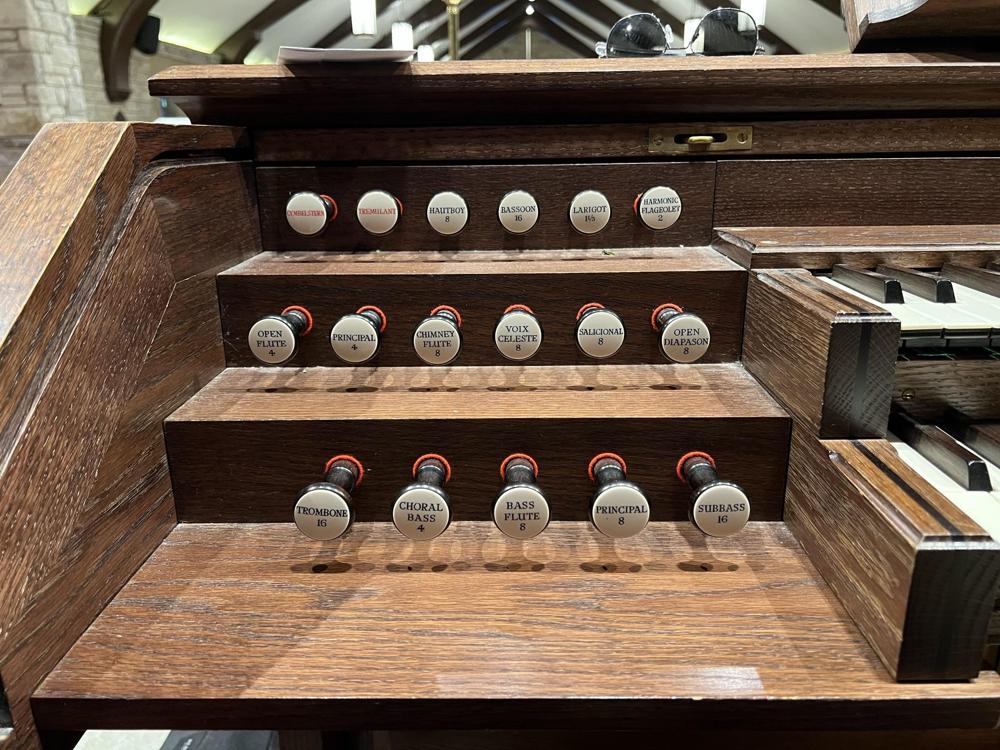

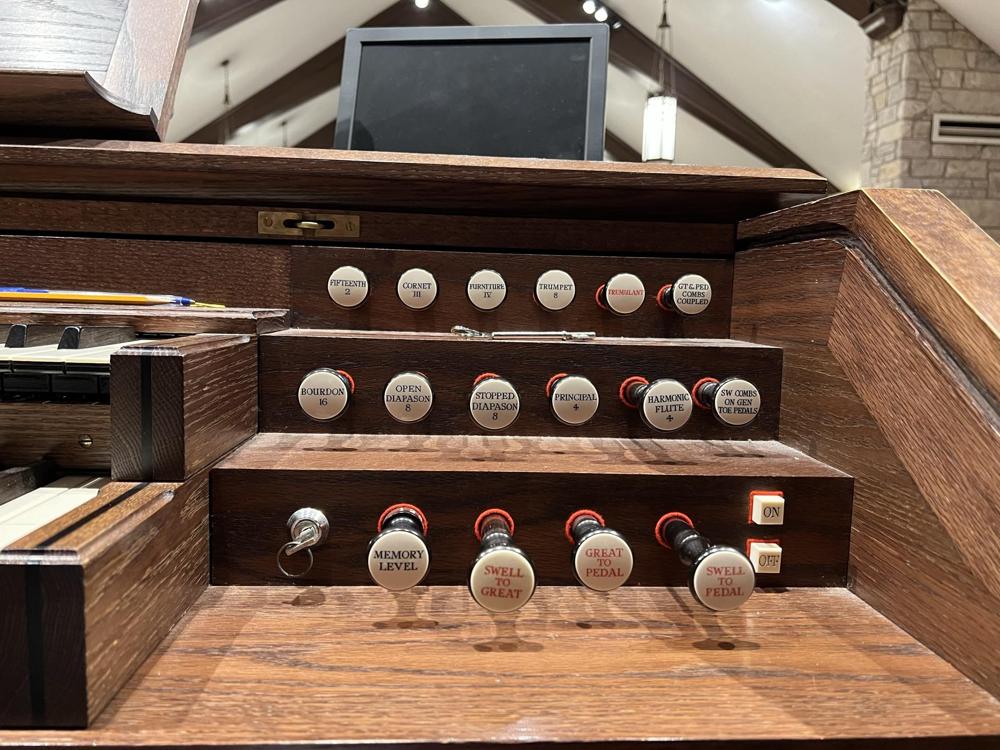

2 Manuals (61 Notes)32 Note PedalMechanical (Unknown) Key ActionElectrical Stop Action✓ Combination Thumb Piston(s)✓ Combination Toe Piston(s)✓ Coupler Thumb Piston(s)✓ Coupler Toe Piston(s)Stop Layout: Drawknobs in Horizontal Rows on Terraced/Stepped Jambs
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination Action: Computerized/Digital
Control System: Unknown or N/A
Something missing or not quite correct?Add ConsoleorSuggest an Edit
DETAILS
Switch between notes, documents, and blowers ☝️
This instrument is: Extant and Playable in this location
Jim Stettner on July 17th, 2023:
This entry represents the installation of a new organ. Identified through online information from Andy Rose.
This entry represents the installation of a new organ. Identified through online information from Andy Rose.
