Kenneth Jones & Assoc.
2004-2023

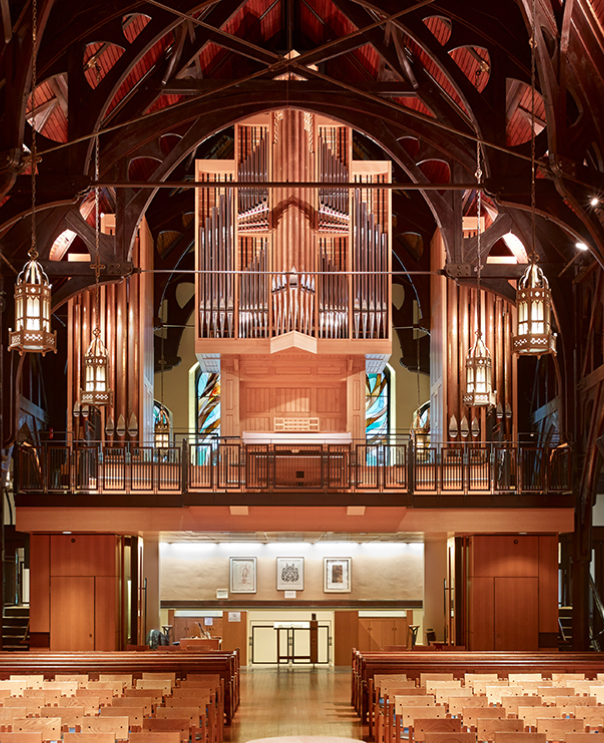

Christ Church Cathedral
690 Burrard Street
Vancouver, BC, CA
44 Ranks - 2,513 Pipes
Instrument ID: 71424 ● Builder ID: 7007 ● Location ID: 40834
⬆️ These are database IDs that may change. Don't use as academic reference.EXPLORE IMAGESVIEW STOPLISTSomething not quite correct?Suggest an Edit
IMAGES
Category:
Only show images in a specific category ☝️
Something missing or not quite correct?Add ImageorSuggest an Edit
STOPLISTS
Selected Item:
View additional stoplist entries if they exist ☝️
Click on a stop or division name for additional details if marked with 🛈.
| Great (II)🛈 | ||
| 16' | Principal🛈 | 53 |
| 8' | Octave | 58 |
| 8' | Harmonic Flute | 58 |
| 8' | Gamba | 58 |
| 4' | Octave | 58 |
| IV | Mixture 2 2/3' | 232 |
| II | Cymbal 2/3' | 116 |
| 8' | Trumpet (en chamade) | 58 |
| 8' | Clarinet | 58 |
| Cimbelstern | ||
| 8' | Swell to Great | |
| 8' | Positive to Great |
| Swell (III - Expressive)🛈 | ||
| 8' | Violin Diapason | 58 |
| 8' | Stopped Diapason | 58 |
| 8' | Viola da Gamba | 58 |
| 8' | Voix céleste (TC) | 46 |
| 4' | Principal | 58 |
| 4' | Nason Flute | 58 |
| 2' | Fifteenth | 58 |
| IV | Mixture 2' | 232 |
| 16' | Contra Trumpet | 58 |
| 8' | Cornopean | 58 |
| 8' | Oboe | 58 |
| Tremulant |
| Positive (I)🛈 | ||
| 8' | Principal | 58 |
| 8' | Roheflute | 58 |
| 8' | Salicional | 58 |
| 4' | Octave | 58 |
| 4' | Spitzflute | 58 |
| 2 2⁄3' | Nazard | 58 |
| 2' | Superoctave | 58 |
| 2' | Nachthorn | 58 |
| 1 3⁄5' | Tierce | 58 |
| IV | Mixture 1 1/3' | 232 |
| 8' | Trumpet | 58 |
| Tremulant | ||
| 8' | Swell to Positive |
| Pedal🛈 | ||
| 32' | Major Bass🛈 | Open Wood |
| 32' | Subbass 🛈 | Subbass |
| 16' | Open Diapason | 44 |
| 16' | Open Wood | 32 |
| 16' | Subbass | 44 |
| 8' | Octave | Open Diapason |
| 8' | Bass Flute | Subbass |
| 16' | Trombone | 32 |
| 8' | Swell to Pedal | |
| 8' | Great to Pedal | |
| 8' | Positive to Pedal |
Something missing or not quite correct?Add StoplistorSuggest an Edit
CONSOLES
No console details are available. If you have information, please consider sharing it with us.
Something missing?Add Console
DETAILS
Switch between notes, documents, and blowers ☝️
This instrument is: Extant and Playable in this location
Paul R. Marchesano on April 16th, 2024:

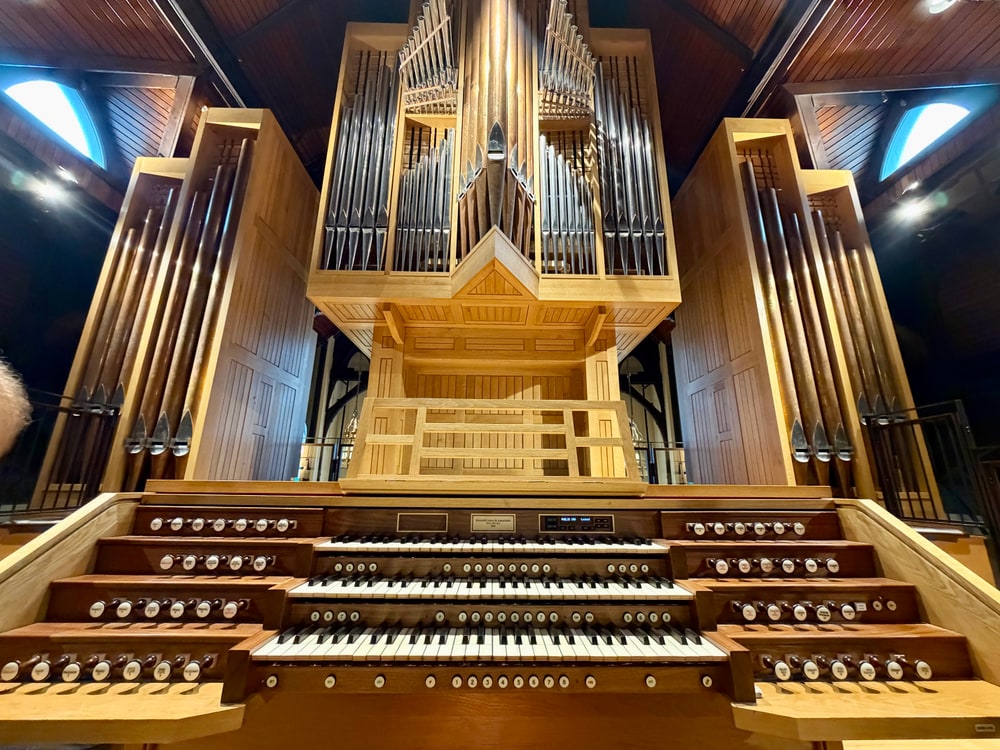

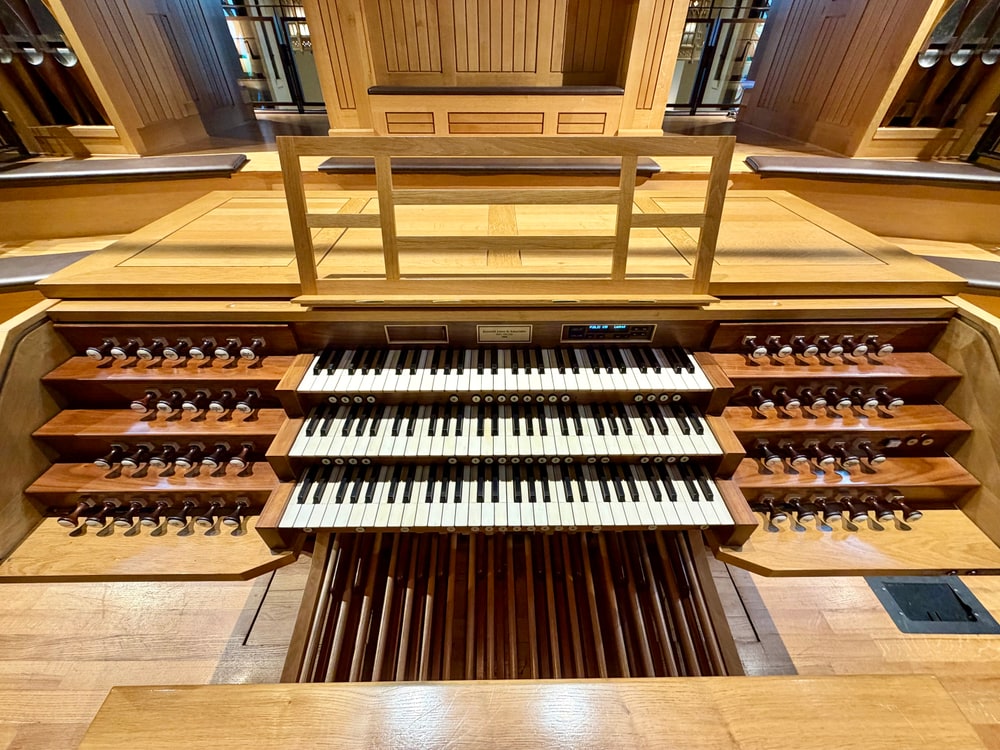

III-Manuals and Pedals, 40 stops, Mechanical Key action and electric stop action. In 2014, the organ was upgraded with the introduction of a new 16ft Trombone stop plus a new digital 32’ to the Pedal division. A new digital memory system was installed in 2023 by Steve Miller (Hoffler Systems). See Documents tab for further details.
III-Manuals and Pedals, 40 stops, Mechanical Key action and electric stop action. In 2014, the organ was upgraded with the introduction of a new 16ft Trombone stop plus a new digital 32’ to the Pedal division. A new digital memory system was installed in 2023 by Steve Miller (Hoffler Systems). See Documents tab for further details.
