Owner
2024

Residence: Wayne Johnson

Derry, NH, US

3 Ranks - 226 Pipes - 3 Physical Divisions
Instrument ID: 71917 ● Builder ID: 7739 ● Location ID: 58069
⬆️ These are database IDs that may change. Don't use as academic reference.EXPLORE IMAGESVIEW STOPLIST
ADDITIONAL INFORMATION

Something not quite correct?Suggest an Edit

IMAGES

Category:
Only show images in a specific category ☝️

Something missing or not quite correct?Add ImageorSuggest an Edit

STOPLISTS

Selected Item:
View additional stoplist entries if they exist ☝️
Click on a stop or division name for additional details if marked with 🛈.
  • Stop Action: Electric
  • Notes: Violin Diapason Haskell Bass 8' - 12p Estey Op #491
  • Notes: Estey Op #2075
  • Notes: (no pipes top 5)
  • Notes: Gottfried "keyhole" type
8'73
8'92
4' Principal
2' Gedeckt
8'61
  • Stop Action: Electric
  • Notes: (top octave from Gedeckt)
8' GT
2 2⁄3' GT
2' GT
  • Stop Action: Electric
16' GT
8' GT
8' GT
4' GT
8' GT
Open In New Tab

Something missing or not quite correct?Add StoplistorSuggest an Edit

CONSOLES

Selected Item:
View additional console entries if they exist ☝️

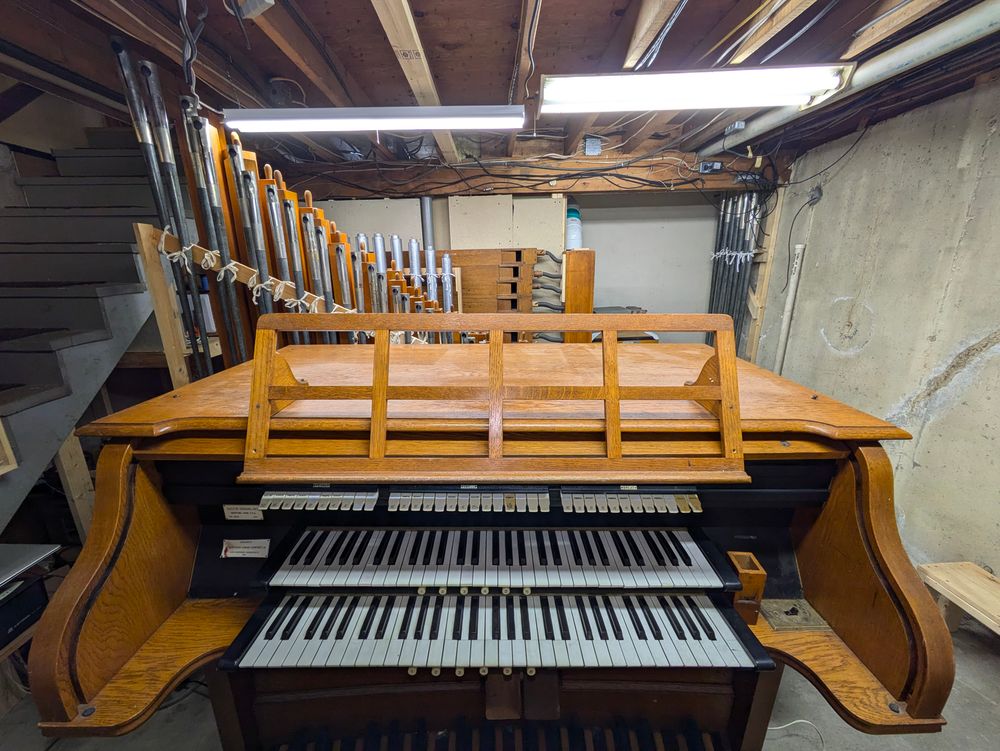

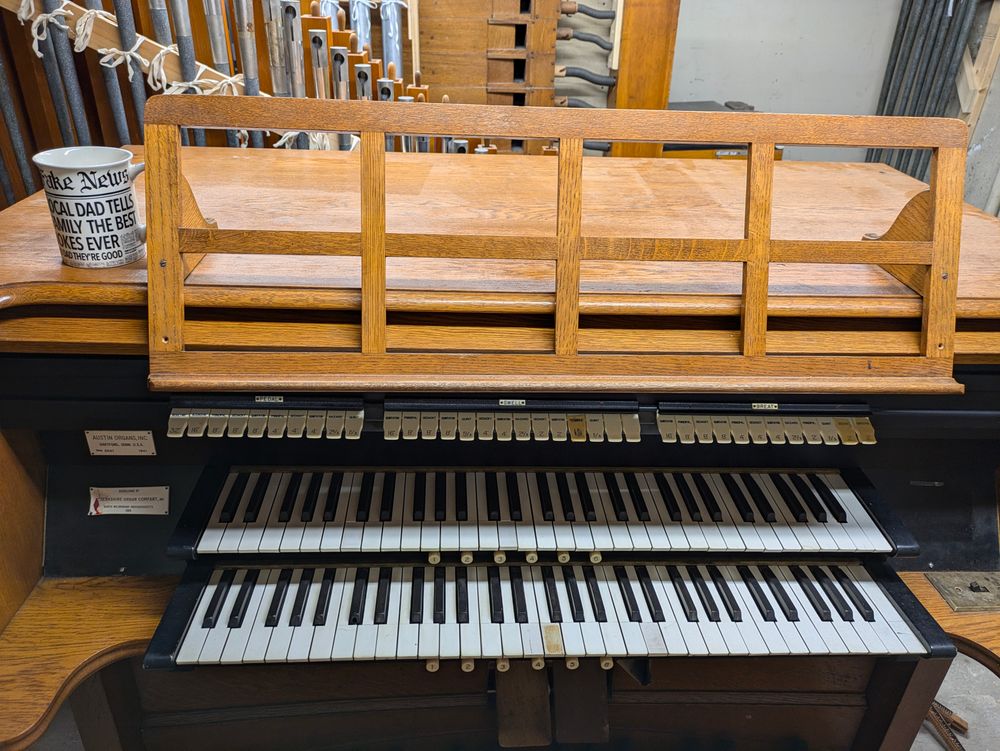

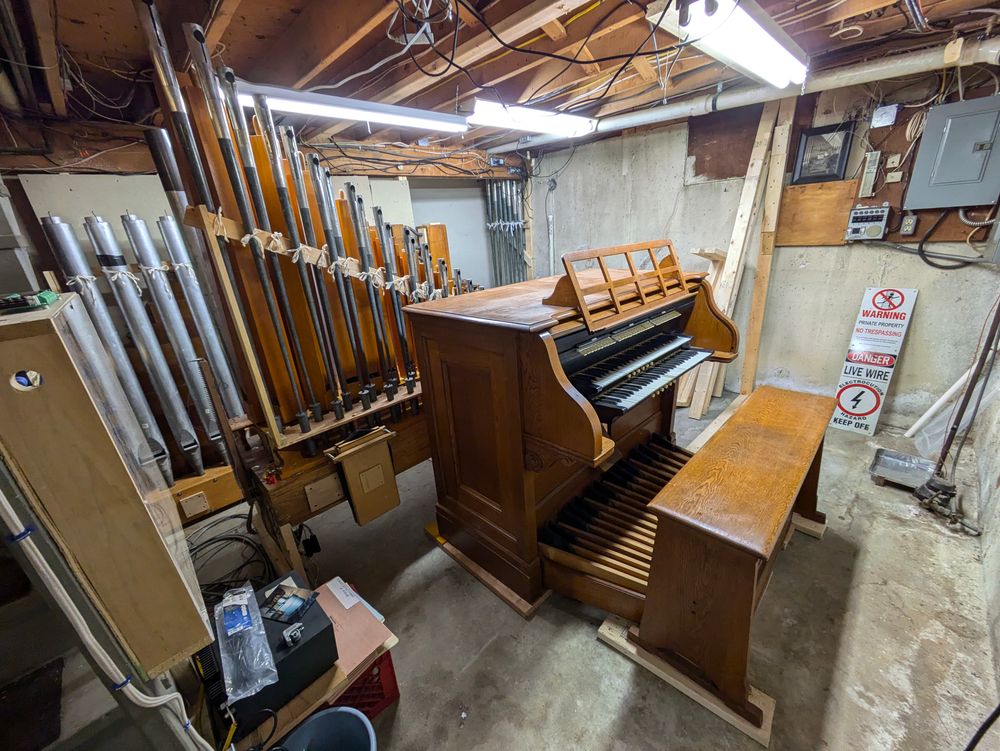

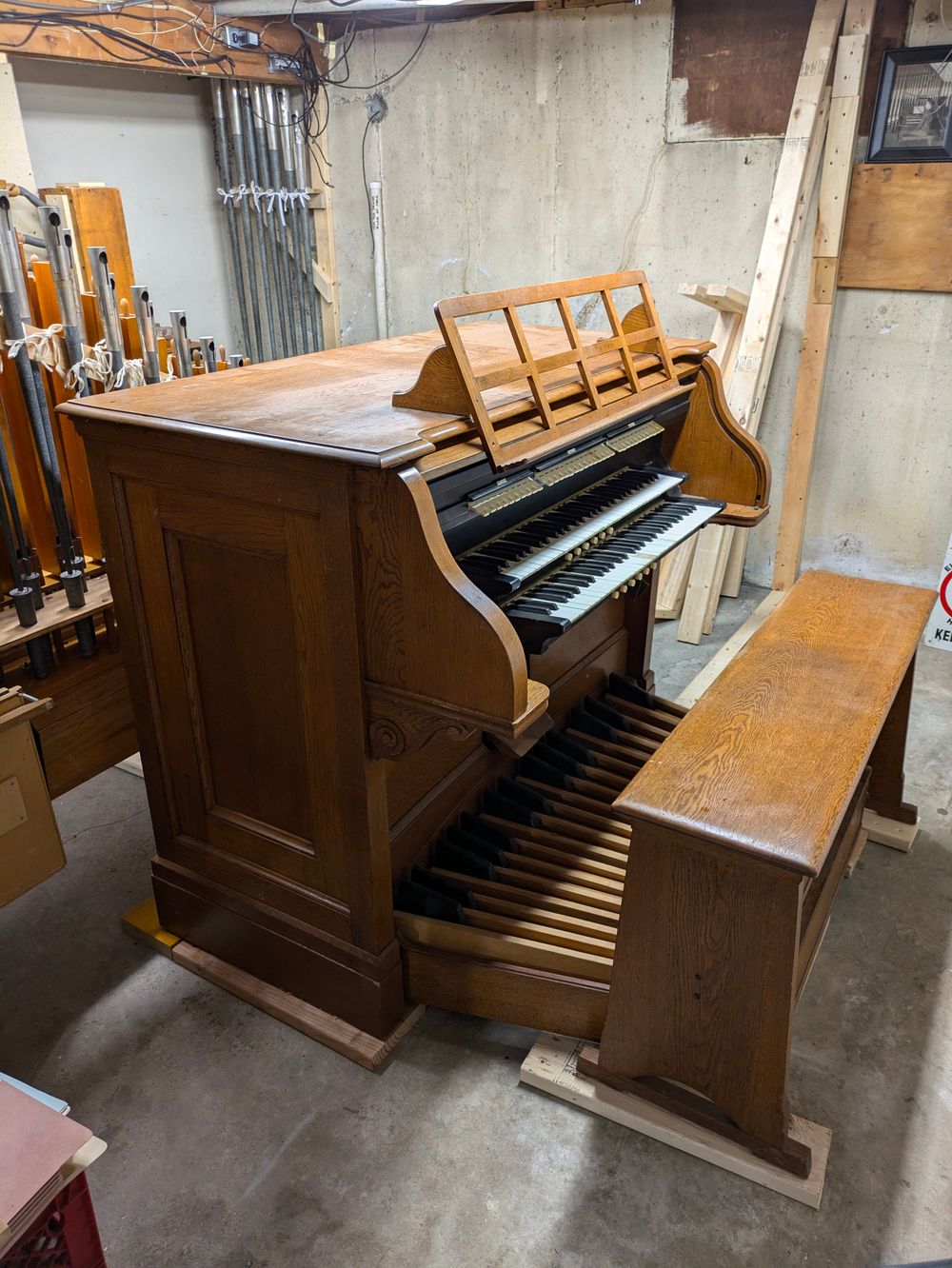

Builder: Austin Organs, Inc.
Position: Unknown
Design: Traditional With Roll Top
Pedalboard Type: Concave Radiating (Meeting AGO Standards)
Features:
2 Manuals (61 Notes)32 Note Pedal14 Stops15 RegistersElectrical Key ActionElectrical Stop Action
Stop Layout: Stop Keys Above Top Manual
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination Action: Computerized/Digital
Control System: Artisan

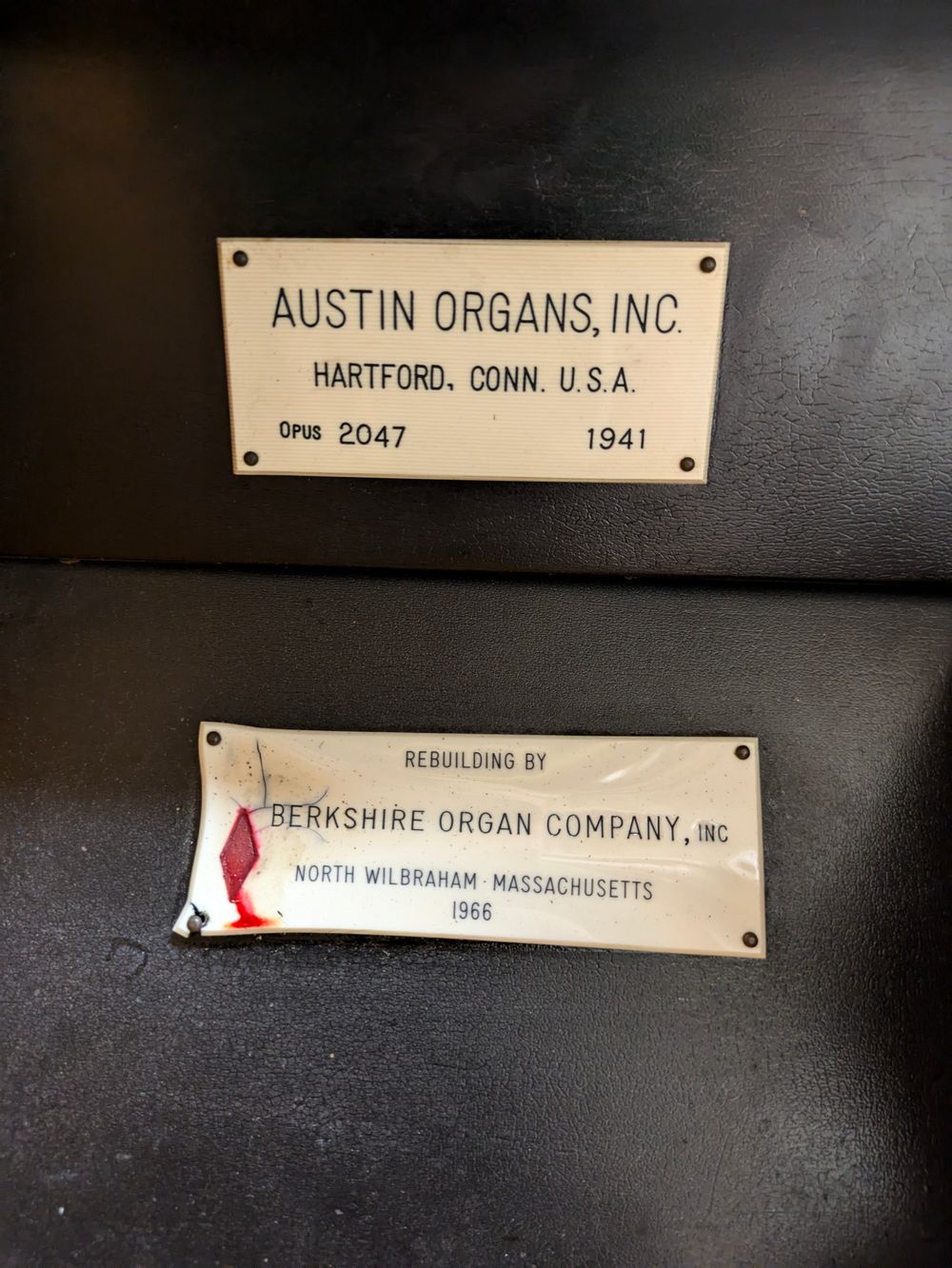

Additional Notes: from Austin Opus #2047

Something missing or not quite correct?Add ConsoleorSuggest an Edit

DETAILS

Switch between notes, documents, and blowers ☝️
This instrument is: Extant and Playable in this location

Paul R. Marchesano on September 19th, 2024:

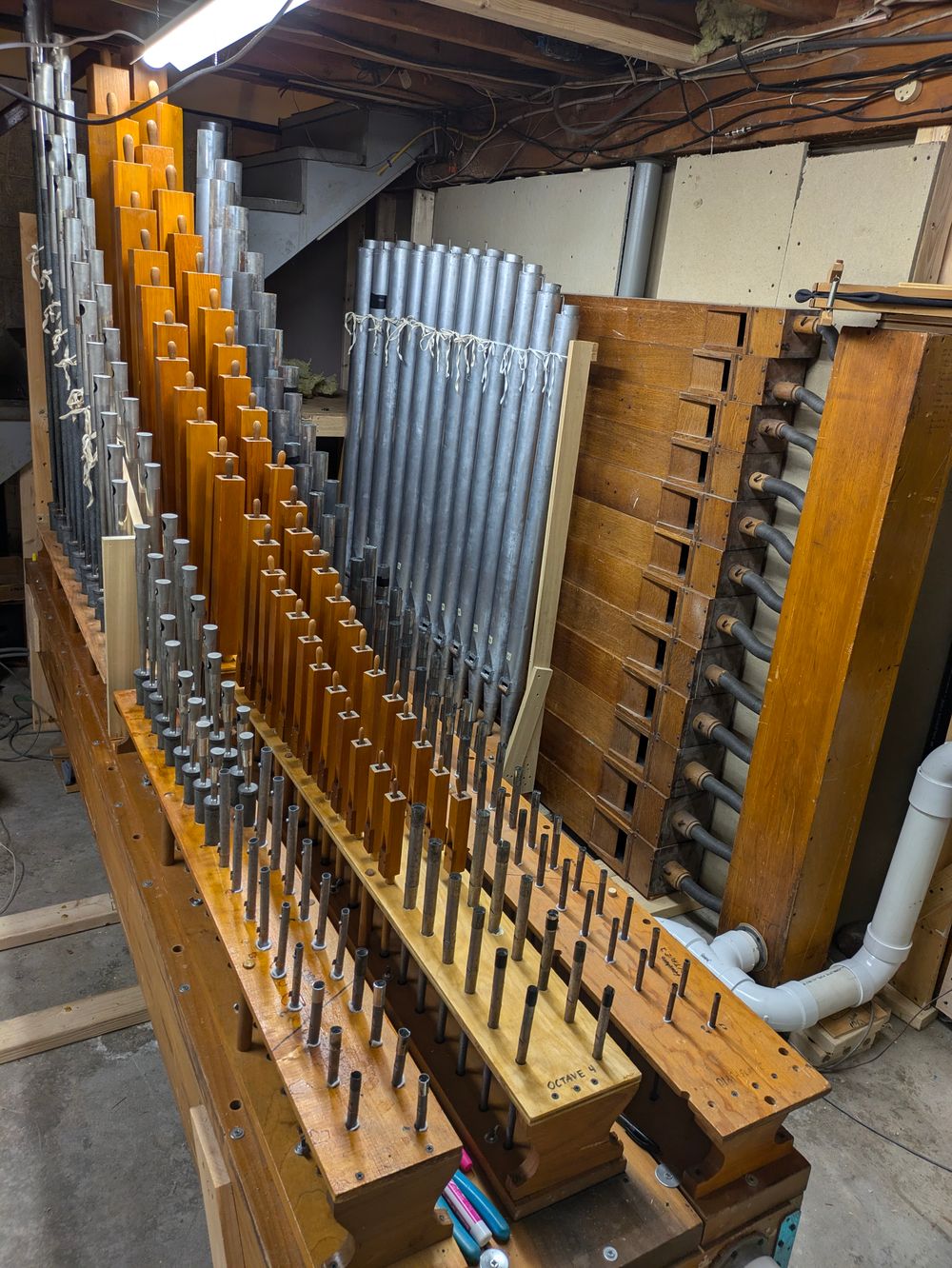

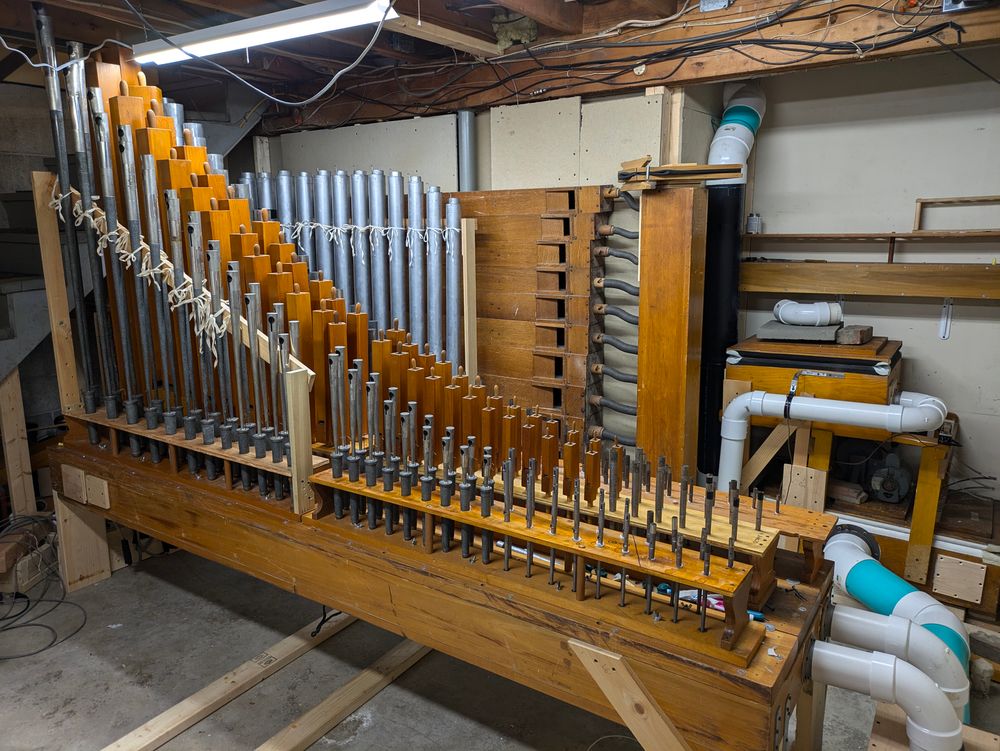

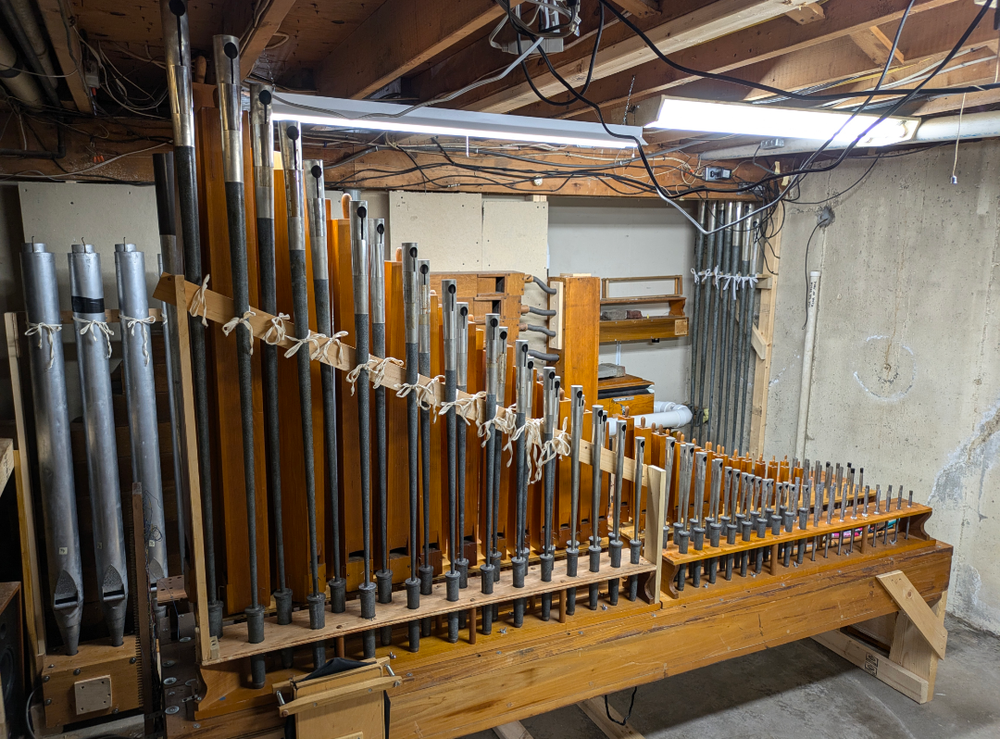

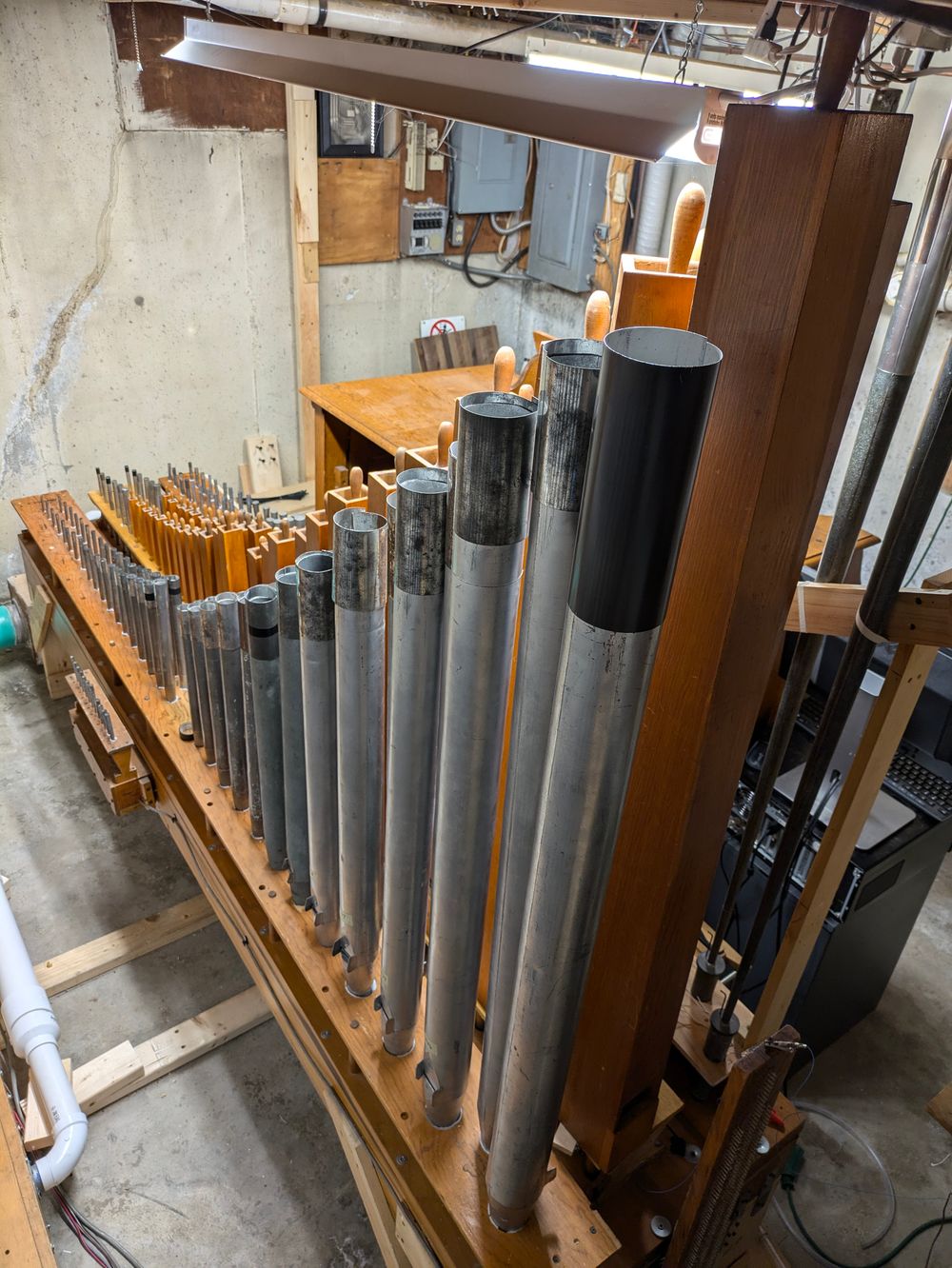

Organ assembled from various sources (identified in the stoplist). Information provided by the owner in an email, 2024-09-19 More information: -.45HP Ventus blower -30" x 36" Moller reservoir for main chest -18" x 24" Moller reservoir for offsets -3rk Main chest was a former voicing chest for Foley-Baker Co. - 2 manual console from Austin #2047 - Artisan Instruments relay system
