Peragallo Pipe Organ Co.
Opus 777, 2024
Emmanuel Episcopal Church
498 Prince Ave.
Athens, GA, US
42 Ranks - 2,430 Pipes - 5 Physical Divisions
Instrument ID: 72791 ● Builder ID: 4840 ● Location ID: 62286
⬆️ These are database IDs that may change. Don't use as academic reference.EXPLORE IMAGESVIEW STOPLISTSomething not quite correct?Suggest an Edit
Plenum Organ Company
🤝 Instrument entries in Georgia sponsored by:
We are grateful for the generous support of our sponsors, who make it possible for us to continue our mission of preserving and promoting the rich history of pipe organs across the globe.
IMAGES
Category:
Only show images in a specific category ☝️
Something missing or not quite correct?Add ImageorSuggest an Edit
STOPLISTS
Selected Item:
View additional stoplist entries if they exist ☝️
Click on a stop or division name for additional details if marked with 🛈.
| GREAT | ||
| 16' | Violone | DIG |
| 8' | Diapason | 61 |
| 8' | Bourdon | 61 |
| 8' | Flute Harmonique🛈 | 49 |
| 8' | Violoncelle | 61 |
| 8' | Gambe Celeste II | CH |
| 8' | Viole Celeste II | SW |
| 8' | Erzähler Celeste II | |
| 4' | Octave | 61 |
| 4' | Flûte Octaviante | 61 |
| 4' | Unda Maris II | CH |
| 2' | Fifteenth | 61 |
| III | Cornet | DIG |
| IV | Fourniture | 244 |
| IV | Cymbel | DIG |
| 16' | Posaune | DIG |
| 8' | Tromba | 61 |
| 4' | Tromba Clarion | 12 |
| 8' | Emmanuel Crown Trpts | RES |
| Chimes | DIG | |
| MIDI 1,2 | ||
| 16' | SWELL to GREAT | |
| 8' | SWELL to GREAT | |
| 4' | SWELL to GREAT | |
| 16' | CHOIR to GREAT | |
| 8' | CHOIR to GREAT | |
| 4' | CHOIR to GREAT | |
| 8' | CELESTIAL to GREAT |
| SWELL (Expressive) | ||
| 16' | Lieblich Gedackt | DIG |
| 8' | Singen Diapason | 61 |
| 8' | Chimney Flute | 61 |
| 8' | Viole | 61 |
| 8' | Viole Celeste | 49 tc |
| 4' | Prestant | 61 |
| 4' | Nachthorn | 61 |
| 2 2⁄3' | Nasat🛈 | 49 |
| 2' | Octavin | 61 |
| 1 3⁄5' | Terz🛈 | 37 tc |
| IV | Plein Jeu | 244 |
| 16' | Contra Fagotta | DIG |
| 8' | Trompette | 61 |
| 8' | Oboe | 61 |
| 8' | Vox Humana | DIG |
| 4' | Clarion | 12 |
| Tremblant | ||
| 8' | Emmanual Crown Trpts | RES |
| MIDI 1,2 | ||
| 16' | SWELL to SWELL | |
| SWELL Unison Off | ||
| 4' | SWELL to SWELL | |
| 8' | CELESTIAL to SWELL |
| CHOIR (Expressive) | ||
| 16' | Flûte Conique | DIG |
| 8' | English Diapason | 61 |
| 8' | Stopped Gedackt | 61 |
| 8' | Gambe | DIG |
| 8' | Gambe Celeste | DIG |
| 8' | Erzähler | DIG |
| 8' | Erzähler Celeste | DIG |
| 4' | Principal | 61 |
| 4' | Spire Flute | 61 |
| 2' | Recorder | 61 |
| 1 1⁄3' | Larigot🛈 | 49 |
| III | Scharf | DIG |
| 16' | Clarinet | DIG |
| 8' | Trumpet | DIG |
| 8' | Cor Anglais | DIG |
| 8' | Cremona | 61 |
| Tremblant | ||
| 8' | Tuba Mirabilis | DIG |
| 8' | Emmanuel Crown Trpts | RES |
| Harp | DIG | |
| MIDI 1,2 | ||
| Tuba non-coupling | ||
| 16' | CHOIR to CHOIR | |
| CHOIR Unison Off | ||
| 4' | CHOIR to CHOIR | |
| 8' | GREAT to CHOIR | |
| 16' | SWELL to CHOIR | |
| 8' | SWELL to CHOIR | |
| 4' | SWELL to CHOIR | |
| 8' | CELESTIAL to CHOIR |
| RESONANCE🛈 | ||
| 8' | Diapason | 61 |
| 8' | Flauto Tedesco | DIG |
| 4' | Octave | 61 |
| 4' | Flauto Veneziano | DIG |
| 2 2⁄3' | Twelfth | DIG |
| 2' | Fifteenth | 61 |
| IV | Fourniture | DIG |
| III | Cymbel | DIG |
| 8' | Harmonic Trumpet | DIG |
| Tremblant | ||
| 8' | Emmanuel Crown Trpts | 61 |
| Resonance Off GT | ||
| Resonance on SW | ||
| Resonance on CH |
| CELESTIAL🛈 | ||
| 16' | Contra Viola | DIG |
| 8' | Principal | DIG |
| 8' | Doppelflöte | DIG |
| 8' | Viole Celeste II | DIG |
| 8' | Flauto Dolce Cel II | DIG |
| 4' | Octave | DIG |
| 4' | Violetta Celeste II | DIG |
| 8' | French Horn | DIG |
| 8' | Corno di Bassetto | DIG |
| Tremblant | ||
| Celestial Carillon | DIG | |
| Celestial exp. on SW |
| PEDAL | ||
| 32' | Open Wood | DIG |
| 32' | Contra Bourdon | DIG |
| 32' | Flûte Conique | |
| 16' | Principal | DIG |
| 16' | Subbass | DIG |
| 16' | Violone | GT |
| 16' | Lieblich Gedackt | SW |
| 16' | Flûte Conique | CH |
| 8' | Octave Bass | 32 |
| 8' | Flûte en Bois | DIG |
| 8' | Still Gedackt | SW |
| 4' | Choral Bass | 32 |
| 4' | Offenflöte | GT |
| II | Fourniture | 64 |
| 32' | Contra Bombarde | DIG |
| 16' | Trombone | 32 |
| 16' | Posaune | GT |
| 8' | Trumpet | DIG |
| 4' | Corno di Bassetto | CEL |
| 8' | Emmanuel Crown Trpts | RES |
| MIDI 1,2 | ||
| 8' | GREAT to PEDAL | |
| 8' | SWELL to PEDAL | |
| 4' | SWELL to PEDAL | |
| 8' | CHOIR to PEDAL | |
| 4' | CHOIR to PEDAL | |
| 8' | RESONANCE to PEDAL | |
| 8' | CELESTIAL to PEDAL |
| RESONANCE PEDAL🛈 | ||
| 16' | Geigen Diapason | DIG |
| 16' | Bourdon | DIG |
Something missing or not quite correct?Add StoplistorSuggest an Edit

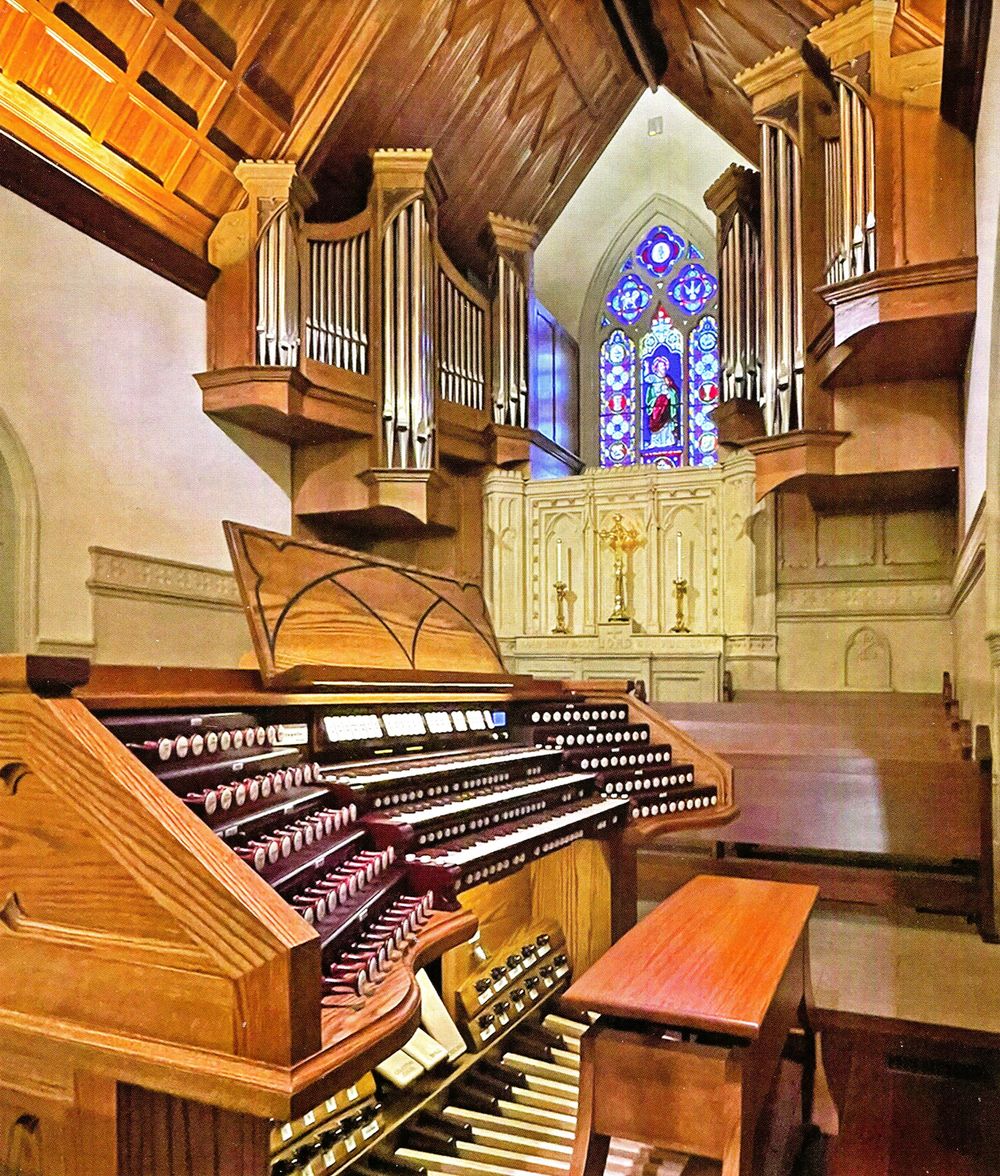

CONSOLES
Selected Item:
View additional console entries if they exist ☝️
Builder: Peragallo Pipe Organ Co.
Position: Unknown
Design: Traditional With Roll Top
Pedalboard Type: Concave Radiating (Meeting AGO Standards)
Features:
3 Manuals (61 Notes)32 Note Pedal5 Divisions35 Stops39 Registers✓ Crescendo✓ Sequencer✓ MIDI✓ Combination Thumb Piston(s)✓ Combination Toe Piston(s)✓ Coupler Thumb Piston(s)✓ Coupler Toe Piston(s)✓ Sforzando Thumb Piston(s)✓ Sforzando Toe Piston(s)Stop Layout: Drawknobs in Horizontal Rows on Terraced/Stepped Jambs
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination Action: Computerized/Digital
Control System: Unknown or N/A
Something missing or not quite correct?Add ConsoleorSuggest an Edit
DETAILS
Switch between notes, documents, and blowers ☝️
This instrument is: Extant and Playable in this location
