Noack
Opus 170, 2025

St Paul's Episcopal Church

506 North Pine Street
Foley, AL, US

16 Ranks - 900 Pipes - 3 Physical Divisions
Instrument ID: 73678 ● Builder ID: 7042 ● Location ID: 14227
⬆️ These are database IDs that may change. Don't use as academic reference.EXPLORE IMAGESVIEW STOPLIST
ADDITIONAL INFORMATION

Something not quite correct?Suggest an Edit

IMAGES

Category:
Only show images in a specific category ☝️

Something missing or not quite correct?Add ImageorSuggest an Edit

STOPLISTS

Selected Item:
View additional stoplist entries if they exist ☝️
Click on a stop or division name for additional details if marked with 🛈.

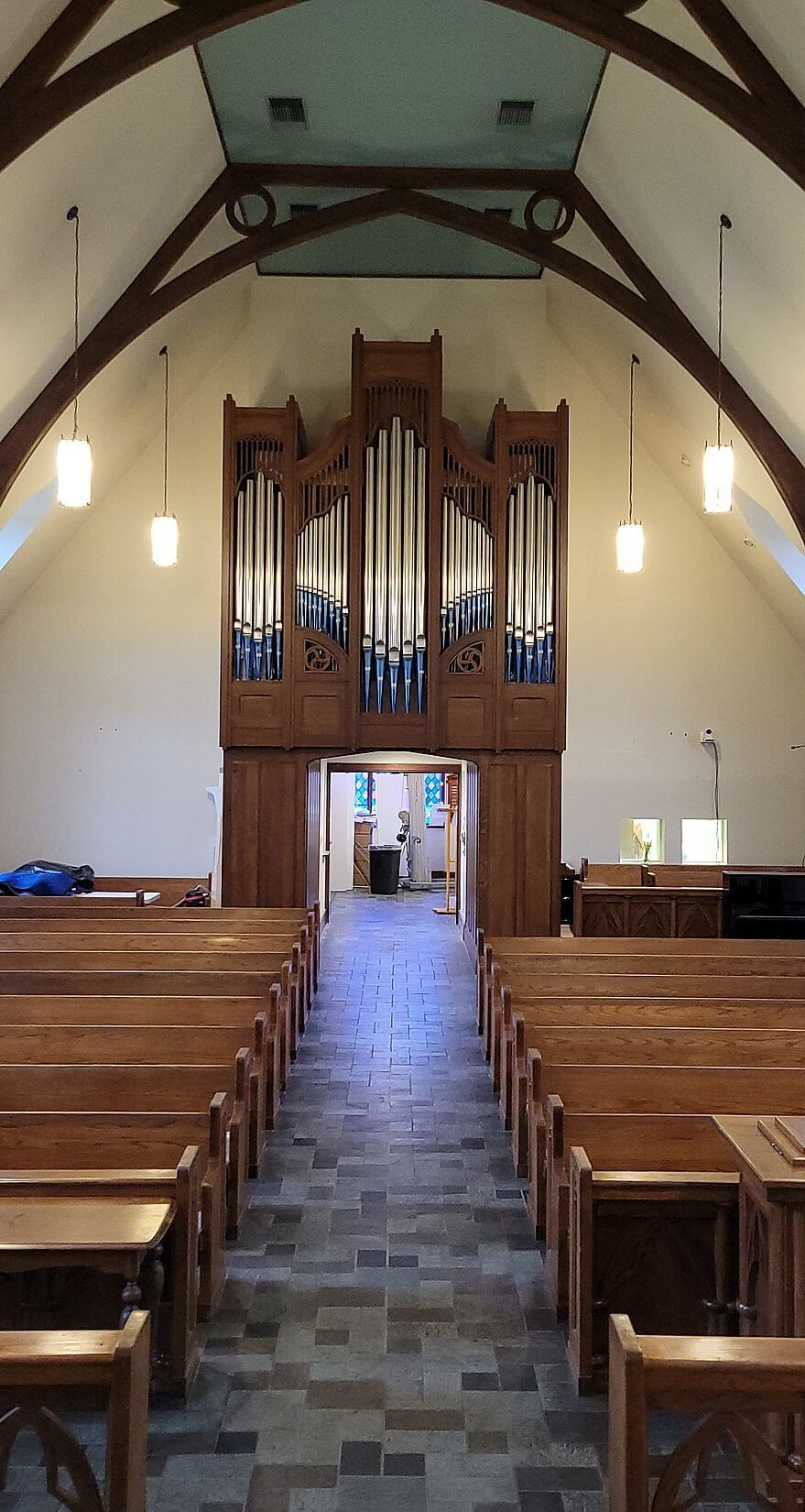

  • Position: In a Floor-Level Case at the Rear of the Room

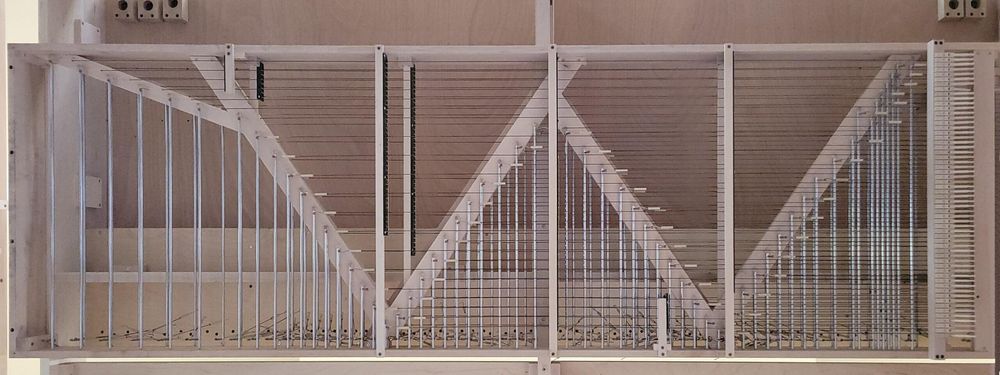

  • Chest Action: Slider With Mechanical Pull-Downs
  • Stop Action: Solenoids
  • 8' Manual II to Manual I
8'58
8'
8'
4'
4'
2'58
2'
III174
8'58
  • Position: In a Floor-Level Case at the Rear of the Room
  • Chest Action: Slider With Mechanical Pull-Downs
  • Stop Action: Solenoids
8'58
8'58
8'58
4'58
4'58
2 2⁄3'58
2'58
1 3⁄5'58
8'58
  • Position: In a Floor-Level Case at the Rear of the Room
  • Chest Action: Slider With Mechanical Pull-Downs
  • Stop Action: Solenoids
  • 8' Manual I to Pedal
  • 8' Manual II to Pedal
16'30
Open In New Tab

Something missing or not quite correct?Add StoplistorSuggest an Edit

CONSOLES

Selected Item:
View additional console entries if they exist ☝️

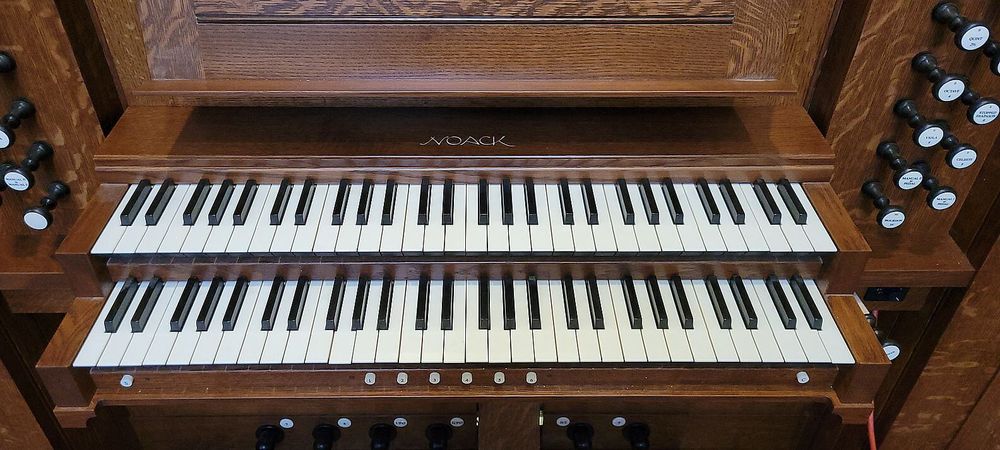

Builder: Noack
Position: Keydesk Attached
Design: Traditional Without Cover
Pedalboard Type: Concave Radiating (Not Meeting AGO Standards)
Features:
2 Manuals (58 Notes)30 Note Pedal3 Divisions14 Stops29 RegistersMechanical (Suspended Tracker) Key ActionElectrical Stop Action✓ Combination Thumb Piston(s)✓ Combination Toe Piston(s)✓ Coupler Toe Piston(s)✓ Sforzando Toe Piston(s)
Stop Layout: Drawknobs in Vertical Rows on Flat Jambs
Expression Type: Balanced Expression Shoes/Pedals (Not Meeting AGO Standards)
Combination Action: None
Control System: Unknown or N/A

Something missing or not quite correct?Add ConsoleorSuggest an Edit

DETAILS

Switch between notes, documents, and blowers ☝️
This instrument is: Extant and Playable in this location

Jim Stettner on September 10th, 2025:
This entry represents the installation of a new pipe organ.

Webpage Links: Builder Page

Something missing or not quite correct?Add NoteorAdd WebpageorAdd Cross ReferenceorSuggest an Edit
