Casavant Frères Ltée. (Opus 3640, 1988)

Location:

Concordia University Irvine
1530 Concordia West
Irvine, CA 92612 US
Concordia University Center for Worship and Performing Arts (CUC)
Organ ID: 10771

Update This Entry

Status and Condition:

  • This instrument's location type is: Colleges and Universities
  • The organ has been altered from its original state.
  • The organ's condition is good, in regular use.
We received the most recent update for this instrument's status from Database Manager on May 13, 2018.

Technical Details:

  • Chests: Electro-pneumatic (EP)
  • 59 ranks. 3,290 pipes. 4 divisions. 3 manuals. 42 stops. 57 registers.
All:
  • Chest Type(s): Electro-pneumatic (EP) chests
  • Position: Pipes exposed (in whole or in part) at the front of the room.
  • Slider Motors: Pneumatic (EP or TP) slider motors.
We received the most recent update for this division from Database Manager on May 13, 2018.
Main:
  • Manuals: 3
  • Divisions: 4
  • Stops: 42
  • Registers: 57
  • Position: Movable console.
  • Manual Compass: 61
  • Pedal Compass: 32
  • Key Action: Electrical connection from key to chest.
  • Stop Action: Electric connection between stop control and chest.
  • Console Style: Traditional style with roll top.
  • Stop Controls: Drawknobs in vertical rows on angled jambs.
  • Combination Action: Computerized/Digital system.
  • Swell Control Type: Balanced swell shoes/pedals, AGO standard placement.
  • Pedalboard Type: Concave radiating pedalboard meeting AGO Standards.
  • Has Crescendo Pedal
  • Has Tutti Reversible Thumb Pistons
  • Has Tutti Reversible Toe Pistons
  • Has Combination Action Thumb Pistons
  • Has Combination Action Toe Pistons
  • Has Coupler Reversible Thumb Pistons
  • Has Coupler Reversible Toe Pistons
We received the most recent update for this console from Database Manager on May 13, 2018.
Database Manager on September 03, 2017:

Updated by Tom Mueller, who has heard or played the organ.

We received the most recent update for this note from Database Manager on April 09, 2020.
Database Manager on June 24, 2009:

Updated through online information from Jeff Scofield.

We received the most recent update for this note from Database Manager on April 09, 2020.
Database Manager on October 30, 2004:

Status Note: There 1996.

We received the most recent update for this note from Database Manager on April 09, 2020.
Database Manager on October 30, 2004:

Formerly Christ College.

We received the most recent update for this note from Database Manager on April 09, 2020.
Source not recorded: Open In New Tab Stoplist copied from the factory specifications
We received the most recent update for this stoplist from Database Manager on April 09, 2020.

Instrument Images:

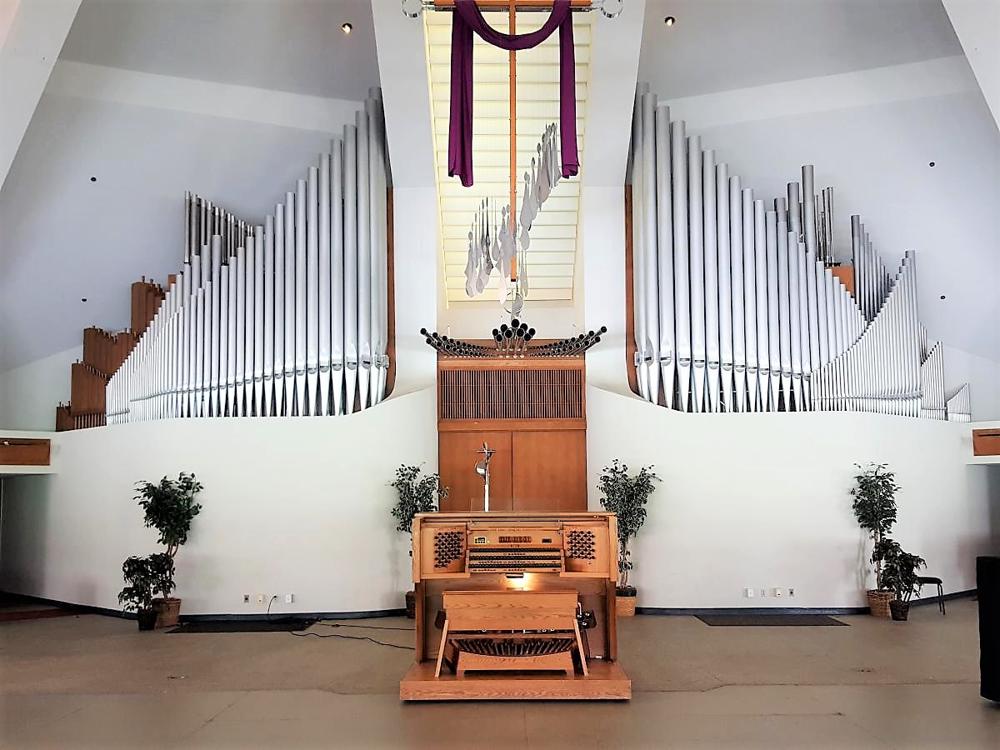

Console and Pipe Display: Photograph by Jerry. Taken on 2015-10-02

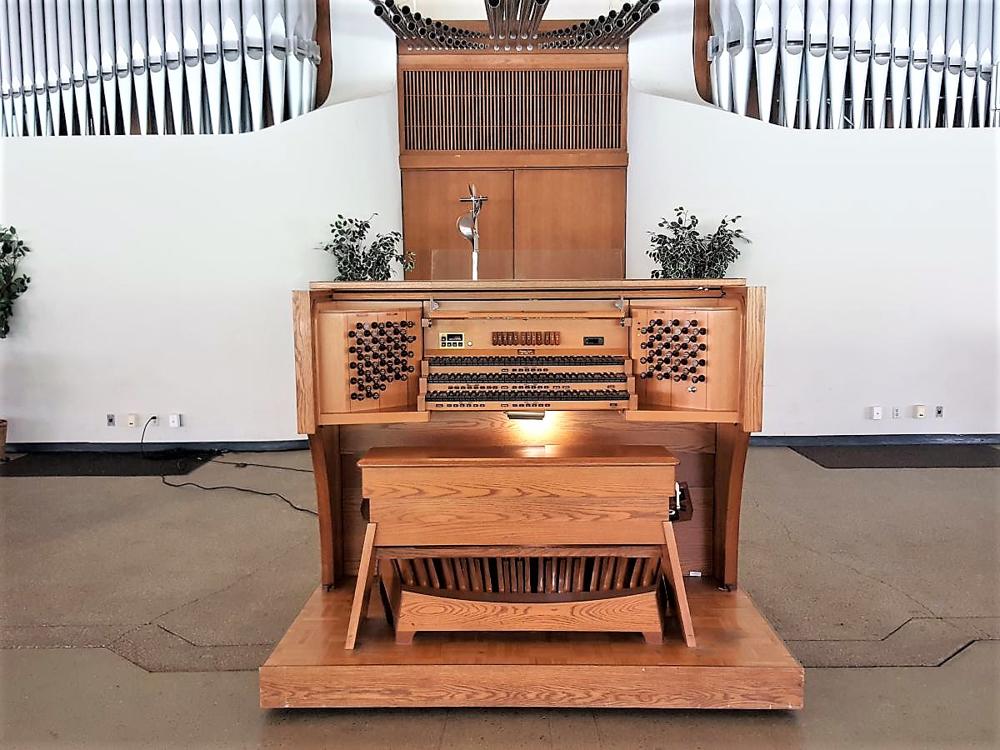

Console: Photograph by Tom Mueller. Taken on 2017-04-03

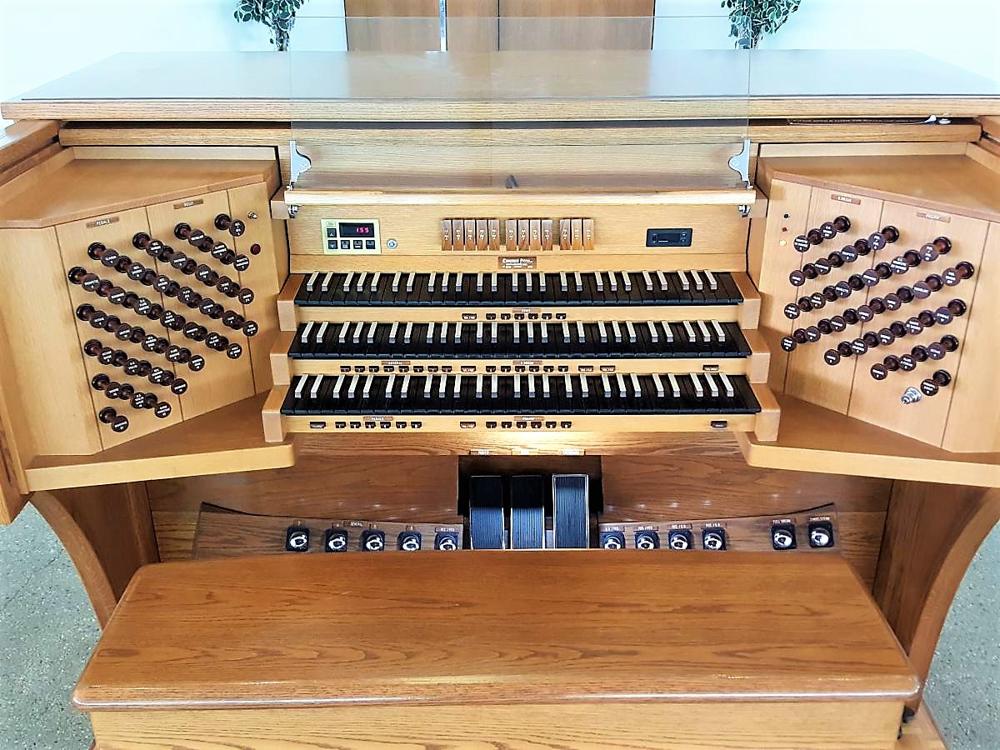

Detail of manuals and stopjambs: Photograph by Tom Mueller. Taken on 2017-04-03

Console, stage, and right/left facade: Photograph by Tom Mueller. Taken on 2017-04-03
