Bunn=Minnick Co.
1987
Cathedral of St. Mary [Catholic] (1955-56)
Sanctuary: gallery and front
7525 NW 2nd Avenue
Miami, FL, US
57 Ranks - 3,612 Pipes - 8 Physical Divisions
Instrument ID: 25135 ● Builder ID: 958 ● Location ID: 22224
⬆️ These are database IDs that may change. Don't use as academic reference.EXPLORE IMAGESVIEW STOPLISTSomething not quite correct?Suggest an Edit
IMAGES
Category:
Only show images in a specific category ☝️
Something missing or not quite correct?Add ImageorSuggest an Edit
STOPLISTS
Selected Item:
View additional stoplist entries if they exist ☝️
Click on a stop or division name for additional details if marked with 🛈.
| Great (II)🛈 | ||
| 16' | Contra Violone | |
| 16' | Quintatön | |
| 8' | Prinzipal | |
| 8' | Violone | |
| 8' | Bordun | |
| 8' | Quintatön | |
| 4' | Oktav | |
| 4' | Halb Bordun | |
| 2⅔' | Quinte | |
| 2' | Klein Oktav | |
| 1⅗' | Terz | |
| VI | Grande Cornet | |
| IV | Mixture | |
| III | Zymbel | |
| 8' | Trompette Héroïque | |
| Carillon | ||
| Great Unison Off | ||
| 4' | Great to Great | |
| 16' | Swell to Great | |
| 8' | Swell to Great | |
| 4' | Swell to Great | |
| 16' | Choir to Great | |
| 8' | Choir to Great | |
| 4' | Choir to Great |
| Swell (III - Expressive)🛈 | ||
| 16' | Flûte Conique | |
| 8' | Principal | |
| 8' | Viole de Gambe | |
| 8' | Viole Celeste | |
| 8' | Rohrflöte | |
| 8' | Flûte Conique | |
| 4' | Octave | |
| 4' | Koppelflöte | |
| 2' | Octavin | |
| IV | Plein Jeu | |
| 16' | Bombarde | |
| 8' | Trompette | |
| 8' | Bassoon | |
| 8' | Vox Humana | |
| 4' | Clairon | |
| Tremulant | ||
| 16' | Trompette Héroïque | |
| 8' | Trompette Héroïque | |
| 4' | Trompette Héroïque | |
| 16' | Swell to Swell | |
| Swell Unison Off | ||
| 4' | Swell to Swell |
| Choir (I - Expressive)🛈 | ||
| 16' | Erzähler | |
| 8' | Flautada | |
| 8' | Nasonflöte | |
| 8' | Erzähler | |
| 8' | Erzähler Celeste | |
| 4' | Prestant | |
| 4' | Nachthorn | |
| 2⅔' | Nazard | |
| 2' | Blockflöte | |
| 1⅗' | Tierce | |
| 1⅓' | Larigot | |
| 1' | Sifflöte | |
| 8' | Trompette Héroïque | |
| 8' | English Horn | |
| Tremulant | ||
| Celesta | ||
| Tindelstern | ||
| 16' | Choir to Choir | |
| Choir Unison Off | ||
| 4' | Choir to Choir | |
| 8' | Swell to Choir | |
| 4' | Swell to Choir | |
| 8' | Great to Choir |
| Sanctuary Great (I)🛈 | ||
| 16' | Contra Viola | |
| 8' | Principal | |
| 8' | Metal Gedackt | |
| 8' | Voix Céleste II | |
| 4' | Octave | |
| 4' | Halb Gedackt | |
| 2' | Super Octave | |
| III | Mixture | |
| 8' | Trompete |
| Sanctuary Swell (II - Expressive)🛈 | ||
| 8' | Metal Gedackt | |
| 8' | Viola | |
| 8' | Voix Céleste | |
| 4' | Principal | |
| 4' | Halb Gedackt | |
| 2⅔' | Nasat | |
| 2' | Klein Gedackt | |
| 1' | Fugara | |
| 8' | Trompete | |
| Tremulant |
| Sanctuary Choir (I - Expressive)🛈 | ||
| 8' | Metal Gedackt | |
| 8' | Viola | |
| 8' | Voix Céleste | |
| 4' | Principal |
| Sanctuary Pedal🛈 | ||
| 32' | Resultant | |
| 16' | Gedackt | |
| 8' | Principal | |
| 8' | Metal Gedackt | |
| 5⅓' | Quint | |
| 4' | Octave | |
| 4' | Klein Gedackt | |
| 8' | Trompete | |
| 4' | Klarine |
| Pedal🛈 | ||
| 32' | Grande Harmonics | |
| 32' | Untersatz | |
| 16' | Major Open Bass | |
| 16' | Subbass | |
| 16' | Contra Violone | GT |
| 16' | Quintatön | GT |
| 16' | Flûte Conique | SW |
| 16' | Erzähler | CH |
| 8' | Major Octave Bass | |
| 8' | Montre | |
| 8' | Gross Flute | |
| 8' | Violone | GT |
| 8' | Flûte Conique | SW |
| 5⅓' | Bass Quint | |
| 4' | Choral Bass | |
| 4' | Bourdon | |
| 2⅔' | Quint | |
| 2' | Octave | |
| IV | Rauschpfeife | |
| 32' | Contre Bombarde | 12 ext. Sw 16' |
| 16' | Posaune | 32 |
| 16' | Bombarde | SW |
| 8' | Trompette Héroïque | |
| 8' | Trumpet | 12 ext. 16' Pos. |
| 8' | Trompette | SW |
| 4' | Clarion | 12 ext. 16' Pos. |
| 8' | Swell to Pedal | |
| 4' | Swell to Pedal | |
| 8' | Great to Pedal | |
| 4' | Great to Pedal | |
| 8' | Choir to Pedal | |
| 4' | Choir to Pedal |
Something missing or not quite correct?Add StoplistorSuggest an Edit
CONSOLES
Selected Item:
View additional console entries if they exist ☝️
Builder: Unknown
Position: Unknown
Design: Traditional With Roll Top
Pedalboard Type: Concave Radiating (Meeting AGO Standards)
Features:
3 Manuals (61 Notes)32 Note Pedal8 Divisions107 RegistersElectrical Key ActionElectrical Stop Action✓ Crescendo✓ Combination Thumb Piston(s)✓ Combination Toe Piston(s)✓ Coupler Thumb Piston(s)✓ Coupler Toe Piston(s)✓ Sforzando Thumb Piston(s)✓ Sforzando Toe Piston(s)Stop Layout: Drawknobs in Vertical Rows on Angled Jambs
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination Action: Computerized/Digital
Control System: Unknown or N/A
Something missing or not quite correct?Add ConsoleorSuggest an Edit
DETAILS
Switch between notes, documents, and blowers ☝️
This instrument is: Extant and Playable in this location
Database Manager on February 9th, 2007:

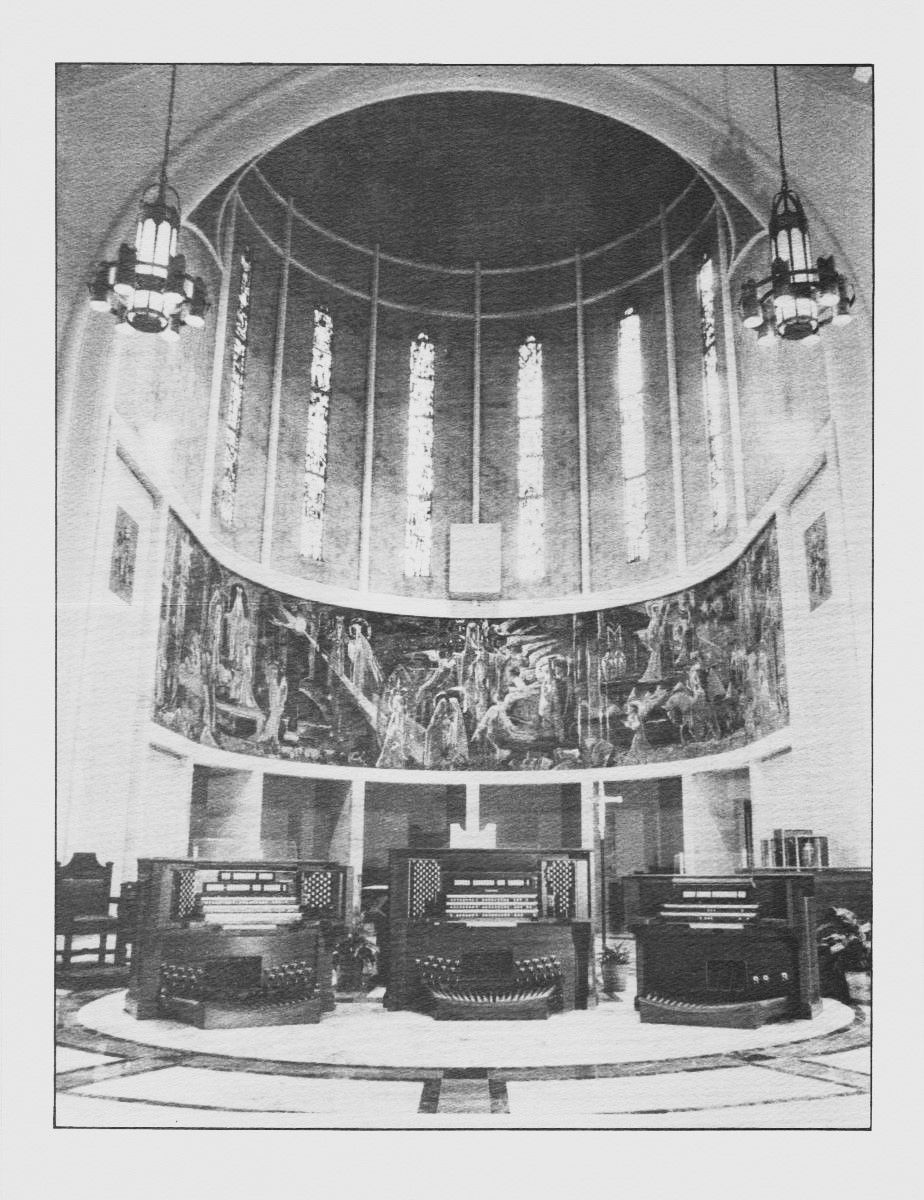

Identified through online information from James R. Stettner. -- Gallery and Sanctuary organs. 4 divisions each: Gt., Sw., Ch, & Ped. 3 consoles!!! Two three-manual consoles and one two-manual console. Sanctuary/gallery consoles drawknob. Chapel console is rocker tablet. Trompette Héroïque is hooded. Retains portions of the the previous instrument
Identified through online information from James R. Stettner. -- Gallery and Sanctuary organs. 4 divisions each: Gt., Sw., Ch, & Ped. 3 consoles!!! Two three-manual consoles and one two-manual console. Sanctuary/gallery consoles drawknob. Chapel console is rocker tablet. Trompette Héroïque is hooded. Retains portions of the the previous instrument
Related Instrument Entries: Bunn=Minnick Co. (1987) , M. P. Möller (Opus 9384, 1964)
