Pipe Organ Database

a project of the organ historical society

M. P. Möller (Opus 11351, 1979)

Location:

Smithwood Baptist Church
4901 Jacksboro Pike
Knoxville, TN 37918 US
Organ ID: 26187

Update This Entry

Status and Condition:

  • This instrument's location type is: Baptist Churches
  • The organ has an unknown or unreported status.
  • The organ's condition is unknown.
We received the most recent update for this instrument's status from Database Manager on May 13, 2018.

Technical Details:

  • Chests: Electro-pneumatic (EP)
  • 20 ranks. 1,221 pipes. 3 divisions. 3 manuals. 14 stops. 40 registers.
Great:
  • Chest Type(s): Electro-pneumatic (EP) chests
  • Position: Pipes exposed (in whole or in part) at the front of the room.
  • Built by M. P. Möller
We received the most recent update for this division from Jim Stettner on February 14, 2021.

Swell (Expressive):
  • Chest Type(s): Electro-pneumatic (EP) chests
  • Position: In side chambers at the front of the room. Facade pipes or case front visible.
  • Built by M. P. Möller
We received the most recent update for this division from Jim Stettner on February 14, 2021.

Positiv:
  • Chest Type(s): Electro-pneumatic (EP) chests
  • Position: In side chambers at the front of the room. Facade pipes or case front visible.
  • Built by M. P. Möller
We received the most recent update for this division from Jim Stettner on February 14, 2021.
Main:
  • Built by M. P. Möller
  • Manuals: 3
  • Divisions: 3
  • Stops: 14
  • Registers: 40
  • Position: Console in fixed position, right.
  • Manual Compass: 61
  • Pedal Compass: 32
  • Key Action: Electrical connection from key to chest.
  • Stop Action: Electric connection between stop control and chest.
  • Console Style: Traditional style with roll top.
  • Stop Controls: Drawknobs in vertical rows on angled jambs.
  • Combination Action: 'Hold and Set' pneumatic/mechanical system.
  • Swell Control Type: Balanced swell shoes/pedals, AGO standard placement.
  • Pedalboard Type: Concave radiating pedalboard meeting AGO Standards.
  • Has Crescendo Pedal
  • Has Tutti Reversible Toe Pistons
  • Has Combination Action Thumb Pistons
  • Has Combination Action Toe Pistons
We received the most recent update for this console from Jim Stettner on February 14, 2021.
Database Manager on March 29, 2008:

Updated through online information from Jeff Scofield. -- Renovated and enlarged in 2000 by Barger & Nix

We received the most recent update for this note from Database Manager on April 09, 2020.
Database Manager on May 30, 2007:

Identified through online information from James R. Stettner. -- Pipes in corner chambers with exposed Great in front of chamber grilles on each side of the chancel. The Pedal has no independent registers; just borrows and extensions.

We received the most recent update for this note from Jim Stettner on February 14, 2021.
Stoplist copied from the console: Open In New Tab Originally published April, 1986
We received the most recent update for this stoplist from Jim Stettner on February 14, 2021.

Instrument Images:

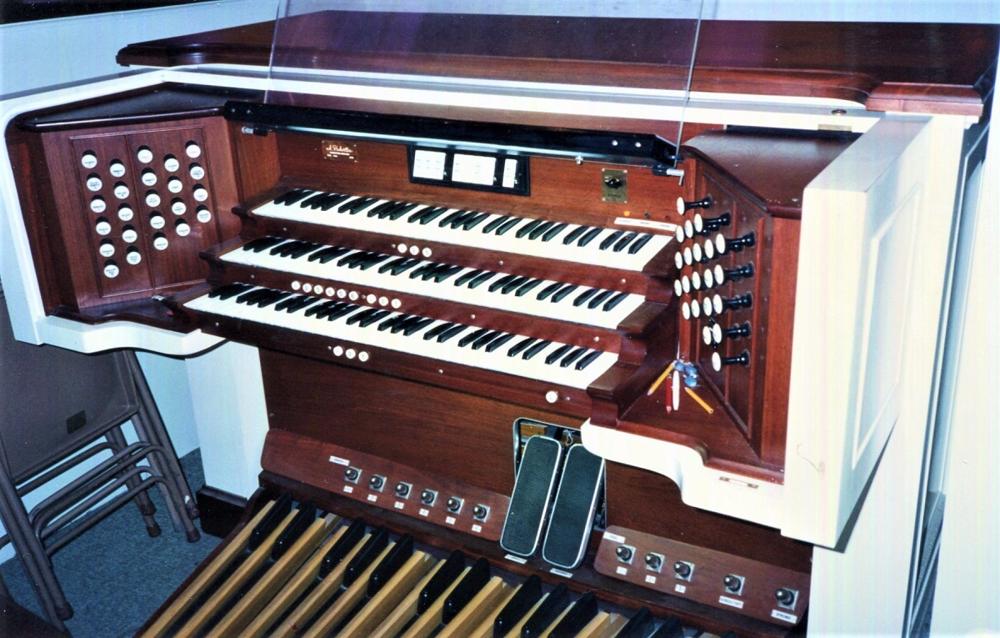

Console: Photograph by Jeff Scofield. Taken on 1987-09-10

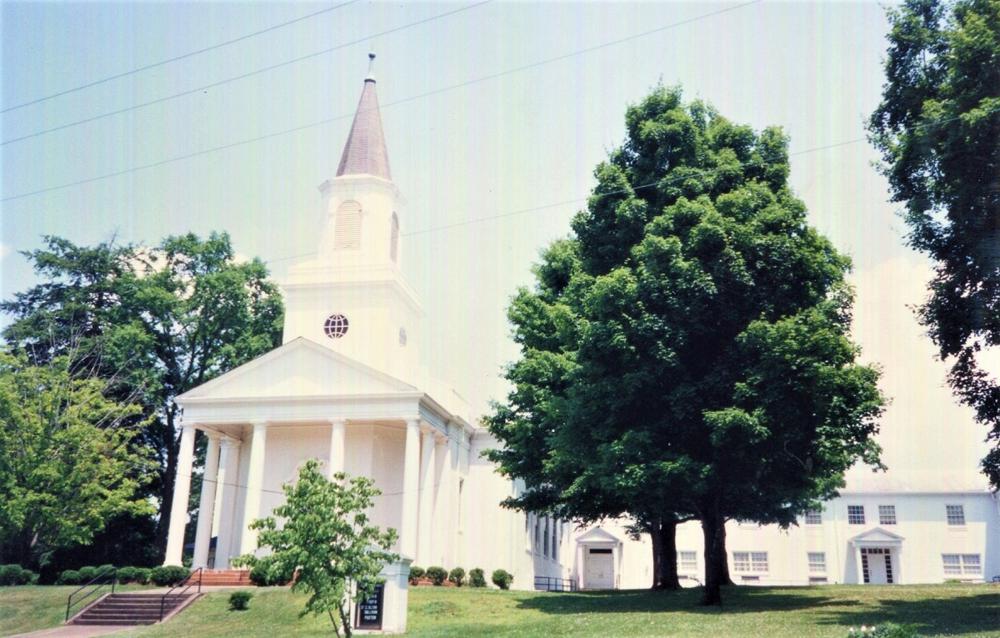

Church exterior: Photograph by Jeff Scofield. Taken on 1987-09-10

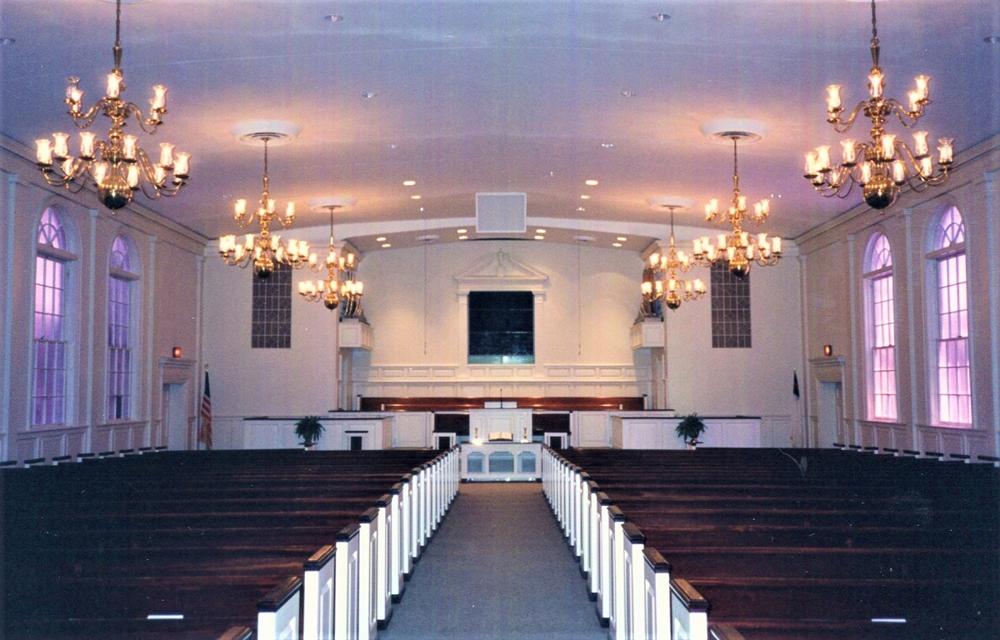

Sanctuary interior: Photograph by Jeff Scofield. Taken on 1987-09-10

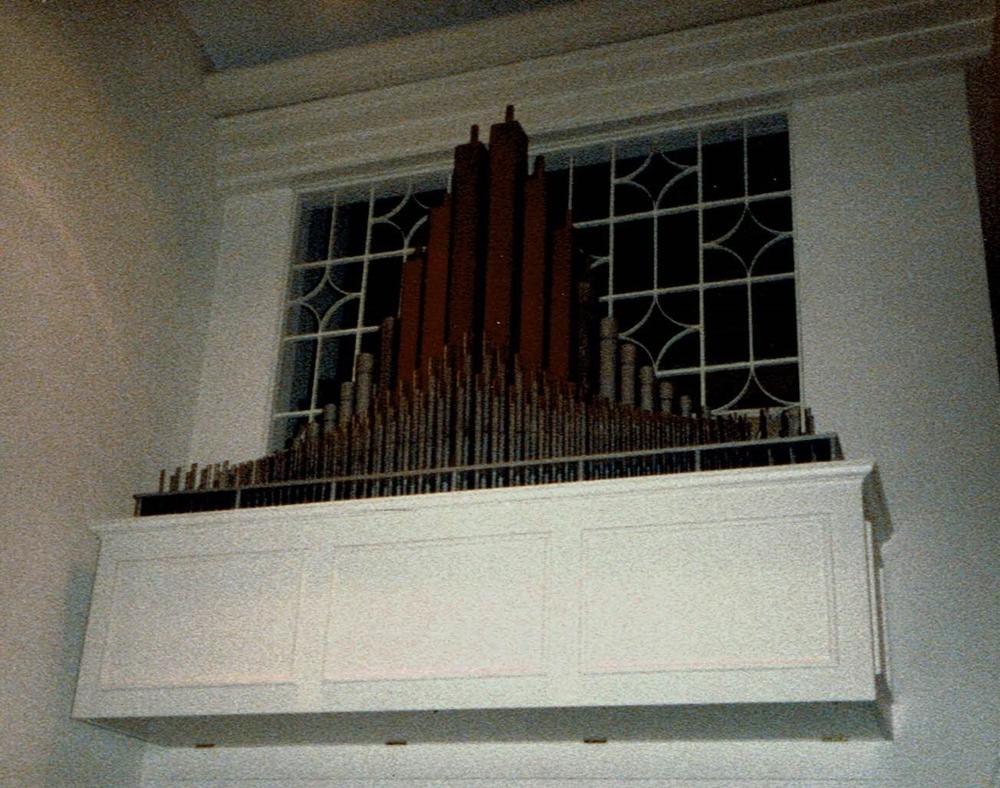

Exposed pipework: Photograph by James R. Stettner. Taken approx. 1986

Exposed pipework: Photograph by James R. Stettner. Taken approx. 1986
