Casavant Frères (Opus 3856, 2007)

Location:

St. Paul's Episcopal Church
6050 N. Meridian Street
Indianapolis, IN 46208 US
Organ ID: 27215

Update This Entry

Status and Condition:

  • This instrument's location type is: Episcopal and Anglican Churches
  • The organ is unaltered from its original state.
  • The organ's condition is unknown.
We received the most recent update for this instrument's status from Database Manager on May 13, 2018.

Technical Details:

  • Chests: Slider with pneumatic pull-downs (externally, EP or TP)
  • 90 ranks. 5,144 pipes. 8 divisions. 4 manuals. 133 stops. 72 registers.
All:
  • Chest Type(s): Slider with pneumatic pull-downs (externally, EP or TP) chests
  • Position: In a case at the front of the room.
We received the most recent update for this division from Database Manager on May 13, 2018.
Main:
  • Manuals: 4
  • Divisions: 8
  • Stops: 133
  • Registers: 72
  • Position: Movable console.
  • Manual Compass: 61
  • Pedal Compass: 32
  • Key Action: Electrical connection from key to chest.
  • Stop Action: Electric connection between stop control and chest.
  • Console Style: Traditional style without cover.
  • Stop Controls: Drawknobs in horizontal rows on terraced/stepped jambs.
  • Combination Action: Computerized/Digital system.
  • Swell Control Type: Balanced swell shoes/pedals, AGO standard placement.
  • Pedalboard Type: Concave radiating pedalboard meeting AGO Standards.
  • Has Crescendo Pedal
  • Has Tutti Reversible Thumb Pistons
  • Has Tutti Reversible Toe Pistons
  • Has Combination Action Thumb Pistons
  • Has Combination Action Toe Pistons
  • Has Coupler Reversible Thumb Pistons
  • Has Coupler Reversible Toe Pistons
  • Has a Piston Sequencer
We received the most recent update for this console from Database Manager on May 13, 2018.
Database Manager on July 17, 2009:

Updated through on-line information from Jeff Scofield.

We received the most recent update for this note from Database Manager on April 09, 2020.
Database Manager on July 22, 2007:

The contract includes both a four-manual, Seventy-six-rank chancel organ and a two-manual, fourteen-rank nave organ.

We received the most recent update for this note from Database Manager on April 09, 2020.
Source not recorded: Open In New Tab Stoplist copied from the factory specifications
We received the most recent update for this stoplist from Database Manager on April 09, 2020.

Instrument Images:

Chancel Console and Organ Case: Photograph by Matt Gerhard. Taken on 2015-07-15

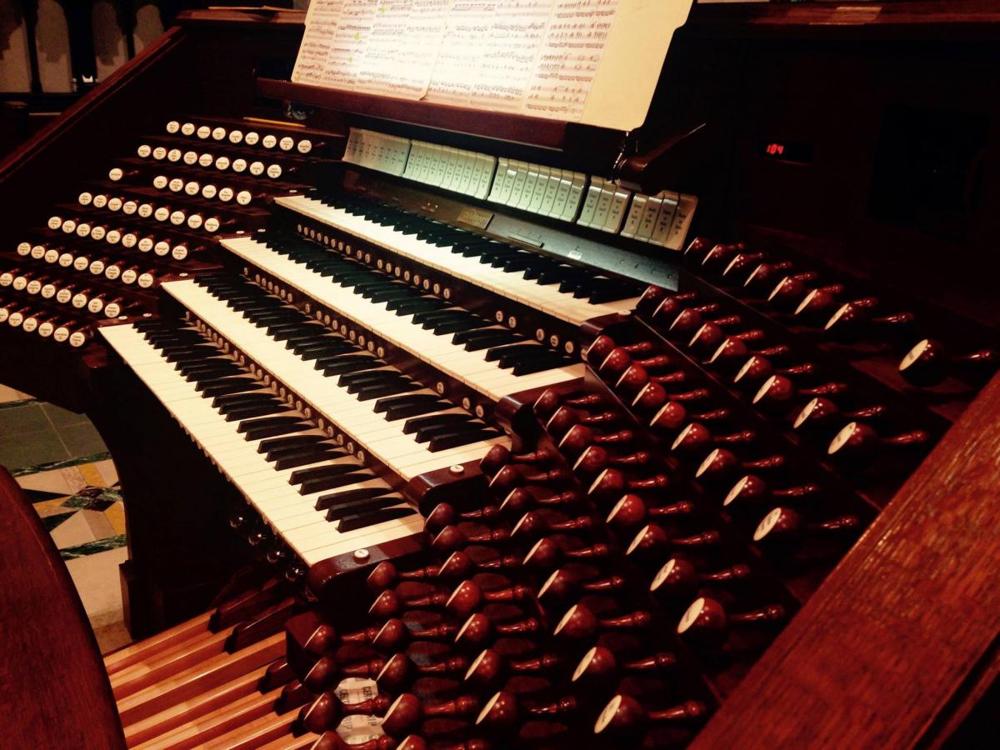

Chancel Console: Photograph by Matt Gerhard. Taken on 2015-07-15

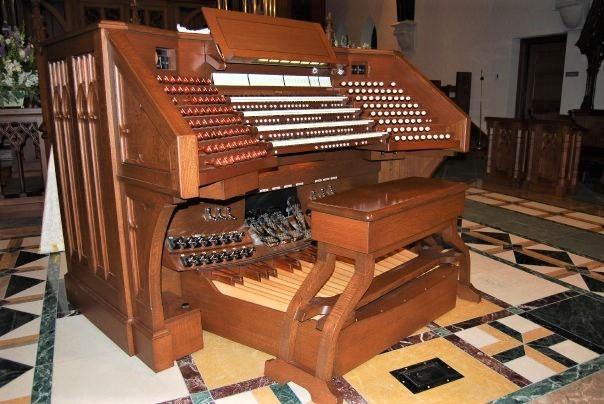

Console: Photograph by Stephen Schnurr. Taken on 2008-10-01

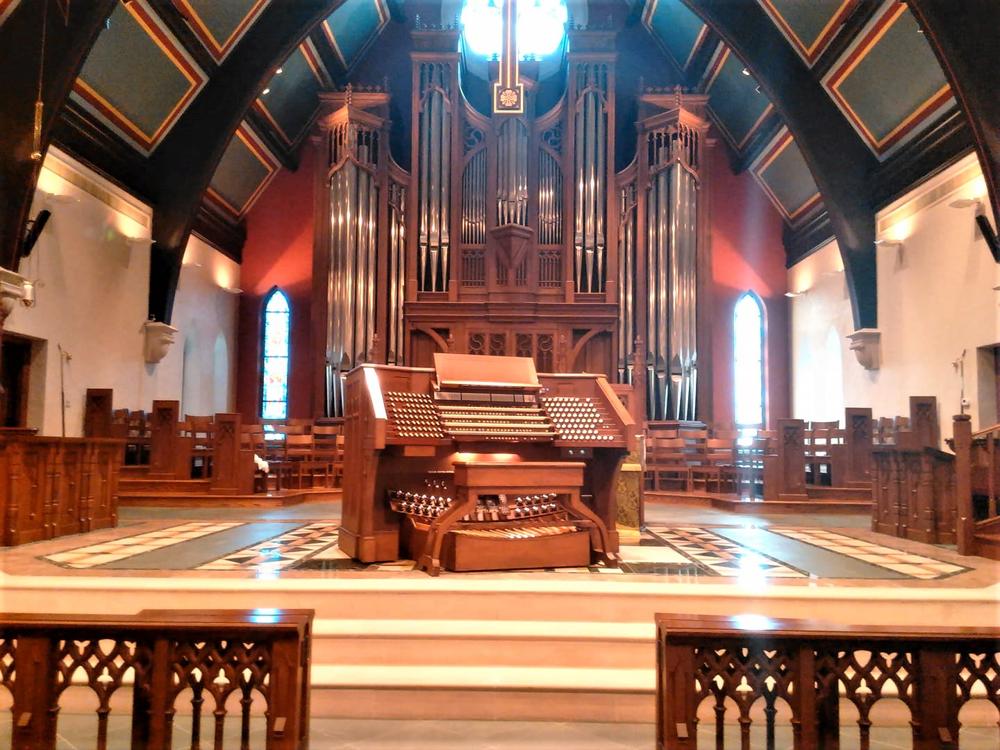

Console, chancel, organ and case: Photograph by Indianapolis Chapter AGO, via Facebook, submitted by Jeff Scofield. Taken on 2017-09-24
