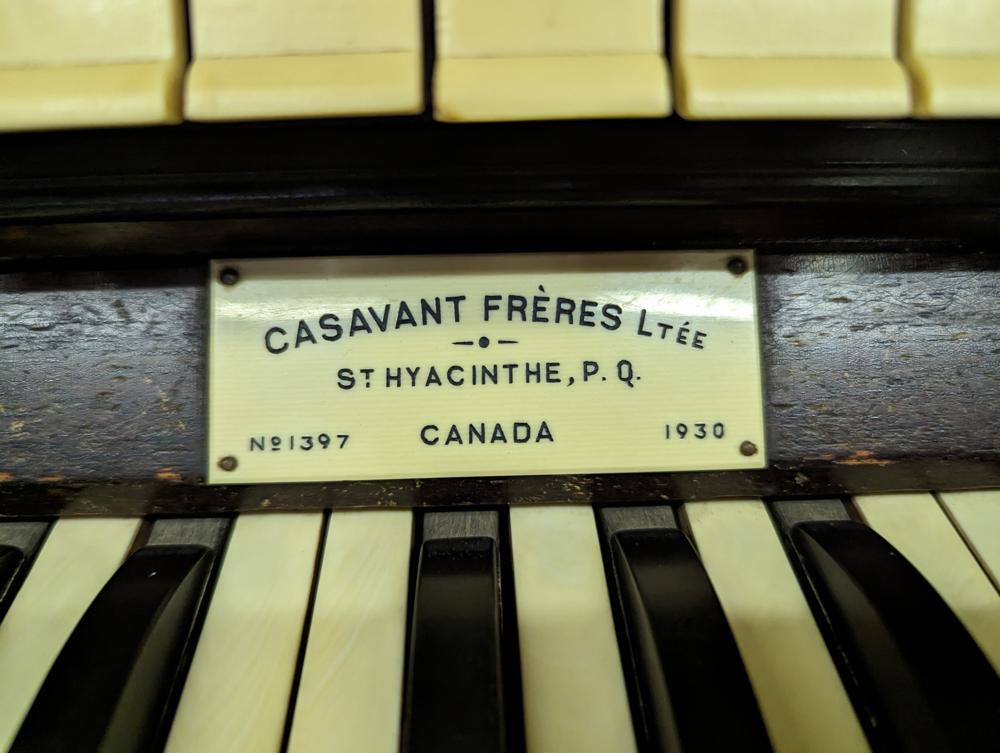

Casavant Frères Ltée. (Opus 1397, 1930)

Location:

Missionaries of Our Lady of La Salette
Enfield, NH 03748 US
Mary Keane Chapel
Organ ID: 33505

Update This Entry

Status and Condition:

  • This instrument's location type is: Convents, Monasteries, and the like
  • The organ has been renovated with changes from its original state.
  • The organ's condition is unknown.
We received the most recent update for this instrument's status from Database Manager on May 13, 2018.

Technical Details:

  • Chests: Electro-pneumatic (EP)
  • 29 ranks. 1,862 pipes. 4 divisions. 3 manuals. 28 stops. 26 registers.
All:
  • Chest Type(s): Electro-pneumatic (EP) chests
  • Position: In side chambers at the front of the room. Facade pipes or case front visible.
We received the most recent update for this division from Database Manager on May 13, 2018.
Main:
  • Manuals: 3
  • Divisions: 4
  • Stops: 28
  • Registers: 26
  • Position: Console in fixed position, left.
  • Manual Compass: 61
  • Pedal Compass: 32
  • Key Action: Electrical connection from key to chest.
  • Stop Action: Electric connection between stop control and chest.

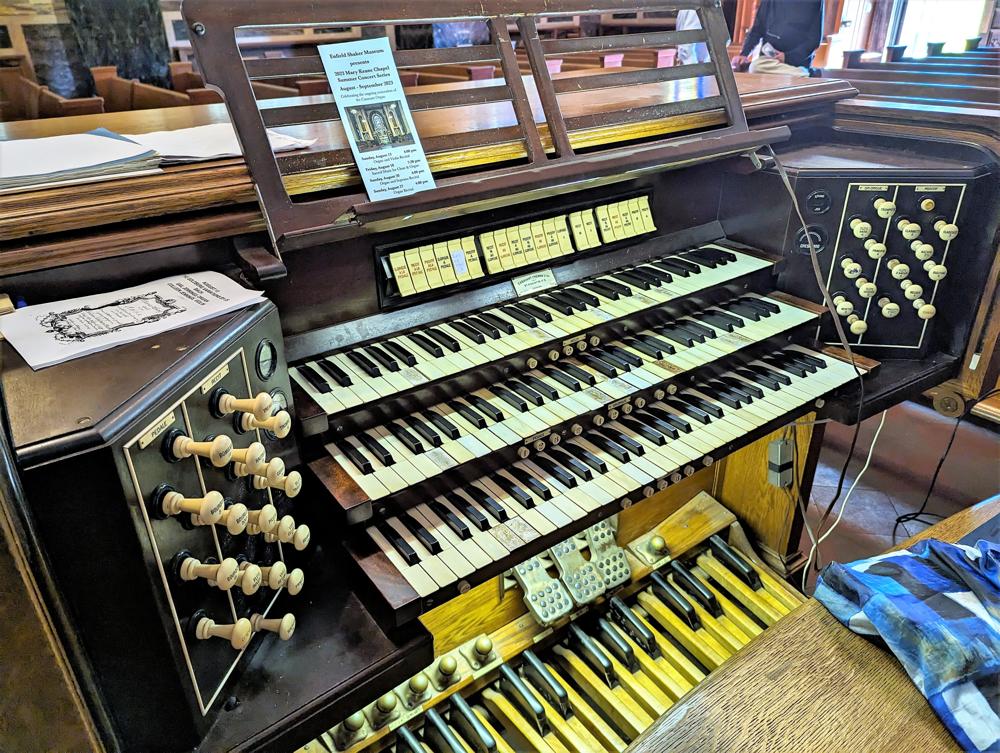

  • Console Style: Traditional style with roll top.

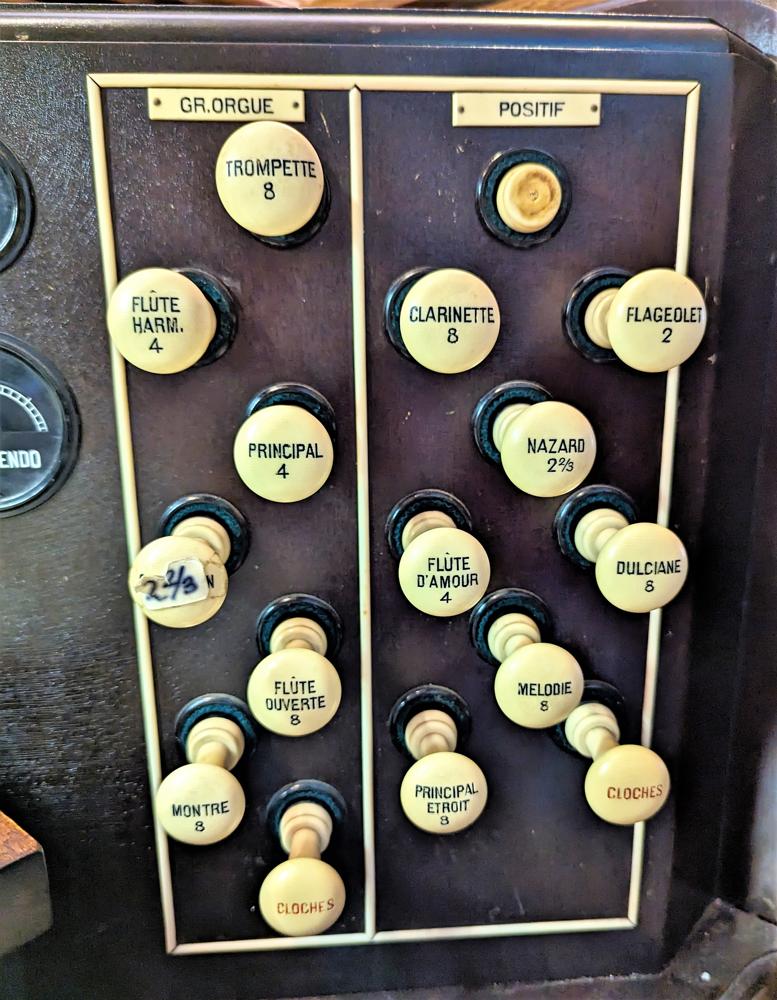

  • Stop Controls: Drawknobs in vertical rows on angled jambs.
  • Combination Action: Adjustable combination pistons.
  • Swell Control Type: Balanced swell shoes/pedals, AGO standard placement.

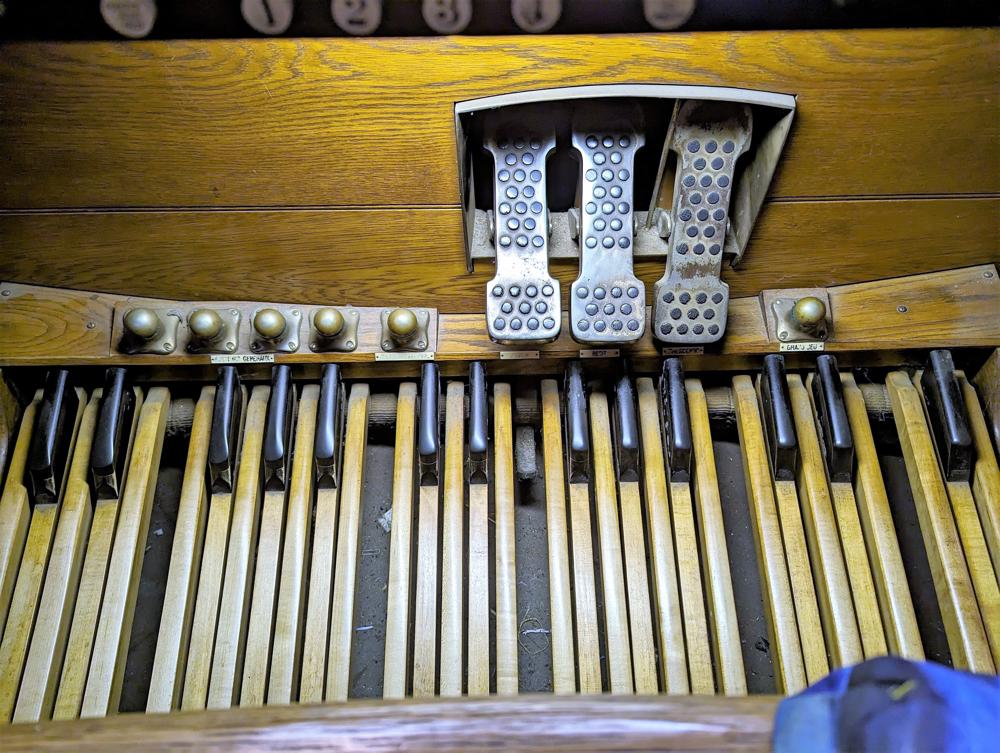

  • Pedalboard Type: Concave radiating pedalboard meeting AGO Standards.
  • Has Crescendo Pedal
  • Has Tutti Reversible Thumb Pistons
  • Has Tutti Reversible Toe Pistons
  • Has Combination Action Thumb Pistons
  • Has Combination Action Toe Pistons
  • Has Coupler Reversible Thumb Pistons
  • Has Coupler Reversible Toe Pistons
We received the most recent update for this console from Database Manager on May 13, 2018.
Database Manager on April 07, 2010:

Updated through on-line information from Jeff Scofield.

We received the most recent update for this note from Database Manager on April 09, 2020.

Database Manager on March 04, 2008:

Identified through on-line information from Len A. Levasseur.

We received the most recent update for this note from Database Manager on April 09, 2020.
Source not recorded: Open In New Tab Stoplist copied from the factory specifications
We received the most recent update for this stoplist from Database Manager on April 09, 2020.

Instrument Images:

Chancel and organ: Photograph by Len Levasseur. Taken on 2008-02-29

This instrument has been viewed 84 times.
