M. P. Möller (Opus 7909, 1949)

Location:

St. John's Episcopal Church
322 South Greer
Memphis, TN 38111 US
Church
Organ ID: 34519

Update This Entry

Status and Condition:

  • This instrument's location type is: Episcopal and Anglican Churches
  • The organ has been rebuilt or substantially revised.
  • The organ's condition is unknown.
We received the most recent update for this instrument's status from Database Manager on May 13, 2018.

Technical Details:

  • Chests: Electro-pneumatic (EP)
  • 7 ranks. 470 pipes. 3 divisions. 3 manuals. 7 stops.
All:
  • Chest Type(s): Electro-pneumatic (EP) chests
  • Position: In side chambers at the front of the room. No visible pipes.
We received the most recent update for this division from Database Manager on May 13, 2018.
Main:
  • Manuals: 3
  • Divisions: 3
  • Stops: 7
  • Position: Console in fixed position, left.
  • Manual Compass: 61
  • Pedal Compass: 32
  • Key Action: Electrical connection from key to chest.
  • Stop Action: Electric connection between stop control and chest.
  • Console Style: Traditional style with roll top.
  • Stop Controls: Drawknobs in vertical rows on angled jambs.
  • Combination Action: Adjustable combination pistons.
  • Swell Control Type: Balanced swell shoes/pedals, AGO standard placement.
  • Pedalboard Type: Concave radiating pedalboard meeting AGO Standards.
  • Has Tutti Reversible Thumb Pistons
  • Has Tutti Reversible Toe Pistons
  • Has Combination Action Thumb Pistons
  • Has Combination Action Toe Pistons
  • Has Coupler Reversible Thumb Pistons
  • Has Coupler Reversible Toe Pistons
We received the most recent update for this console from Database Manager on May 13, 2018.
Database Manager on May 04, 2012:

Updated through online information from Jeff Scofield. -- Twenty-seven ranks prepared-for, as well as many pistons, couplers and the crescendo pedal that were installed but not yet activated; the organ was eventually enlarged to 3/34; replaced in 1989 by 3/40 Reuter Op. 2136, retaining 6 Möller ranks; the church has the most unusual ceiling - like a giant deep sky-blue air mattress that runs from the front wall to the back.

We received the most recent update for this note from Database Manager on February 11, 2019.

Database Manager on April 29, 2008:

Identified from factory documents and publications courtesy of Stephen Schnurr.

We received the most recent update for this note from Database Manager on April 09, 2020.
Source not recorded: Open In New Tab Stoplist copied from the factory specifications
We received the most recent update for this stoplist from Database Manager on April 09, 2020.
Factory Documentation: Open In New Tab Factory Documentation courtesy of the OHS Archive
Document created on 1948-07-12
We received the most recent update for this document from Roman Lizak on February 23, 2022.

Instrument Images:

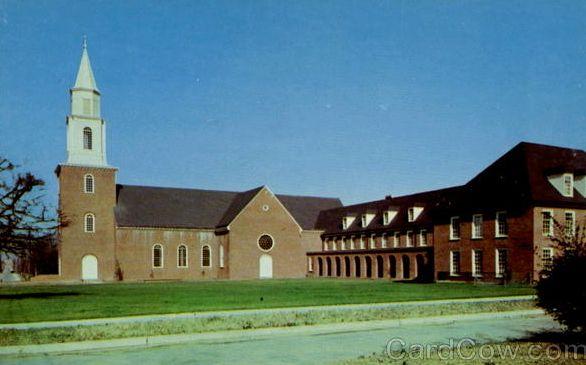

Church Exterior: Postcard Image supplied by Jeff Scofield.

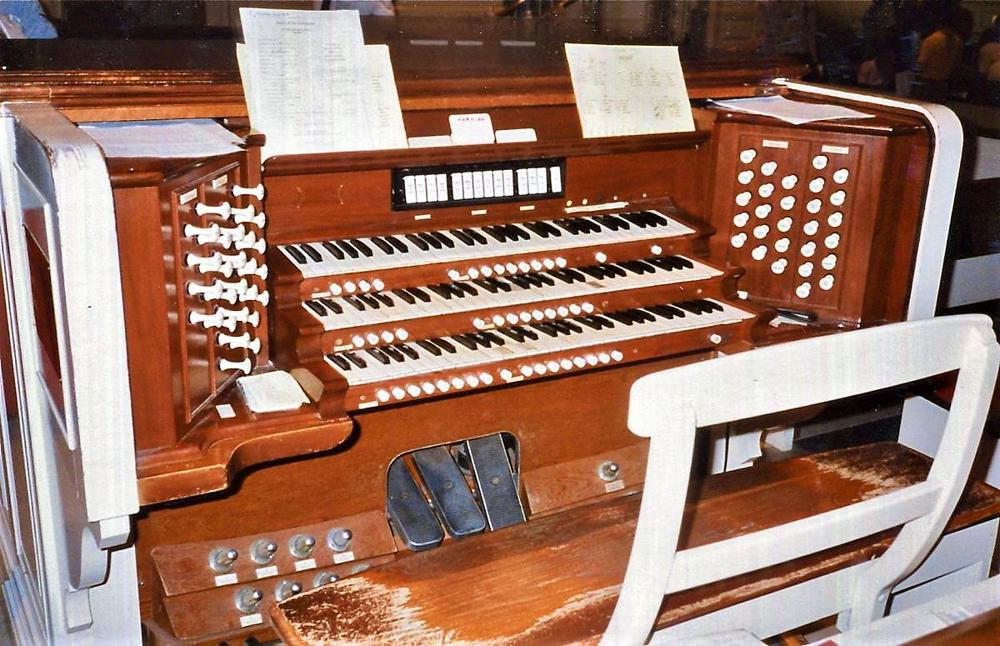

Console: Photograph by Jeff Scofield. Taken on 1989-06-30

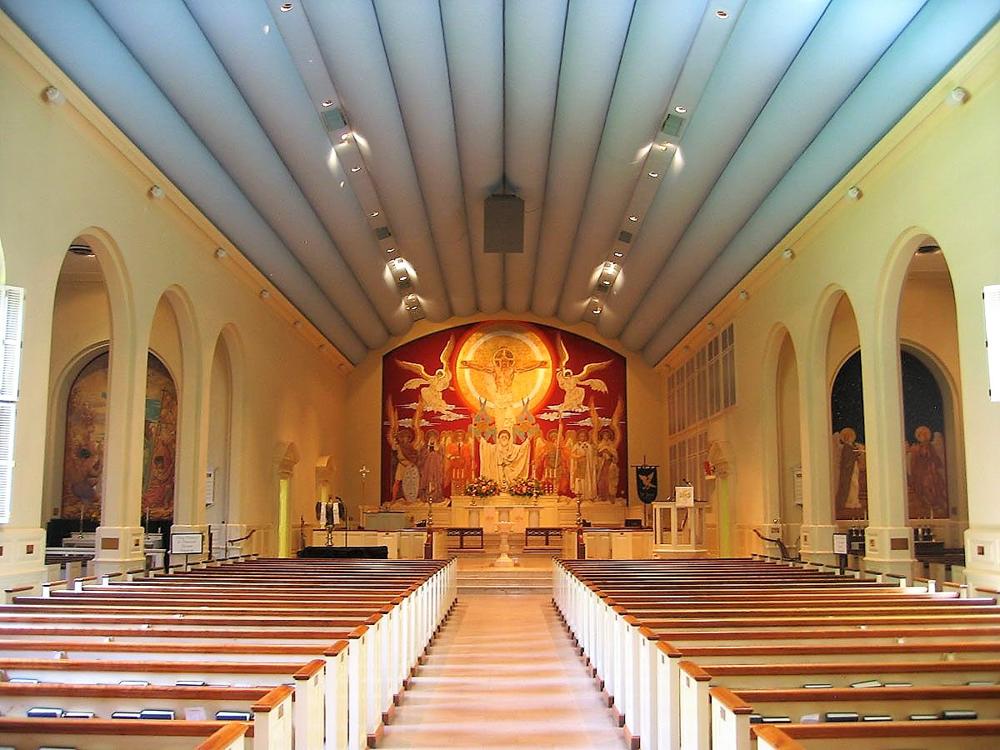

Sanctuary interior: Photograph by Jeff Scofield. Taken on 2012-07-24
