Casavant Frères Ltd. (Opus 2925, 1967)

Location:

Trinity Episcopal Church
3800 20th St.
Greeley, CO 80634 US
Church
Organ ID: 45841

Update This Entry

Status and Condition:

  • This instrument's location type is: Episcopal and Anglican Churches
  • The organ has been altered from its original state.
  • The organ's condition is unknown.
We received the most recent update for this instrument's status from Database Manager on May 13, 2018.

Technical Details:

  • Chests: Electro-pneumatic (EP)
  • 43 ranks. 2292 pipes. 4 divisions. 3 manuals. 32 stops. 32 registers.
All:
  • Chest Type(s): Electro-pneumatic (EP) chests
We received the most recent update for this division from Database Manager on May 13, 2018.
Main:
  • Manuals: 3
  • Divisions: 4
  • Stops: 32
  • Registers: 32
  • Manual Compass: 61
  • Pedal Compass: 32
  • Key Action: Electrical connection from key to chest.
  • Stop Action: Electric connection between stop control and chest.
  • Console Style: Traditional style with roll top.
  • Stop Controls: Drawknobs in vertical rows on angled jambs.
  • Combination Action: Remote pneumatic/mechanical capture system.
  • Swell Control Type: Balanced swell shoes/pedals, AGO standard placement.
  • Pedalboard Type: Concave radiating pedalboard meeting AGO Standards.
  • Has Crescendo Pedal
  • Has Tutti Reversible Toe Piston(s)
  • Has Combination Action Thumb Piston(s)
  • Has Combination Action Toe Piston(s)
  • Has Coupler Reversible Thumb Piston(s)
  • Has Coupler Reversible Toe Piston(s)
We received the most recent update for this console from Database Manager on May 13, 2018.
Database Manager on March 31, 2010:

Updated through on-line information from Jeff Scofield.

We received the most recent update for this note from Database Manager on April 09, 2020.

Database Manager on January 14, 2010:

Identified by Riley Wes Mitchell from information furnished by Casavant Frères, courtesy of Simon Couture.

We received the most recent update for this note from Database Manager on April 09, 2020.
Source not recorded: Open In New Tab Stoplist copied from the factory specifications
We received the most recent update for this stoplist from Database Manager on April 09, 2020.

Instrument Images:

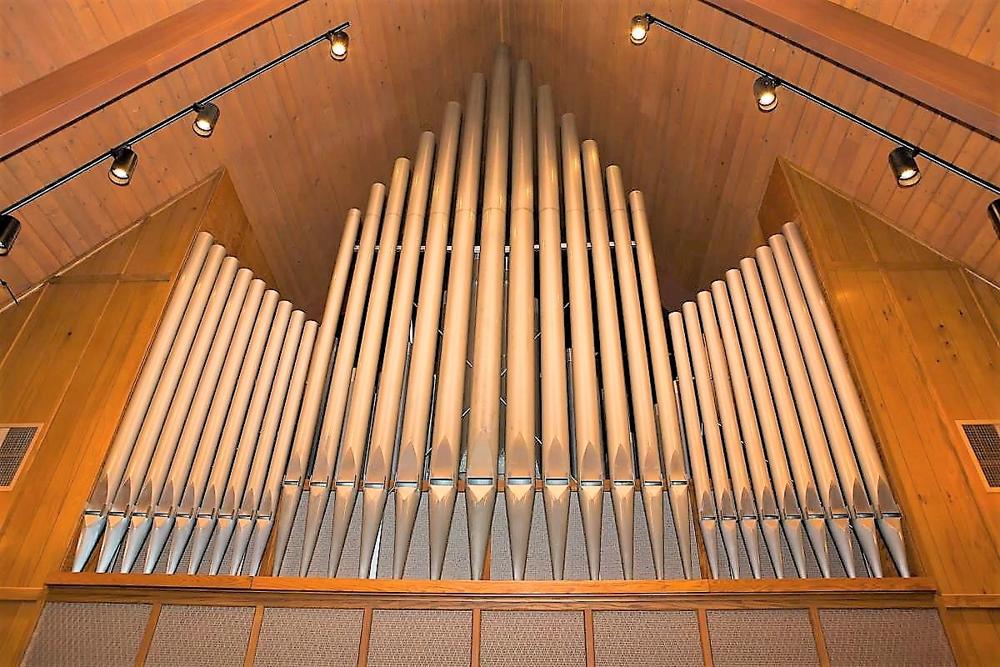

Facade containing 8' Montre and 16' Violon: Photograph by Raymond Quick. Taken on 2015-10-20

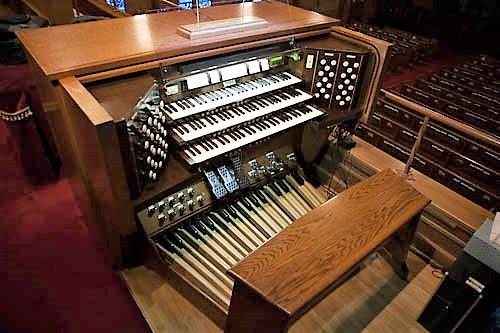

Console: Photograph by Raymond Quick. Taken on 2015-10-20
