Casavant Frères Ltée. (Opus 2977, 1968)

Location:

Augsburg Lutheran Church
845 West Fifth Street
Winston-Salem, NC 27101 US
Organ ID: 46445

Update This Entry

Status and Condition:

  • This instrument's location type is: Lutheran Churches
  • The organ has been rebuilt or substantially revised.
  • The organ's condition is good, in regular use.
We received the most recent update for this instrument's status from Database Manager on May 13, 2018.

Technical Details:

  • Chests: Electro-pneumatic (EP)
  • 41 ranks. 2,204 pipes. 4 divisions. 3 manuals. 31 stops. 31 registers.
All:
  • Chest Type(s): Electro-pneumatic (EP) chests
  • Position: Pipes exposed (in whole or in part) at the front of the room.
We received the most recent update for this division from Database Manager on May 13, 2018.
Main:
  • Manuals: 3
  • Divisions: 4
  • Stops: 31
  • Registers: 31
  • Manual Compass: 61
  • Pedal Compass: 32
  • Key Action: Electrical connection from key to chest.
  • Stop Action: Electric connection between stop control and chest.
  • Console Style: Traditional style without cover.
  • Stop Controls: Tilting/rocking tablets above top manual.
  • Combination Action: 'Hold and Set' pneumatic/mechanical system.
  • Swell Control Type: Balanced swell shoes/pedals, AGO standard placement.
  • Pedalboard Type: Concave radiating pedalboard meeting AGO Standards.
  • Has Tutti Reversible Toe Pistons
  • Has Combination Action Thumb Pistons
  • Has Combination Action Toe Pistons
  • Has Coupler Reversible Thumb Pistons
  • Has Coupler Reversible Toe Pistons
We received the most recent update for this console from Database Manager on May 13, 2018.
Database Manager on December 27, 2010:

Updated through online information from Jeff Scofield. -- Renovated by Letourneau in 1998.

We received the most recent update for this note from Database Manager on April 09, 2020.

Database Manager on February 26, 2010:

Identified by Rae Bolton from information furnished by Casavant Frères, courtesy of Simon Couture. Rebuilt by Letourneau

We received the most recent update for this note from Database Manager on February 11, 2019.
Source not recorded: Open In New Tab Stoplist copied from the factory specifications
We received the most recent update for this stoplist from Database Manager on April 09, 2020.

Instrument Images:

Church exterior: Photograph by Church Facebook, submitted by Jeff Scofield. Taken on 2012-09-25

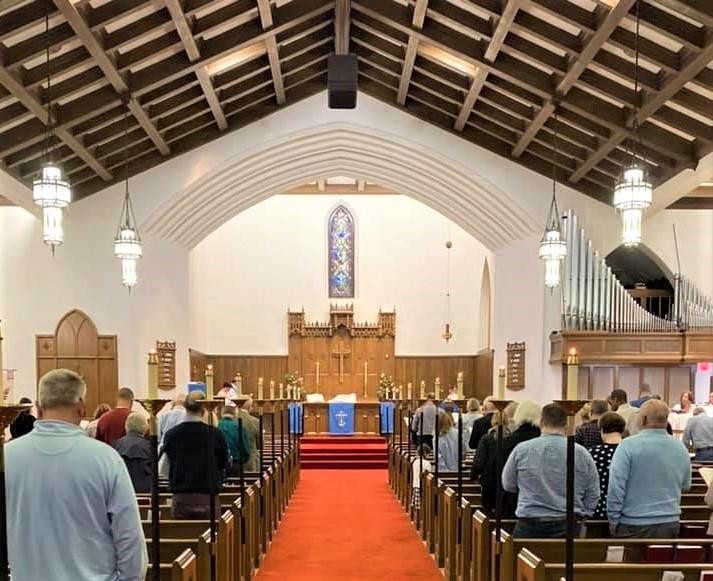

Church interior: Photograph by Church Facebook, submitted by Jeff Scofield. Taken on 2019-12-01

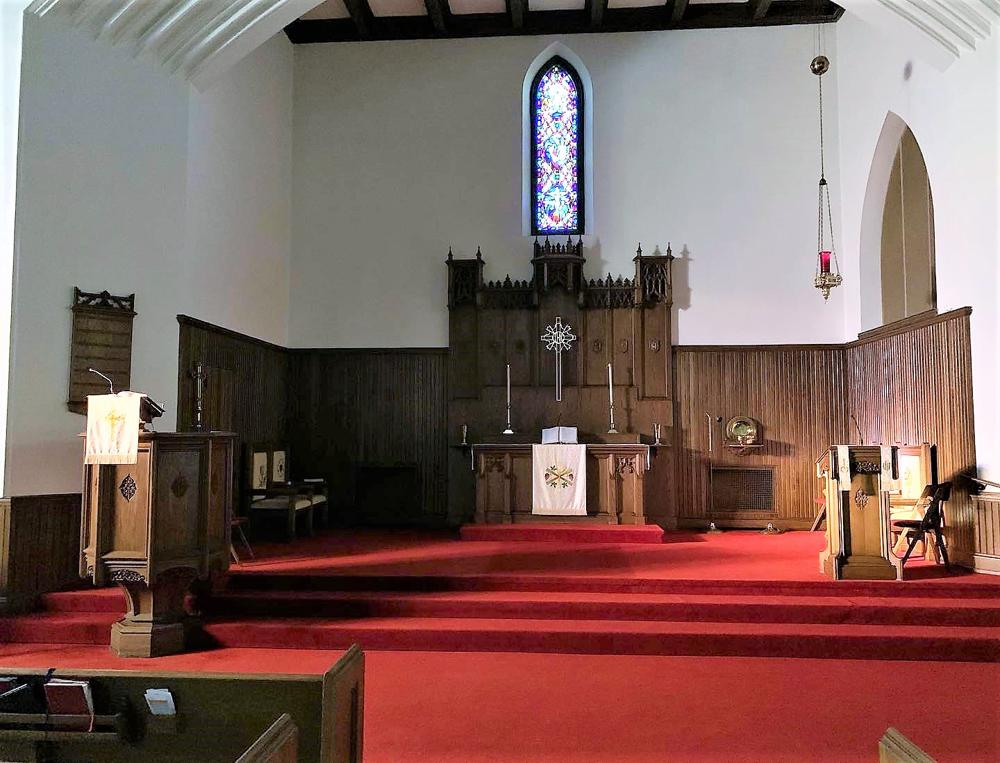

Chancel tone opening: Photograph by Church Facebook, submitted by Jeff Scofield. Taken on 2020-11-21

This instrument has been viewed 384 times.
