Pipe Organ Database

a project of the organ historical society

Casavant Frères Ltd. (Opus 2128, 1952)

Location:

Knox Presbyterian Church
9 Victoria Street North
Goderich, ON N7A 2R4 CA
Organ ID: 46470

Update This Entry

Status and Condition:

  • This instrument's location type is: Presbyterian Churches
  • The organ has an unknown or unreported status.
  • The organ's condition is good, in regular use.
We received the most recent update for this instrument's status from Jeff Scofield on June 30, 2020.

Technical Details:

  • Chests: Electro-pneumatic (EP)
  • 25 ranks. 4 divisions. 3 manuals. 25 stops. 33 registers.
Great, Swell, Choir and Pedal:
  • Chest Type(s): Electro-pneumatic (EP) chests
  • Position: In side chambers at the front of the room. No visible pipes.
We received the most recent update for this division from Jeff Scofield on June 30, 2020.
Main:
  • Manuals: 3
  • Divisions: 4
  • Stops: 25
  • Registers: 33
  • Position: Console in fixed position, left.
  • Manual Compass: 61
  • Pedal Compass: 32
  • Key Action: Electrical connection from key to chest.
  • Stop Action: Electric connection between stop control and chest.
  • Console Style: Traditional style with roll top.
  • Stop Controls: Drawknobs.
  • Combination Action: Adjustable combination pistons.
  • Swell Control Type: Balanced swell shoes/pedals, AGO standard placement.
  • Pedalboard Type: Concave radiating pedalboard meeting AGO Standards.
  • Has Crescendo Pedal
  • Has Combination Action Thumb Piston(s)
We received the most recent update for this console from Jeff Scofield on June 30, 2020.
Database Manager on February 27, 2010:

Identified by Rae Bolton from information furnished by Casavant Frères, courtesy of Simon Couture. Replaced Op. 612

We received the most recent update for this note from Database Manager on April 09, 2020.
Courtesy of the Casavant Frères Archives: Open In New Tab
We received the most recent update for this stoplist from Jeff Scofield on June 30, 2020.

Instrument Images:

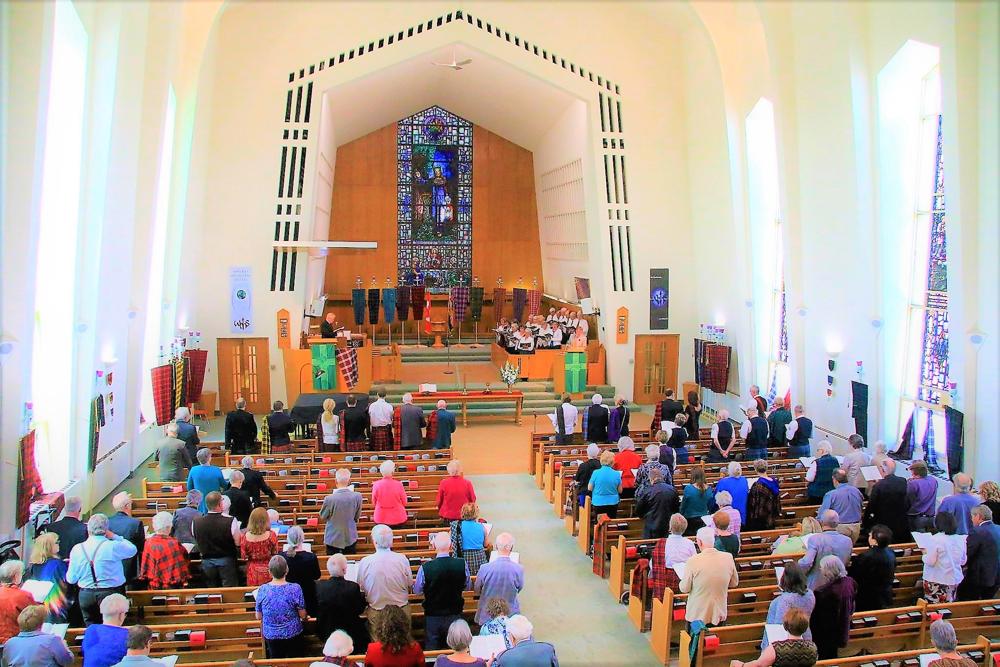

Church interior: Photograph by From church Facebook page, submitted by Jeff Scofield. Taken on 2017-05-29

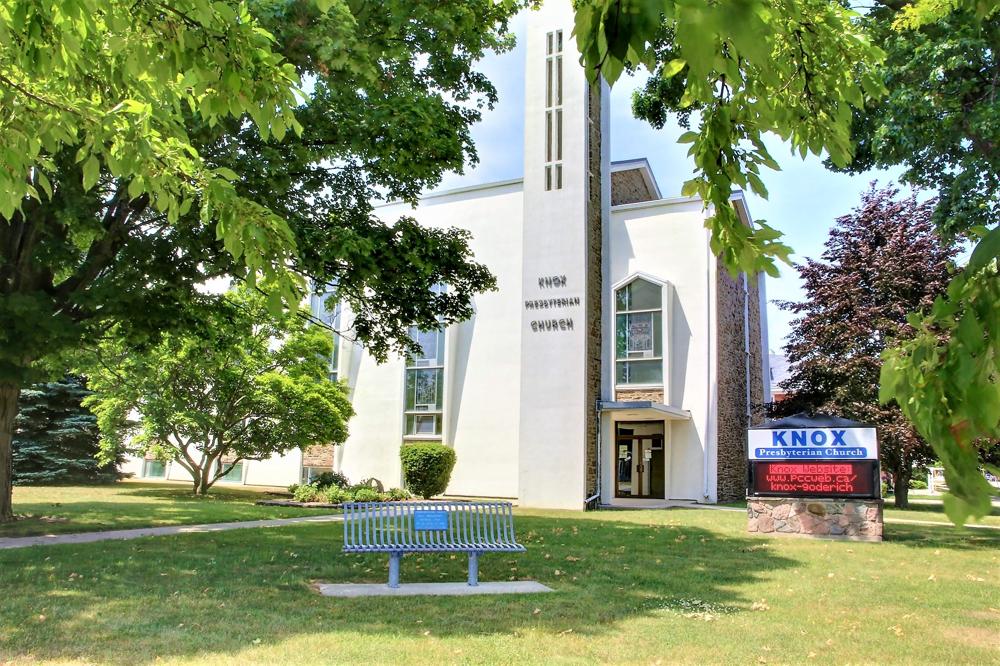

Church exterior: Photograph by From church Facebook page, submitted by Jeff Scofield. Taken on 2019-08-04

This instrument has been viewed 38 times.
