Austin Organs, Inc. (2002)

Originally Austin Organ Co. (Opus 1416, 1926)
Exhibited in the 2016 OHS convention(s)

Location:

University of Pennsylvania
3401 Spruce Street
Philadelphia, PA 19104 US
Irvine Auditorium
Organ ID: 52738

Update This Entry

Status and Condition:

  • This instrument's location type is: Colleges and Universities
  • The organ is unaltered from its original state.
  • The organ's condition is good, used occasionally.
We received the most recent update for this instrument's status from Paul R. Marchesano on November 09, 2021.

Technical Details:

  • Chests: Information unknown or not applicable
  • 162 ranks. 10,731 pipes. 7 divisions. 4 manuals.
All:
We received the most recent update for this division from Database Manager on May 13, 2018.
Main:
  • Manuals: 4
  • Divisions: 7
  • Position: Movable console.
  • Manual Compass: 61
  • Pedal Compass: 32
  • Console Style: Traditional style with roll top.
  • Stop Controls: Drawknobs in vertical rows on angled jambs.
  • Combination Action: Computerized/Digital system.
  • Swell Control Type: Balanced swell shoes/pedals, AGO standard placement.
  • Pedalboard Type: Concave radiating pedalboard meeting AGO Standards.
  • Has Crescendo Pedal
  • Has Tutti Reversible Thumb Pistons
  • Has Tutti Reversible Toe Pistons
  • Has Combination Action Thumb Pistons
  • Has Combination Action Toe Pistons
  • Has Coupler Reversible Thumb Pistons
  • Has Coupler Reversible Toe Pistons
  • Has a Piston Sequencer
We received the most recent update for this console from Database Manager on May 13, 2018.
Database Manager on May 31, 2014:

In 1997 the audtorium was closed for an extensive renovation; the organ was removed by Austin and re-actioned; it was reinstalled in 2002 with a new console; the consultant for the organ restoration was William F. Czelusniak. A solid state relay system was installed.

We received the most recent update for this note from Paul R. Marchesano on February 09, 2022.
Source not recorded: Open In New Tab Sesqui-Centennial Program 1926
We received the most recent update for this stoplist from Database Manager on April 09, 2020.

Instrument Images:

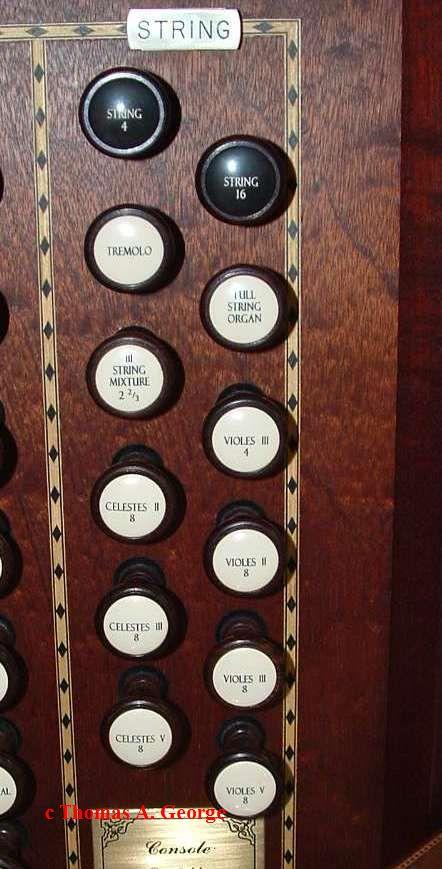

String Division Drawknobs: Photograph by Thomas George. Taken on 2011-02-21

Solo and Great Drawknobs: Photograph by Thomas George. Taken on 2011-02-21

Swell and Pedal Drawknobs: Photograph by Thomas George. Taken on 2011-02-21

Console Detail - Touch Screen: Photograph by Thomas George. Taken on 2011-02-21

Console: Photograph by Len Levasseur. Taken on 2015-08-25

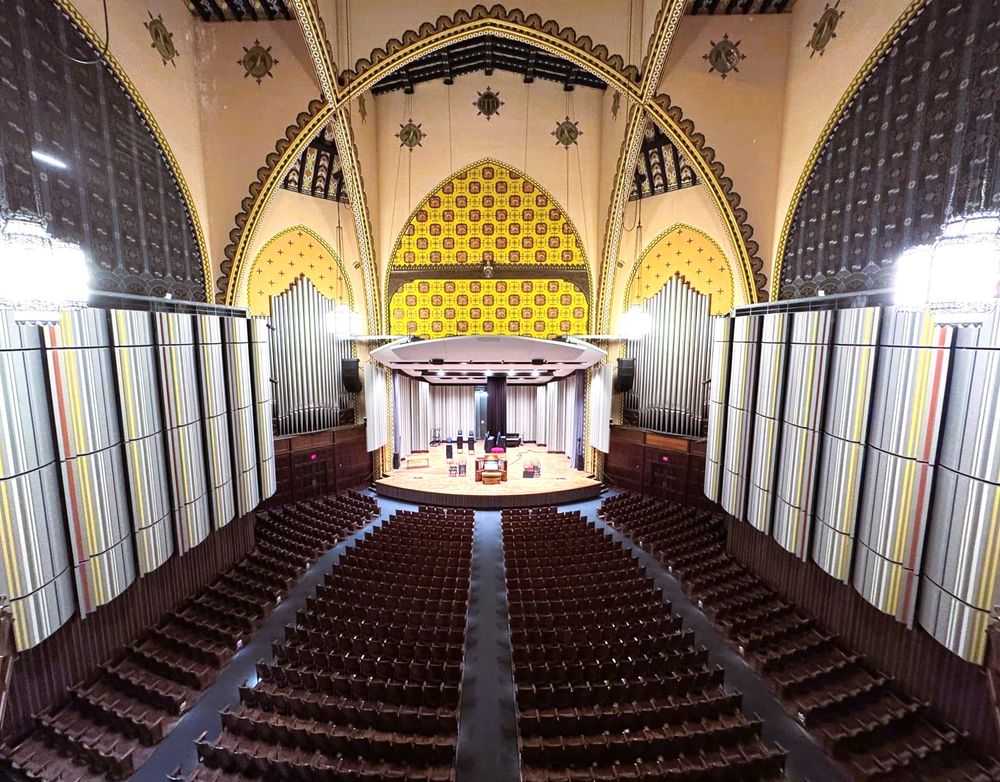

Auditorium Interior: Photograph by Len Levasseur. Taken on 2015-08-25

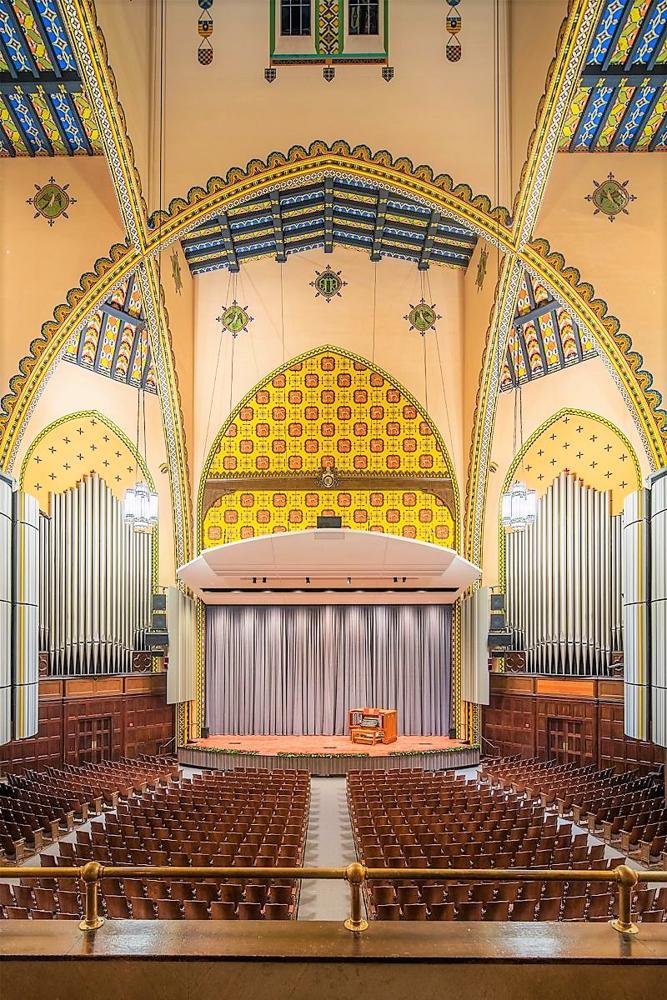

Stage and Console: Photograph by Len Levasseur. Taken on 2015-08-25

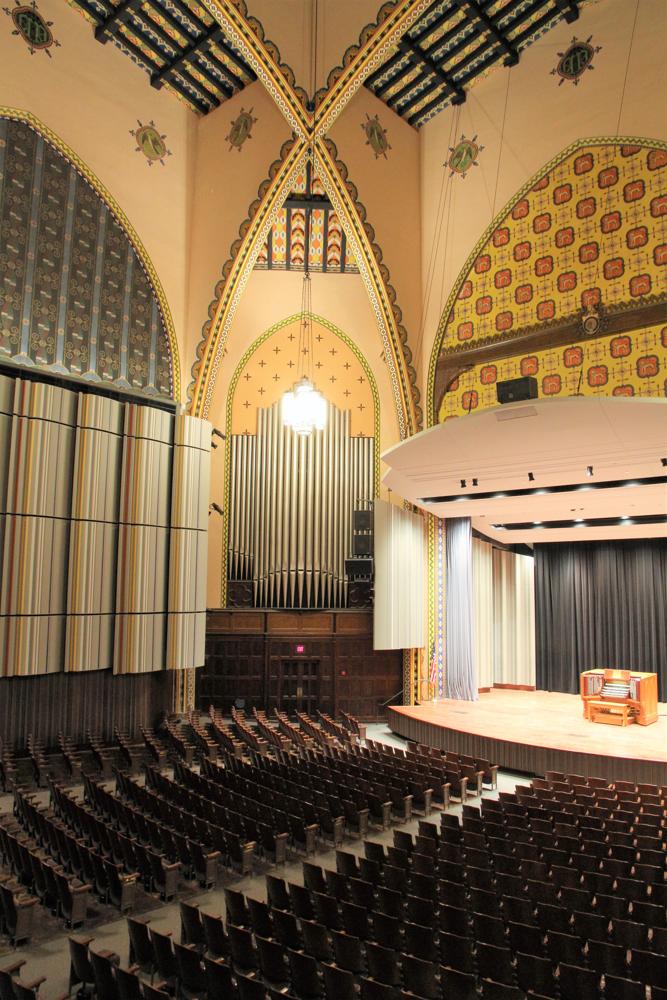

Auditorium, pipe facades and console: Photograph by Stephen Schnurr.

Console center: Photograph by Stephen Schnurr. Taken on 2011-02-17

Knee panel and swell shoes: Photograph by Stephen Schnurr. Taken on 2011-02-12

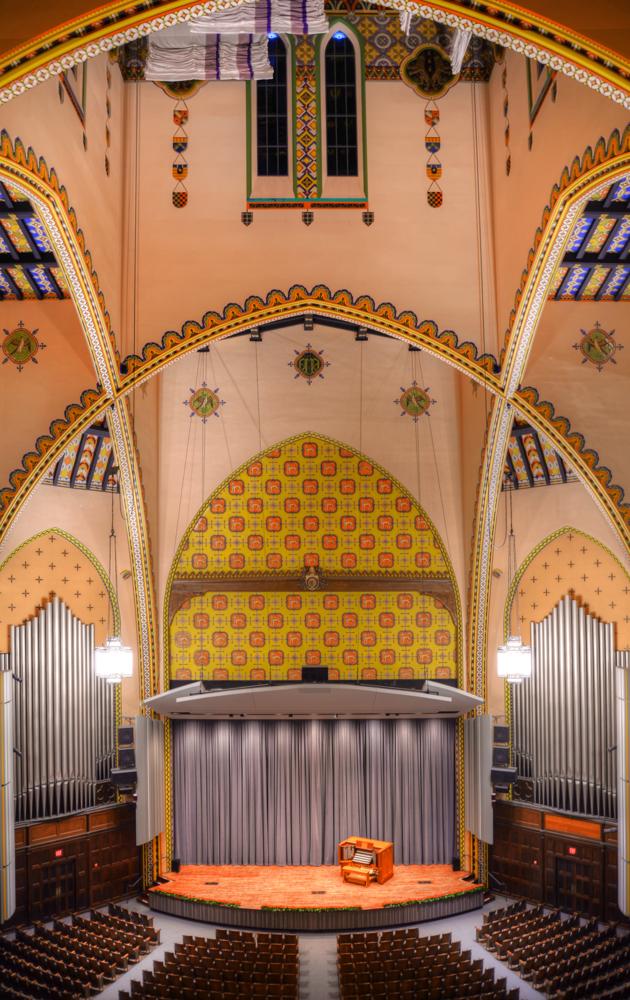

Auditorium interior: Photograph by Martin Doering via https://die-orgelseite.de, submitted by Jeff Scofield. Taken on 2015-06-23

Console: Photograph by Martin Doering via https://die-orgelseite.de, submitted by Jeff Scofield. Taken on 2015-06-23

Console center close-up: Photograph by Martin Doering via https://die-orgelseite.de, submitted by Jeff Scofield. Taken on 2015-06-23

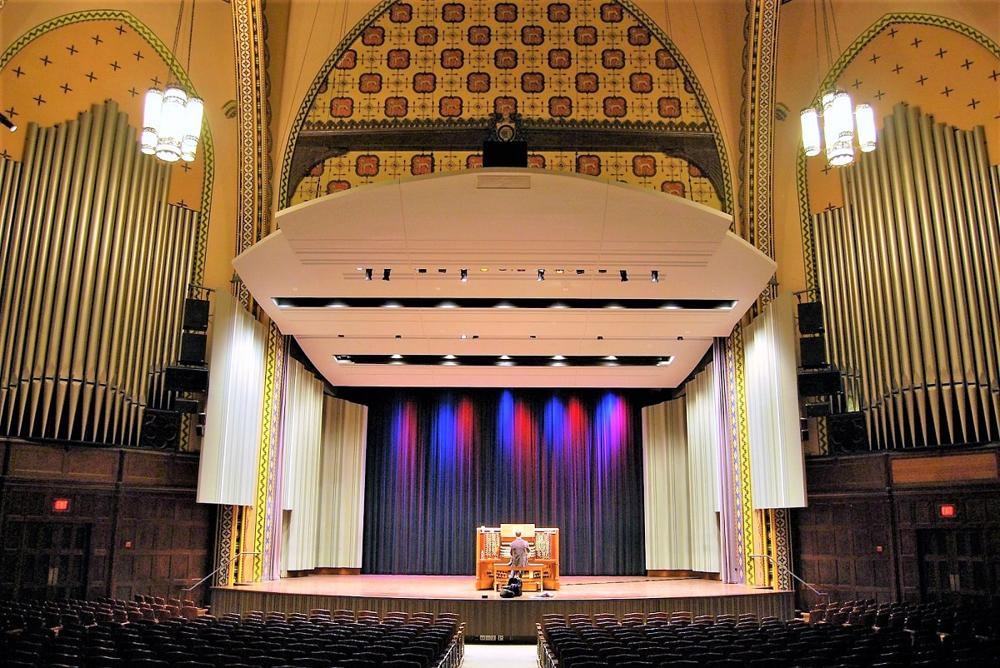

Stage and console from upper left of room: Photograph from an archival source: Martin Doering via https://die-orgelseite.de, submitted by Jeff Scofield. Taken on 2015-06-23

Austin Universal Windchest: Swell/Great airbox, view of Swell Tremolo section: Photograph by Martin Doering via https://die-orgelseite.de, submitted by Jeff Scofield. Taken on 2015-06-23

Harp: Photograph by Martin Doering via https://die-orgelseite.de, submitted by Jeff Scofield. Taken on 2015-06-23

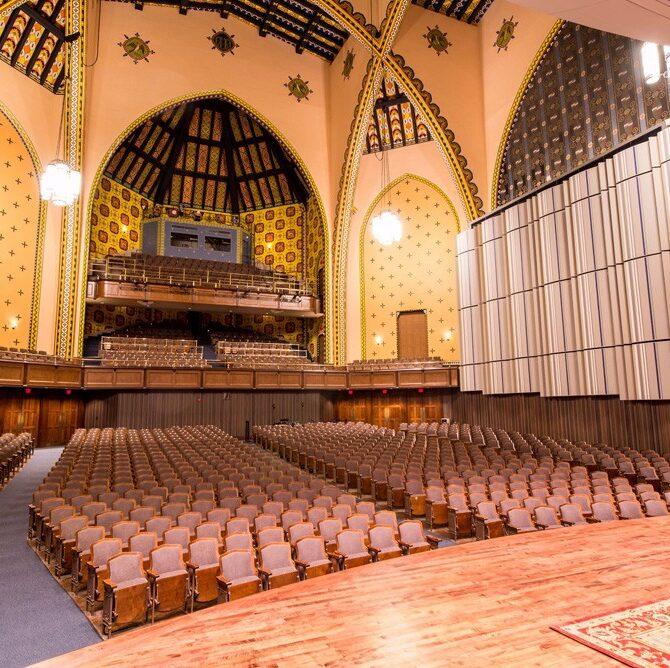

Auditorium interior to rear: Photograph by University of Pennsylvania, submitted by Jeff Scofield. Taken approx. 2003

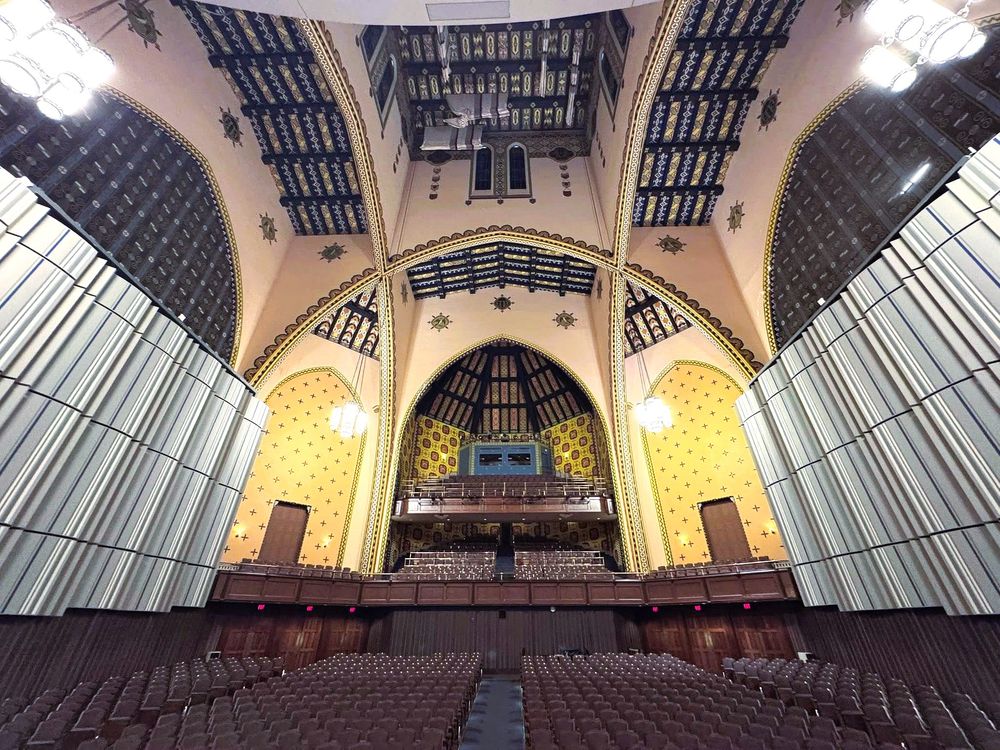

Auditorium interior: Photograph by Martin Doering via https://die-orgelseite.de, submitted by Jeff Scofield. Taken on 2015-06-23

Auditorium interior: Photograph by Joseph Routon, submitted by Jeff Scofield. Taken on 2015-08-29

Console: Photograph by Joseph Routon, submitted by Jeff Scofield. Taken on 2015-08-29
