Berghaus Organ Co. (1991)

Location:

Trinity Lutheran Church
600 S. Water St.
Kent, OH 44240 US
Organ ID: 52979

Update This Entry

Status and Condition:

  • This instrument's location type is: Lutheran Churches
  • The organ is unaltered from its original state.
  • The organ's condition is good, in regular use.
We received the most recent update for this instrument's status from Database Manager on May 13, 2018.

Technical Details:

  • Chests: Slider with direct-electric pull-downs (externally mounted)
  • 22 ranks. 2 divisions. 2 manuals. 24 registers.
All:
  • Chest Type(s): Slider with direct-electric pull-downs (externally mounted) chests
  • Position: Pipes exposed (in whole or in part) at the front of the room.
  • Slider Motors: Electric motors.
We received the most recent update for this division from Database Manager on May 13, 2018.
Main:
  • Manuals: 2
  • Divisions: 2
  • Registers: 24
  • Position: Movable console.
  • Manual Compass: 56
  • Pedal Compass: 30
  • Key Action: Electrical connection from key to chest.
  • Stop Action: Electric connection between stop control and chest.
  • Stop Controls: Tilting/rocking tablets above top manual.
  • Combination Action: 'Hold and Set' pneumatic/mechanical system.
  • Swell Control Type: Balanced swell shoes/pedals, AGO standard placement.
  • Pedalboard Type: Concave radiating pedalboard meeting AGO Standards.
  • Has Tutti Reversible Thumb Piston(s)
  • Has Tutti Reversible Toe Piston(s)
  • Has Combination Action Thumb Piston(s)
  • Has Combination Action Toe Piston(s)
We received the most recent update for this console from Database Manager on May 13, 2018.
Database Manager on August 06, 2014:

Updated through online information from Brian Ebie.

We received the most recent update for this note from Database Manager on April 09, 2020.

Database Manager on July 29, 2014:

An original installation. Identified by Brian Ebie, based on personal knowledge of the organ. --

We received the most recent update for this note from Database Manager on April 09, 2020.
Source not recorded: Open In New Tab Stoplist taken from the console July 20, 2014
We received the most recent update for this stoplist from Database Manager on April 09, 2020.

Instrument Images:

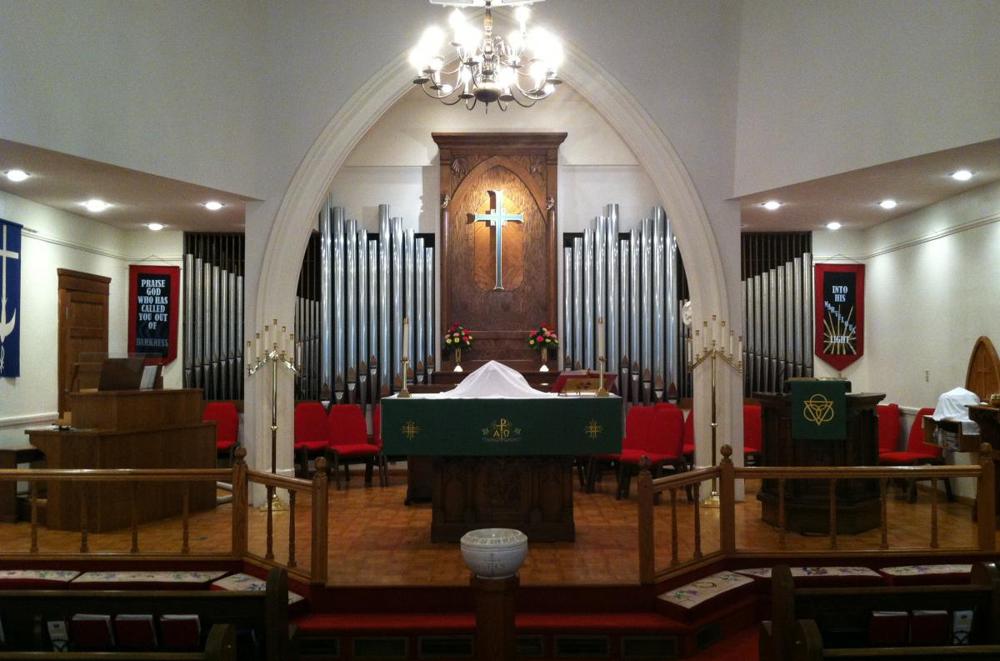

Chancel and Great Pipe Facade: Photograph by Brian Ebie. Taken on 2014-07-20

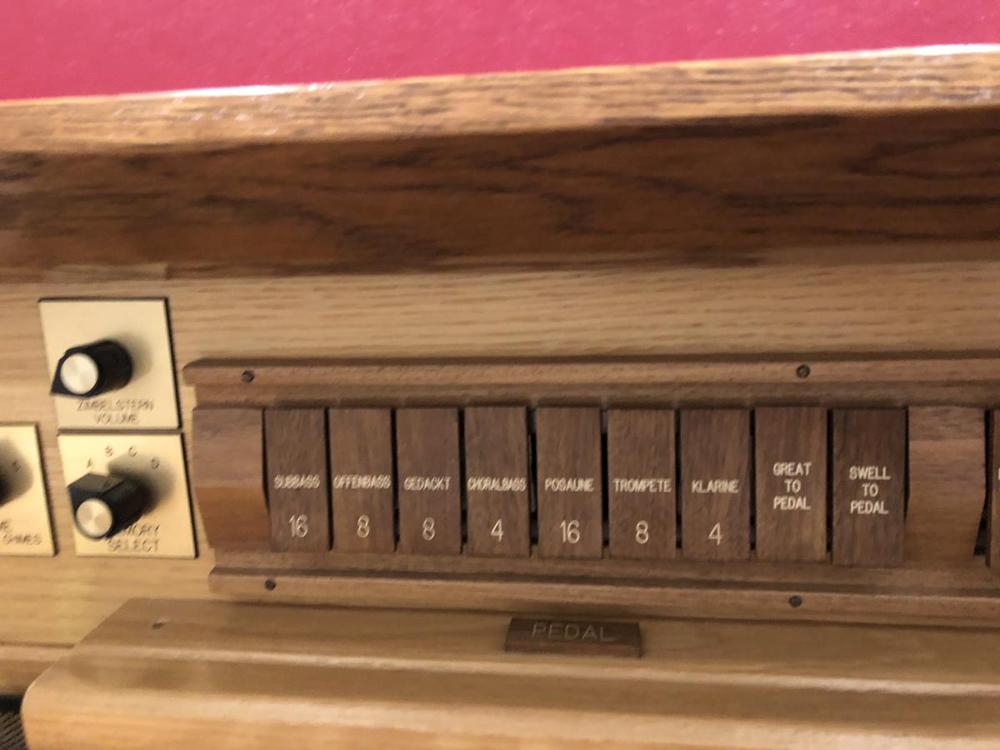

Pedal Stops: Photograph by Nicholas Stackpole. Taken on 2019-11-20

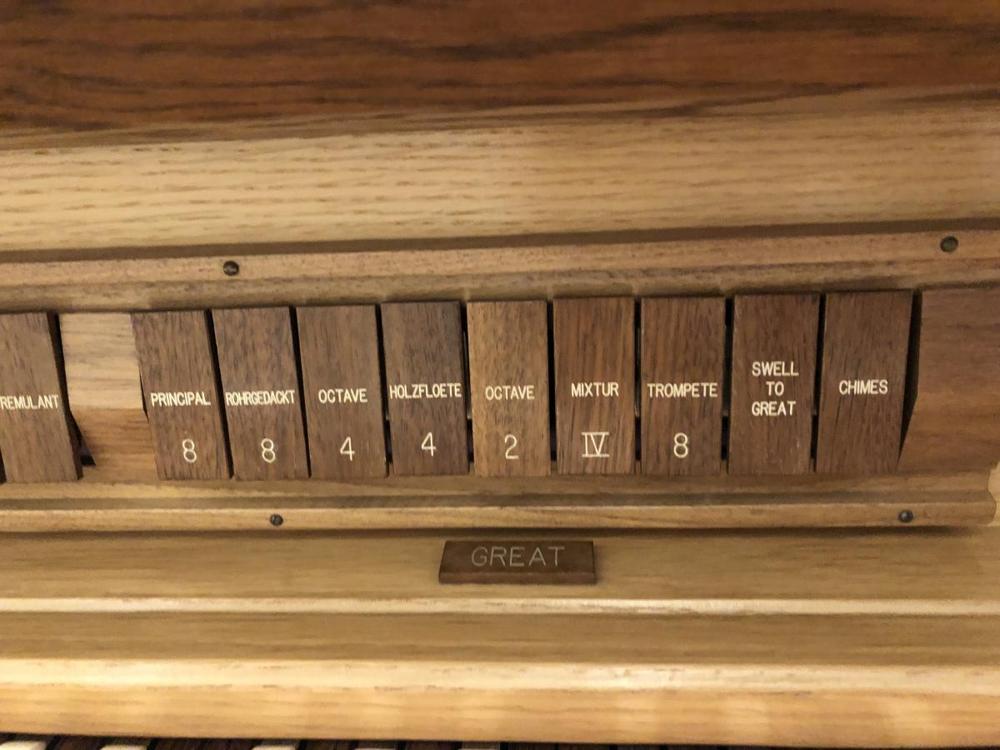

Great Stops: Photograph by Nicholas Stackpole. Taken on 2019-11-20

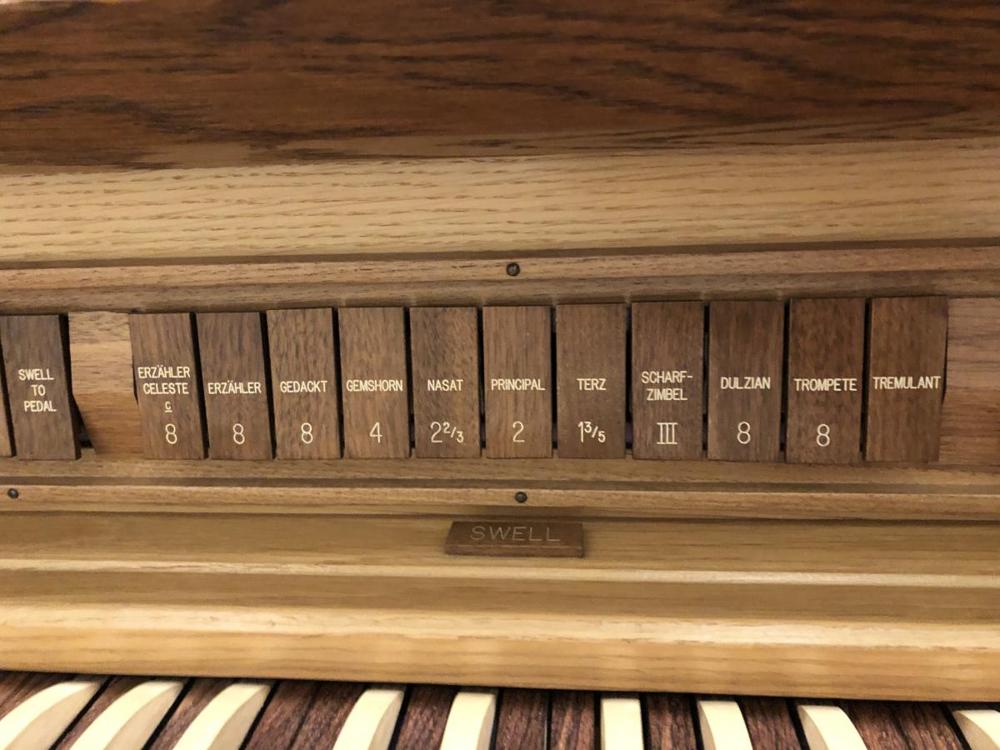

Swell Stops: Photograph by Nicholas Stackpole. Taken on 2019-11-20

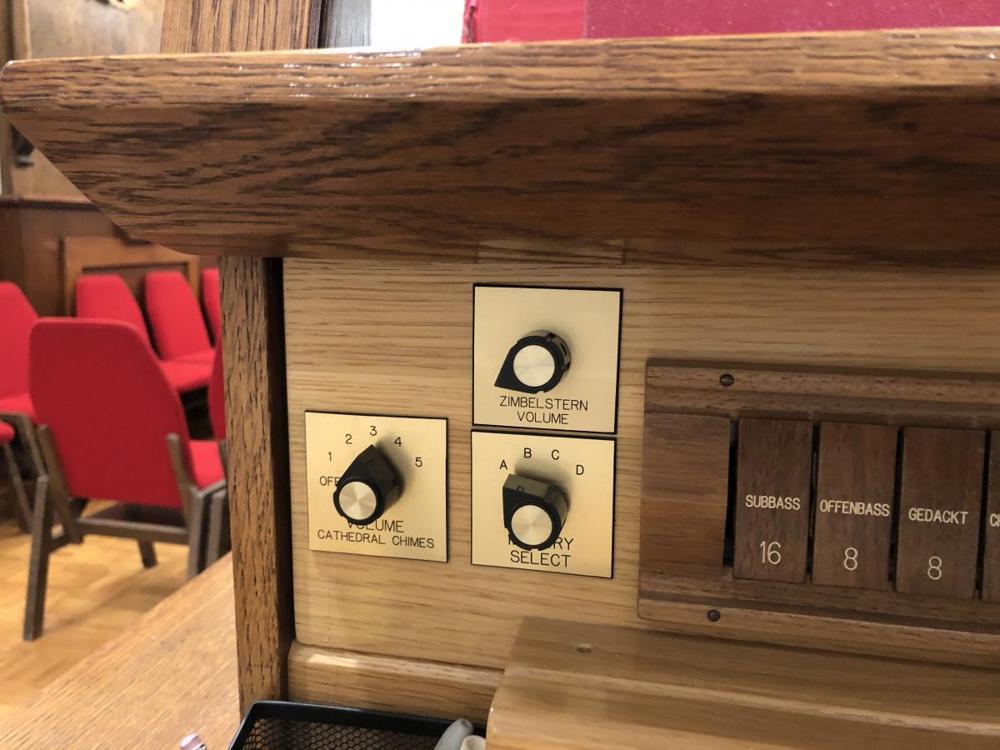

Console Knobs: Photograph by Nicholas Stackpole. Taken on 2019-11-20

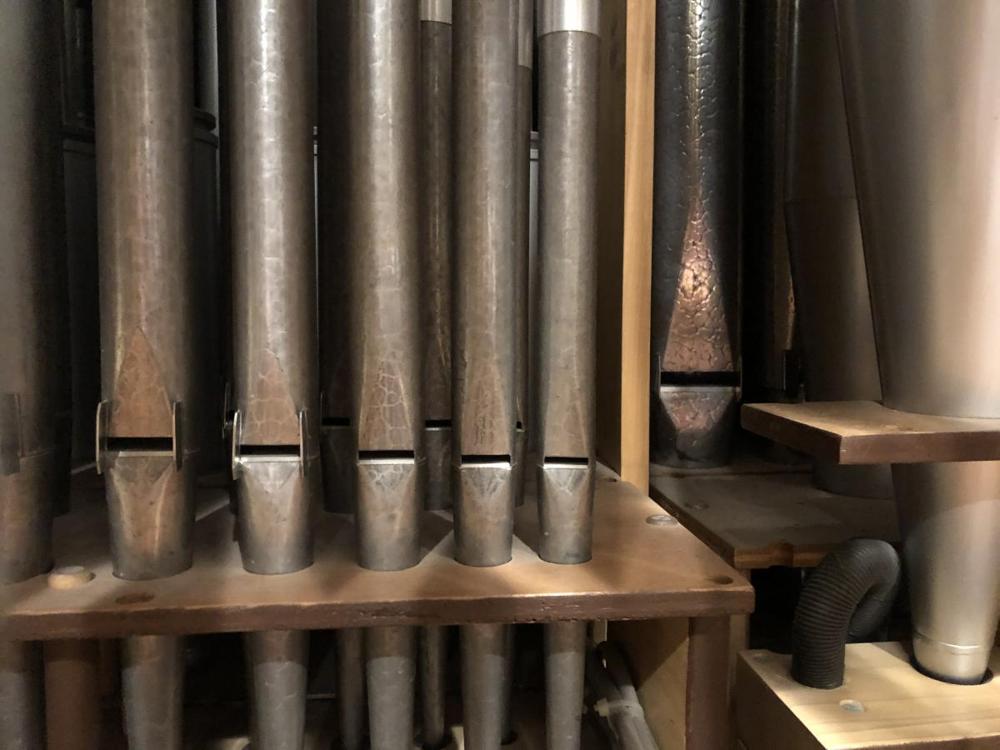

Pipework: Photograph by Nicholas Stackpole. Taken on 2019-11-20

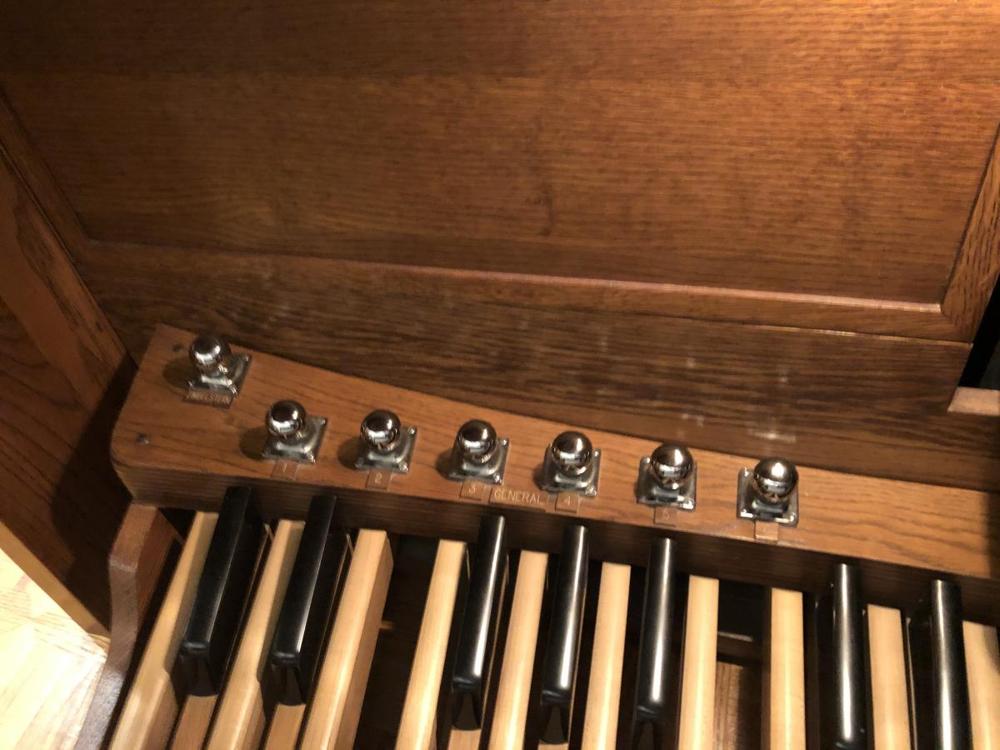

Left Pedal: Photograph by Nicholas Stackpole. Taken on 2019-11-20

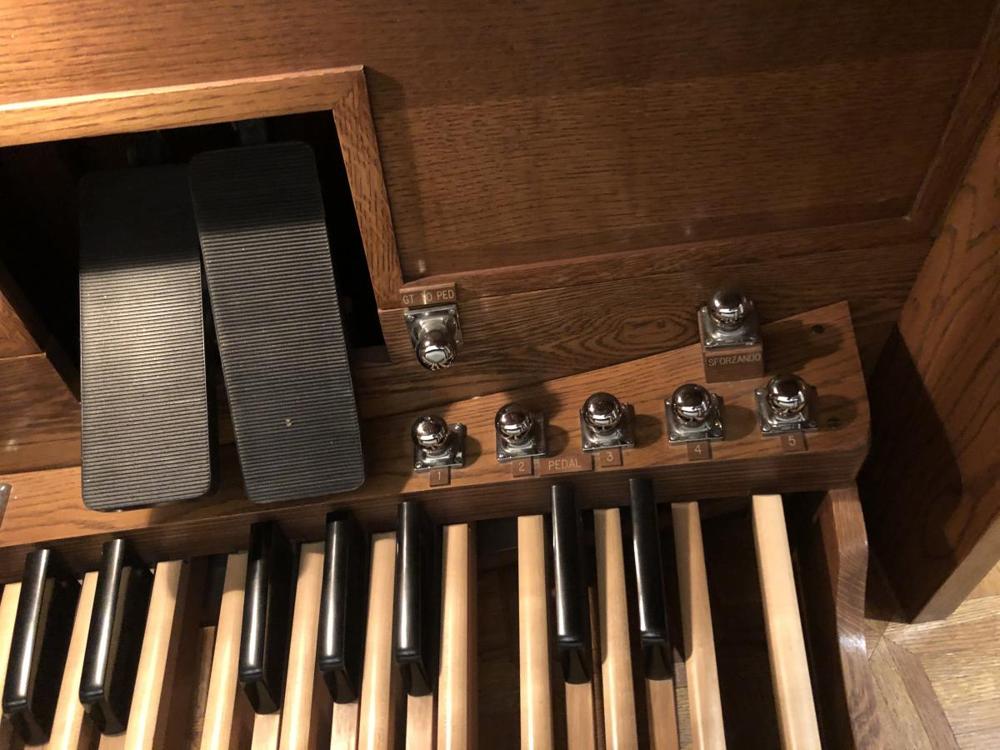

Right Pedal: Photograph by Nicholas Stackpole. Taken on 2019-11-20

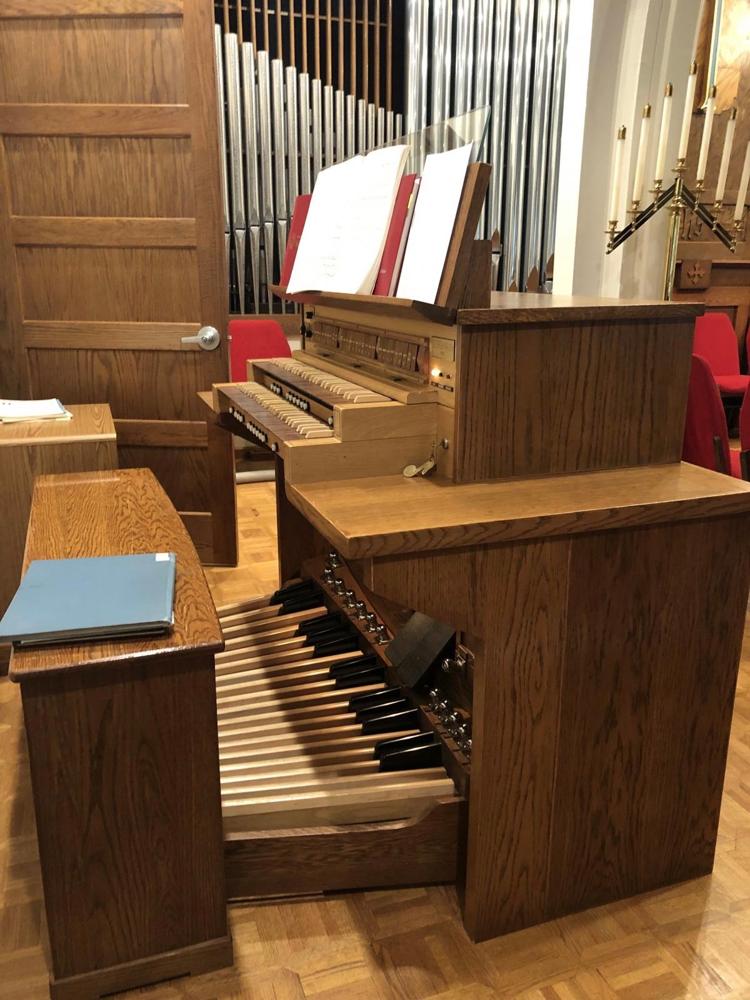

Console: Photograph by Nicholas Stackpole. Taken on 2019-11-20

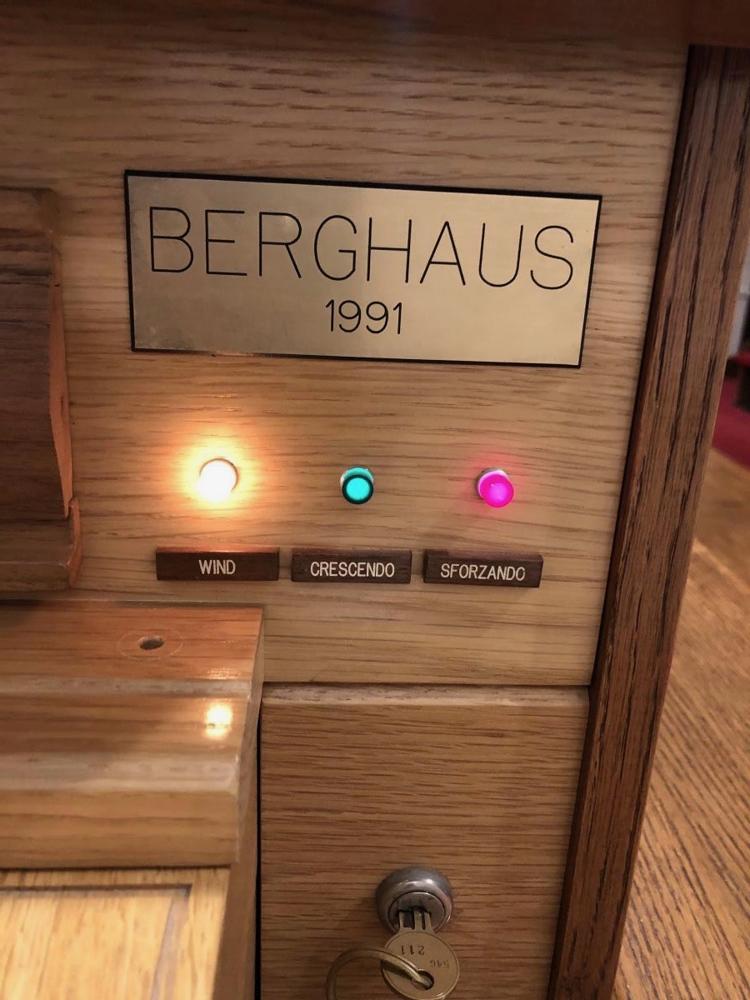

Builder's Nameplate: Photograph by Nicholas Stackpole. Taken on 2019-11-20
