Schantz Organ Co. (Opus 1941, 1989)

Originally Schantz Organ Co. (Opus 184, 1953)

Location:

Sacred Heart Roman Catholic Cathedral Basilica
89 Ridge Street
Newark, NJ 07104 US
Organ ID: 53992

Update This Entry

Status and Condition:

  • This instrument's location type is: Roman Catholic Churches
  • The organ has an unknown or unreported status.
  • The organ's condition is unknown.
We received the most recent update for this instrument's status from Database Manager on May 13, 2018.

Technical Details:

  • Chests: Electro-pneumatic (EP)
  • 154 ranks. 9,513 pipes. 9 divisions. 4 manuals. 119 stops. 165 registers.
All:
  • Chest Type(s): Electro-pneumatic (EP) chests

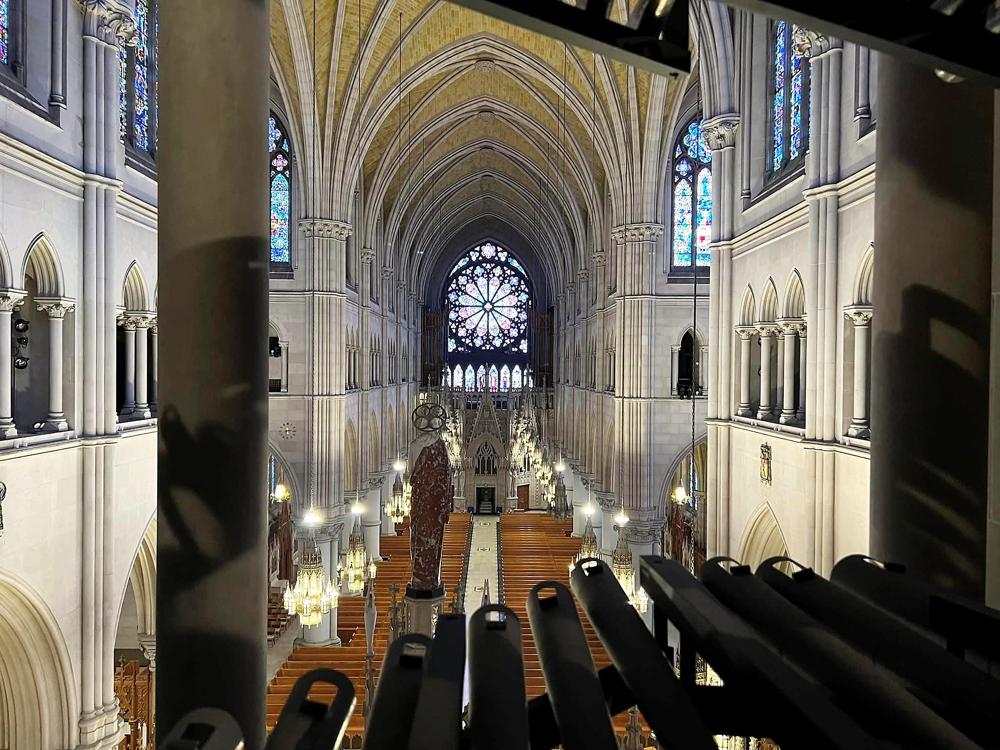

  • Position: In a gallery-level case at the rear of the room.
We received the most recent update for this division from Database Manager on May 13, 2018.
Main:
  • Manuals: 4
  • Divisions: 9
  • Stops: 119
  • Registers: 165

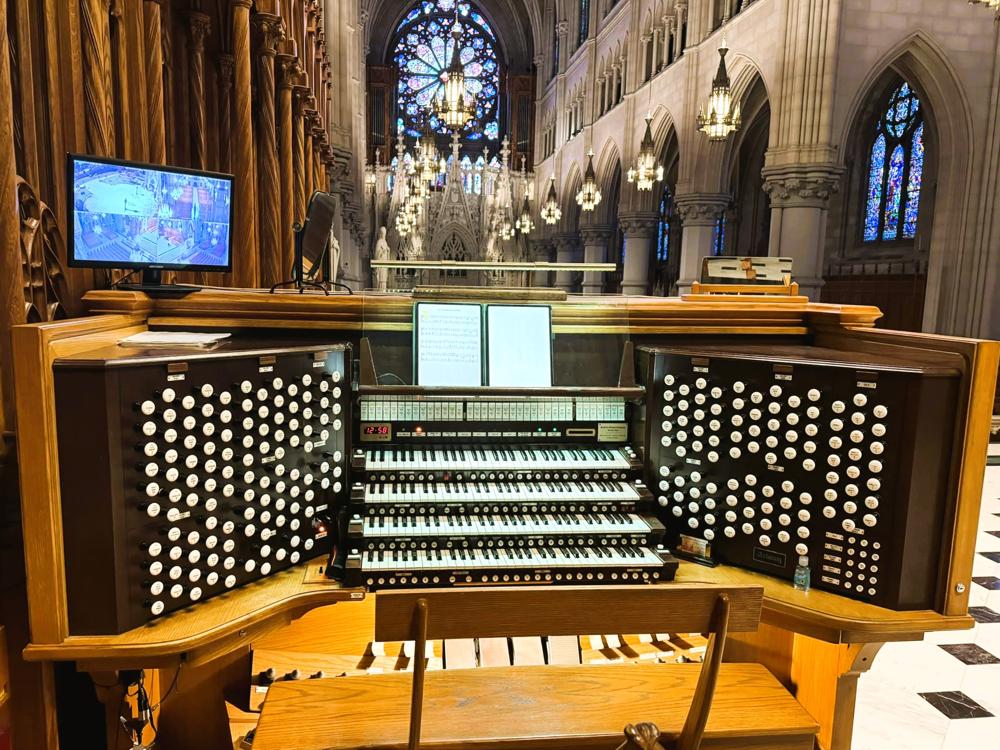

  • Position: Movable console.
  • Manual Compass: 61
  • Pedal Compass: 32
  • Key Action: Electrical connection from key to chest.
  • Stop Action: Electric connection between stop control and chest.
  • Console Style: Traditional style with roll top.
  • Stop Controls: Drawknobs in vertical rows on angled jambs.
  • Combination Action: Computerized/Digital system.
  • Swell Control Type: Balanced swell shoes/pedals, AGO standard placement.
  • Pedalboard Type: Concave radiating pedalboard meeting AGO Standards.
  • Has Crescendo Pedal
  • Has Tutti Reversible Thumb Pistons
  • Has Tutti Reversible Toe Pistons
  • Has Combination Action Thumb Pistons
  • Has Combination Action Toe Pistons
  • Has Coupler Reversible Thumb Pistons
  • Has Coupler Reversible Toe Pistons
  • Has a Piston Sequencer
We received the most recent update for this console from Database Manager on May 13, 2018.
Source not recorded: Open In New Tab Stoplist copied from <i>The American Organist</i> March 1993
We received the most recent update for this stoplist from Database Manager on April 09, 2020.

Instrument Images:

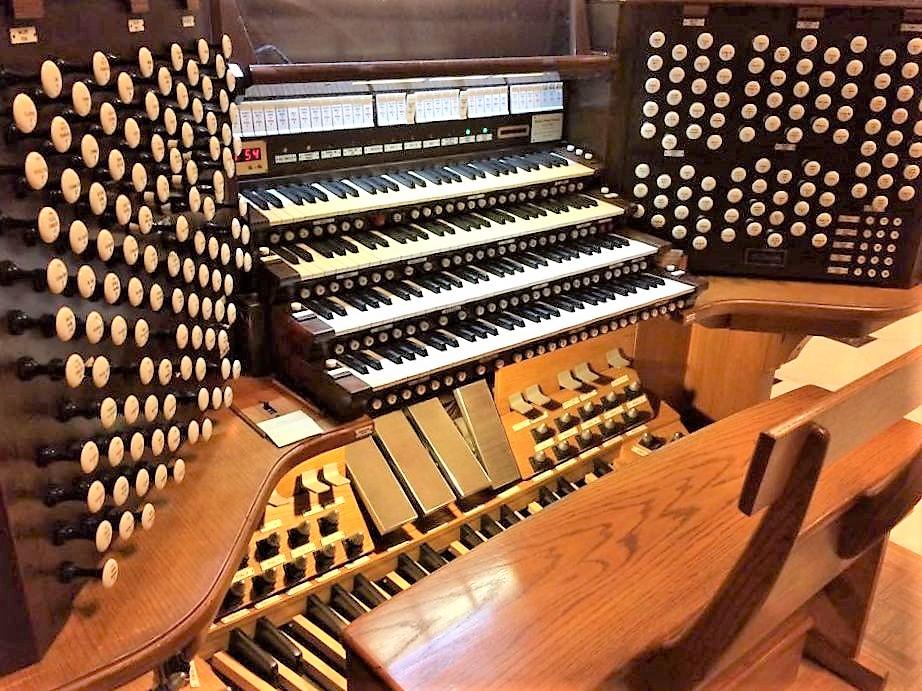

Console: Photograph courtesy of the Schantz Organ Company (2014).
