Gottlieb F. Votteler (Opus 10, 1873)

Location:

Zoar Community Church
Zoar, OH US
Sanctuary
Organ ID: 55772

Update This Entry

Status and Condition:

  • This instrument's location type is: United Churches of Christ (UCC)
  • The organ is unaltered from its original state.
  • The organ's condition is good, in regular use.
We received the most recent update for this instrument's status from Jim Stettner on December 31, 2020.

Technical Details:

  • Chests: Slider
  • 10 ranks. 2 divisions. 1 manuals. 9 stops. 15 registers.
Manual II (Expressive):
  • Chest Type(s): Slider chests
  • Position: In a case at the front of the room.
  • Built by Gottlieb F. Votteler
We received the most recent update for this division from Jim Stettner on December 31, 2020.

Pedal:
  • Chest Type(s): Slider chests
  • Position: In a case at the front of the room.
  • Built by Gottlieb F. Votteler
We received the most recent update for this division from Jim Stettner on December 31, 2020.
Main:
  • Built by Gottlieb F. Votteler
  • Manuals: 1
  • Divisions: 2
  • Stops: 9
  • Registers: 15
  • Position: Keydesk attached, manuals set into case.
  • Manual Compass: 56
  • Pedal Compass: 18
  • Key Action: Mechanical connection from key to chest (tracker, sticker or mix).
  • Stop Action: Mechanical connection between stop control and chest.
  • Console Style: Traditional style with hinged doors that enclose keyboards.
  • Stop Controls: Drawknobs in vertical rows on flat jambs.
  • Combination Action: Fixed mechanical system.
  • Swell Control Type: Balanced swell shoes/pedals.
  • Pedalboard Type: Flat straight pedalboard.
  • Has Combination Action Toe Piston(s)
We received the most recent update for this console from Jim Stettner on December 31, 2020.
Database Manager on July 31, 2015:

This entry describes the first installation of a new organ. Identified through information from HoltkampOrgan.com by John Igoe.

We received the most recent update for this note from Database Manager on April 09, 2020.
Taken from console: Open In New Tab Originally published December 31, 2020
We received the most recent update for this stoplist from Jim Stettner on December 31, 2020.

Instrument Images:

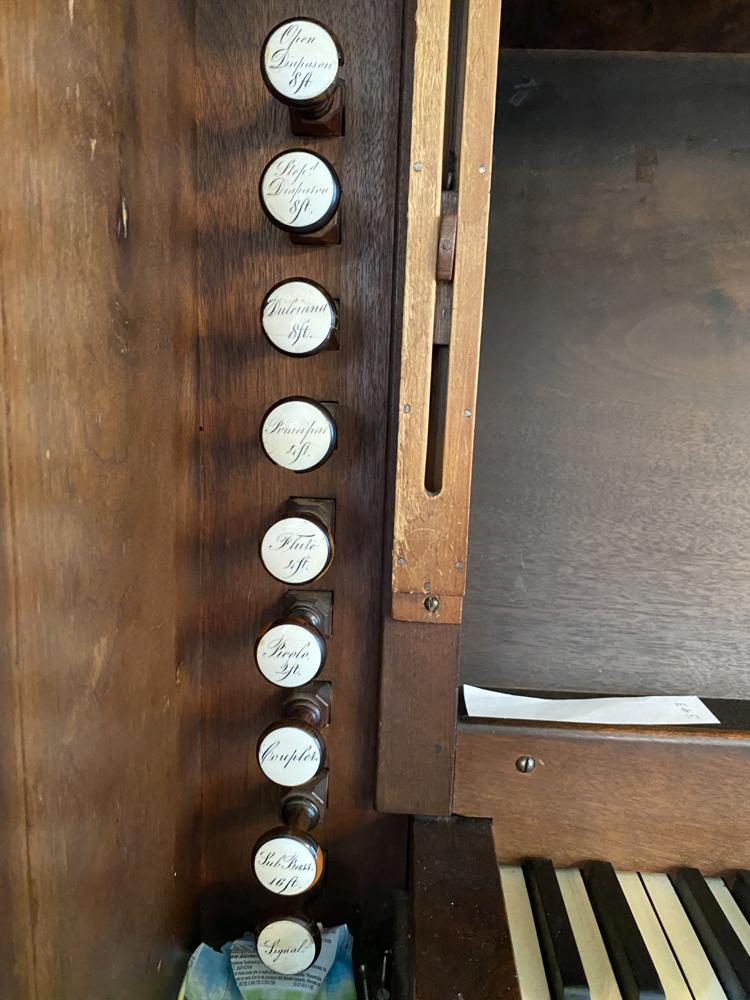

Right Drawknobs: Photograph by Luke Tegtmeier. Taken on 2020-10-12

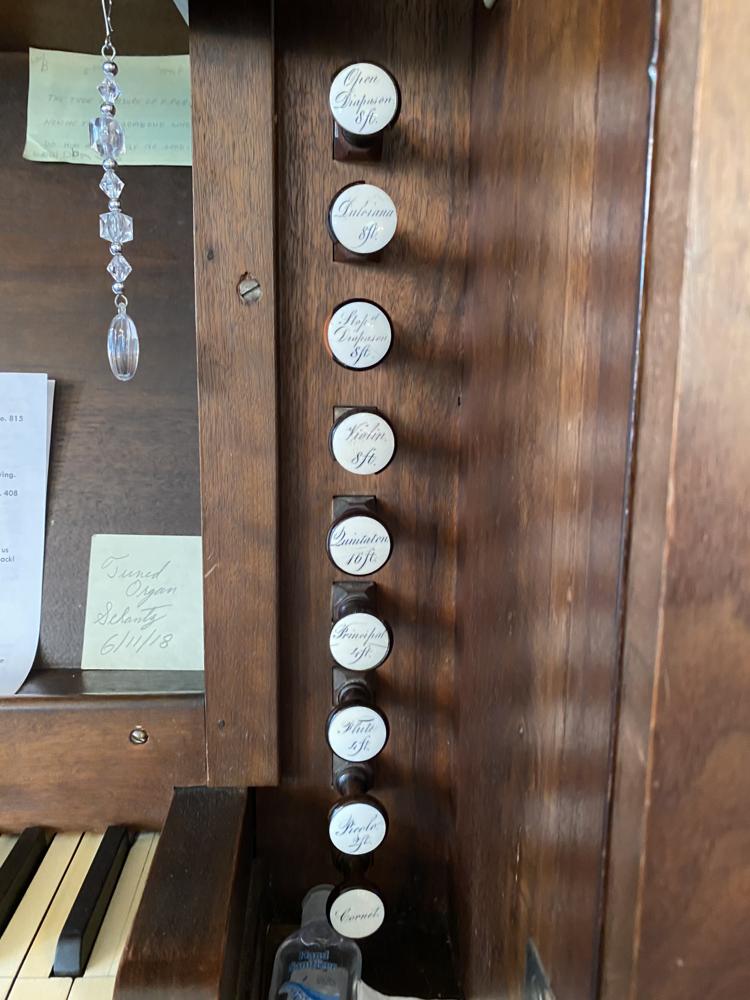

Left Drawknobs: Photograph by Luke D Tegtmeier. Taken on 2020-10-12

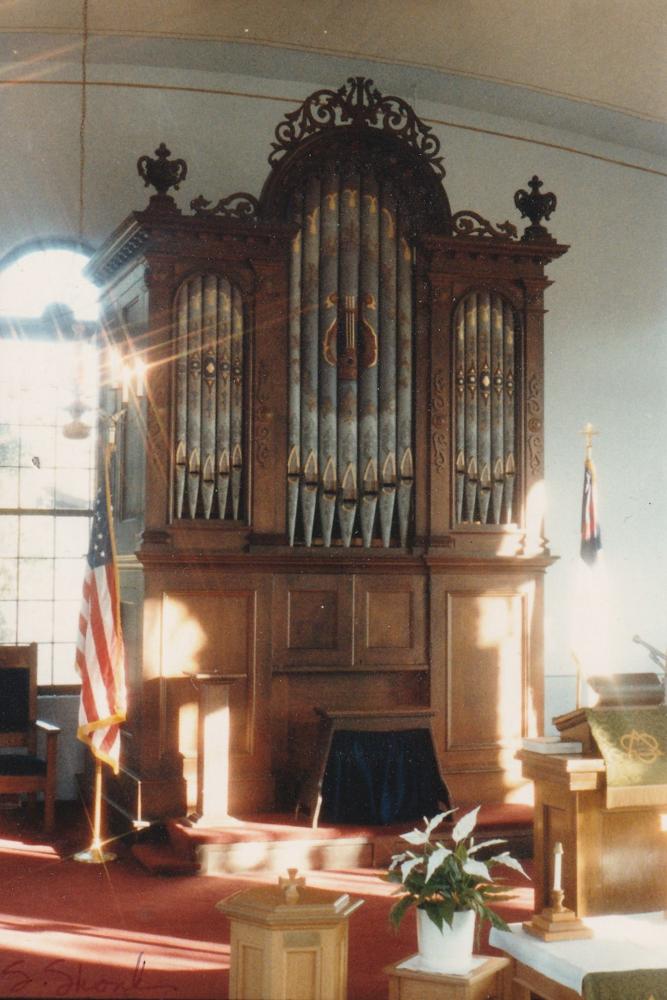

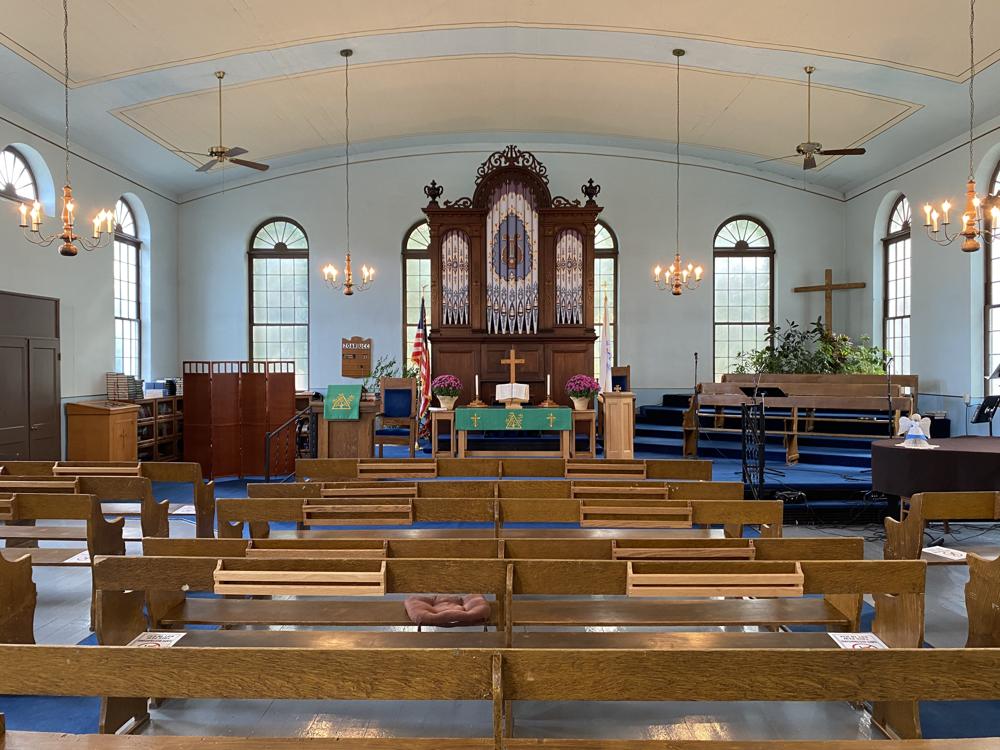

Organ case and facade: Photograph by Luke D Tegtmeier. Taken on 2020-10-12

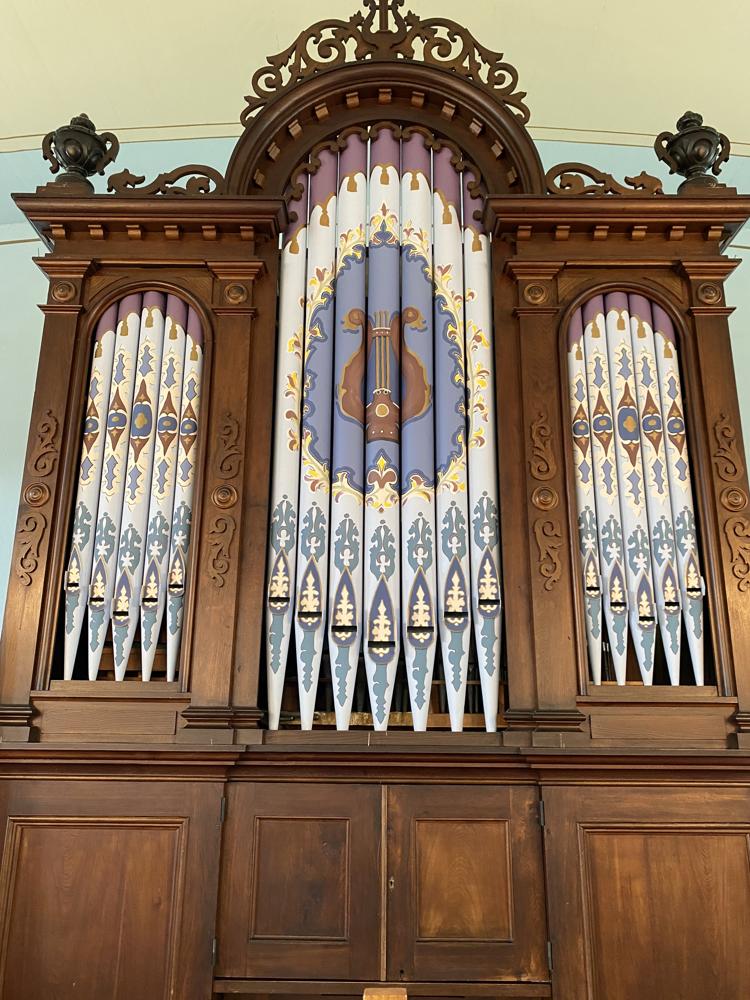

Facade: Photograph by Luke Tegtmeier. Taken on 2020-10-12

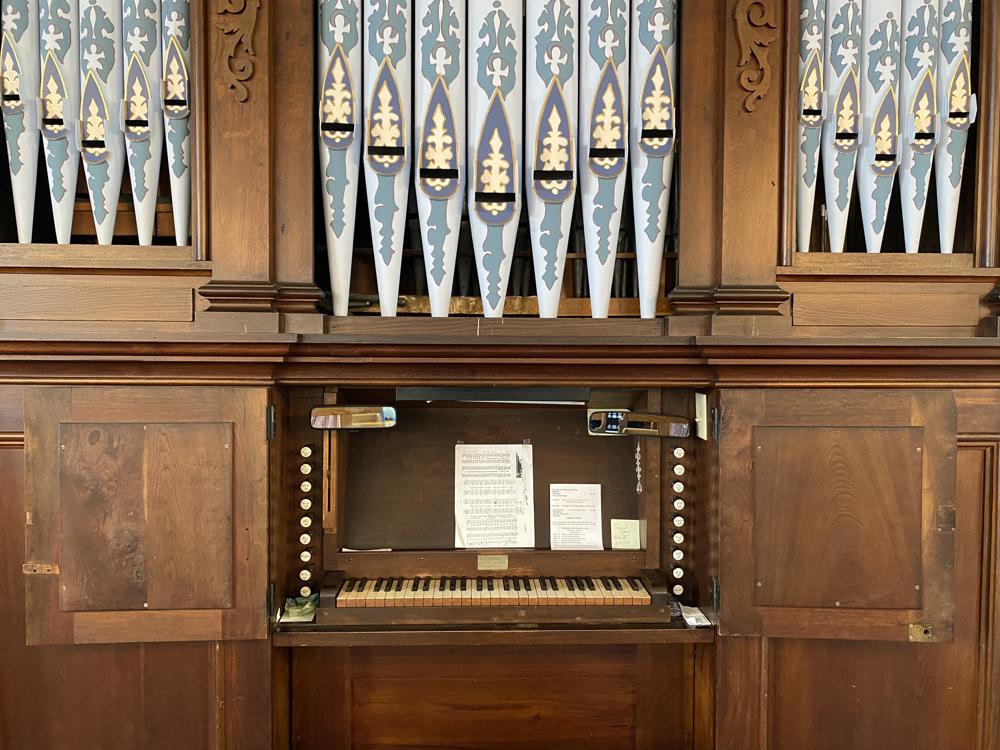

Keydesk: Photograph by Luke Tegtmeier. Taken on 2020-10-12

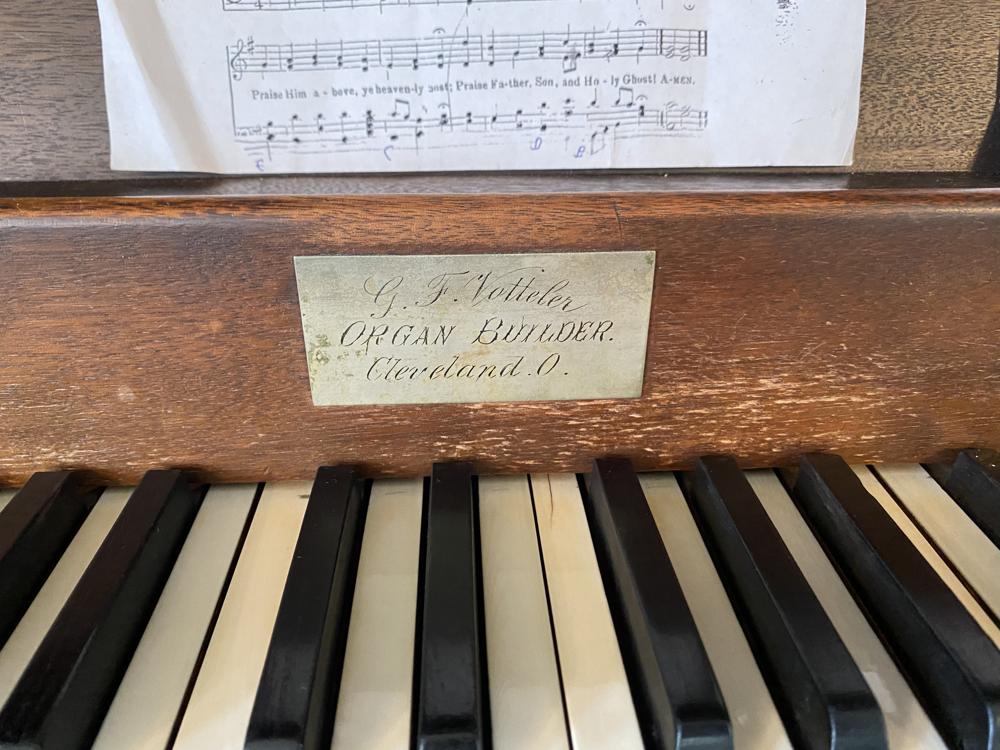

Builder's nameplate: Photograph by Luke Tegtmeier. Taken on 2020-10-12

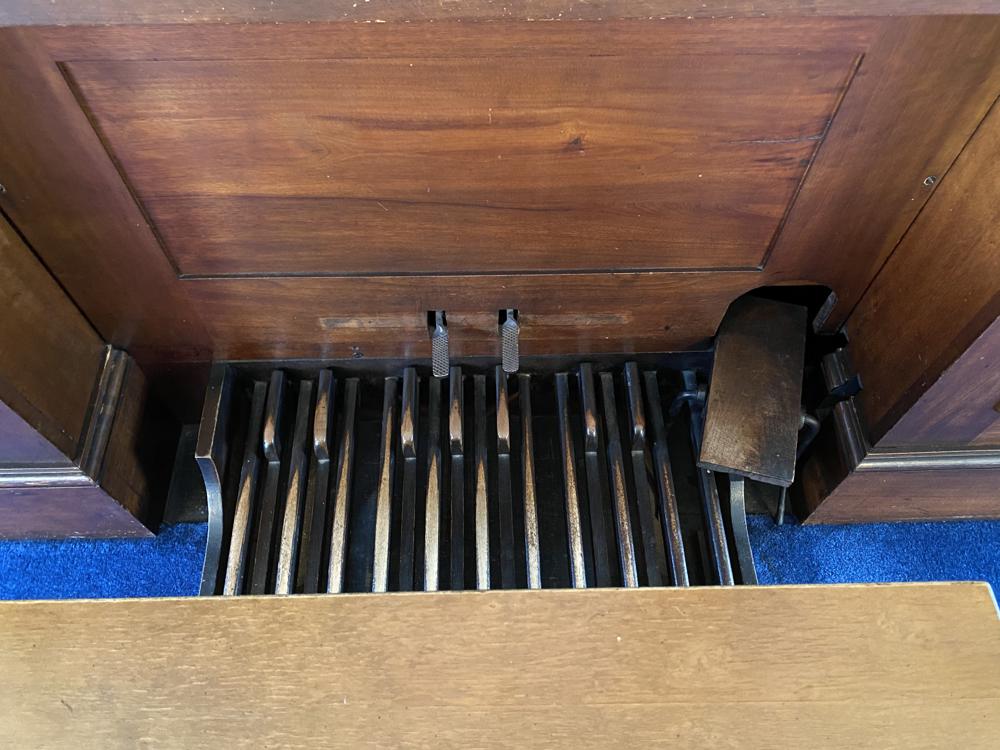

Pedals and Swell shoe: Photograph by Luke Tegtmeier. Taken on 2020-10-12
