C. B. Fisk, Inc. (Opus 145, 2015)

Location:

Emmanuel Episcopal Church
350 E. Massachusetts Ave.
Southern Pines, NC 28387 US
Sanctuary; front gallery
Organ ID: 57232

Update This Entry

Status and Condition:

  • This instrument's location type is: Episcopal and Anglican Churches
  • The organ has been altered from its original state.
  • The organ's condition is good, in regular use.
We received the most recent update for this instrument's status from Jim Stettner on October 03, 2022.

Technical Details:

  • Chests: Slider
  • 26 ranks. 1,407 pipes. 3 divisions. 2 manuals. 21 stops. 26 registers.
All:
  • Chest Type(s): Slider chests
  • Position: In center chambers at the front of the room. Facade pipes or case front visible.
We received the most recent update for this division from Database Manager on September 07, 2018.
Front Gallery:
  • Built by C. B. Fisk, Inc.
  • Manuals: 2
  • Divisions: 3
  • Stops: 21
  • Registers: 26
  • Position: Detached keydesk (mechanical action).
  • Manual Compass: 61
  • Pedal Compass: 32
  • Key Action: Mechanical connection from key to chest (tracker, sticker or mix).
  • Stop Action: Electric connection between stop control and chest.
  • Console Style: Traditional style without cover.
  • Stop Controls: Drawknobs in horizontal rows on terraced/stepped jambs.
  • Combination Action: Computerized/Digital system.
  • Swell Control Type: Balanced swell shoes/pedals, AGO standard placement.
  • Pedalboard Type: Concave radiating pedalboard meeting AGO Standards.
  • Has Tutti Reversible Thumb Pistons
  • Has Combination Action Thumb Pistons
  • Has Combination Action Toe Pistons
We received the most recent update for this console from Jim Stettner on October 03, 2022.
Source not recorded: Open In New Tab Specification from builder's web site
We received the most recent update for this stoplist from Database Manager on April 09, 2020.

Instrument Images:

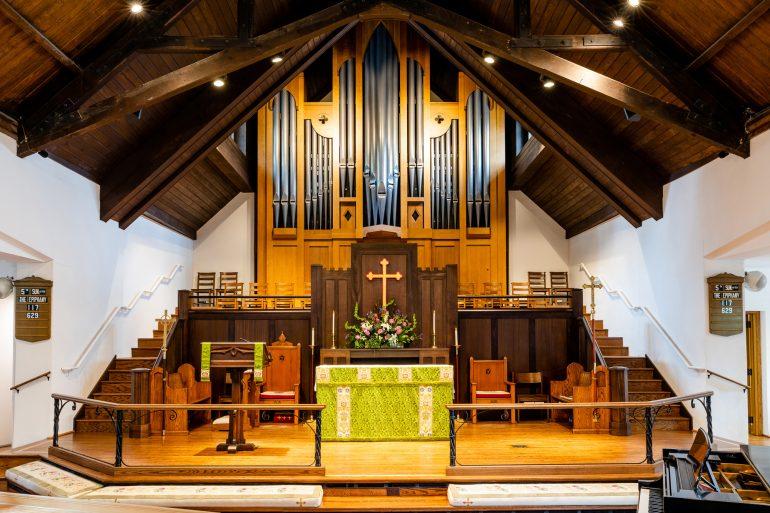

Organ in room: Photograph by Fisk, submitted by John Roper. Taken approx. 2015

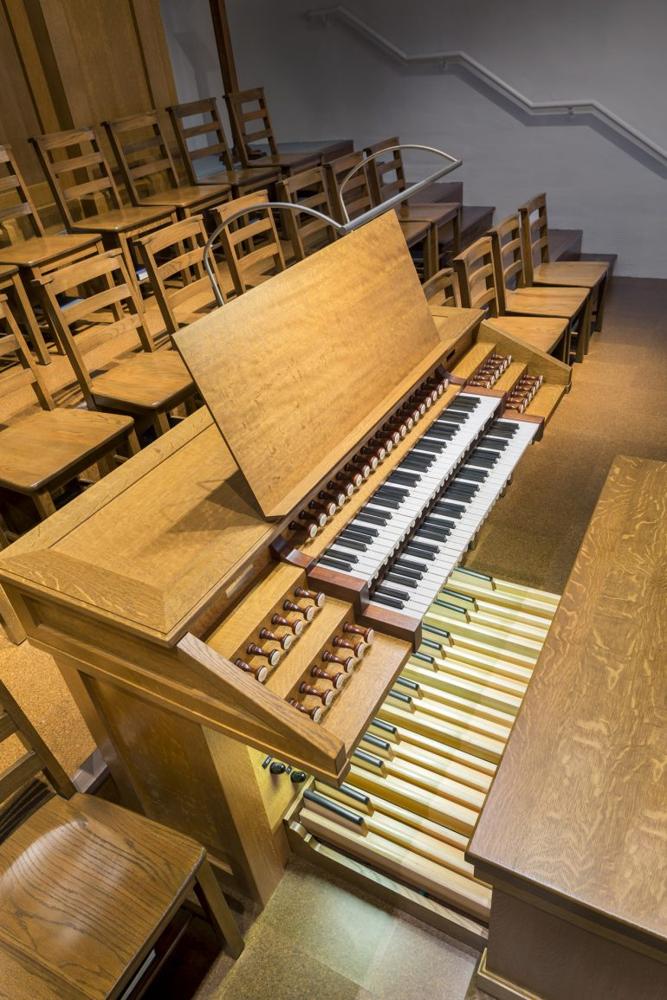

Console: Photograph by Fisk, submitted by John Roper. Taken approx. 2015
