Rosales Pipe Organ Services (Opus 41, 2020)

Location:

All Saints’ Episcopal Church
4-1065 Kuhio Highway
Kapa'a, Kauai, HI 96746 US
Sanctuary
Organ ID: 70343

Update This Entry

Status and Condition:

  • This instrument's location type is: Episcopal and Anglican Churches
  • The organ is unaltered from its original state.
  • The organ's condition is good, in regular use.
We received the most recent update for this instrument's status from Morris wise on February 24, 2022.

Technical Details:

  • 20 ranks. 1,268 pipes. 3 divisions. 2 manuals. 20 stops. 82 registers.
Chancel:
  • Built by Schlicker Organ Co.
  • Manuals: 2
  • Divisions: 3
  • Stops: 20
  • Registers: 82
  • Position: Movable console.
  • Manual Compass: 61
  • Pedal Compass: 32
  • Key Action: Electrical connection from key to chest.
  • Stop Action: Electric connection between stop control and chest.
  • Console Style: Non-traditional style, as consoles by Holtkamp, Schlicker, et al.
  • Stop Controls: Tilting/rocking tablets above top manual.
  • Combination Action: Computerized/Digital system.
  • Combination Action Name: Opus 2
  • Swell Control Type: Balanced swell shoes/pedals, AGO standard placement.
  • Pedalboard Type: Concave radiating pedalboard meeting AGO Standards.
  • Has Crescendo Pedal
  • Has Tutti Reversible Thumb Pistons
  • Has Tutti Reversible Toe Pistons
  • Has Combination Action Thumb Pistons
  • Has Combination Action Toe Pistons
  • Has a Piston Sequencer
We received the most recent update for this console from S Morris Wise on February 21, 2022.
S Morris Wise on February 21, 2022:

Rosales Organ Builders Opus 41 uses resources in part from the following: 1. Austin Organ Opus 1351 - casework disassembled, extended and veneered in Sapele. 2. Terrence P. Schoenstein 1982 (renovations and additions to Austin Opus 1351) - notes 1-12 of copper facade pipes used for the bass of the Geigen Principal 8' 3. All Saints' Episcopal Church purchased the 1986 Schlicker organ from Nativity Roman Catholic Church in Timonium, MD to be used by Rosales as the core of the project. 4. Facade pipework by Stinkens (copper pipes - bass of the 8' Principal with the lowest 4 pipes and trebles behind the screen. Polished tin pipework 4' Choral Bass with trebles behind the screen.) 5. Swann Tromba 8-4' by A. R. Shopp's Sons 6. Remaining pipework from Rosales stock

We received the most recent update for this note from S Morris Wise on February 21, 2022.
Provided by Shane Morris Wise: Open In New Tab
We received the most recent update for this stoplist from Paul R. Marchesano on February 25, 2022.
Inaugural Concert Program: Open In New Tab Adam Pajan's Inaugural Concert Program with notes and stoplist. Of particular interest is Hawaiian Language nomenclature for stop tabs.
Document created on 2021-05-15
We received the most recent update for this document from S Morris wise on February 21, 2022.

Instrument Images:

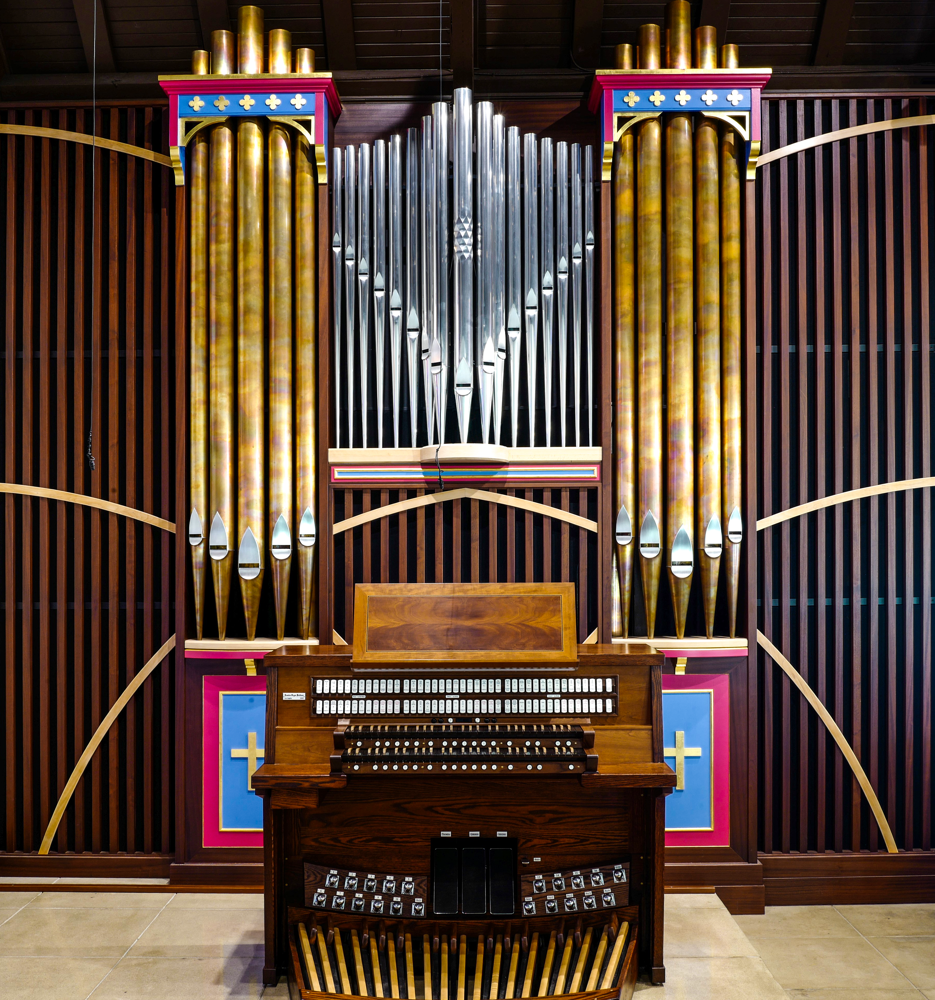

Console and Facade: Photograph by S Morris Wise. Taken on 2021-08-24

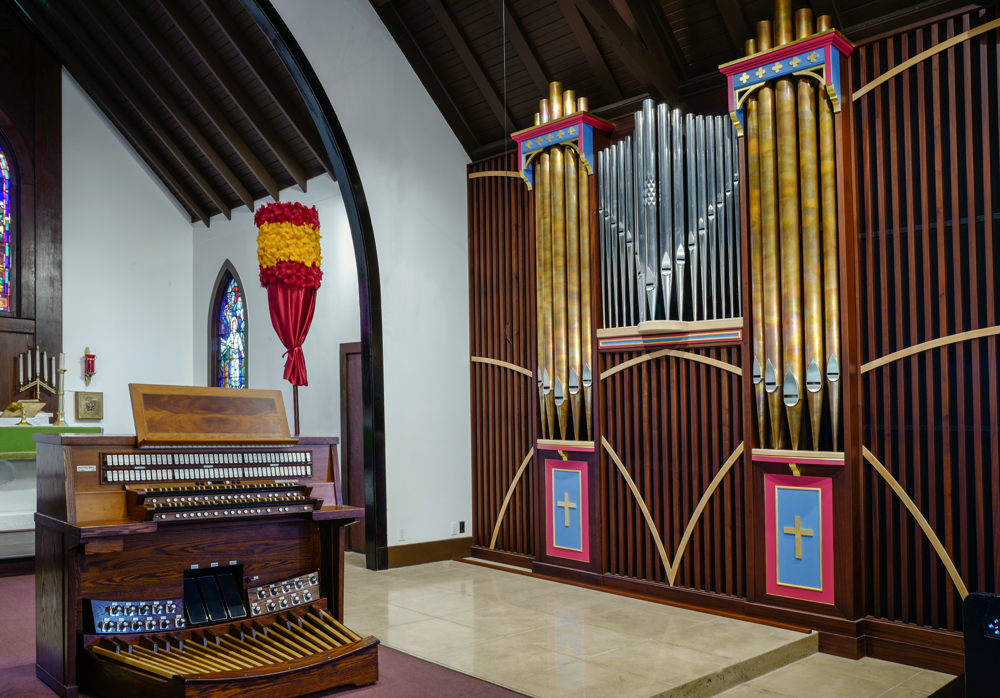

Console in concert position: Photograph by S Morris Wise. Taken on 2021-08-24

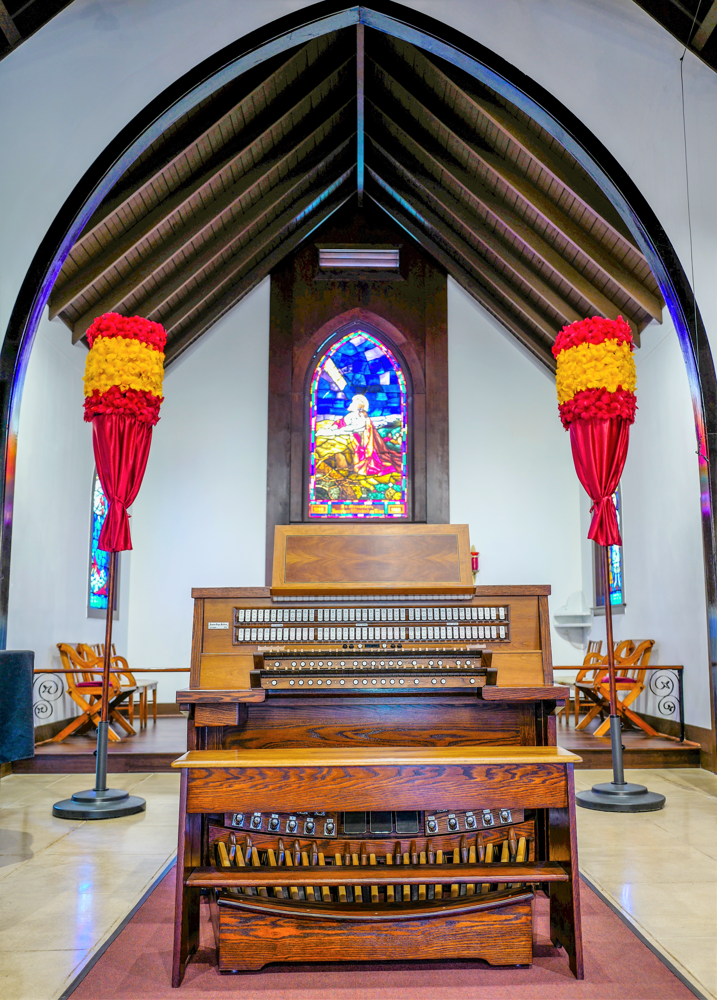

Console in front of facade: Photograph by S Morris Wise. Taken on 0021-08-24
