Bradford Organ Co.
2004-05
Originally Johnson Organ Co. (Opus 386, 1872)

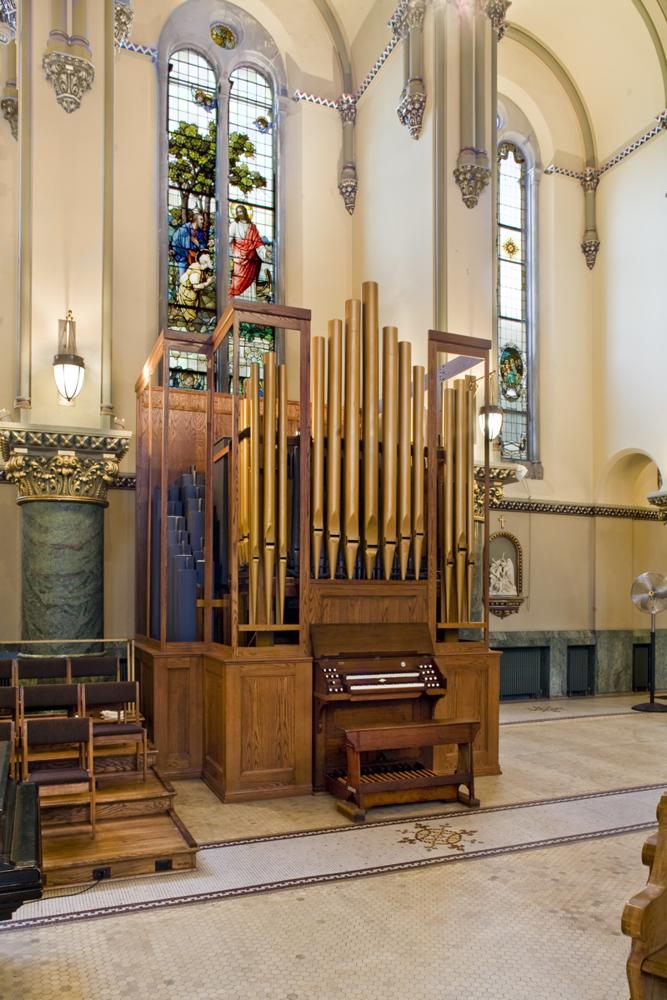

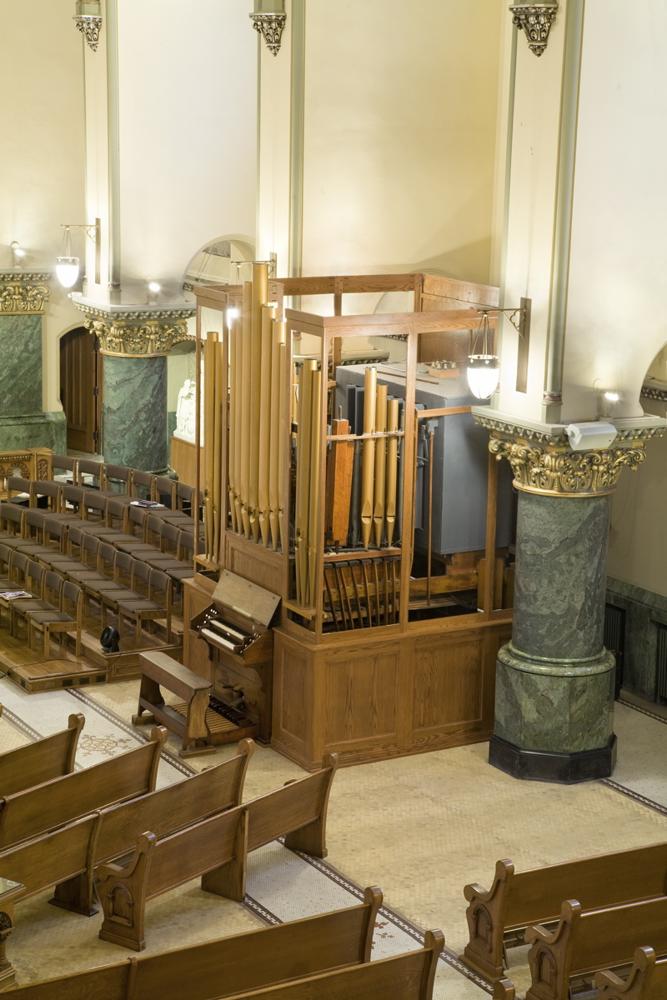

St. Josaphat Roman Catholic Church
Sanctuary; front, right
Chicago, IL, US
14 Ranks
EXPLORE IMAGESVIEW STOPLISTSomething not quite correct?Suggest an Edit
This instrument has multiple revisions:
🤝 Instrument entries in Illinois sponsored by:
We are grateful for the generous support of our sponsors, who make it possible for us to continue our mission of preserving and promoting the rich history of pipe organs across the globe.
IMAGES
Something missing or not quite correct?Add ImageorSuggest an Edit
STOPLISTS
| Great (I)🛈 | ||
| 8' | Open Diapason🛈 | 58 |
| 8' | Melodia🛈 | 46 |
| 8' | Dulciana🛈 | 46 |
| 8' | Unison Bass🛈 | 12 |
| 4' | Octave🛈 | 58 |
| 4' | Flute d'Amour🛈 | 46 |
| 2 2⁄3' | Twelfth🛈 | 58 |
| 2' | Fifteenth🛈 | 58 |
| 8' | Clarionet🛈 | 46 |
| 8' | Swell to Great |
| Swell (II - Expressive)🛈 | ||
| 8' | Open Diapason🛈 | 46 |
| 8' | Stop'd Diapason Bass🛈 | 12 |
| 8' | Stop'd Diapason Treble🛈 | 46 |
| 8' | Dolce🛈 | 46 |
| 4' | Fugara🛈 | 58 |
| 8' | Oboe & Bassoon🛈 | 58 |
| Pedal🛈 | ||
| 16' | Bourdon🛈 | 27 |
| 8' | Great to Pedal | |
| 8' | Swell to Pedal |
COMPOSITION TRUNDLES: Piano & Forte; PEDAL MOVEMENTS: Swell Expression (bal.); ACCESSORIES: Pedal Check, Blowers Signal [now, blower switch].
Originally Written/Published: June 1984
Something missing or not quite correct?Add StoplistorSuggest an Edit

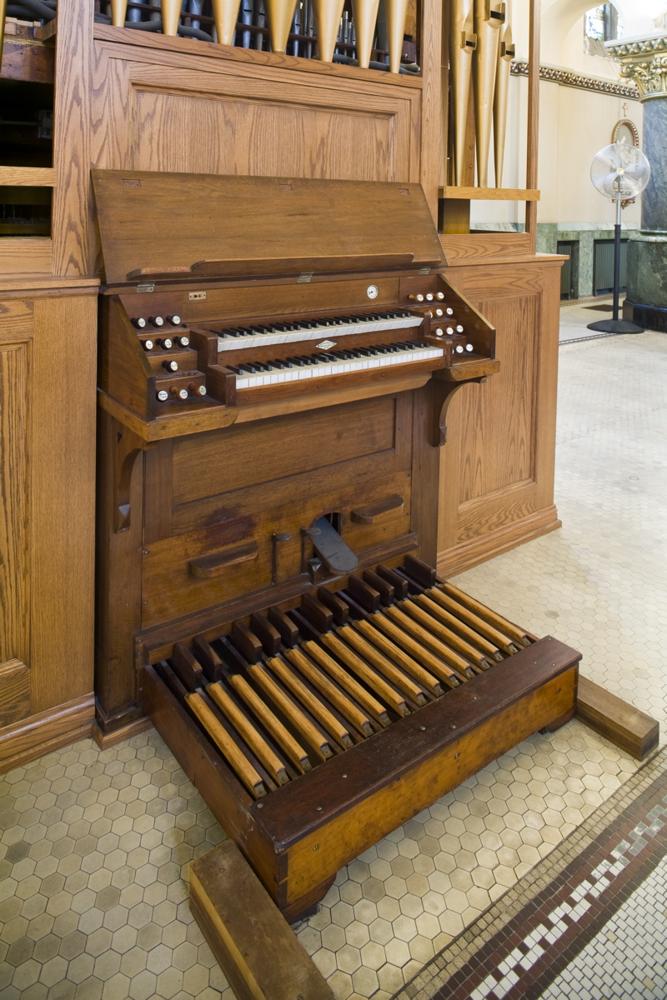

CONSOLES

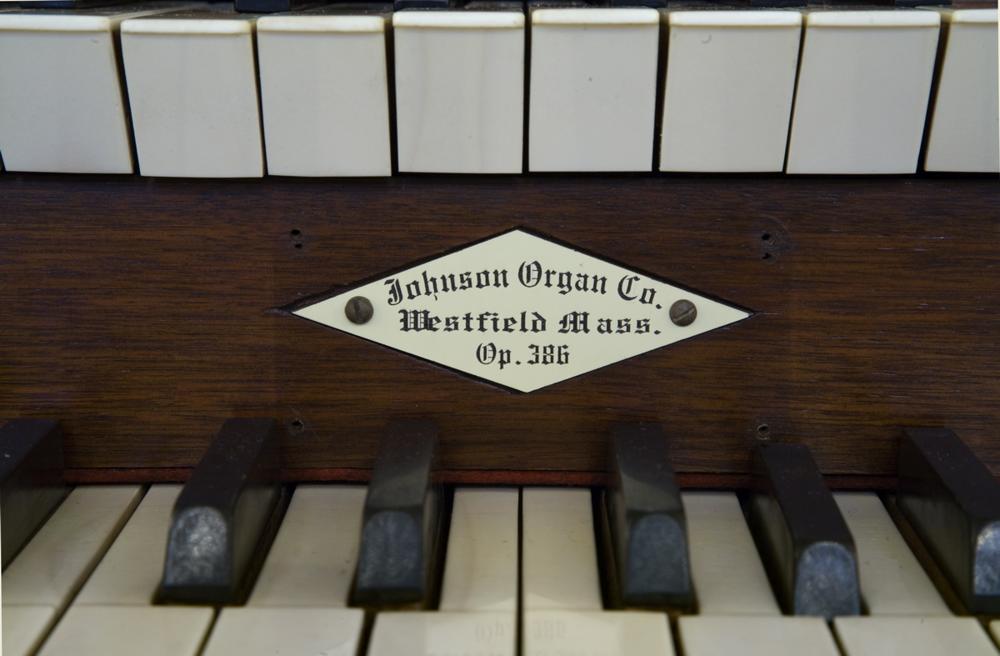

Builder: Johnson Organ Co.
Position: Keydesk Attached
Design: Traditional With a Keyboard Cover That Can Be Lifted To Form a Music Rack
Pedalboard Type: Flat Straight
Features:

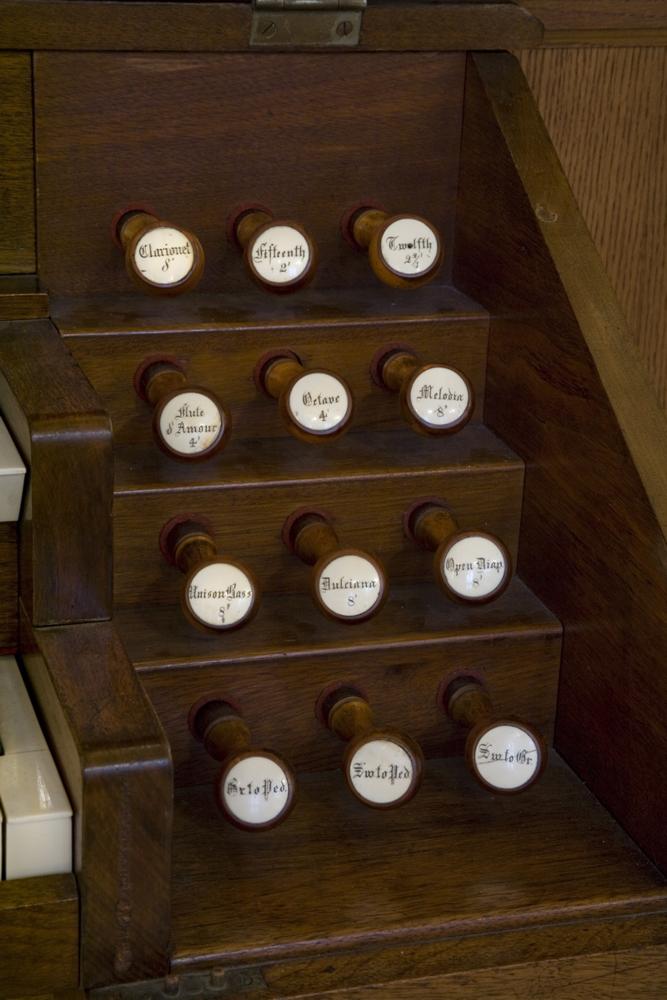

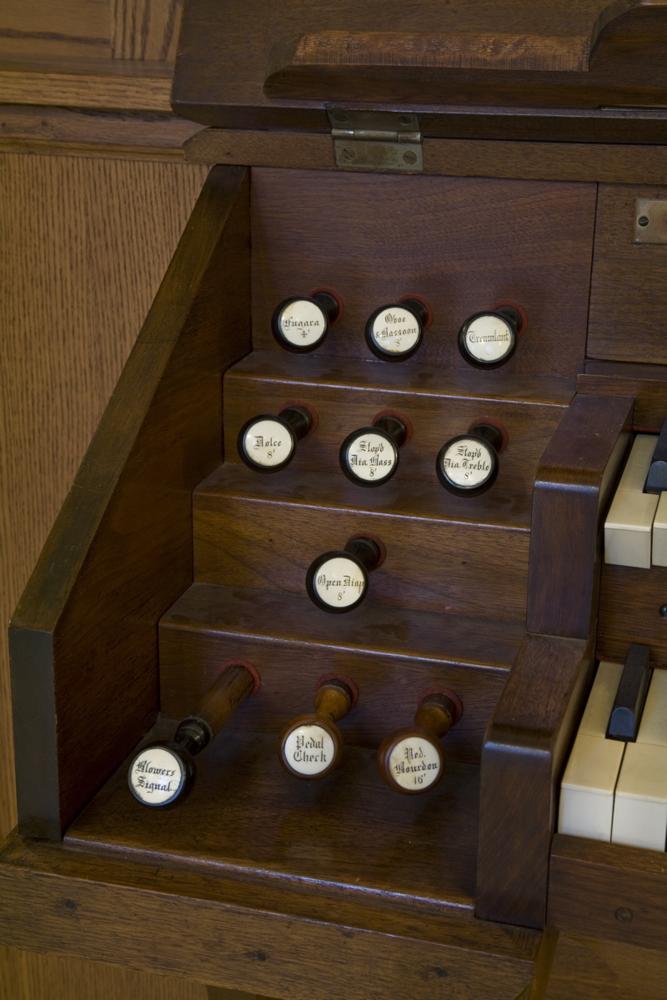

2 Manuals (58 Notes)27 Note Pedal3 DivisionsMechanical (Unknown) Key ActionMechanical Stop Action✓ Coupler Trundle(s)Stop Layout: Drawknobs in Horizontal Rows on Terraced/Stepped Jambs
Expression Type: Balanced Expression Shoes/Pedals (Details Unknown)
Combination Action: Unknown
Control System: Unknown or N/A
Something missing or not quite correct?Add ConsoleorSuggest an Edit
DETAILS
Exhibited in the 2012 OHS convention(s)
This instrument is: Extant and Playable in this location
Identified through information from the Chicago OHS Chapter. -- Relocation without change of a previously altered organ originally built in 1872. The organ was moved from the Oriental Lodge, F.A.M. [Masons - its original home] to Mayfair Methodist Church in Chicago by Coburn ca. 1923 and altered there. When the church closed in 1999, Bradford Organ Co. removed it to storage; the organ was installed here in 2004 and first used March 20, 2005.
Related Instrument Entries: Coburn Organ Co. (1923) , Johnson Organ Co. (Opus 386, 1872)
