Patrick J. Murphy & Associates Organbuilders
2010

Originally Owner (1978)

St. Paul's Episcopal Church (late 1760s)

5486 Saint Paul's Road
King George, VA, US

23 Ranks - 1,345 Pipes

EXPLORE IMAGES VIEW STOPLIST

ADDITIONAL INFORMATION

Something not quite correct?Suggest an Edit

This instrument has multiple revisions:

View Older (1978) Revision

IMAGES

Category:

Only show images in a specific category ☝️

Something missing or not quite correct?Add ImageorSuggest an Edit

STOPLISTS

Selected Item:

View additional stoplist entries if they exist ☝️

Click on a stop or division name for additional details if marked with .

	GREAT (I - Expressive) Position: In Side Chambers at the Front of the Room. Facade Pipes or Case Front Visible Chest Action: Electro Pneumatic (Details Unknown) Stop Action: Electric
8'	Principal Notes: Revoiced	61
8'	Bourdon Notes: 1-12 Pedal Bourdon – new from 13-61.	49
8'	Salicional	SW
8'	Vox Celeste	SW
4'	Octave Notes: Revoiced	61
2'	Fifteenth Notes: Revoiced	61
III-IV	Mixture Notes: Revoiced	183
8'	Trumpet
	Chimes Notes: 21 tubes; existing tubes – new actions with Volume control
8'	Choir Gedackt Notes: existing – no changes	61
4'	Choir Fugara Notes: reconditioned pipes	61

4'	GREAT to GREAT
16'	SWELL to GREAT
8'	SWELL to GREAT
4'	SWELL to GREAT

	SWELL (II - Expressive) Position: In Center Chambers at the Front of the Room. No Visible Pipes Chest Action: Slider With Electro Pneumatic Pallets (Blackinton Type) Stop Action: Electric
8'	Stopped Diapason Notes: existing	61
8'	Salicional Notes: PJM stock	61
8'	Vox Celeste Notes: (TC) PJM stock	49
4'	Spitz Principal Notes: PJM stock/New pipework	61
4'	Koppel Flute Notes: Former Great pipes – Revoiced	61
2'	Blockflute Notes: PJM stock	61
1 ¹⁄₃'	Nineteenth Notes: PJM stock	61
II	Cornet Notes: (TC) new or PJM stock	98
16'	Oboe Notes: (TC)	Oboe
8'	Trumpet Notes: New pipes	61
8'	Oboe Notes: Reconditioned existing pipes	61
	Tremolo
8'	Choir Gedackt Notes: existing – no changes	GT
4'	Choir Fugara Notes: reconditioned pipes	61

16'	SWELL to SWELL
	SWELL Unison Off
4'	SWELL to SWELL

	PEDAL (Expressive) Position: In Center Chambers at the Front of the Room. No Visible Pipes Chest Action: Slider With Electro Pneumatic Pallets (Blackinton Type) Stop Action: Electric Notes: Expressive within division
32'	Resultant
16'	Principal Notes: 1-12 New Haskell	12
16'	Bourdon Notes: Existing; Stoppers repacked and revoiced	44
16'	Lieblich Gedackt Notes: Stoppers repacked	12 SW
8'	Principal Notes: 1-12 from Great	Octave
8'	Bourdon	Bourdon
8'	Stopped Diapason	SW
4'	Octave Notes: Great chamber	32
16'	Contra Trumpet	12 SW
8'	Trumpet	SW
4'	Oboe	SW

8'	GREAT to PEDAL
8'	SWELL to PEDAL
4'	SWELL to PEDAL

The existing pipework was Durst supply from the 1970s. [1978 owner rebuild]

Open In New Tab

Something missing or not quite correct?Add StoplistorSuggest an Edit

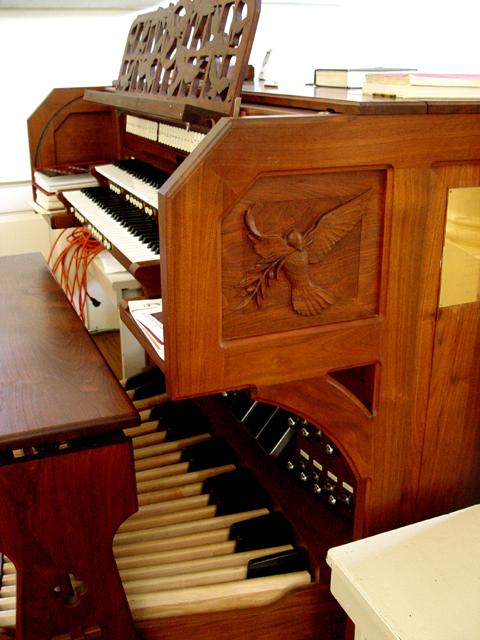

CONSOLES

Selected Item:

View additional console entries if they exist ☝️

Builder: Patrick J. Murphy & Associates Inc Organbuilders

Position: Unknown

Design: Traditional With Roll Top

Pedalboard Type: Concave Radiating (Meeting AGO Standards)

Features:

2 Manuals (61 Notes)32 Note Pedal3 Divisions

Stop Layout: Tilting/Rocking Tablets Above Top Manual

Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)

Combination Action: Unknown

Control System: Unknown or N/A

Additional Notes: Case built by parishioner Dick Gros

Something missing or not quite correct?Add ConsoleorSuggest an Edit

DETAILS

Switch between notes, documents, audio, and blowers ☝️

This instrument is: ExtantandPlayable in this location

Database Manager on June 17th, 2012:

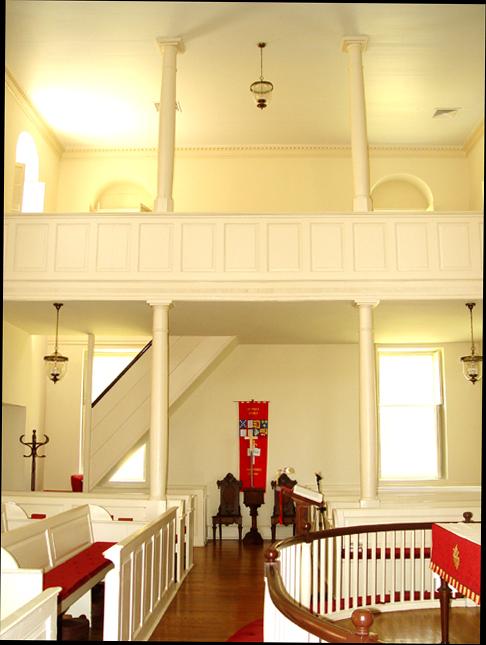

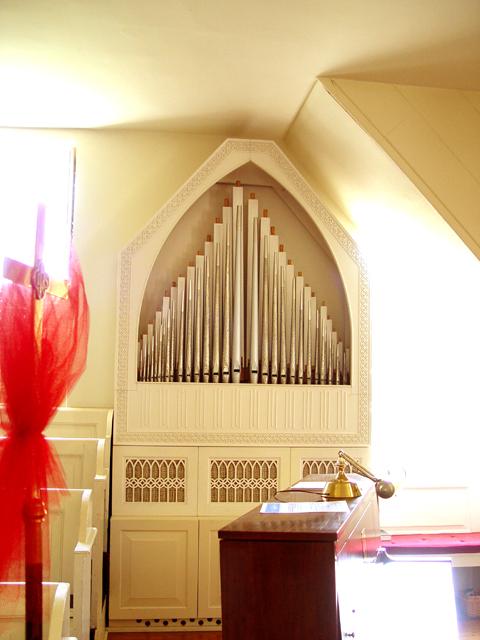

Identified through online information from Stephen Hall. -- Organ is in what appears to be a case on the right side of the room beneath the stairs leading to the U-shape gallery. However the instrument seems larger than the case would indicate, there may be a chamber behind the case.
