The Rudolph Wurlitzer Co.
Opus 294, 1920
St. Charles Borromeo Roman Catholic Church
1491 Baldwin St.
Detroit, MI, US
9 Ranks - 614 Pipes
EXPLORE IMAGESVIEW STOPLISTSomething not quite correct?Suggest an Edit
IMAGES
Something missing or not quite correct?Add ImageorSuggest an Edit
STOPLISTS
| GREAT (Expressive) | ||
| 16' | Open Diapason | 85 |
| 16' | Bourdon | 97 |
| 8' | Tuba | |
| 8' | Open Diapason | |
| 8' | Tibia Clausa | 73 |
| 8' | Clarinet | 61 |
| Blank | ||
| 8' | Salicional | 73 |
| 8' | Viol Celeste tc | 61 |
| Blank | ||
| 8' | Flute | |
| 8' | Dulciana | 73 |
| 4' | Tuba Clarion | |
| 4' | Octave | |
| Blank | ||
| 4' | Salicional | |
| 4' | Viol Celeste | |
| Blank | ||
| 4' | Flute | |
| 4' | Dulcet | |
| 2 2⁄3' | Twelfth | |
| 2' | Piccolo | |
| 1 3⁄5' | Tierce | |
| Blank |
| SWELL (Expressive) | ||
| 16' | Flute | 73 |
| 8' | Tuba | |
| 8' | Open Diapason | |
| 8' | Tibia Clausa | |
| 8' | Clarinet | |
| Blank | ||
| 8' | Salicional | |
| 8' | Viol Celeste | |
| Blank | ||
| 8' | Flute | |
| 8' | Vox Humana | 61 |
| 8' | Dulciana | |
| 4' | Octave | |
| Blank | ||
| 4' | Salicional | |
| 4' | Viol Celeste | |
| Blank | ||
| 4' | Flute | |
| 4' | Dulcet | |
| 2' | Piccolo | |
| Cathedral Chimes | 18 |
| PEDAL (Expressive) | ||
| Blank | ||
| 16' | Diaphone/Diapason | |
| 16' | Bourdon | |
| 8' | Tuba | |
| 8' | Open Diapason | |
| 8' | Tibia Clausa | |
| 8' | Cello | |
| Blank | ||
| 8' | Flute | |
| 8' | Dulciana | |
| 8' | GREAT to PEDAL | |
| 8' | SWELL to PEDAL |
Something missing or not quite correct?Add StoplistorSuggest an Edit

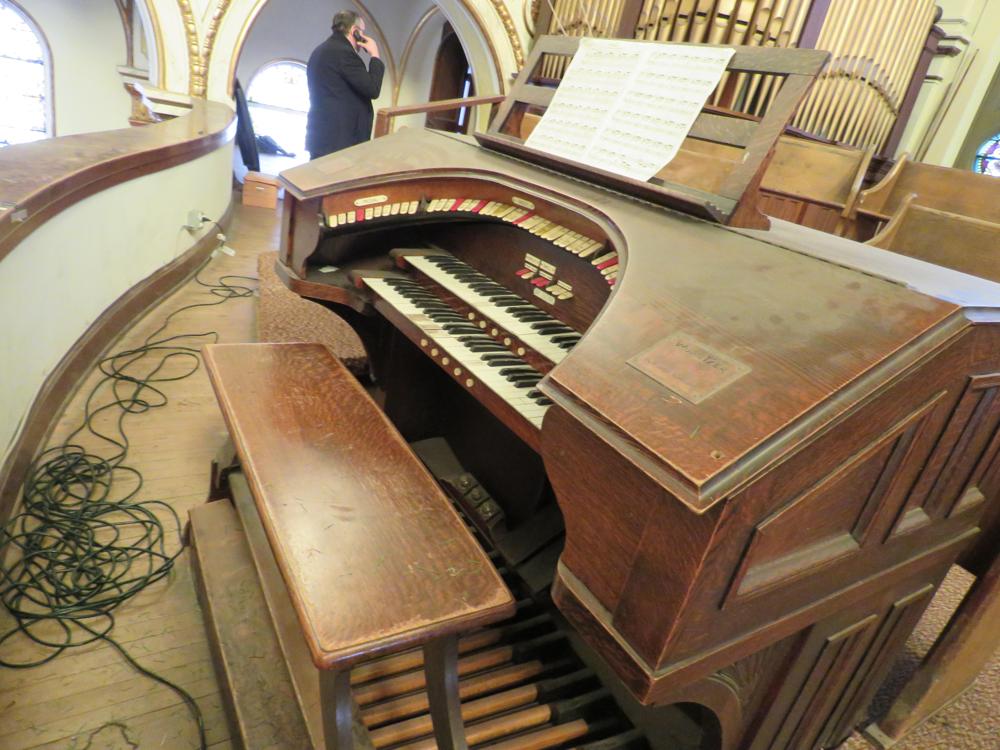

CONSOLES
Builder: The Rudolph Wurlitzer Co.
Position: Console in Fixed Position, Center
Design: Horseshoe
Pedalboard Type: Concave Radiating (Meeting AGO Standards)
Features:
2 Manuals (61 Notes)32 Note Pedal3 Divisions8 Stops43 RegistersElectrical Key ActionElectrical Stop ActionCrescendoCombination Thumb Piston(s)Stop Layout: Stop Keys in Horseshoe Curves
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination Action: 'Hold and Set' Pneumatic/Mechanical
Control System: Unknown or N/A
Something missing or not quite correct?Add ConsoleorSuggest an Edit
DETAILS
This instrument is: ExtantandPlayable in this location
RIGHT (Great side): 16 Diapason/Diapason; 16 Flute; 8 Dulciana; 8 Clarinet; LEFT (Swell side): 16 Tibia; 8 Tuba; 8 Salicional; 8 Viol Celeste; 8 Vox Humana; 16 Tibia. Tremolos to Great, Swell and Vox; Second Touch to Great and Swell.
Paul R. Marchesano on February 9th, 2024:
Message from William Worden, Feb 2024: I inspected this organ about February 1, 2024. It does make sounds, but I would not call it playable.
Database Manager on March 16th, 2018:
Updated by William M. Worden, who gave this as the source of the information: I am personally familiar with the church and the organ. The organ remains intact in the church, although it is apparently seldom used.
Database Manager on April 8th, 2015:
Wurlitzer "Style Special"
Factory date: March 19, 1920
