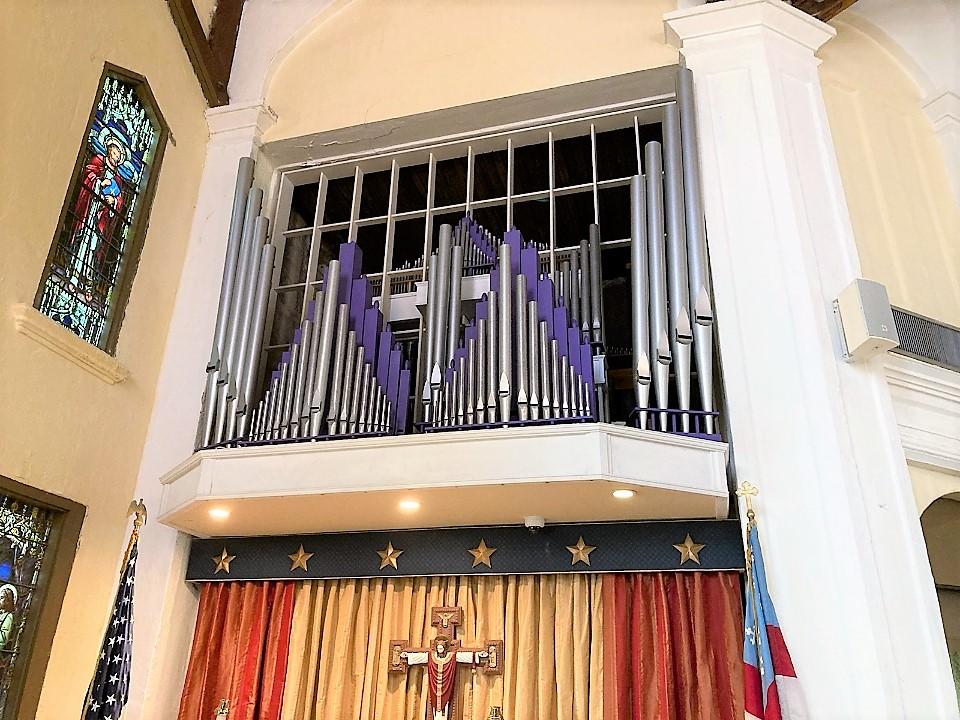

Guzowski & Steppe
2013

Originally Frazee Organ Co. (1931)

St. Paul's Episcopal Church

401 Duval Street
Key West, FL, US

40 Ranks - 2,530 Pipes

Instrument ID: 61105 ● Builder ID: 2546 ● Location ID: 27543

⬆️ These are database IDs that may change. Don't use as academic reference.EXPLORE IMAGES

ADDITIONAL INFORMATION

Something not quite correct?Suggest an Edit

IMAGES

Category:

Only show images in a specific category ☝️

Something missing or not quite correct?Add ImageorSuggest an Edit

STOPLISTS

No stoplist details are available. If you have stoplists, please consider sharing them with us.

Something missing?Add StoplistorSuggest an Edit

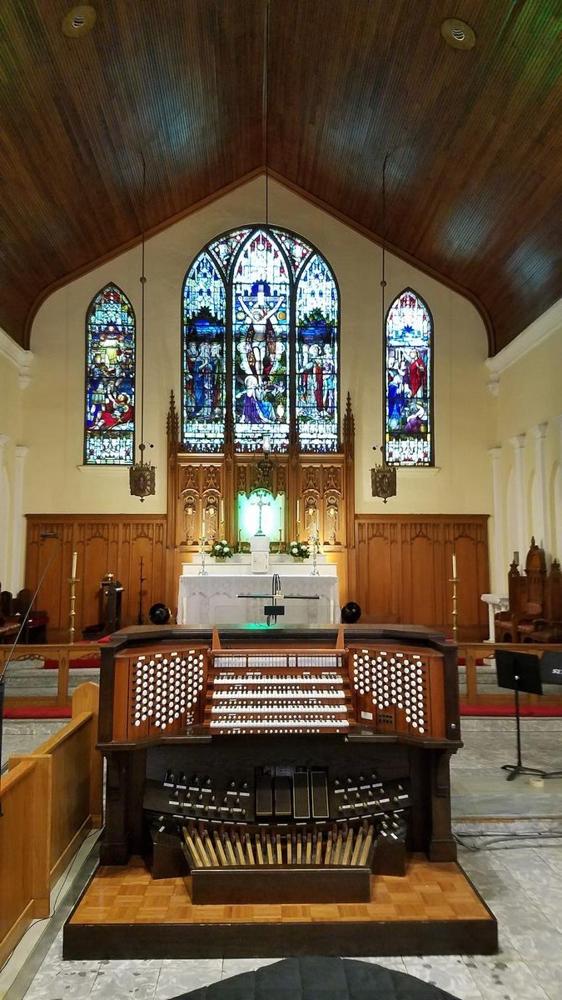

CONSOLES

Selected Item:

View additional console entries if they exist ☝️

Builder: Unknown

Position: Movable Console

Design: Traditional With Roll Top

Pedalboard Type: Concave Radiating (Meeting AGO Standards)

Features:

4 Manuals (61 Notes)32 Note Pedal5 Divisions83 Stops36 RegistersElectrical Key ActionElectrical Stop Action✓ Crescendo✓ Sequencer✓ Combination Thumb Piston(s)✓ Combination Toe Piston(s)✓ Coupler Thumb Piston(s)✓ Coupler Toe Piston(s)✓ Sforzando Thumb Piston(s)✓ Sforzando Toe Piston(s)

Stop Layout: Drawknobs in Vertical Rows on Angled Jambs

Expression Type: Balanced Expression Shoes/Pedals (Details Unknown)

Combination Action: Computerized/Digital

Control System: Unknown or N/A

Something missing or not quite correct?Add ConsoleorSuggest an Edit

DETAILS

Switch between notes, documents, and blowers ☝️

This instrument is: Extant and Playable in this location

Database Manager on November 20th, 2018:
Updated by Douglas H. Cable, the builder. <br> <br>New Great 4\' Octave pipes and action added on existing chest frame, September 2018.

Database Manager on March 16th, 2018:
As per Douglas Cable of Guzowski & Steppe, the Schantz console was originally installed at St. Vincent Ferrer R. C. Church in New York City in 1998; it was shortly replaced there with a new console when Schantz enlarged the St. Vincent Ferrer organ in 2002.

Database Manager on February 22nd, 2018:
This describes a rebuild of an existing organ.

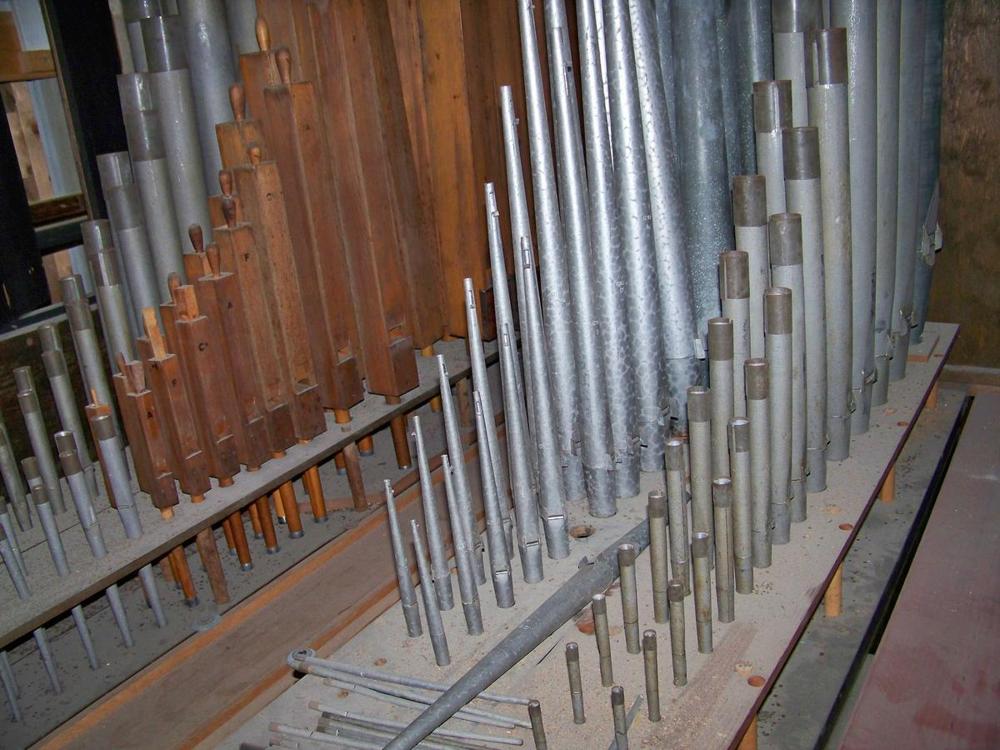

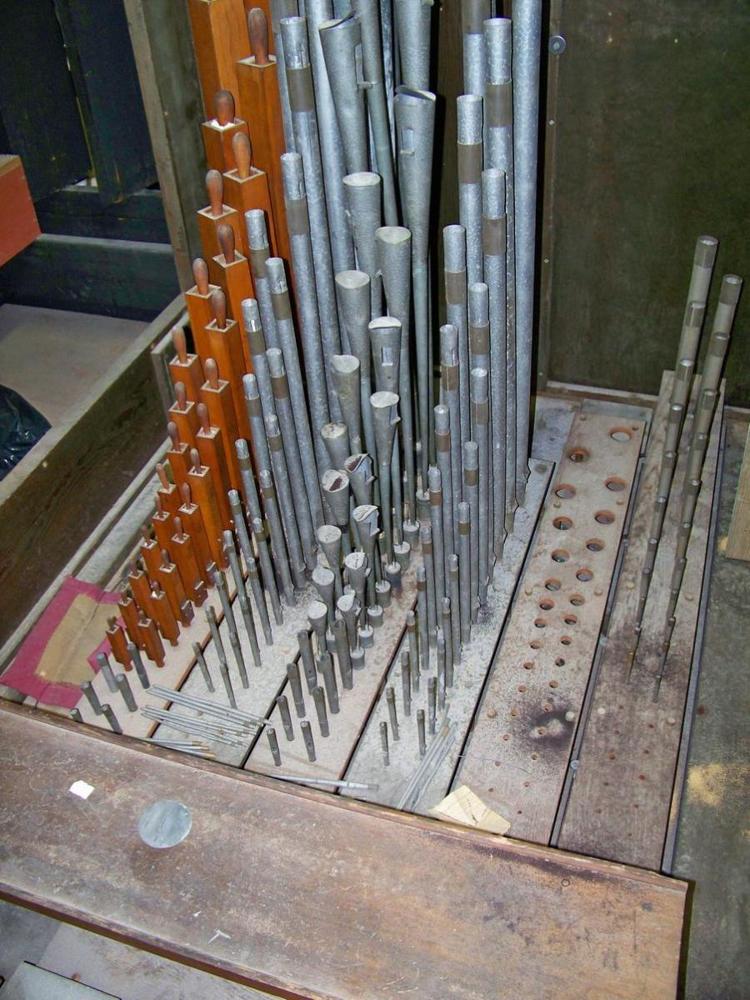

<br>Identified by Douglas H. Cable, the builder.<br>The organ had termite damage to the pouch boards and toe boards. The damaged components were replicated using wood from the same period as the originals. The stopped flutes were re-packed and re-finished. New chests were built for the 16' Open Wood, the 8' Tromba, and Cymbal Mixture.

Related Instrument Entries: Marshall Stone (1990) , Frazee Organ Co. (1931 ca.) , Guzowski & Steppe (2023)
